SHREDDER / CUTTER

DISCLAIMER: DUE TO CONSTANT UPGRADATION, FEATURES AND SPECIFICATIONS ARE

SUBJECT TO CHANGE WITHOUT NOTICE

BEFORE OPERATING THIS MACHINE,

PLEASE READ THESE INSTRUCTIONS CAREFULLY

AMS-76

• Double blades cutting

,more effective.

• Special discharge opening,

safer and nice looking.

• Tool kit equipped, more

practical and convenient.

Table of Contents

Need help?

Do you have a question about the AMS-76 and is the answer not in the manual?

Questions and answers

Summary of Contents for Agrimate AMS-76

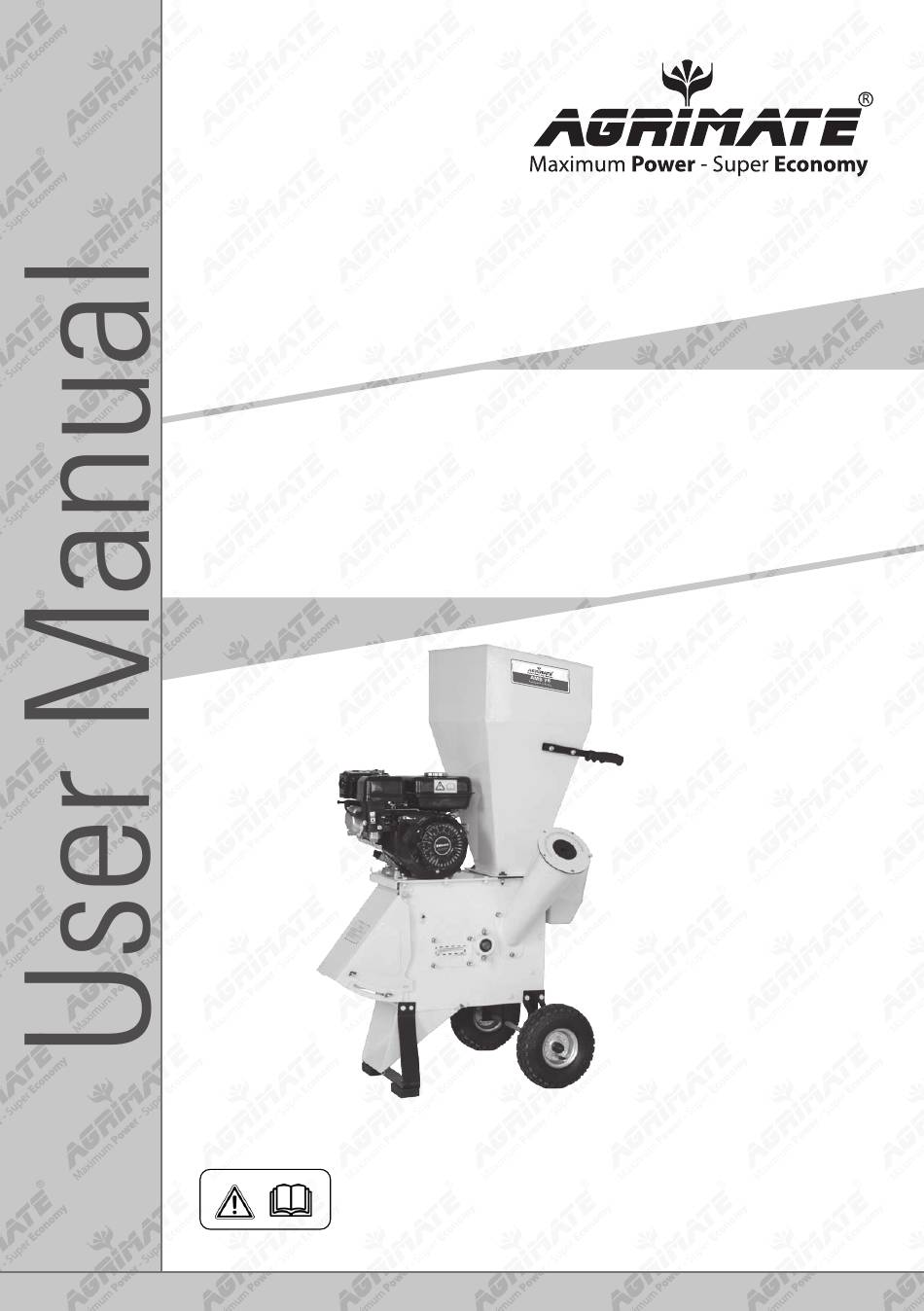

Page 1 AMS-76 SHREDDER / CUTTER • Double blades cutting ,more effective. • Special discharge opening, safer and nice looking. • Tool kit equipped, more practical and convenient. DISCLAIMER: DUE TO CONSTANT UPGRADATION, FEATURES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE...
Page 2: Warning & Symbols
READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE ATTENTION: users. We are highly appreciated for your using AMS-76 shredder. Read this operation manual carefully before attempting to assemble or operate the machine. The power unit used for this shredder is type 168FA. Please read the attached engine manual for detail information of 168FA.
Page 3 Exhaust gas contains poisonous carbon monoxide. Never run the generator in an enclosed area. WARNING Be sure to provide adequate ventilation. When installed in ventilated place, protection is to be observed to avoid to work downwind of exhaust. Recommended oil type: SAE 10W30 / SAE 10W40 To adjust the revolution speed of engine.
Page 4: Maintenance
MAINTENANCE Be extremely cautious to rotating blade in machine. 1. Never allow hand, foot, or any part of body enter hopper. 2. Never place hand, foot or any part of body closed to discharge opening while machine in operation. 3. Do not peer into hopper or discharge opening when the machine is running. 4.
Page 5 2. Attaching front foot to the basic machine. See picture 2. 2.1. Remove the nuts from bolts 1,2,remove the bolts and pipe spacer. 2.2. Forward the parts box to make the long pin 3 clear. 2.3. Pull the discharge hopper out of the parts box and align the holes 1,2. 2.4.
Page 6: Mounting Frame
3.1. Remove the wood shelf. 3.2. Disassemble the bolt 7 and pipe spacer. 3.3. Put the rear axle brackets in place and align the mounting hole with holes 6.7. 3.4. Insert M8*20 bolt in hole 6 from outside to inside and secure it slightly with gasket and nut. 3.5.
Page 7 6.2. Put the frame on the bars and fix it by tightening the screws. Then tighten the screws on the hopper. 7. Safety instructions for machine with bagging attachments. Cover the discharge opening with nylon bag and tighten the tie. When the machine is working, the chips come into the bag.
Page 8: Safety Instructions
SAFETY INSTRUCTIONS i. Training Make sure to fully understand the owner’s manual before attempting to operate the machine. ii. Preparation 1. Put the machine securely in a level surface. 2. Keep the operator area clear of other objects. 3. Do not allow children to operate this equipment. 4.
Page 9 4. Do not allow hands or any other parts of the body or clothing inside the feeding hopper, discharge chute, or other rotating parts. 5. Do not touch the muffler in operation since the temperature of muffler surface is so high that people will be burned.
Page 10: Maintenance And Storage
MAINTENANCE & STORAGE 1. When the machine needs servicing, inspection, or storage, or to replace a part, turn off the engine, make sure all the moving parts completely stop and allow the machine to cool before making any inspections, adjustment etc. 2.
Page 11 VII. LEAVES & GRASS SHREDDING 1. Leaves and short stalk (bean plants), cobs, sod and similar material should be fed into the hopper and chipped in 16 interlaced chipping lots. 2. Do not open the plastic cover when adding more material. 3.
Page 12: Adjusting The Belt
3. Sharpen the blade. • If the blade is struck a break by metal or stone or some hard subjects, please sharpen the break lot at first. • Avoid changing the blade color and anneal when sharpening the blade. • It may result in a breach on the edge if you overexert. •...
Page 13 X. REPLACE THE BELT The “V” belt need for replacement if it is too long or damaged. 1. Turn off the engine and remove the belt cover. 2. Remove the old belt. Pull the belt outside by tools and turn the pulley gradually to remove the pulley.
Page 14 10. Replace the upper hopper . 11. Replace the discharge screen . 12. Replace the board covering the blade. 13. Close the outlet of the discharge. RIGHT WAY WRONG WAY Do stand back - wear glasses & gloves Don’t allow hands to enter hopper or peer in to hopper with face.
Page 15: Specification
SPECIFICATION Name of the model AMS 76 Chipping Capacity 76mm Chipping Efficiency 3.53m Chipping Files 16pieces Power 5HP Engine/Motor Shredding Dia 48cm Chipping Knives No. of Blades 6Nos. Engine GX 160 Engine type 4 Stroke Displacement 163cc Fuel tank volume 3.1L Oil tank Volume 0.58L...
Page 16 AMS-76 SHREDDER / CUTTER DIAGRAM...
Page 17 AMS-76 SHREDDER / CUTTER PART LIST Part No. Description Part No. Description AMS76-01 Rubber Foot AMS76-29 Chipping Chute AMS76-02 AMS76-30 Bearing Seat AMS76-03 Flat Washer AMS76-31 Ball Bearing AMS76-04 Hex Nut AMS76-32 Spacer(Right) AMS76-05 Lock Washer AMS76-33 Impeller AMS76-06 Hex Bolt...
Page 18: Inspection And Maintenance
INSPECTION & MAINTENANCE For safety use, make sure the machine is cleaned every three-months. Before working, make sure to inspect the filter and the nozzle,and ensure there is no impurity. After working, make sure there is no water in the pump and the hose. If the machine needs to be repaired in the guarantee period, please return the machine to the shop.
Page 19: Warranty Card
Warranty Card CUSTOMER COPY Purchaser’s Name & Address Date of Delivery Dealer’s Office Seal Product Name AMS-76 SHREDDER / CUTTER Product Serial No. Dealer Sign Customer Sign. Invoice / DN No. I/We accept the terms and conditions of Warranty as in the Warranty Card.
Page 20 1. LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement.
Page 21 1st Free Service Coupon ISO 9001-2008 CERTIFIED COMPANY FREE SERVICE COUPON (30 Days / 20 hrs (Which ever is earlier) Model Serial Number AMS-76 SHREDDER / CUTTER PDI Date Service No. Purchase bill no. Date Dealer’s Office Seal & Signature Customer Signature.........
Page 22 Small Maintenance. Big Savings. Small Maintenance. Big Savings. Small Maintenance. Big Savings.
Page 23 Do’s Don’ts • Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before attempting to use the equipments. • It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, trousers and jackets while operating potentially dangerous machines.
Page 24 Agrimate Army For Pest Control ANY WHERE - ANY TIME - ANY CROP RATNAGIRI IMPEX PVT LTD Annapurna House, #1/1G, 7th Cross, New Guddadahalli Mysore Road, Bangalore-560 026 Customer Care: 1800 425 3036 email: info@ratnagiriimpex.com www.ratnagiriimpex.com AN ISO 9001:2015 CERTIFIED COMPANY...
