nvent PYROTENAX User Instructions

Power Stripper Tool
User Instructions for Powered Tool Used to Strip Copper Sheathed Mineral Insulated
Wiring Cables

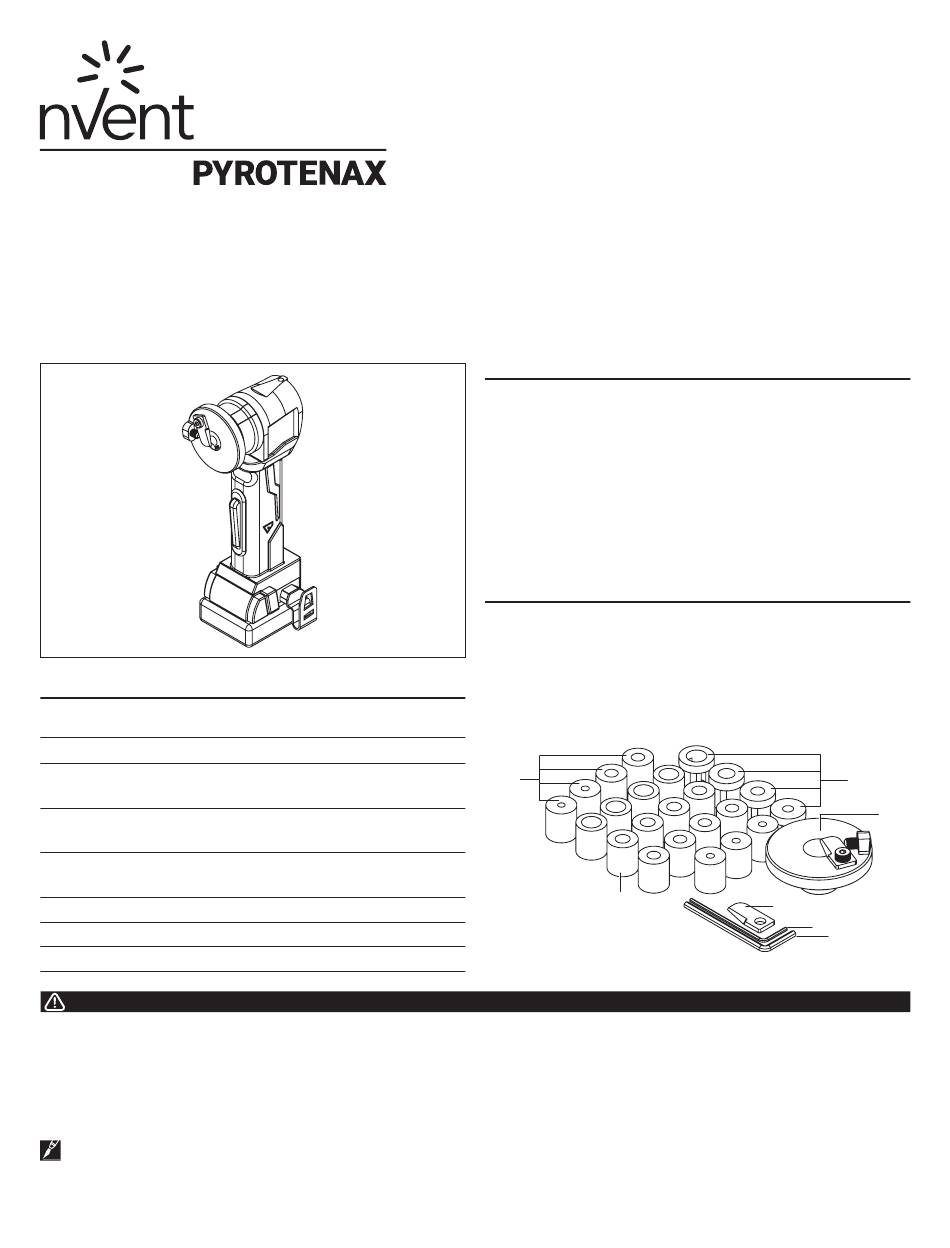

KIT CONTENTS
Item Qty Description
A 1 Power Stripper Tool Adapter Head (includes 1 blade)
B 15 Head Adapter Bushing – Standard cables ranging
0.198 to 0.543 in
C 4 Head Adapter Bushing – Twisted shielded cables
(incl. 2 special "shield" bushings)
D 4 Guide Bushing – For all cables ranging from
0.215 to 0.543 in
E 1 3/32 in Allen Key
F 1 5/32 in Allen Key
G 1 Spare blade for Power Stripper Tool Adapter Head
WARNING:
• Do not use the nVent PYROTENAX Power Stripper Tool with
any non-compatible strippers. Use only nVent PYROTENAX
power stripper tool head, cable head adapter bushings,
and power tool guide bushings. Use of non-approved parts
presents a significant risk of personal injury and/or death.
• Do not use the Power Stripper Tool with any cable other than
approved nVent PYROTENAX MI cable with correct head.
IMPORTANT:
• To prevent moisture from entering the cable and to maintain the high performance of MI cable, the cable ends must be sealed as soon as the cable has been cut to length and the sheath removed as the
magnesium oxide insulation will absorb moisture, lowering the insulation resistance.
• Do not use the Power Stripper Tool head to straighten the cable.
DESCRIPTION
The nVent PYROTENAX Power Stripper Tool kit is designed for
stripping of nVent PYROTENAX copper sheath Mineral Insulated (MI)
cables with diameters of 0.543 in and smaller. The Power Stripper
head must be inserted into a Milwaukee M18™ Cable stripper
#2935-20 or Milwaukee M18™ Cable Stripper (base power tool)
included in Milwaukee Kits #2935CU-21, #2935AL-21 or 2935X-21
(not supplied).
A power stripper tool head, head adapter bushing, and power tool
guide bushing are required for cable stripping.
TOOLS AND ACCESSORIES REQUIRED
• Power Tool: Milwaukee M18™ Cable stripper # 2935-20 or
M18™ Cable Stripper Kit #2935-CU-21, #2935AL-21 or 2935X-21
(not supplied)
• nVent PYROTENAX Hand Vise (Part No. HANDVISE)
(available from nVent)
• Safety glasses and protective gloves
C
adapter bushing. Use of the nVent PYROTENAX stripping
tool with non-approved cables presents a significant risk of
personal injury and/or death.
• To avoid injury and prevent the tool from rotating when not
desired, always remove battery pack or lock the power tool
before working on it or setting up stripper head assembly.
• Wear safety glasses and protective gloves to avoid injury.
B x 15
G
• Follow all warnings, instructions and recommendations
associated with the use of the Milwaukee M18™ Cable stripper
# 2935-20 or M18™ Cable Stripper Kit #2935CU-21, #2935AL-
21, #2935X-21 and battery. Refer to Milwaukee user manuals
for detailed warnings.
nVent.com/PYROTENAX
D
A
E
F
|
