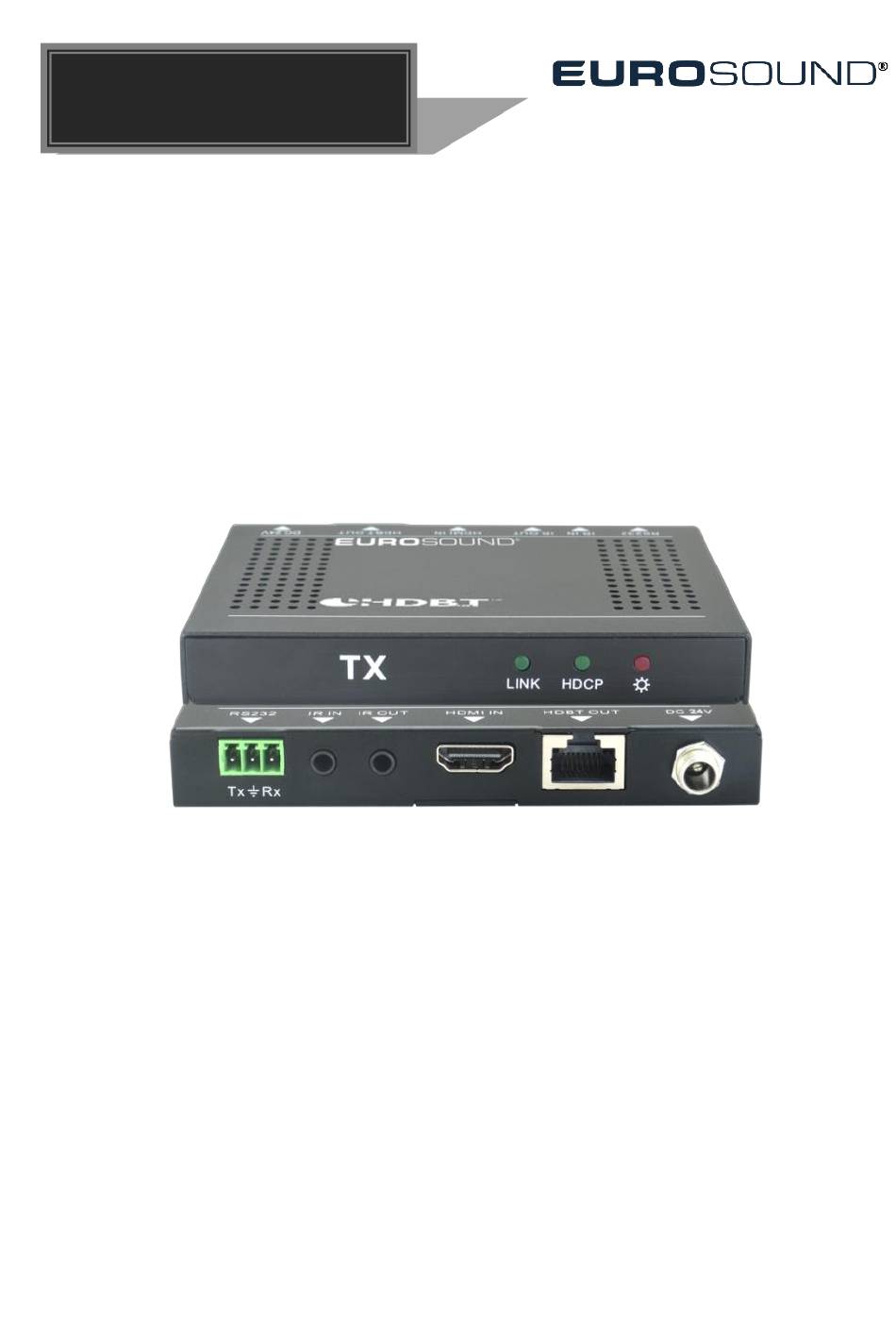

Page 1 User Manual HDBT70TxP HDBaseT Transmitter...
Page 3 HDBaseT Transmitter SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
Page 4 Please refer to the dealers for the latest details. This manual is copyright Eurosound. All rights reserved. No part of this publication may be copied or reproduced without the prior written consent of Eurosound.
Page 5: Table Of Contents
HDBaseT Transmitter Table of Contents 1. Introduction ........................1 1.1 Introduction to HDBT70TxP ................1 1.2 Features ......................1 1.3 Package Contents ....................1 2. Panel Description ......................2 3. System Connection ..................... 3 3.1 Usage Precautions ..................... 3 3.2 System Diagram ....................3 3.3 Connection Procedure ..................
Page 6: Introduction
1. Introduction 1.1 Introduction to HDBT70TxP HDBT70TxP is a mini-size HDBaseT Transmitter which adopts HDBaseT technology to transmit high-resolution 1080p/ 4k signal to HDBaseT receiver via a CAT5e/CAT6a cable at a distance of up to 70/40m. Moreover, it support CEC, bi-directional RS232&IR control, and bi-directional PoH function.
Page 7: Panel Description
HDBaseT Transmitter 2. Panel Description LINK HDCP Name Description HDBT Link status indicator: OFF: No Link LINK ① GREEN:Link Successful Blinking GREEN: Link abnormal HDCP compliant indicator OFF: No HDMI traffic (no picture) HDCP ② GREEN: Traffic with HDCP. Blinking GREEN: Traffic without HDCP Power OFF: No power;...
Page 8: System Connection
HDBaseT Transmitter 3. System Connection 3.1 Usage Precautions 1) System should be installed in a clean environment and has a prop temperature and humidity. 2) All of the power switches, plugs, sockets and power cords should be insulated and safety. 3) All devices should be connected before power on.
Page 9: Application
HDBaseT Transmitter end. For example: When “IR IN” of transmitter connects with an IR receiver, the IR emitter must connect to IR OUT of Receiver. Step5. Connect the RS232 port of the devices to be controlled and the receiver or the transmitter.
Page 10: Specification
HDBaseT Transmitter 4. Specification Input& Output 1 HDMI (HDMI female) Input 1 RS232 (3-pin pluggable terminal block) 1 HDBT (RJ-45) Output 1 IR (3.5mm mini jack) 1 RS232 (3-pin pluggable terminal block) General 640x480@60Hz~4K×2K@30Hz Resolution Range Transmission Mode HD Base T 1080p ≤...
Page 11: Supported Resolution
HDBaseT Transmitter 4.1 Supported Resolution Aspect Ratio Resolution Refresh Rate 4096x2160 30Hz 4Kx 2K 3840x2160 24/25/30Hz 1920x1080 60Hz 1600x900 60Hz 16:9 1366x768 60Hz 1280x720 60Hz 1024x576 60Hz 1920x1200 60Hz 1680x1050 60Hz 16:10 1360x768 60Hz 1280x800 60Hz 1600x1200 60/65/70/75/85Hz 1280x1024 60/75/85/96Hz 1024x768 60/70/75/85Hz 800x600...
Page 12: Panel Drawing
HDBaseT Transmitter 5. Panel Drawing LINK HDCP RS232 IR IN IR OUT HDMI IN HDBT OUT DC 24V 115 mm...
Page 13: Troubleshooting & Maintenance
HDBaseT Transmitter 6. Troubleshooting & Maintenance No image on display: Ensure that the display device has been set to the correct input. Ensure that the HDMI cables used for both the source/transmitter and the receiver/display are properly connected and are working. Test the HDMI cables directly from a source to display and ensure their operation.
Page 14: After-Sales Service
Any transport costs are borne by the users during the warranty. 1. Product Limited Warranty: Eurosound warrants that its products will be free from defects in materials and workmanship for one year, which starts from the first day the product leaves warehouse (The purchase invoice shall prevail).
