Summary of Contents for Navig[8]r NAV-RCDRONE15

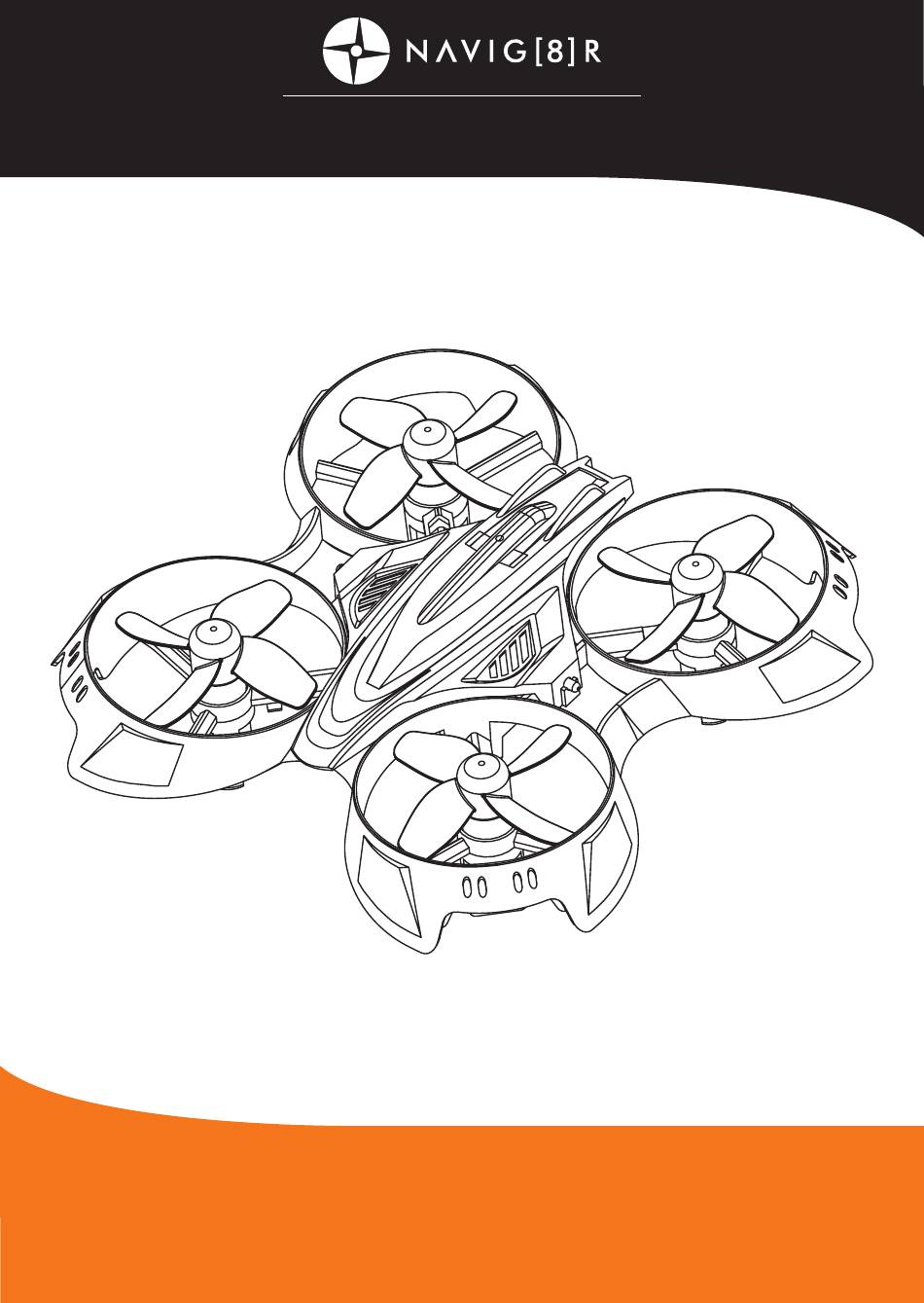

Page 1 User Manual Navig8r Mini Quadcopter NAV-RCDRONE15...

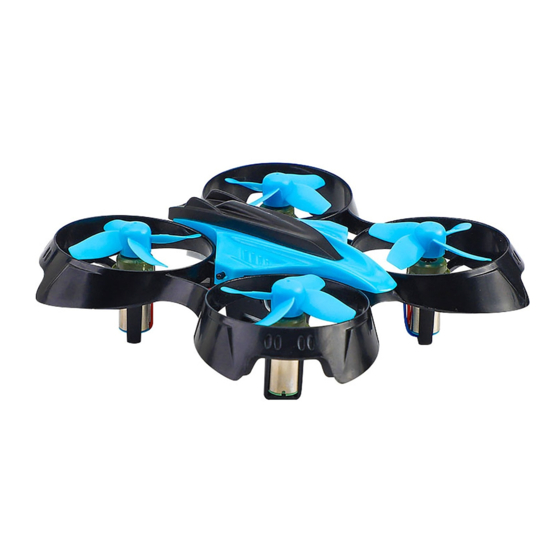

Page 2 KNOW YOUR DRONE The drone uses 2.4G remote control technology to enable multiple drones to fly without interference and allow for functions, such as flight, flips & rolls, fine-tuning, one-key reset, speed switch etc. 1. Upper Casing 2. Lower Casing 3.
Page 3: What's In The Box
WHAT’S IN THE BOX...
Page 4: Pre-Flight Preparation
PRE-FLIGHT PREPARATION 1. PLEASE FIND AN OPTIMAL FLYING ENVIRONMENT. Indoor: Spacious areas away from obstructions, people or pets is preferred Outdoor: Sunny, no wind or mild breezy weather is preferred. Please keep the drone in sight during the flight and keep it away from barriers, high-tension cables, trees and people.
Page 5: Propeller Installation
2. PROPELLER INSTALLATION Align the propellers to the motor shaft and press them until fixed. (Match Propeller A with Shaft A and Propeller B with Shaft B) 3. BATTERY CHANGING FOR THE DRONE Push the battery out of the drone as indicated in the first picture above.
Page 6: Battery Instructions
BATTERY INSTRUCTIONS 1. There can be a certain risk when using batteries that may cause injury or property damage. Users must be aware of the risks and take full responsibility if using batteries improperly. 2. If battery leakage occurs, avoid contact with skin or eyes. If it does happen wash your eyes with clean water and seek medical attention immediately.
Page 7 KNOW YOUR REMOTE CONTROL 1. Speed (High/Low) 5. One Key Reset 2. Flip & Rolls 6. Power Switch 3. Left Joystick: Ascend/Descend 7. Power Indicator Light Turn Left/ Turn Right 4. Right Joystick: Forward/Backward/ Left /Right (click in stick for fine-tuning) 1.
Page 8 2. PAIR THE REMOTE CONTROLLER WITH THE DRONE Plug the battery connector into the drone’s base and wait until the drone’s indicator light starts to blink slowly, which indicates waiting for pairing. Power on the remote controller. When the remote controller’s indicator light blinks, toggle the left joystick upward with a sound of beep and then toggle it downward with a sound of beep.
Page 9: Flight Controls
FLIGHT CONTROLS BASIC FLIGHT The left joystick controls altitude and left/right turning The right joystick controls forwards/backwards flight and left/right strafing LEFT JOYSTICK Ascend Descend RIGHT JOYSTICK Left: Right:...
Page 10: Flips And Rolls
FLIPS AND ROLLS The aircraft is able to perform flips and rolls when at an altitude of over 2 meters. To perform a flip or roll, tap the Flips & Rolls button on the remote controller, you will hear a beeping sound. Next push the right joystick in the desired direction of the flip or roll to perform it.
Page 11: Fine Tuning
FINE TUNING If the drone spins or banks undesirably, use the fine-tuning function to trim the movement. Click in the right joystick, when you hear a beeping sound, push the joystick in the opposite direction of the unwanted movement to trim it back to normal. Note: When the drone is flying at an altitude of 30cms or lower, it’s flight will be influenced by a vortex generated from it’s propellors and may appear...
Page 12: Troubleshooting
TROUBLESHOOTING PROBLEMS CAUSES SOLUTIONS CONTROLLER Batteries not correctly Correctly install the batteries for the installed controller NOT TURNING ON 1. Low battery for the Replace with the new batteries controller Recharge the battery of replace with 2. Low battery for the aircraft FAIL TO PAIR new batteries Turn off the aircraft and the controller...
Page 13 - � Australian Government � " Civi l Aviation Safety Authority Get to know the rules.
Page 14: Important Safety Information
IMPORTANT SAFETY INFORMATION ,,,,,,,,,,,,,,,,,,,11J f • � , , Congratulations on your purchase. We hope you have a lot of fun with it but there are just a few things you need to remember for everyone's safety. You must only operate this aircraft in your line-of-sight in daylight.
Page 15: Warranty Against Defects
WARRANTY AGAINST DEFECTS Laser warrants your new product to be free from defects in materials and workmanship for 12 months, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided. The benefit of this warranty is in addition to your rights under the Australian Consumer Law and to other rights and remedies of the consumer under a law in relation to the goods or services to which the warranty relates.
