TJERNLUND PRODUCTS, INC.

1601 Ninth Street • White Bear Lake, MN 55110-6794

PHONE (800) 255-4208 • (651) 426-2993 • FAX (651) 426-9547

Visit our web site • www.tjernlund.com

MODEL UCRT (UC1 with speed control)

INSTALLATION INSTRUCTIONS

THE UCRT CONTROL IS ONLY SUITABLE FOR USE WITH

TJERNLUND RT SERIES ROOFTOP DRAFT INDUCERS

Recognize this symbol as an indication of important Safety Information!

OWNER INSTRUCTIONS, DO NOT DESTROY

THESE INSTRUCTIONS ARE INTENDED AS AN AID TO QUALIFIED, LICENSED

SERVICE PERSONNEL FOR PROPER INSTALLATION, ADJUSTMENT AND

OPERATION OF THIS PRODUCT. READ THESE INSTRUCTIONS THOROUGHLY

BEFORE ATTEMPTING INSTALLATION OR OPERATION. FAILURE TO FOLLOW

THESE INSTRUCTIONS MAY RESULT IN IMPROPER INSTALLATION, ADJUST-

MENT, SERVICE OR MAINTENANCE POSSIBLY RESULTING IN FIRE, ELECTRI-

CAL SHOCK, CARBON MONOXIDE POISONING, EXPLOSION, PERSONAL

INJURY OR PROPERTY DAMAGE.

DO NOT DESTROY. PLEASE READ CAREFULLY AND

KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.

REV. A 5/11

UC1 VERSION

X.06

P/N 8504162

Table of Contents

Need help?

Do you have a question about the UCRT and is the answer not in the manual?

Questions and answers

Summary of Contents for TJERNLUND UCRT

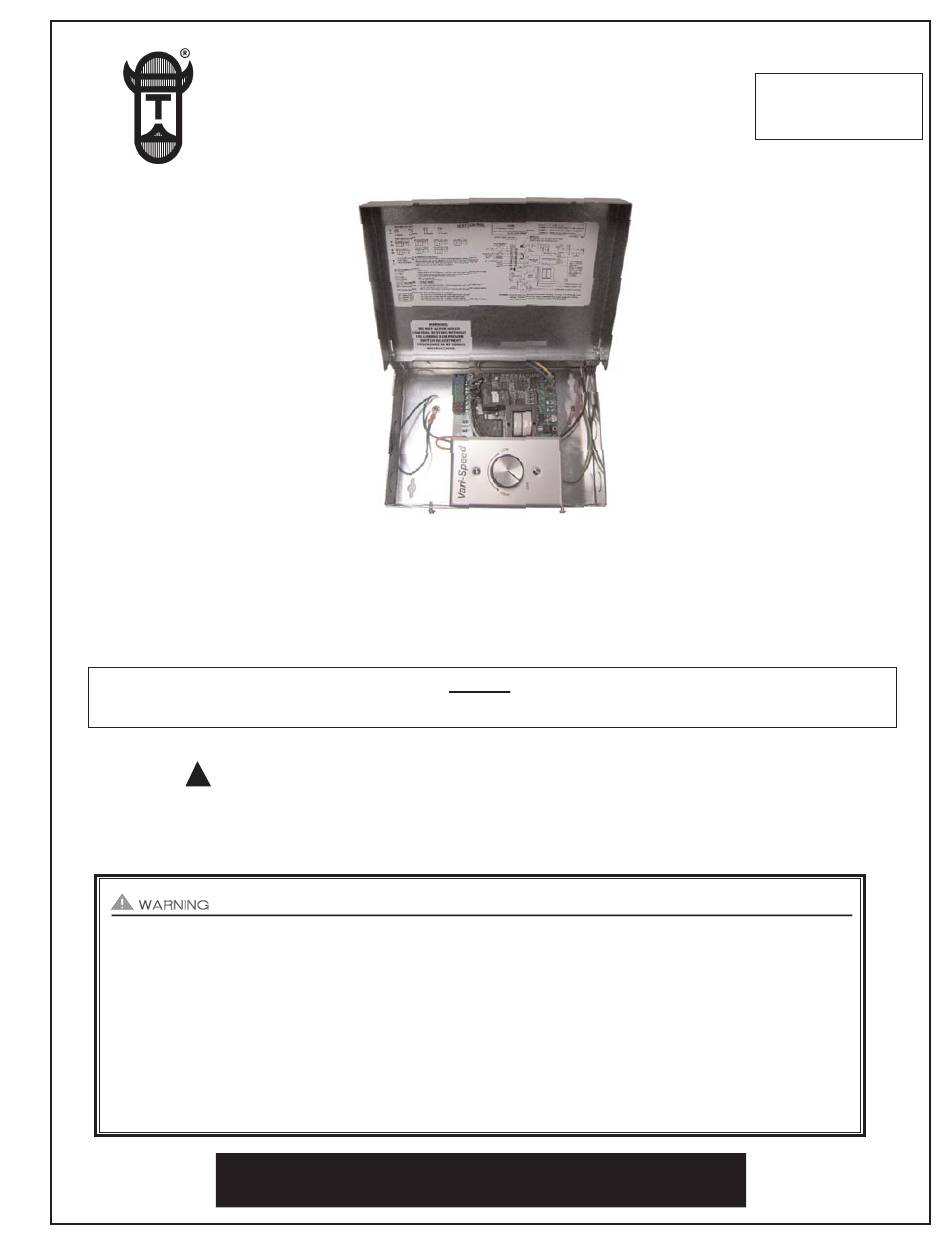

Page 1 Visit our web site • www.tjernlund.com MODEL UCRT (UC1 with speed control) INSTALLATION INSTRUCTIONS THE UCRT CONTROL IS ONLY SUITABLE FOR USE WITH TJERNLUND RT SERIES ROOFTOP DRAFT INDUCERS Recognize this symbol as an indication of important Safety Information! OWNER INSTRUCTIONS, DO NOT DESTROY...
