TENTCO BUSH SHELTER Manual

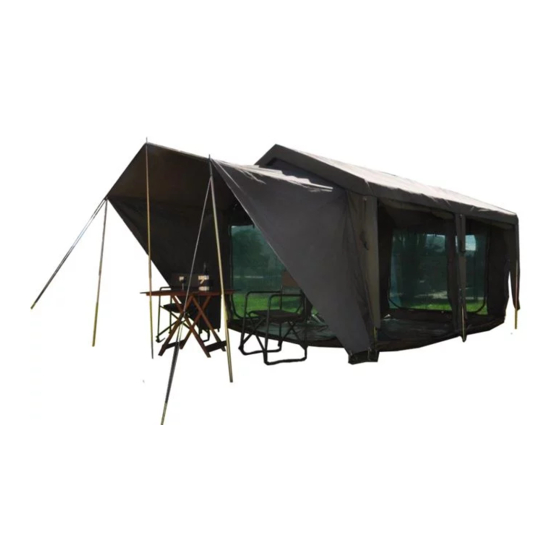

Congratulations on your purchase of this quality Tentco product. This tent is a frame tent with
the tent suspended below the frame and the flysheet fitted over the top of the frame.
Go to www.tentco.co.za
Tent & Frame assembly
1. Remove tent from the bag and lay flat on the ground or deck. Place the flysheet aside for later
2. The frame is assembled by matching the colour coded poles to their matching coloured corners.
3. Assemble the roof section of the frame, inserting only the top half of the legs
4. The tent is attached to the frame with the steel S-hooks with the extra section at front for verandah.
5. Attach the S hooks of the roof section to the roof frame and the top half of the leg poles.
6. Pull the flysheet into position over the frame.
7. Now lift the frame and insert the bottom half of the legs, one side at a time
8. Now the tent is up, open the door to allow air in and spread the groundsheet out until sits well.
Clip the remaining S hooks to the leg poles.
9. Pull the ground sheet tight and secure at all anchor points using straight pegs.
10. The flysheet frontlegs are anchored to the ground around the poles, guyropes are pulled outward and
anchored to ground.
11. See overleaf for more instructions
Dome tent , trailer or a vehicle
can t under the canopy
available seperately
to view instructional videos on how to erect your tent
Dome tent
BUSH
BUSH
SHELTER
SHELTER
Window flaps can
be held up with poles
to create extra cover.
(poles available separately)
