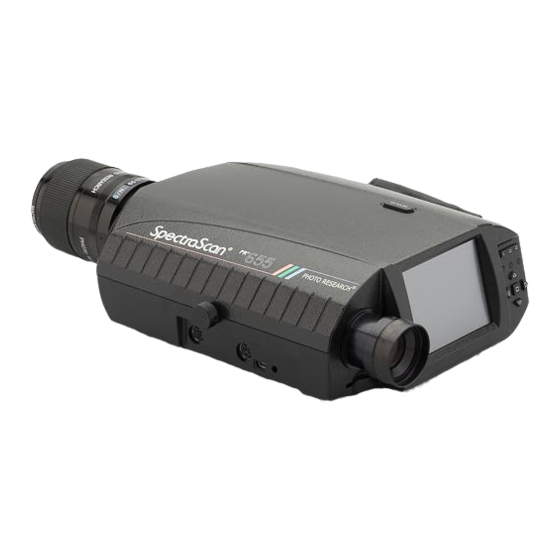

PR-655/670 SpectraScan
User Manual
PHOTO RESEARCH
7279 William Barry Blvd.
North Syracuse, NY 13212
Phone: (315) 701 - 0678
FAX: (315) 701 - 0679
Email:
sales.pr@photoresearch.com
URL:
www.photoresearch.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PHOTO RESEARCH SpectraScan PR-655 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jadak PHOTO RESEARCH SpectraScan PR-655

Summary of Contents for Jadak PHOTO RESEARCH SpectraScan PR-655

  • Page 1 ® PR-655/670 SpectraScan User Manual PHOTO RESEARCH 7279 William Barry Blvd. North Syracuse, NY 13212 Phone: (315) 701 - 0678 FAX: (315) 701 - 0679 Email: sales.pr@photoresearch.com URL: www.photoresearch.com...
  • Page 2 This page intentionally left blank.
  • Page 3 The information contained in this document is subject to change without notice. If there are any questions pertaining to the use of this system, contact JADAK. Jadak and Novanta shall not be liable for errors contained herein or for incidental consequential damages in connection with the furnishing, performance, or use of this system.
  • Page 4 Customer Support PHOTO RESEARCH, Inc. has support services available to users in case of problems using the PR-655/670. PHOTO RESEARCH, Inc. personnel are available from 8:00 AM to 4:30 PM (Eastern Time) Monday through Friday, except legal holidays, to aid in technical support. Call (315) 701-0678, FAX: (315) 701-0679 or e-mail: for technical support - support.pr@photoresearch.com instrument repair or calibration...

  • Page 5: Table Of Contents

    PR-655/670 User Manual Table of Contents Introduction ............................. 1 Standard Equipment ........................1 System Overview ..........................1 LCD Screen ........................... 2 System Information ......................2 Graphical User Interface (GUI) ................... 2 Title Bar ..........................5 System Status Icons ......................5 Command Bar ........................
  • Page 6 PR-655/670 User Manual Standard Objective Lens ......................15 Installing and /Removing the Standard Lens ..............15 Removing the Objective Lens ................... 16 Installing the Objective Lens .................... 16 Software ............................. 17 SpectraWin™ 2 Software ....................17 SpectraWin 2 RGB Display Cal Module ................17 Windows Driver Dynamic Link Library (.DLL) ..............
  • Page 7 PR-655/670 User Manual Setting the Measurement Speed (PR-670 Only) .............. 33 Setting the SYNC Mode ....................33 Setting Smart Dark Mode (PR-670 Only) ................34 File Settings ..........................35 Accessing the File Setting Screen ..................35 SD File Field ........................35 Creating a New Measurement File ...................
  • Page 8 PR-655/670 User Manual RGB Display Cal (Standard on PR-670, Optional on PR-655) ..........61 Standard Illuminants ........................67 Measurement Types ........................68 Luminance / Radiance ...................... 68 Illuminance / Irradiance ....................73 Luminous / Radiant Intensity ................... 77 Luminous / Radiant Flux ....................81 Timed Measurements ........................
  • Page 9 PR-655/670 User Manual PR-650 Remote Mode Compatibility (PR-655 Only) ..............114 Enable/Disable PR-650 Emulation Mode ............... 114 Remote Control Command Summary ..................115 Remote Control Command Detail .................... 116 Setup Commands ........................118 Measurement and Data Send Codes ................124 Data Code Summary .......................
  • Page 10 PR-655/670 User Manual Table of Figures 1 - PR-655/670 S ..........................1 IGURE PECTRA 2 - PR-670 S ..........................2 IGURE TARTUP SCREEN 3 - PR-680/680L S ..........................3 IGURE YSTEM 4 - PR-655/670 T ...........................5 IGURE ITLE BAR 5 - PR-655/670 M ....................6 IGURE EASUREMENT COMMAND BAR...
  • Page 11 PR-655/670 User Manual 24 - P ..........................25 IGURE OWER AVING 25 - B ......................26 IGURE RIGHTNESS AND ONTRAST CREEN 26 - S ........................27 IGURE OUNDS AND LERTS CREEN 27 - D ..........................28 IGURE ATE AND CREEN 28 - M ............................
  • Page 12 PR-655/670 User Manual 48 – PR-655 / PR-670 S ......................54 IGURE PECTROMETER 49 - CIE 1931 T ......................55 IGURE RISTIMULUS UNCTIONS 50 - L* ..........................58 IGURE ETUP CREEN 51 - F ........................... 58 IGURE ECALL CREEN 52 - S .........................
  • Page 13 PR-655/670 User Manual 72 - ICC-655 / 670 I ......................75 IGURE NTEGRATING PHERE 73 - I ......................77 IGURE LLUSTRATION OF UMINOUS NTENSITY 74 - LR-55 LED R ..........................78 IGURE ECEPTOR 75 - LR-127 ..............................80 IGURE 76 - IS-655 / IS-670 O ........................
  • Page 14 PR-655/670 User Manual 96 - PR-6 ......................96 IGURE NSTALLER START INSTALLATION 97 - PR-6 ......................96 IGURE TILITIES INSTALLATION FINISH 98 - WIDCOMM B ..................... 97 IGURE LUETOOTH SOFTWARE INSTALLER 99 - WIDCOMM ..................... 97 IGURE DRIVER INSTALLATION COMPLETED 100 - MY B ........................
  • Page 15 PR-655/670 User Manual 120 - COM ....................111 IGURE PORT SELECTION IN YPER ERMINAL 121 - M ..............111 IGURE OMPUTER PROPERTIES RIGHT CLICK DROP DOWN OPTION 122 - S ........................112 IGURE YSTEM ROPERTIES MENU 123 - WINDOWS XP ......................

  • Page 16: Introduction

    PR-655/670 User Manual NTRODUCTION The PR-655 and PR-670 SpectraScan are the newest additions to the already world renowned SpectraScan colorimeter series of instruments. These unique, portable battery powered instruments ® utilize fast-scanning photo diode arrays, a 3.5” color touch screen display, and AutoSync automatically synchronizing to the source refresh rate insuring the utmost accuracy.

  • Page 17: System Overview

    PR-655/670 User Manual YSTEM VERVIEW FIGURE 1 - PR-655/670 SPECTRASCAN Reference Description Function Reference Description Function Up, Down, Left, Objective Lens Focusing on target 5-Way Switch Right, and Enter View Finder Open/Close view 3.5” LCD Data/Navigation Shutter Control finder View target / View Finder SD Slot Data storage...

  • Page 18: Lcd Screen

    PR-655/670 User Manual LCD S CREEN The PR-655/670 features an on-board, 3.5” high resolution, full color touch screen LCD display. The area visible to the user is called the active area. The active area of the LCD display contains the graphical user interface of the PR-655/670.

  • Page 19: Pr-680/680L System Menu

    PR-655/670 User Manual FIGURE 3 - PR-680/680L SYSTEM MENU The GUI consists of three major panes: Item Description Title bar Active pane Command bar TABLE 2 - GUI PANE DESCRIPTION The flow of the menu navigation on the PR-670 is similar to that of a tree structure. In a tree structure there are roots and from the roots exist branches (sub menus), indicated by the following icon ( ) which have more branches or end nodes (leafs).
  • Page 20 PR-655/670 User Manual Navigation Steps: → Preferences Date & Time Root Branch From System Menu navigate to and select From Preferences navigate to and select Date & Preferences. Time. End Node (Leaf) To traverse back to the System Menu simply click the Back button twice.

  • Page 21: Title Bar

    PR-655/670 User Manual ITLE The title bar displays the current active menu location (1) and critical system information status (2). A detailed list of system status icons can be found in the system status section of this manual. FIGURE 4 - PR-655/670 TITLE BAR YSTEM TATUS CONS...

  • Page 22: Command Bar

    PR-655/670 User Manual OMMAND The command bar is located at the bottom of the GUI, and displays the appropriate navigation and control buttons based on the active pane. There are three main expected command bar views: UTTON Whenever the back button is displayed, the user can traverse back to the previous menu or, if desired, back to the root.

  • Page 23: I/Oports

    PR-655/670 User Manual PORTS The I/O port panel is located on the left side of the PR-655/670 instrument when looking from the rear of the instrument. The panel consists of the following I/O connectors: FIGURE 7 - PR-655/670 I/O PORT PANEL Item Description Remote Head Connector...

  • Page 24: External Trigger Connector

    PR-655/670 User Manual 2. E XTERNAL RIGGER ONNECTOR The PR-655/670 is equipped with a 6 pin mini-din connector that can be utilized for externally triggering a measurement, and subsequently sending a signal (simple DC signal or pulse) to a source capable of being externally triggered - such as a xenon strobe lamp.

  • Page 25: Figure 10 - Sample External Trigger Input Circuit Drivers

    PR-655/670 User Manual FIGURE 10 - SAMPLE EXTERNAL TRIGGER INPUT CIRCUIT DRIVERS...

  • Page 26: Power Connector

    PR-655/670 User Manual FIGURE 11 - SAMPLE EXTERNAL TRIGGER OUTPUT CIRCUIT 3. P OWER ONNECTOR The PR-655/670 power (AC Adapter) supply connector. The unit can also be powered using the standard Li-Ion battery pack. FIGURE 12 - PR-655/670 POWER CONNECTOR 1.

  • Page 27: Connector - Optional

    PR-655/670 User Manual 2. RS-232 C ONNECTOR OPTIONAL For Remote Mode applications requiring traditional RS-232 communications, an optional RS-232 interface can be provided. This option adds an RJ-12 jack to the PR-655/670 system allowing the user to connect the PR- 655/670 to a PC’s RS-232 port via the included RJ-12 to DB-9 adapter.

  • Page 28: Figure 15 - Pr-655/670 Battery Compartment Close Up

    PR-655/670 User Manual Open battery door. FIGURE 15 - PR-655/670 BATTERY COMPARTMENT CLOSE UP Description Lithium Ion (Li-Ion) Battery Pack Battery Eject Button Battery Compartment Door Battery Door Latch TABLE 5 - PR-655/670 BATTERY COMPARTMENT DESCRIPTION...

  • Page 29: Inserting The Battery

    PR-655/670 User Manual NSERTING THE ATTERY Facing the front of the instrument, slide the battery door latch away from the objective lens until the door opens (See FIGURE 15). Orient the battery so that the two copper contacts face toward the objective lens, and toward the rear of the instrument.

  • Page 30: Charging The Battery

    PR-655/670 User Manual HARGING THE ATTERY Note: Fully charge the battery before the initial use. 1. The PR-655/670 battery will charge whenever the AC Adapter or active USB is connected to the instrument. 2. If you purchased the optional Rapid Charger, the time for a full charge is 3.5 to 4 hrs. To use the charger: a.

  • Page 31: Instrument Storage

    PR-655/670 User Manual NSTRUMENT TORAGE When the PR-655/670 will be idle for an extended period of time, remove the battery pack from the instrument. Store the battery pack in a cool dry place. The instrument including all standard accessories should be stored in the provided soft carrying case.

  • Page 32: Removing The Objective Lens

    PR-655/670 User Manual Install Lens Uninstall Lens EMOVING THE BJECTIVE 1. Grasping the rear rubber ring (see 2. FIGURE 18) turn the lens counter-clock-wise until the lens separates from the lens mount. NSTALLING THE BJECTIVE 1. Grasping the rear rubber ring (see 2.

  • Page 33: Software

    PR-655/670 User Manual OFTWARE Following are all optional software packages that are available for the PR-655/670 systems. ™ 2 S PECTRA OFTWARE ERSION Full featured, menu driven, Windows software that calculates luminance, CIE chromaticity, correlated color temperature, dominant wavelength and excitation purity (saturation) from measured spectral data and provides features such as graphically represented spectral distribution and CIE color space (1931 and 1976), data manipulation (math functions) save/recall binary or ASCII files, print graphics screens or tabular data, reflectance / transmittance, L*a*b*u*v* measurements, ΔE Color Difference and Color Rendering Indices (CRI) of lamp...

  • Page 34: User Self Calibration Software

    PR-655/670 User Manual ALIBRATION OFTWARE Single License Provides complete recalibration capabilities for the PR-655/670 including wavelength accuracy, spectral intensity, linearity and accessory calibration. This option requires a helium wavelength calibration source (WC- 600 or equivalent) and variable spectral radiance/ luminance standard (LRS-455 or equivalent). 5 Unit License Same capabilities as single unit license but for 5 PR-655/670 instruments.

  • Page 35: Optical Accessories

    PR-655/670 User Manual PTICAL CCESSORIES The following optical accessories can be added to your existing PR-655 or PR-670. They require calibration with the instrument to provide accurate results. They can be calibrated by the user using the User Self Calibration software.

  • Page 36: Variable Focus Lenses

    PR-655/670 User Manual IS-655 / IS-670 Integrating Sphere An integrating sphere is designed to measure the total luminous and radiant power of small point sources such as miniature lamps, light emitting diodes (LED’s) and etc. over 4π steradians. Using this accessory, Radiant and Luminous Flux (lumens), correlated color temperature (CCT) and chromaticity coordinates can be measured.

  • Page 37: Fixed Focus Lenses

    PR-655/670 User Manual SL-0.5X - Supplementary Lens A 0.5X magnification lens that provides field coverage halfway between the MS-75 and SL-1X lenses. Threads into the MS-75 during use. See the Specifications section for field coverage and working distance. SL-1X - Supplementary Lens A 1X magnification, fixed focus lens for luminance/radiance measurements.

  • Page 38: Setup

    PR-655/670 User Manual ETUP NTRODUCTION This section provides instructions and procedures for setting up general instrument settings of the PR-655 / PR-670 prior to making measurements. For the location of components referred to in this section, please see the Introduction section of this manual. EFORE YOU EGIN SING THE...

  • Page 39: Figure 20 - System Menu

    PR-655/670 User Manual FIGURE 20 - SYSTEM MENU Click on UTILITIES. Click on Calibrate Touch Screen. The following screen appears: FIGURE 21 - CALIBRATE TOUCH SCREEN Using a pointed object, begin the calibration by touch center of the X in the upper-left-hand corner of the screen.

  • Page 40: Setting Instrument Preferences

    PR-655/670 User Manual ETTING NSTRUMENT REFERENCES Several hardware parameters of the PR-655 / PR-670 can be adjusted to the users liking. They include Power Saving, Brightness and Contrast, Connectivity (and optional Bluetooth), Date and Time, Units and 650 Remote Mode (PR-655 only). 1.

  • Page 41: Figure 24 - Power Saving Menu

    PR-655/670 User Manual DJUSTING OWER AVINGS ETTINGS The Power Saving feature can extend the battery life if the instrument is left on and unattended. The user can select to enable or disable this feature. 1. Touch Power Saving from the Preferences menu. FIGURE 24 - POWER SAVING MENU 2.

  • Page 42: Figure 25 - Brightness And Contrast Screen

    PR-655/670 User Manual DJUSTING RIGHTNESS AND ONTRAST Brightness and Contrast control the appearance on the display under various ambient lighting conditions. To access and adjust Brightness and Contrast: FIGURE 25 - BRIGHTNESS AND CONTRAST SCREEN 1. From the Preferences menu, touch Brightness and Contrast. 2.

  • Page 43: Figure 26 - Sounds And Alerts Screen

    PR-655/670 User Manual NABLE AND ISABLE NSTRUMENT OUNDS The PR-655 and PR-670 can audibly alert the user to various conditions of the instrument including audible button click feedback, measure shutter sounds, measurement complete alerts and low battery warning. To enable and disable these features: FIGURE 26 - SOUNDS AND ALERTS SCREEN 1.

  • Page 44: Figure 27 - Date And Time Screen

    PR-655/670 User Manual ETTING THE ATE AND The PR-655 and PR-670 is set to US Pacific Coast date and time at the factory. If the power is disconnected from the instrument (battery and AC Adapter), the date and time will be maintained for at least 1 year. To reset the date and time: FIGURE 27 - DATE AND TIME SCREEN 1.

  • Page 45: Instrument Setup Instructions

    PR-655/670 User Manual NSTRUMENT ETUP NSTRUCTIONS Prior to making a measurement, it is necessary to insure that the instrument is aware of the accessory to be used (and aperture for the PR-670), the exposure (integration time), the sensitivity mode (PR-670 only), the number of measurements to average, the SYNC mode and the Dark Current mode (PR-670 only) during the upcoming test to insure that proper calibration factors are applied following a measurement.

  • Page 46: Selecting An Aperture (Pr-670 Only)

    PR-655/670 User Manual (PR-670 ELECTING AN PERTURE ONLY 1. Touch the ▼ or ▲ icon adjacent to the field named Aperture to scroll through aperture selections until the aperture of choice is displayed. Standard apertures include the 1°, 0.5°, 0.25° and 0.125°. ELECTING A RIMARY CCESSORY...

  • Page 47: Setting Adaptive Exposure Time

    PR-655/670 User Manual FIGURE 32 – MEASUREMENT AVERAGE ENTRY SCREEN 2. Enter the number of measurements to average. The range is 1 to 99. 3. Touch the Back key when done. ETTING DAPTIVE XPOSURE The exposure time is the amount of time the detector is exposed to light. The PR-655 and PR-670 utilize the patented Adaptive Sensitivity...

  • Page 48: Setting The Instrument Sensitivity Range (Pr-670 Only)

    PR-655/670 User Manual FIGURE 33 – EXPOSURE TIME ENTRY SCREEN 3. Enter the desired exposure time. The range is 3 ms to 6,000 ms for the PR-655 and 6 ms to 30,000 ms for the PR-670. Note: The sensitivity range must be set to Extended to use the maximum value of 30,000 ms (PR-670 only).

  • Page 49: Setting The Measurement Speed (Pr-670 Only)

    PR-655/670 User Manual (PR-670 O ETTING THE EASUREMENT PEED The total time needed to complete a measurement is certainly an important issue. This feature can help speed up measurements by changing the way the Adaptive Sensitivity determines when a measurement is completed. In the Fast mode, the total measurement time will be approximately halved.

  • Page 50: Setting Smart Dark Mode (Pr-670 Only)

    PR-655/670 User Manual To set the SYNC mode: 1. Make sure Adaptive is set to Enabled. 2. Touch the ▼ or ▲ icon in the SYNC field to toggle between None, Manual, and Automatic. 3. If Manual is selected, touch the field adjacent to Frequency to access the following data entry screen: FIGURE 34 - SYNC PERIOD DATA ENTRY SCREEN 4.

  • Page 51: File Settings

    PR-655/670 User Manual ETTINGS The File Settings options pertains to accessing the Secure Digital (SD) card installed in the card slot of the PR-655/670. If no card is inserted in the slot, these options are not available for change (grayed out). The File Settings option allows the user to setup the following features: 1.

  • Page 52: Creating A New Measurement File

    PR-655/670 User Manual FIGURE 36 - MEASUREMENT FILE DOES NOT EXIST ON SD CARD 4. To create the file Touch OK. To create a new measurement file Touch on . If is pressed this screen will appear after every successful measurement unless Auto Save is disabled. REATING A EASUREMENT Multiple measurements files with up to 200 measurements per file can be saved on the SD card.

  • Page 53: Deleting A Measurement File

    PR-655/670 User Manual Enter the desired file name – 8 characters max with no extension. As the characters are pressed, they appear in the window at the top of the screen. Press Shift to display a second set of characters as shown in following example. FIGURE 38 - SECOND CHARACTERS SET 3.

  • Page 54: Auto Save

    PR-655/670 User Manual FIGURE 39 - MEASUREMENT FILE RENAME 5. Touch Back to complete the process. With Auto Save set to ON, measurements are automatically saved to the file name in the SD Field in addition to the internal RAM memory area. Use the ▼or ▲ icons to toggle between Auto Save ON and Auto Save OFF.

  • Page 55: Explorer Settings

    PR-655/670 User Manual If no decision is made within 300 seconds (5min.) the instrument will power down and all current measurements will be lost. XPLORER ETTINGS Explorer Settings determine the memory location (Internal RAM or External SD card) and file name (if SD is selected) for viewing stored measurements.

  • Page 56: Recalling Measurements Stored On Sd Card

    PR-655/670 User Manual Measurement file on SD card - name and measurement number being viewed. FIGURE 42 - FILE EXPLORER ECALLING MEASUREMENTS STORED ON CARD Measurements stored on the SD card can be recalled in three ways. 1) Using the instrument explorer, see Explorer Settings section for more information, 2) Using SpectraWin 2.0 (optional) Import feature, refer to SpectraWin 2 manual for more information 3) Using the in-built Remote Control Mode capability, see Remote Control Command Detail section for more information.

  • Page 57: Utilities

    PR-655/670 User Manual TILITIES FIGURE 43 - UTILITIES MENU The Utilities functions include, in addition to calibrating the touch screen described earlier, seldom used features such as Restoring the Calibration files, Restoring Standard Illuminants and Updating Firmware. The Services item is has a factory only accessibility status. ESTORING ALIBRATION LLUMINANTS...

  • Page 58: Updating Firmware

    PR-655/670 User Manual FIGURE 44 - PR-655/670 UTILITIES MENU 7. Touch Restore Calibration to restore all calibration factors. If restoring standard illuminants, touch Restore Illuminants. 8. Once the restore process is successfully completed the instrument will power down. Note: If any errors occur during this restore process consult factory immediately. PDATING IRMWARE The firmware can be easily updated in the field.
  • Page 59 PR-655/670 User Manual FIGURE 45 - PR-655/670 FIRMWARE UPDATE PROMPT 9. If Yes was selected, the firmware is automatically updated. 10. At the screen that appears following the completion of the update, press OK to restart the instrument and initialize the new firmware.

  • Page 60: Advanced Setup

    PR-655/670 User Manual DVANCED ETUP USTOM PECTRAL ALIBRATION The correlation of two instruments measuring the same sample has always been an issue. This is especially true when comparing results from two different instrument manufacturers, or when the calibration of an instrument is suspect.
  • Page 61 PR-655/670 User Manual → → MPORTING .MEA F Although it would be unlikely to have to perform this procedure for two PR-655 / PR-670 instruments, it is possible to save a measurement on the SD card of the Source instrument, and use that measurement data in the Target instrument.
  • Page 62 PR-655/670 User Manual 7. Measure the sample with the Target instrument. 8. The Custom Spectral Calibration is complete. 9. To use these new factors for subsequent measurements, make sure that Custom Spectral Correction is Enabled and that One Time Calibration is Disabled. 10.

  • Page 63: Cie Pass / Fail (Optional)

    PR-655/670 User Manual 3. Make sure Custom Spectral Correction is Disabled and that One Time Calibration is Enabled. 4. Enter the name of the file from Step 1 by touching the Spectral File field to bring up the Spectral File Dialog. →...
  • Page 64 PR-655/670 User Manual → → EFINING EGIONS ECTANGLES QUARES To define a Rectangle or square, two sets of values are entered. The first set is the CIE 1931 x, y coordinate of the upper left hand corner referred to in the Pass / Fail menu as the rectangles are oriented so that the sides are parallel to boundaries (axes) of the CIE diagram.
  • Page 65 PR-655/670 User Manual c. Enter the value (including the decimal point) then touch Back. This value is the distance from the Top Left x coordinate in Step 3c. d. Touch the gray field next to Top to display the data entry field for the Lower Right CIE 1931 y coordinate.
  • Page 66 PR-655/670 User Manual → LLIPSES IRCLES The process for defining an ellipse or square is very similar to defining a rectangle or square. Essentially, a box or rectangle is defined, and the PR-655 / PR-670 creates an ellipse or circle inside the box. Note: To define a circle, the Width and Height values must be identical.
  • Page 67 PR-655/670 User Manual e. Enter the value (including the decimal point) then touch Back. This value is the distance from the Top Left y coordinate in Step 3e. → → → → → Following the measurement, touch the < > icons at the bottom of the result screen to scroll to the CIE diagram screen.
  • Page 68 PR-655/670 User Manual 2. Touch the ▼▲ icons in the Shape field until Polygon appears. 3. Select the number of points to define by touching the ▼▲ icons adjacent to the No. of Points field. The Range is 3 to 10 points. 4.

  • Page 69: Theory Of Operation

    PR-655/670 User Manual HEORY OF PERATION The PR-655 and PR-670 are true Spectroradiometer. They collect the optical radiation (light) through the objective lens or other optical accessory. The signal then passes through the aperture (hole) in the aperture mirror to the diffraction grating (see Figure 48). The grating breaks up the light into its component wavelengths much like a prism turns white light into a rainbow.
  • Page 70 PR-655/670 User Manual Incident 256-detector light array Diffracted Aperture light mirror Grating Input Slit Diffraction grating Objective lens Optical Eyepiece radiation FIGURE 48 – PR-655 / PR-670 SPECTROMETER The uncorrected or ‘raw’ spectrum is corrected using factors established during the factory calibration of the instrument.
  • Page 71 PR-655/670 User Manual FIGURE 49 - CIE 1931 TRISTIMULUS FUNCTIONS CIE XYZ Tristimulus and Photometric Values Where X, Y, and Z are the three CIE Tristimulus values. represents the red component, Y is the green component and Z is the blue component. Y also serves as the photometric value –...
  • Page 72 PR-655/670 User Manual Once the three Tristimulus values have been derived, useful colorimetric values such as CIE 1931 x, y and 1976 u’, v’ can be calculated by the following formulae: CIE 1931 x, y CIE 1976 u’, v’...

  • Page 73: Measurements

    PR-655/670 User Manual EASUREMENTS EASUREMENT ODES Four Measurement Modes are available to the user: Standard, L*u*v*, L*a*b* and RGB Display Cal TANDARD In Standard Mode the PR-655 / PR-670 performs a measurement then calculates standard photometric and colorimetric values. * / L* ODES L*u*v* and L*a*b* measurements use photometric and colorimetric values for CIE L*u*v* or L*a*b* three dimensional color difference calculations.

  • Page 74: Figure 50 - L* U V * Setup Screen

    PR-655/670 User Manual OW TO EASUREMENTS 1. Touch the ▼ or ▲ icons in the Measurement Mode field to select L*u*v* or L*a*b*. 2. To make L*u*v* or L*a*b* measurements, it is necessary to first select a white reference (Illuminant). Touch Select at the bottom of the Illuminant column.

  • Page 75: Figure 53 - L*U*V* Setup Screen

    PR-655/670 User Manual FIGURE 53 - L*U*V* SETUP SCREEN Touch Delta E Disabled to enable color difference measurements if desired. If Delta E is enabled, Select under the Reference column becomes activated. The Reference is the “Golden Sample” against which all subsequent samples are compared for color difference calculations.

  • Page 76: Figure 54 - L*U*V* Result Screen

    PR-655/670 User Manual b. Make sure Internal RAM is selected in the Current View field. c. Press the MEASURE button on the top of the instrument. d. At the completion of the measurement, touch Back. e. To use this measurement, touch Recall. To use a previously stored measurement, touch Prev or Next until the measurement of choice appears then touch Recall.

  • Page 77: Rgb Display Cal (Standard On Pr-670, Optional On Pr-655)

    PR-655/670 User Manual In this example, Delta E has been selected in the Measurement Mode setup screen. The displayed values of x, y, u’, v’, u, v, CCT, mk-1, and dev are the measured values of the sample. RGB D PR-670, O PR-655) ISPLAY...
  • Page 78 PR-655/670 User Manual ISPLAY PTION Two options are available in this field: Match Sample and Match Data. In Match Sample mode, white point calibrations are based on a measured reference value. Match Data mode allows the user to enter target values in terms of luminance (Y) and CIE 1931 x, y values. Whichever method is chosen, all measurements require that a phosphor (either stored or custom) be selected and that a reference white point is set.
  • Page 79 PR-655/670 User Manual 2. Touch the desired values, then touch Back when finished. 3. Repeat for both chromaticity (x, y) values for each primary. If the values are not known, they may first be measured by turning on only one primary at a time (3 measurements total) and noting the resultant CIE x, y values for entry into these fields.

  • Page 80: Figure 57 - Select Rgb Illuminant Screen

    PR-655/670 User Manual FIGURE 57 - SELECT ILLUMINANT SCREEN 2. Touch the ▲▼ icons adjacent to Current View to scroll through available selections. Select Standard Illuminants, then touch Prev or Next to scroll through available choices. The title of the currently displayed data set appears at the top of the screen –...

  • Page 81: Figure 59 - Yxy Data Entry Screen

    PR-655/670 User Manual Touch Recall to accept the measured data. If measurements are stored in RAM or on an SD card, they can be accessed and recalled. In the preceding example, measurement number 2 of 3 is displayed. OR X NTRY ROCEDURE FIGURE 59 - Y XY DATA ENTRY SCREEN...
  • Page 82 PR-655/670 User Manual 1. Touch the ▲▼icons adjacent to Match Method to display either Y x,y or x,y. 2. Enter the desired values for Y, x and y in the fields directly below Reference Data by touching any of the fields.

  • Page 83: Standard Illuminants

    PR-655/670 User Manual FIGURE 61 - MEASUREMENT SCREEN 2. The instrument will make continuous measurements until the Abort key is touched. Adjust the primaries of the display until the vertical indicator bars for R, are all at the center of the respective colored bars and the % deviation (values to the right of the bars) reads 0.00.

  • Page 84: Measurement Types

    PR-655/670 User Manual FIGURE 62 - STANDARD ILLUMINANTS SCREEN 1. Touch Prev or Next to scroll through illuminants. 2. Touch the icons to scroll through various data screens for the currently displayed illuminant. EASUREMENT YPES The PR-655 and PR-670 can make several types of measurements depending on the type of accessory being utilized.

  • Page 85: Figure 63 - Illuminance / Luminance Concept

    PR-655/670 User Manual In the following example, let’s say a projector screen, the light incident on the surface is illuminance, and the light being reflected from the surface is luminance. FIGURE 63 - ILLUMINANCE / LUMINANCE CONCEPT OW TO AKE A UMINANCE ADIANCE EASUREMENT...

  • Page 86: Figure 66 - Aperture Alignment

    PR-655/670 User Manual SING AN BJECTIVE ENSES Aligning and focusing the Optical System (Both PR-655 and PR-670) 1. If using the MS-75, make sure the target is out of focus by defocusing the lens. If using a fixed focus lens, such as the MS-2.5X, move either the target or instrument until the target is out of focus. 2.

  • Page 87: Figure 67 - Instrument Setup Menu

    PR-655/670 User Manual 5. From the Instrument Setup menu, touch the ▲ ▼ icons adjacent to Primary Accessory until the installed lens appears. 6. Make any other changes in the Setup menu such as Sensitivity, Speed, Average etc. 7. Touch the MEASURE button to begin a measurement. FIGURE 67 - INSTRUMENT SETUP MENU FP-655 FP-670...
  • Page 88 PR-655/670 User Manual It can also be used to approximate the luminance of more distant sources, averaged over a circular field. (The acceptance angle of the probe is approximately 30 at the half-power points and 50° at the 10% response points.

  • Page 89: Illuminance / Irradiance

    PR-655/670 User Manual The Luminance Adaptor enables the PR-655 or PR-670 to measure surface luminance and radiance of backlit sources (e.g. cathode ray tubes, fluorescent lamps and self-luminous displays) that can be placed in contact with the rubber cup of the Adaptor. It can also be used to approximate the luminance of more distant sources, averaged over a circular field.

  • Page 90: Figure 71 - Cr-655 / Cr-670

    PR-655/670 User Manual For the PR-655 and PR-670, the (optional) accessories used to measure illuminance are the CR-655 or CR-670, and the RS-3 or SRS-3. The CR-655 (or CR-670) is a diffuser that serves as the surface upon which the incident light falls. During calibration these accessories are photometrically calibrated using a standard lamp whose candela rating has been certified to NIST standards.
  • Page 91 PR-655/670 User Manual 3. Install the CR-655 / CR-670 by first loosening the knurled set-screw and separating the collar from the main body of the accessory. Screw the collar into the PR-655 / 670 by turning clock-wise. Hand tighten only. Do not over-tighten! 4.
  • Page 92 PR-655/670 User Manual RS-3 SRS-3 R SING THE EFLECTANCE TANDARD The RS-3 Reflectance Standard has an absolute reflectance of 99% (± 1%) from 370 to 780 nanometers. Focusing the PR-655 or PR-670 on the plaque allows the resultant luminance reading, in footlamberts (or candelas, meter²), to be converted directly into illuminance values, in footcandles (or lux).

  • Page 93: Luminous / Radiant Intensity

    PR-655/670 User Manual 4. Align and focus the instrument on the reflectance standard. Make sure the measuring aperture is within the illuminated area on the plaque. Note: For reflectance measurements, it is not necessary to select RS-3 as an accessory since the measurements are relative rather than absolute.
  • Page 94 PR-655/670 User Manual LED Mounting Port LED Adapter LED Adapter Screws (2 each) Mounting Thread FIGURE 74 - LR-55 LED RECEPTOR Typical applications for the measurement of luminous intensity include lamps (candelas) and LED’s (millicandelas). For the measurement of luminous intensity, the PR-655 or PR-670 can be equipped with the LR- 55 LED Receptor and or the LR-127 CIE LED Analyzer.
  • Page 95 PR-655/670 User Manual EOMETRICAL ONSIDERATIONS  The LR-55 is designed to measure the emittance of LED's over an 8.3 acceptance cone. It is important to note that since the spatial distribution of LED's varies with angle, LEDs measured using  acceptance cones other than 8.3 will produce different results.

  • Page 96: Figure 75 - Lr-127

    PR-655/670 User Manual A / B Slide LED Side Instrument Side FIGURE 75 - LR-127 LR-127 NSTALLING THE 1. Remove the current optical accessory from the PR-655/670 by turning counter-clockwise. 2. Remove the lens mount (Instrument Side – see Figure 75) by loosening the thumb screw that secures the mount to the main section of the LR-127.

  • Page 97: Luminous / Radiant Flux

    PR-655/670 User Manual UMINOUS ADIANT Luminous Flux (given in lumens) is the basic unit of photometry and is calculated from Radiant flux (given in watts). It represents the total luminous or radiant output of a source over 360° and is analogous. Typical applications for luminous flux measurements include florescent or incandescent lamps and LEDs where it is required to know the total output of the source.
  • Page 98 PR-655/670 User Manual FIGURE 77 – IS-655 / IS-670 INSIDE VIEW IS-600 NSTALLING THE 1. Remove the current optical accessory from the PR-656 / 670 by turning counter-clockwise. 2. Install the IS-655 / 670 by carefully threading clockwise into the C mount ring located in the front of the instrument.

  • Page 99: Figure 78 - Height Adjustment

    PR-655/670 User Manual Insert the Mounting Tube into the Collar until the Mounting Tube just touches the top of the Height Adjustment Screw. Tighten the Set Screw to hold the Mounting Tube in place. DO NOT OVER TIGHTEN! FIGURE 78 - HEIGHT ADJUSTMENT AKING A EASUREMENT 1.

  • Page 100: Timed Measurements

    PR-655/670 User Manual IMED EASUREMENTS It may become desirable to make periodic (timed measurements) to, for example, check the drift characteristics at pre-defined intervals for a certain period of time. You may also want to make continuous (repetitive) measurements or a fixed number of measurements. This can be accomplished using the Timed Measurements feature.

  • Page 101: Setting Timed Measurements Parameters

    PR-655/670 User Manual ETTING IMED EASUREMENTS ARAMETERS IMED EASUREMENTS 1. Navigate to the Timed Measurements screen by touching Menu, then Setup then Timed Measurements. 2. If it is desirable to repeat the timed measurement sequence, set Continuous Measurements to Enabled. 3.

  • Page 102: Connectivity

    PR-655/670 User Manual ONNECTIVITY The PR-655/670 is equipped with a Mini-B USB connector, allowing for remote communication and USB ® charging. This port also allows for communication with the optional SpectraWin 2 software, or to control the instrument using Remote Mode commands. Note: The USB port can only be used to recharge the battery.
  • Page 103 PR-655/670 User Manual 5. Choose Install from a list or specific location (Advanced) and click Next. FIGURE 82 - PR-655/670 USB DRIVER INSTALL 6. Insert the CD supplied with PR-655/670 into an appropriate CD drive. Choose Search for the best driver in these locations , then browse to <CD Drive With PR-6xx_Setup CD>:\usb_driver FIGURE 83 - PR-655/670 USB DRIVER LOCATION SELECTION Click Next.
  • Page 104 PR-655/670 User Manual 9. Click on Continue Anyway. FIGURE 84 - WINDOWS XP COMPATIBILITY WARNING FOR PR-655/670 USB DRIVER 10. Click Finish FIGURE 85 - PR-655/670 USB DRIVER INSTALL COMPLETE...

  • Page 105: Usb Hub Type

    PR-655/670 User Manual USB H Virtually all modern computers today supply current through the Universal Serial Bus (USB) hub to power external devices when necessary. Typically, the current supplied is 500 mA. Some external USB hubs supply only 100 mA or no current at all. The USB Hub Type option provides the means of selecting the power available to the instrument via the PC.
  • Page 106 PR-655/670 User Manual Total power available Total power required FIGURE 87 - USB POWER SCREEN...

  • Page 107: Setting Usb Hub Type

    PR-655/670 User Manual USB H ETTING The USB Hub Type option can be accessed via the Connectivity preference option. → → Navigate to Menu Preferences Connectivity. FIGURE 88 - BLUETOOTH/USB CONNECTIVITY MENU No Power Press the ▲or ▼ icons adjacent to USB Hub Type until No Power appears. With No Power selected, the instrument runs entirely on the battery and draws no power from the USB hub.

  • Page 108: Bluetooth* (Optional)

    PR-655/670 User Manual LUETOOTH OPTIONAL  HOST (PC) PR-655/670 FIGURE 89 - BLUETOOTH TOPOLOGY The optional Bluetooth feature allows the PR-655/670 to be wirelessly controlled by a remote host using Remote Mode commands from a user developed application or terminal emulator such as HyperTerminal or SpectraWin 2 control software up to 100 meters away.

  • Page 109: Figure 90

    PR-655/670 User Manual 6. Click on Next. FIGURE 90 - PR-6XX INSTALLER 7. Choose I Agree and click Next. FIGURE 91 - PR-6XX INSTALLER LICENSE AGREEMENT SCREEN...

  • Page 110: Figure 92

    PR-655/670 User Manual 8. The following ReadMe screen appears. FIGURE 92. PR-6XX USB DRIVER INSTALL LOCATION README 9. Click Next. The following software Destination location screen appears: FIGURE 93 - PR-6XX INSTALLER INSTALL DIRECTORY SELECTION 10. Click Next (then go to Step 11) to install the driver to the default directory (Photo Research) or click Browse to bring up the following screen and select a different folder.
  • Page 111 PR-655/670 User Manual FIGURE 94 - PR-6XX INSTALLER NON DEFAULT DIRECTORY SELECTION 11. Navigate to and select the drive and folder of choice, and then click OK. 12. From the screen that appears, select the Windows XP Bluetooth Drive. A demo version of ®...
  • Page 112 PR-655/670 User Manual 13. Click Next to start the installation. FIGURE 96 - PR-6XX INSTALLER START INSTALLATION 14. The WIDCOMM Bluetooth software installation will start. FIGURE 97 - PR-6XX UTILITIES INSTALLATION FINISH 15. Click on and click Next. 16. Click Next...
  • Page 113 PR-655/670 User Manual 17. Click Install. FIGURE 98 - WIDCOMM BLUETOOTH SOFTWARE INSTALLER 18. During the Setup the driver will prompt for the USB dongle. DO NOT INSERT DONGLE UNTIL PROMPTED TO DO SO. 19. Click Finish. FIGURE 99 - WIDCOMM DRIVER INSTALLATION COMPLETED 20.

  • Page 114: Figure 101 - Initial Bluetooth Configuration Wizard

    PR-655/670 User Manual 21. The Initial Bluetooth Configuration Wizard will appear. FIGURE 101 - INITIAL BLUETOOTH CONFIGURATION WIZARD 22. Click Next. 23. Click Next allowing the default settings. FIGURE 102 - DEVICE NAME AND TYPE SELECTION 24. Make sure that only Bluetooth Serial Port is checked.
  • Page 115 PR-655/670 User Manual FIGURE 103 - BLUETOOTH SERVICE SELECTION 25. Click Skip. FIGURE 104 - BLUETOOTH FIND DEVICE PROMPT 26. Click Finish to complete the Initial Bluetooth Configuration Wizard setup.

  • Page 116: Enable/Disable Bluetooth

    PR-655/670 User Manual FIGURE 105 - INITIAL CONFIGURATION WIZARD COMPLETE 27. The Bluetooth hardware is now ready to use. NABLE ISABLE LUETOOTH Bluetooth communications is enabled via the connectivity preferences menu. 1. Navigate to Menu→ Preferences → Connectivity. FIGURE 106 - BLUETOOTH/USB CONNECTIVITY MENU 2.

  • Page 117: Bluetooth Discovery Mode

    PR-655/670 User Manual Bluetooth Status Bluetooth Icon Functionality Disabled No Icon Bluetooth Off Bluetooth enabled and connectable by previously Enabled paired remote host. Bluetooth enabled and discoverable by any remote (Blinking) Enabled & Discoverable host. (Green) Bluetooth Link Established Successful connection made with a remote host. TABLE 7 - PR-655/670 BLUETOOTH MODES LUETOOTH ISCOVERY...

  • Page 118: Pairing Pr-655/670 With A Host

    PR-655/670 User Manual FIGURE 108 - BLUETOOTH DISCOVERABLE DURATION INPUT By default the instrument will be discoverable for up to 30 seconds by a host computer. If a longer duration is required simply click on the icon next to Discoverable Duration and choose the desired duration up to 3 minutes (see Figure 42).
  • Page 119 PR-655/670 User Manual FIGURE 109 - BLUETOOTH CONNECTIVITY SETUP WINDOW Host Double click on the icon located on the desktop. Click on Add a Bluetooth Device located in the top right corner of the window. FIGURE 110 - MY BLUETOOTH PLACES...

  • Page 120: Figure 111 - Bluetooth Driver Setup Wizard

    PR-655/670 User Manual The Bluetooth Setup Wizard will appear. FIGURE 111 - BLUETOOTH DRIVER SETUP WIZARD Click Next. The wizard will attempt to find the PR-655/670 FIGURE 112 - REMOTE HOST DEVICE SEARCH WIZARD ✓ Make sure that is selected via the drop down menu.

  • Page 121: Figure 113 - Bluetooth Setup Wizard Device Name And Com Selection Screen

    PR-655/670 User Manual When the PR-655/670 is successfully discovered a camera icon will appear with the serial number of the PR-655/670 below the icon. Select the instrument and then click on Next. Give a name for the PR-655/670 instrument. It’s recommended that you use the serial number of the instrument.

  • Page 122: Figure 114 - Bluetooth Pin Code Request

    PR-655/670 User Manual FIGURE 114 - BLUETOOTH PIN CODE REQUEST 14. If successfully paired a serial connector icon will appear in My Bluetooth Places. The PR-655/670 will also indicate a successful pairing and connection by displaying the icon and the name of the Remote Host.

  • Page 123: Optional

    PR-655/670 User Manual The host will attempt to re-connect with the PR-655/670. When connected the above icon will change to green and a Connected indicator will be shown. The instrument will also indicate a successful link by displaying a green Bluetooth icon and the name of the Remote Host (in Hexadecimal).

  • Page 124: Selecting Rs-232 Baud Rate

    PR-655/670 User Manual RS-232 B ELECTING 1. Navigate to RS-232 Connectivity, by touching on Menu, then Preferences. 2. Touch RS-232 Connectivity. 3. The following screen will appear. FIGURE 117 – RS-232 CONNECTIVITY, BAUD RATE SETUP 4. Touch the ▲ ▼next to the RS-232 Baud Rate text field to select the desired speed. Selectable Speeds: 9600 bps 19.2 Kbps...

  • Page 125: Remote Control Mode

    PR-655/670 User Manual EMOTE ONTROL Remote Control of the PR-655/670 is accomplished using commands sent from the PC in ASCII (text) strings to the instrument. These commands are then executed and the requested information including measured values or instrument setup parameters are returned to the PC. The PR-655/670 is controlled from a personal computer over the Universal Serial Bus (USB) interface.

  • Page 126: Using Remote Control Commands

    PR-655/670 User Manual SING EMOTE ONTROL OMMANDS Note: The following steps are for Windows XP only. Step 1 - Turn on the PR-655/670. Step 2 - Set Power Saving to Off. This will prevent the PR-655/670 from powering off when idle for extended period of time.
  • Page 127 PR-655/670 User Manual Step 8 - In the screen that appears, select the appropriate COM port for communications. The COM port assigned by the USB driver is listed in the drop down window that appears. FIGURE 120 - COM PORT SELECTION IN HYPER TERMINAL If in doubt about which COM port is correct, the proper port can be identified in the Device Manager system screen.
  • Page 128 PR-655/670 User Manual 2. Click on Properties. 3. Click on Hardware. FIGURE 122 - SYSTEM PROPERTIES MENU 4. Click on Device Manager. 5. Note the COM port assigned to the PR-655/670. FIGURE 123 - WINDOWS XP DEVICE MANAGER...

  • Page 129: Entering Remote Mode

    PR-655/670 User Manual Step 9 - The next screen is a form used for entering RS232 communications. Since the USB driver sets these parameters, no changes are required. Click on OK. FIGURE 124 - WINDOWS XP COM PROPERTIES WINDOW Step 10 - The main HyperTerminal appears.

  • Page 130: Remote Mode Compatibility (Pr-655 Only)

    PR-655/670 User Manual For example to have the instrument make a measurement and return spectral data, the following command must be sent “M” “5” ”[CR]” as single characters, not as a single string. PR-650 R (PR-655 O EMOTE OMPATIBILITY For applications where the PR-655 has to be retrofitted into an existing PR-650 software environment, the PR- 655 features a “PR-650 Emulation Mode”.

  • Page 131: Remote Control Command Summary

    PR-655/670 User Manual EMOTE ONTROL OMMAND UMMARY The following table summarizes all valid Remote Control commands and responses from the PR-655/670. Detailed descriptions including parameters passed with each command are detailed in the Commands section. Command Description Sets LCD backlight level Clears current session instrument errors Downloads data from the PR-655/670 Toggles the Echo (full duplex) mode...

  • Page 132: Remote Control Command Detail

    PR-655/670 User Manual EMOTE ONTROL OMMAND ETAIL Command Description Purpose: Set LCD backlight level Syntax: Bnn[CR] Bnn = Backlight / Brightness level in percentage. Range of nn = 0 to 100% Response: Backlight set to nn % Purpose: Clears the current instrument error Syntax: C[CR] Response: None Purpose: Download data from the PR-6XX...
  • Page 133 PR-655/670 User Manual Command Description Purpose: Recall stored measurement data from the PR-6XX Syntax: R<data code>,<Measurement #>,<filename.ext>[CR] Response: 0000,<data>[CR][LF] If all OK, else NNNN[CR][LF] (NNNN = Error code) Special Syntax 1 (Recall from RAM only): Syntax: R<data code>,0[CR] Recall last written measurement Response: 0000,<data>[CR][LF] If all OK, else NNNN[CR][LF] (NNNN = Error code) Special Syntax 2 (Recall from RAM only):...

  • Page 134: Setup Commands

    PR-655/670 User Manual ETUP OMMANDS Setup Commands are used to specify instrument and measurement parameters for the next measurement. To specify more than one parameter, sequential setup commands may be sent to the instrument before the measurement is initiated. The default parameters are those used during the measurement immediately before Remote Mode operations are initiated.
  • Page 135 PR-655/670 User Manual Setup Description Command Select Add-on Accessory 3 An Add-on accessory is one that is used in conjunction with a primary accessory. For example, a neutral density filter (Add-on Accessory) used with the MS-75 (Primary Accessory). Up to 3 Add-on accessories can be specified for a measurement. Syntax: SCn[CR] Where: n = Accessory code Response: 0000[CR][LF] If all OK, else...
  • Page 136 PR-655/670 User Manual Setup Description Command Select Exposure Time Enter the Exposure (Integration) time for the next measurement in milliseconds. Possible values are 6 – 6,000 (6 sec.) for Standard Mode, and 6 - 30,000 (30 sec.) for Extended Mode. See the H specifier for more information on setting Standard or Extended Modes. To set the instrument to Adaptive Exposure, send SE0 (ttttt = 0) Syntax: SEttttt[CR] Where: ttttt = exposure time in milliseconds...
  • Page 137 PR-655/670 User Manual Setup Description Command Sensitivity Mode (PR-670 only) Select the Sensitivity Mode for the next measurement. The two available modes are Standard and Extended. In Standard Mode, the exposure time range is 6 ms to 6,000 ms (6 sec.). In Extended Mode, the upper limit is extended to 30,000 ms (30 sec.). Syntax: SHm[CR] Where: m = Sensitivity Mode 0 = Standard Mode...
  • Page 138 PR-655/670 User Manual Setup Description Command CIE Observer Photometric and Colorimetric values can be calculated using either CIE 2 or 10 Standard Observer data sets. Use this specifier to choose the CIE data set for calculations for the next measurement. The default is 2. Syntax: SOn[CR] Where: n = CIE Observer 2 = 2...
  • Page 139 PR-655/670 User Manual Setup Description Command Sync Mode Instructs the instrument to adjust the exposure time, when using Adaptive Sensitivity mode, to the nearest even multiple of the refresh rate (frequency) of the source. Choices are No Sync, Auto Sync, and User Frequency. In Auto Sync mode, the instrument measures the frequency of the source to determine its period.

  • Page 140: Measurement And Data Send Codes

    PR-655/670 User Manual EASUREMENT AND ODES Measurement and Data Send Codes are used to measure (M Command) and then specify returned data or acquire values without making a measurement (D command). Either a D or an M can precede any of the following codes. For example, M1 or D1 – M602 or D602. If an M command is sent, a measurement will always be made even if the Data Code does not request measured values.

  • Page 141: Data Code Summary

    PR-655/670 User Manual UMMARY The following table summarizes Data Codes and their meanings. For full details, please see the Expanded Code table following. Data Code Description status (Write to disk most recent, unsaved, measurement) status, units, Photometric brightness, CIE 1931 x,y status, units, CIE 1931 Tristimulus Values status, units, Photometric brightness, CIE 1976 u’, v’...

  • Page 142: Data Code Details

    PR-655/670 User Manual ETAILS The following table details available Data Codes including data examples. Each field is comma delimited. Most fields are fixed length, however some are variable length and are indicated as such. As mentioned earlier in this section, these commands may be attached to a D or M command - for example, M5 or D5.
  • Page 143 PR-655/670 User Manual Data Code Description Output Format: qqqqq,U,Y.YYYe+ee,CCCCC,d.dddd CRLF where: Y = Photometric brightness (e.g. Luminance or Illuminance etc.) e = exponent CCCCC = Correlated Color Temperature in Kelvins d.dddd = CIE 1960 deviation from Planck’s Black Body Radiator locus Output Example 00000,0,1.865e+01, 3757,0.0129 Output Format: qqqqq,UUUU,w.wwwe+eee,i.iiie-ee,p.pppe+eeCRLF...
  • Page 144 PR-655/670 User Manual Data Code Description Output Format: qqqqq,UUUU,Y.YYYe+ee,u.uuuu,v.vvvv CRLF where: Y.YYY = Photometric brightness (e.g. Luminance or Illuminance etc.) e.ee = exponent u.uuuu = CIE 1976 u v.vvvv = CIE 1976 v Output Example: 00000,0,2.646e+03,0.2081,0.3519 Output Format: qqqqq, CRLF, lllll CRLF, lllll CRLF, lllll CRLF ………………… where: lllll = Raw signal (light) data (variable length from 1 to 5 digits) for all detector pixels from 0 to 255.
  • Page 145 PR-655/670 User Manual Data Code Description Output Format: qqqqq,UUUU,Y.YYYe+ee,x.xxxx,y.yyyy,u’.u’u’u’u’, v’.v’v’v’v’CRLF where: Y.YYY = Photometric brightness (e.g. Luminance or Illuminance etc.) e.ee = exponent x.xxxx = CIE 1931 x, y.yyyy = CIE 1931 y u.uuuu = CIE 1960 u v.vvvv = CIE 1960 v Output Example: 00000,0,2.041e+01,0.4089,0.4151,0.2283,0.3477 Output Format: qqqqq,Gain description,nnnnnn msec CRLF...
  • Page 146 PR-655/670 User Manual Data Code Description Output Format: qqqqq,ac,ap CRLF where: ac = number of calibrated accessories ap = number of calibrated apertures Output Example: 00000,1,4 Output Format: qqqqq,vvvvv CRLF where: vvvvv = Software version Output Example: 00000,2.22D Output Format: qqqqq,nn,ss,tt,pp,rr CRLF where: nn = ID number of accessory ss = Accessory name (variable length) tt = Accessory type –...
  • Page 147 PR-655/670 User Manual Data Code Description Output Format: qqqqq,pp,bw,bb,ee,ii,nrp,frp,lrp CRLF where: pp = Number of spectral data points. bw = Bandwidth of instrument bb = Starting WL ee = Ending WL ii = WL Increment nrp = Number of detector elements pixels frp = First useable raw pixel number lrp = Last useable raw pixel number Output Example:...
  • Page 148 PR-655/670 User Manual Syntax: D412, ffffffff.eee where: ffffffff = filename of stored measurement file. DOS file naming convention. eee = filename extension Output Format: qqqqq,dt,tm CRLF (Directory of stored Measurements in file). where: qqqqqq = ID of measurement dt = Date tm = Time Output Example: Output Format: qqqqq,<Primary Lens>, <Addon1>, <Addon2>, <Addon3>, <Aperture>,...

  • Page 149: Remote Control Error Codes

    PR-655/670 User Manual EMOTE ONTROL RROR ODES EMOTE ONTROL EASUREMENT RRORS Error Meaning Light source not constant. Light overload – signal too intense. Cannot Sync to light source. Light source frequency below 20Hz, above 400 Hz or signal too low to Sync. Adaptive mode error.
  • Page 150 PR-655/670 User Manual Error Meaning Valid Values -1015 Invalid CIE observer 2 or 10 0 = Disable Smart Dark -1017 Invalid Dark measurement mode 1 = Enable Smart Dark 0 = No Sync -1019 Invalid Sync mode 1 = Auto Sync 3 = User Frequency -1021 Measurement title too long...

  • Page 151: Routine Maintenance

    PR-655/670 User Manual OUTINE AINTENANCE The PR-655 and PR-670 have been designed to give long, trouble-free service requiring minimal routine maintenance. This section gives guidelines for insuring optimum service from your instrument. LEANING ENSES PTICAL CCESSORIES 1. Keep the PR-655 / PR-670 clean and dust-free. Store the instrument in a clean, dry environment, preferably in a storage case when not in use.

  • Page 152: Factory Repair

    PR-655/670 User Manual ACTORY EPAIR ARRANTY EPAIR If the instrument malfunctions within the one-year warranty period, it will be repaired at no charge to the customer (provided the warranty has not been voided by tampering, physical damage or other abuse). Note: Any unauthorized tampering with the instrument, including opening of the case, automatically voids the warranty.

  • Page 153: Specifications

    PR-655/670 User Manual PECIFICATIONS ENERAL PECIFICATIONS PR-655 Parameter Specification Detector 128 detector array 1 (1/2 optional) Aperture Wavelength Range 380 to 780 nm Optics Pritchard viewing and measuring system. Digital Resolution 16 bits Spectral Resolution 3.12 nm / pixel Spectral bandwidth 8 nm (5 nm optional) Spectral Accuracy ±...
  • Page 154 PR-655/670 User Manual Color Accuracy (for Illuminant A) ±0.0015 in CIE 1931 x,y Luminance, Illuminance, luminous intensity, Measurement Capabilities chromaticity, correlated color temperature, dominant wavelength. Measurement Time 3 ms to 6 secs. Rechargeable Lithium-Ion. Battery (12 hours continuous operation) Secure Digital (SD) Card Supports cards up to 1GB Weight 3.75 lbs (1.7 kg)
  • Page 155 PR-655/670 User Manual chromaticity, correlated color temperature, dominant wavelength. Measurement Time 6 ms to 30 secs. Rechargeable Lithium-Ion. Battery ( >12 hours continuous operation) Secure Digital (SD) Card Supports cards up to 1GB Weight 3.75 lbs (1.7 kg) Operating Temperature 34°...

  • Page 156: Pr-670 Lens Chart

    PR-655/670 User Manual PR-655 / PR-670 L HART Aperture 1/2 (Optional for Accessory Working Distance 1 1/4(PR-670 Only) 1/8 (PR-670 Only) PR-655) MS-75 355 mm to 5.25 mm 2.63 mm 1.315 mm 0.658 mm (355mm to ∞) 305 m 5.32 m 2.66 m 1.33 m 665 mm...

  • Page 157: Sensitivity Chart (Cd/M²)

    PR-655/670 User Manual PR-655 S ²) ENSITIVITY HART Aperture 1 1/2 (optional) Accessory 3.4 to 13.6 to MS-75 102,800 411,100 3.4 to 13.6 to SL-0.5X 102,800 411,100 3.4 to 13.6 to SL-1X 102,800 411,100 10.3 to 41.2 to MS-2.5X 310,700 1,243,000 13.7 to 54,800 to...

  • Page 158: Sensitivity Chart

    PR-655/670 User Manual PR-670 S ENSITIVITY HART Aperture 1 1/2 1/4 1/8 Accessory 0.2 to 0.80 to 3.20 to 12.8 to MS-75 17,190 cd/m² 68,750 cd/m² 275,000 cd/m² 1,100,000 cd/m² 0.2 to 0.80 to 3.20 to 12.8 to SL-0.5X 17,190 cd/m² 68,750 cd/m²...

  • Page 159: Pr-670 Outline Drawings

    PR-655/670 User Manual PR-655 / PR-670 O UTLINE RAWINGS...
  • Page 160 PR-655/670 User Manual...

This manual is also suitable for:

Photo research spectrascan pr-670

Table of Contents

Save PDF
