Summary of Contents for RHINO Rhinotracks ST-5

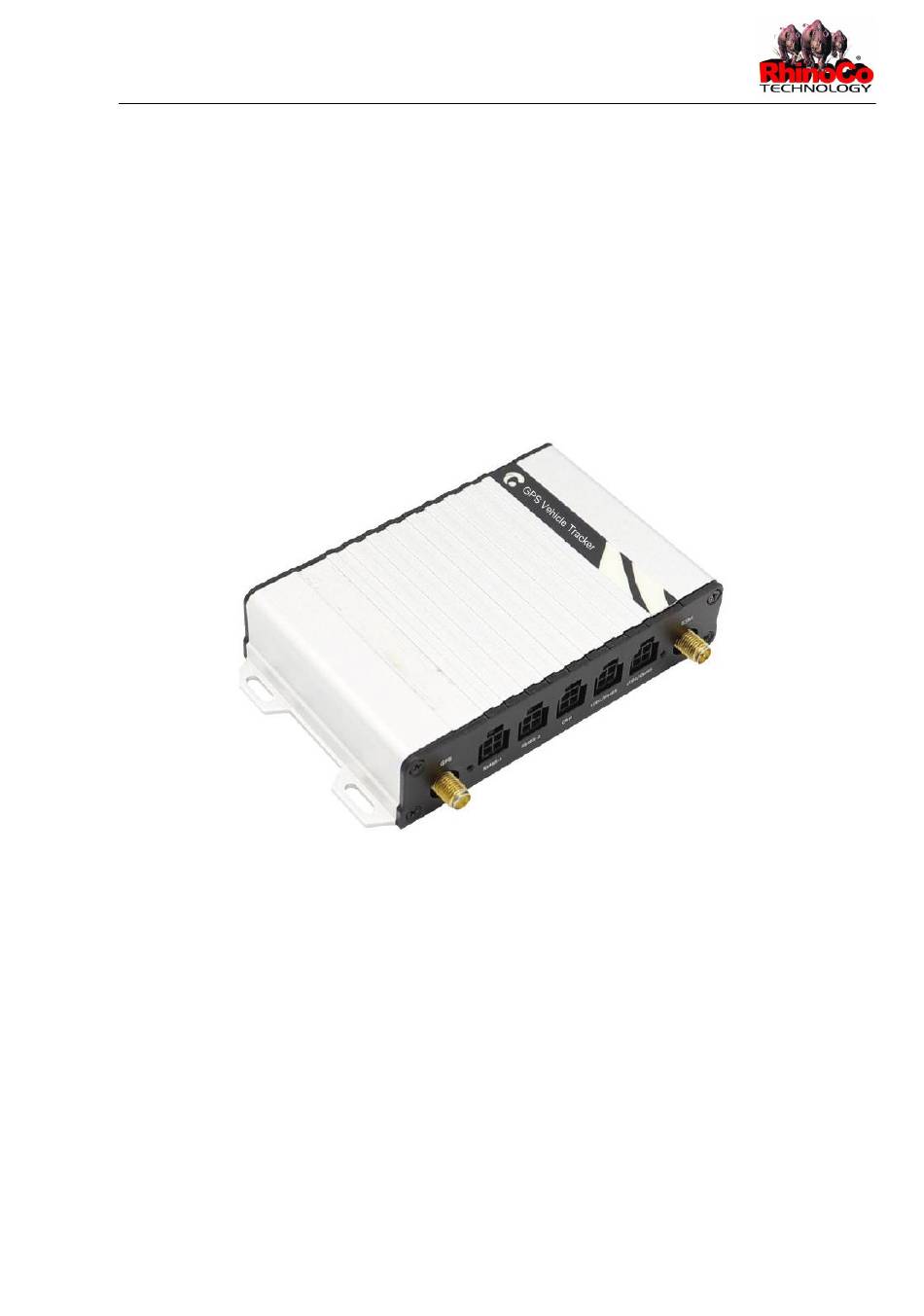

- Page 1 Rhinotracks ST-5 User Guide Rhinotracks-ST5 User Guide Rhinotracks-ST5 User Guide 1.0...
- Page 2 Rhinotracks ST-5 User Guide 1 Product Overview The Rhinotracks-ST5 is the latest vehicle tracker supporting the 4G network. In addition to real-time location tracking, the Rhinotracks-ST5 can connect to multiple accessories and has a CAN interface. The Rhinotracks-ST5 features excellent and stable work performance.
- Page 3 Rhinotracks ST-5 User Guide Memory 8 MB Sensor 3-axies accelerometer (used to wake the device up by vibration and detect towing) Frequency band 2G GSM:B2(1900)/B3(1800)/B5(850)/B8(900) 3G WCDMA:B1(2100)/B2(1900)/B5(850)/B8(900) 4G FDD: B1(2100)/B2(1900)/B3(1800)/B4(2300)/B5(850) /B7(2600)/B8(900)/B28(700) LTE TDD:B40 GPS Sensitivity -163 dB Positioning Accuracy 2.5m...
- Page 4 Rhinotracks ST-5 User Guide 5 First Use 5.1 Indicator Press and hold down the power button for 3s to 5s to start the ST5. GPS Indicator (Blue) Blink (every 0.1s) The ST5 is being initialized or the battery power is low.
- Page 5 Rhinotracks ST-5 User Guide 5 (Input 2) White & Digital input 2 (negative trigger) Brown Connect to a door trigger signal cable to detect vehicle door status. (Most Chinese, Korean, and Japanese cars are negative edge-triggered). The port can be set to positive trigger, AD input 3 (0–30 V), or output 5.
- Page 6 Rhinotracks ST-5 User Guide Power Cable/Ground Wire (PIN1, PIN2) Connect the power cable (red) and ground wire (black) to the positive and negative electrodes of the vehicle battery respectively. Power (PIN1, PIN2) and ACC wiring (PIN7) Alternatively, you may wire the power +12V (Red) to the barrel of the key switch provided you are careful to not damage existing wiring or leave exposed wire that could cause a short circuit.
