Thank you for your purchase of the Vandersteen Model lCi.
Your new speakers will provide many years of trouble-free, high-
performance sound reproduction and thousands of hours of quality
entertainment.
Due to the advanced design and features of the Model ICi,
we recommend that you read this entire manual before
connecting or using your new loudspeakers.

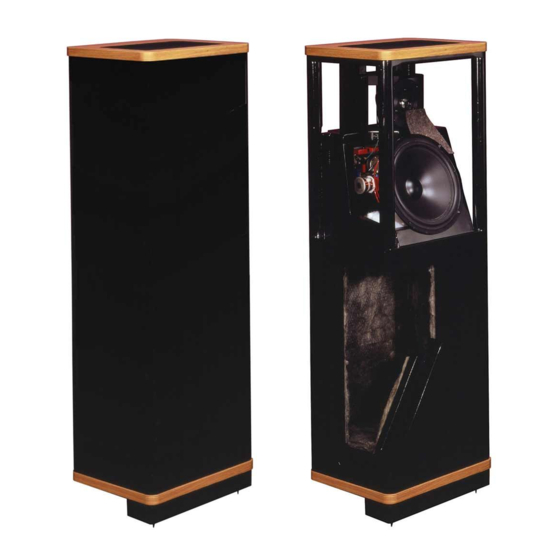

The Vandersteen Audio Model 1Ci is a floor-standing, high-performance loudspeaker developed and refined by twenty
years of advanced research into cost-effective, dynamic loudspeaker design. The Model 1Ci uses the proven Vandersteen
Aligned Dynamic Design to optimize the dispersion and accuracy of the drivers while maintaining the input signal's time
and phase integrity. The drivers, their positioning, and their minimum-sized baffles were each developed with the aid of
the FFT (Fast Fourier Transform) computer analysis to minimize diffraction, cone break-up, multi-driver interference, and
out of band phase irregularities. The alignment and positioning of the drivers allow a point-source wave afront and
maximize the phase coherence of the loudspeaker throughout the listening area.
The Model 1Ci is a worthy addition to any quality music or home theater system. The speaker's engineering, construction,
and materials far exceed conventional industry standards and contribute unmatched performance even by larger and more
costly designs. The stable impedance characteristics assure complete compatibility with any amplifier or receiver in any
system. The full-range frequency response enables the speaker to mate with a matching high-quality subwoofer
seamlessly. The aesthetically pleasing appearance, incorporating an acoustically transparent, 360-degree wrap-around
grille cloth, a wood bottom, and an audibly vented wood top, allows the Model 1Ci to compliment the décor of your
home.
The Vandersteen Model 1Ci is designed and built in a solar-powered factory in the United States of America.
INTRODUCTION
CONTENTS
2
2
2
2
3
4
4
4
4
5
5
MODEL 1Ci
6
6
LOUDSPEAK ER
6
6
7
7
OPERATION
7
7
8
MANUAL
8
$5.00
Vandersteen Audio
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VANDERSTEEN 1Ci
Summary of Contents for VANDERSTEEN 1Ci
- Page 1 The full-range frequency response enables the speaker to mate with a matching high-quality subwoofer seamlessly. The aesthetically pleasing appearance, incorporating an acoustically transparent, 360-degree wrap-around grille cloth, a wood bottom, and an audibly vented wood top, allows the Model 1Ci to compliment the décor of your home.
- Page 2 3. Connect cables to the amplifier in the normal manner. Verify polarity at the amplifier connection. Vandersteen speakers will produce excellent, satisfying sound placed almost anywhere in a room. With all the possible variables in room layout, there are no magical formulas for determining the best speaker placement in every room.
- Page 3 72 inches from the rear wall of the room. both speakers would be placed on the 24-inch line. The Both speakers should be tried up to two inches ahead speakers can be placed on different width lines, for example and behind the intersections to determine if this improves one on the 34-inch line and the other on the 56-inch line. the sound. Both speakers should be moved the same Vandersteen Audio Model lCi Operation Manual...
- Page 4 ACOUSTICAL CENTER The Model 1Ci's acoustical center is the physical center of the loudspeaker. In a perfect rectangular room with absolutely rigid walls and no doors or windows, the...
- Page 5 (For clarity, the amount of lean in the diagram has been exaggerated and the base is not shown.) The Model 1Ci requires at least 100 hours at a moderate volume level before its performance and response stabilize. Higher volume levels will not shorten this break-in period.
- Page 6 20 ro 100 watt per channel range. Amplifiers in this The Model 1Ci will perform well with a tube or transis- tor amplifier, revealing either type of amplifier's sonic power range will provide ample power for realistic listening characteristics.
- Page 7 9. Close the flaps on the outer box and seal with strong tape. Do not ship your speakers in anything other than an original box. Replacement boxes and packing are available from Vandersteen Audio for a nominal charge. Vandersteen Audio...
- Page 8 CHARGE FOR PARTS OR LABOR. The speaker must be packed in the original packing and returned to VANDERSTEEN AUDIO via insured freight by the customer at his or her own expense. A returned product must be accompanied by a Return Authorization Form, (available from VANDERSTEEN AUDIO upon request) which includes a written description of the defect and return shipping information.
