INSTRUCTION MANUAL
GT1-EVO
VERSION 2.0
Last updated: 17-12-2021

Advertisement

loading
Need help?

Need help?

Do you have a question about the GT1-EVO and is the answer not in the manual?

Questions and answers

Related Manuals for Sim-Lab GT1-EVO

Summary of Contents for Sim-Lab GT1-EVO

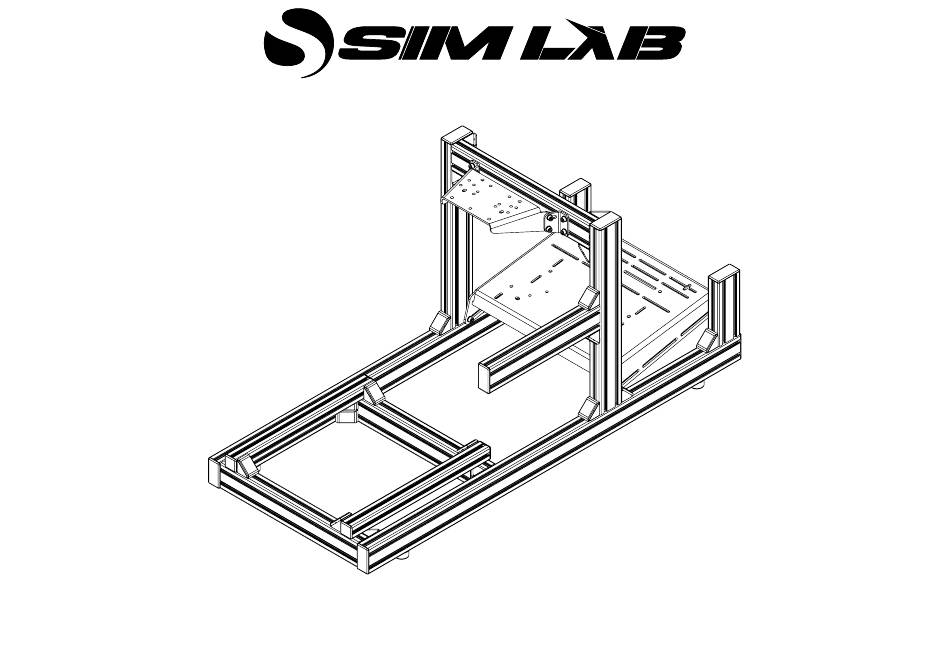

  • Page 1 INSTRUCTION MANUAL GT1-EVO VERSION 2.0 Last updated: 17-12-2021...
  • Page 2 BEFORE YOU START: Thank you for purchasing this Sim-Lab product! On the following pages, you will find detailed instructions on assembly. This requires only a set of simple tools and some of your time. Please check the bill of materials before starting (page 22) and make sure all the parts are delivered.
  • Page 3 1350MM Slot-Nut M8 BUILD 2X 3 23...
  • Page 4 500MM Slot-Nut M8 BUILD 2X 4 23...
  • Page 5 Corner M8 X 16 Bracket 500MM 20” 5 23...
  • Page 6 Rubber M6 X 20 Profile 80x40 Corner Bracket Slot-Nut M6 End-Cap Feet (A19) (A27) 120MM 5” 6 23...
  • Page 7 500MM Corner M8 X 16 Slot-Nut M8 Bracket* BUILD 2X 7 23...
  • Page 8 Profile 40X40 Corner Bracket M8 X 16 Slot-Nut M8 End-Cap 8 23...
  • Page 9 580MM Corner M8 X 16 Slot-Nut M8 Bracket BUILD 2X 9 23...
  • Page 10 M8 X 16 Slot-Nut M8 430MM 17” 10 23...
  • Page 11 Corner Profile 80X40 Corner Bracket M8 X 16 Slot-Nut M8 End-Cap Bracket 11 23...
  • Page 12 500MM Slot-Nut M8 12 23...
  • Page 13 Corner Bracket M8 X 16 13 23...
  • Page 14 Corner Corner Bracket M8 X 16 Bracket* 14 23...
  • Page 15 Wheel Deck Wheel Deck Wheel Deck M8 X 20 M8 X 20 Washer M8 Lock-Nut M8 Pivot Plate Pivot Plate Left (A9) Right (A10) 15 23...
  • Page 16 M8 X 16 Washer M8 Slot-Nut M8 16 23...
  • Page 17 200MM Corner Profile 80X40 M8 X 16 Slot-Nut M8 End-Cap Bracket BUILD 2X 17 23...
  • Page 18 Corner Bracket M8 X 16 Slot-Nut M8 18 23...
  • Page 19 Pedal Deck M8 X 16 Washer M8 19 23...
  • Page 20 400MM Corner Profile 80X40 M8 X 16 Slot-Nut M8 End-Cap Bracket 20 23...
  • Page 21 Corner Bracket M8 X 16 21 23...
  • Page 22 PROFILE KIT Part QTY Note 80X40 Length=1350mm 80X40 Length=580mm 80X40 Length=500mm 80X40 Length=400mm 80X40 Length=200mm 40X40 Length=500mm HARDWARE KIT Pedal deck Wheel deck plate Wheel deck pivot plate LEFT Wheel deck pivot plate RIGHT Rubber Feet Corner bracket 40x40 Corner bracket 40x40 cap Profile 80x40 end-cap Profile 40x40 end-cap Bolt M8 X 20 DIN 912...
  • Page 23 They can be reached at support@sim-lab.eu Alternatively, we now have a Discord server where there are quite some experienced Sim-Lab customers hanging out. They might just help you along if you ask them nicely ;) https://discord.gg/Myj4c8dZ...
