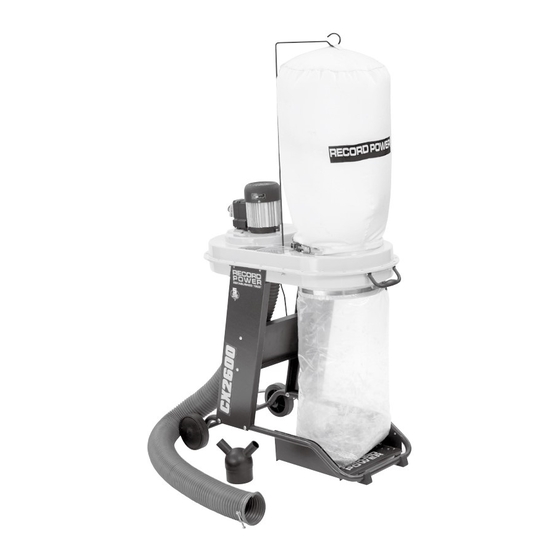

Record Power CX2600 Original Instruction Manual

Dust & chip extractor

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Original Instruction Manual

CX2600

Dust & Chip Extractor

Version 3.0

January 2014

It is important to register your product as soon as possible in order to receive efficient after sales

support and be entitled to the full 5 year guarantee. Your statutory rights are not affected.

Always wear safety glasses when

using woodworking equipment.

To register this product please visit

www.recordpower.info

Please see back cover for contact details.

Always read the instructions

provided before using

woodworking equipment.

Important

For your safety read instructions carefully

before assembling or using this product.

Save this manual for future reference.

Table of Contents

Need help?

Do you have a question about the CX2600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Record Power CX2600

Page 1 Original Instruction Manual CX2600 Dust & Chip Extractor Version 3.0 January 2014 To register this product please visit www.recordpower.info It is important to register your product as soon as possible in order to receive efficient after sales support and be entitled to the full 5 year guarantee. Your statutory rights are not affected.
Page 2: Table Of Contents
Contents 1. Explanation of Symbols 2. General Health & Safety Guidance 3. Additional Health & Safety Guidance for Chip Extractors 4. Record Power Guarantee 5. Specifications 6. Getting to Know Your Machine 7. Contents of the Package 8. Assembly 9. Electrical Connection & Wiring Diagram 10.
Page 3: General Health & Safety Guidance
2. General Health & Safety Guidance Ensure that you carefully read and fully understand the 6. The machine should be level and stable at all times instructions in this manual before assembly, installation and • When using a leg stand or cabinet base that is designed to be fitted to use of this product.
Page 4 2. General Health & Safety Guidance cont. complete stop. • Do not use another person as a substitute for a table extension, or as additional support for a work piece that is longer or wider than the basic • If the work area is to be left unattended, all machinery should be table, or to help feed, support, or pull the work piece.
Page 5 2. General Health & Safety Guidance cont. of parts and any other conditions that may affect the operation of Company may present a risk of personal injury or damage to the the machine. machine and invalidation of the warranty. 32. Have your machine repaired by a qualified person •...
Page 6: Additional Health & Safety Guidance For Chip Extractors
• This product is for dry use only and should not be used or stored outdoors or in wet conditions. • All Record Power chip extractors are designed solely for use with wood dust and chippings. Do not use the machine to remove vapours, fumes, gases or other materials such as plaster dust, as there is a risk of combustion.
Page 7: Record Power Guarantee
Guarantee should be made directly to Record Power or its Authorised Distributor Record Power guarantees that for a period of 5 years from the date (for details of the Authorised Distributor in your country please see of purchase the components of qualifying Products (see clauses 1.2.1 your Product manual or check www.recordpower.info for details).
Page 8: Specifications
5. Specifications Air Flow: 1150 M3 / hour Motor: 0.4 kW Weight: 25 kg Capacity: 80 litres Bag diameter: 330 mm Size: H1850 x W440 x L830 mm Sound power level : 140 dB Sound pressure level: 90 dB 6. Getting to Know Your Machine Motor Rating Plate Filter Bag Motor...
Page 9: Contents Of The Package
7. Contents of the Package Tightening Band - x2 M8 x 40mm Coach Screws - x4 M8 Nuts - x4 M8 x 10mm Coach Screws - x4 M8 Nuts - x4 M5 x 20mm Coach Screws - x6 M5 Nuts - x6 30mm Screws - x2 Cross Head Screws - x6 Rubber Feet - x2...
Page 10: Assembly
2. Attach the tray to the wheel base using the six M5 x 16mm screws as shown in Fig 8.2, with the Record Power logo facing the front of the wheelbase, nearest to the rubber feet. 3. Using two of the M8 x 40mm screws, attach the left hand panel to the left hand side of the wheelbase as shown in Fig 8.3, ensuring the...
Page 11 8. Assembly cont. 10. Attach the filter bag support to the motor Fig. 8.10 Fig. 8.9 housing unit by placing into the hole located as shown in Fig 8.9. 11. Thread one of the tightening bands through the filter bag as shown in Fig. 8.10. 12.
Page 12: Electrical Connection & Wiring Diagram
9. Electrical Connection & Wiring Diagram Machines supplied for use in the UK are fitted with a 3 pin plug conforming fitted with a fuse conforming to BS1362 appropriate to the rating of the to BS1363, fitted with a fuse conforming to BS1362 and appropriate to the machine.
Page 13: Operation
10. Operation Using the chip collector 1. Make sure that the hose is securely fitted around the extraction port on the host machine. 2. Connect to the electricity supply and switch on the chip collector. 3. After turning off the host machine leave the extractor running for a short while to ensure all waste is collected.
Page 14 12. Parts List & Diagram...
Page 15 12. Parts List & Diagram Cont. Part No. Part Name Quantity RWL100T-11 Filtering Bag RWL100T-13 Upper Clamping Band RWL100T-15 Handgrip GB848-85 Self Tapping Bolt St5.5_30 RWL100T-14 Lower Clamping Band RWL100T-12 Collecting Bag RWL100E-02 Left Side Panel GB/T6170 Nut M5 RWL100D0105 Square Neck Bolt M8X12 RWL100E-01-03 Base Tube...
Page 16 Cert No: EU / CX2600 / 1 Record Power Limited, Centenary House, 11 Midland Way, Barlborough Links, Chesterfield, Derbyshire, S43 4XA declares that the machinery described:- Type: Chip Collector Model No: CX2600 Serial No ................. Conforms with the following directives:-...
Page 20 Woodworking Machinery & Accessories United Kingdom Eire Australia New Zealand Record Power Ltd Record Power Ltd Tools 4 Industry Tools 4 Industry Centenary House, 11 Midland Way Centenary House, 11 Midland Way Po Box 3844 Po Box 276079 Barlborough Links, Chesterfield...
