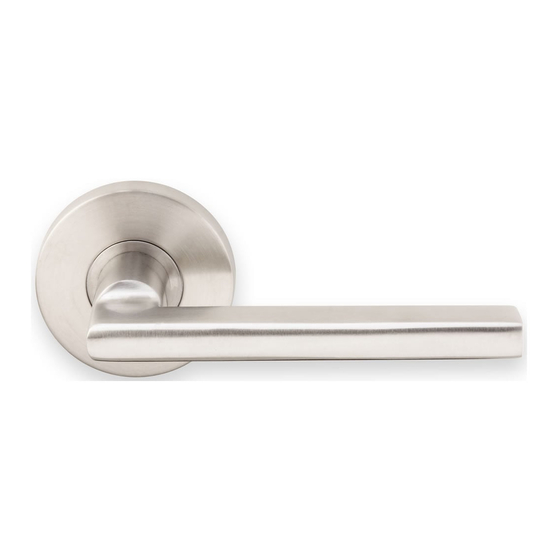

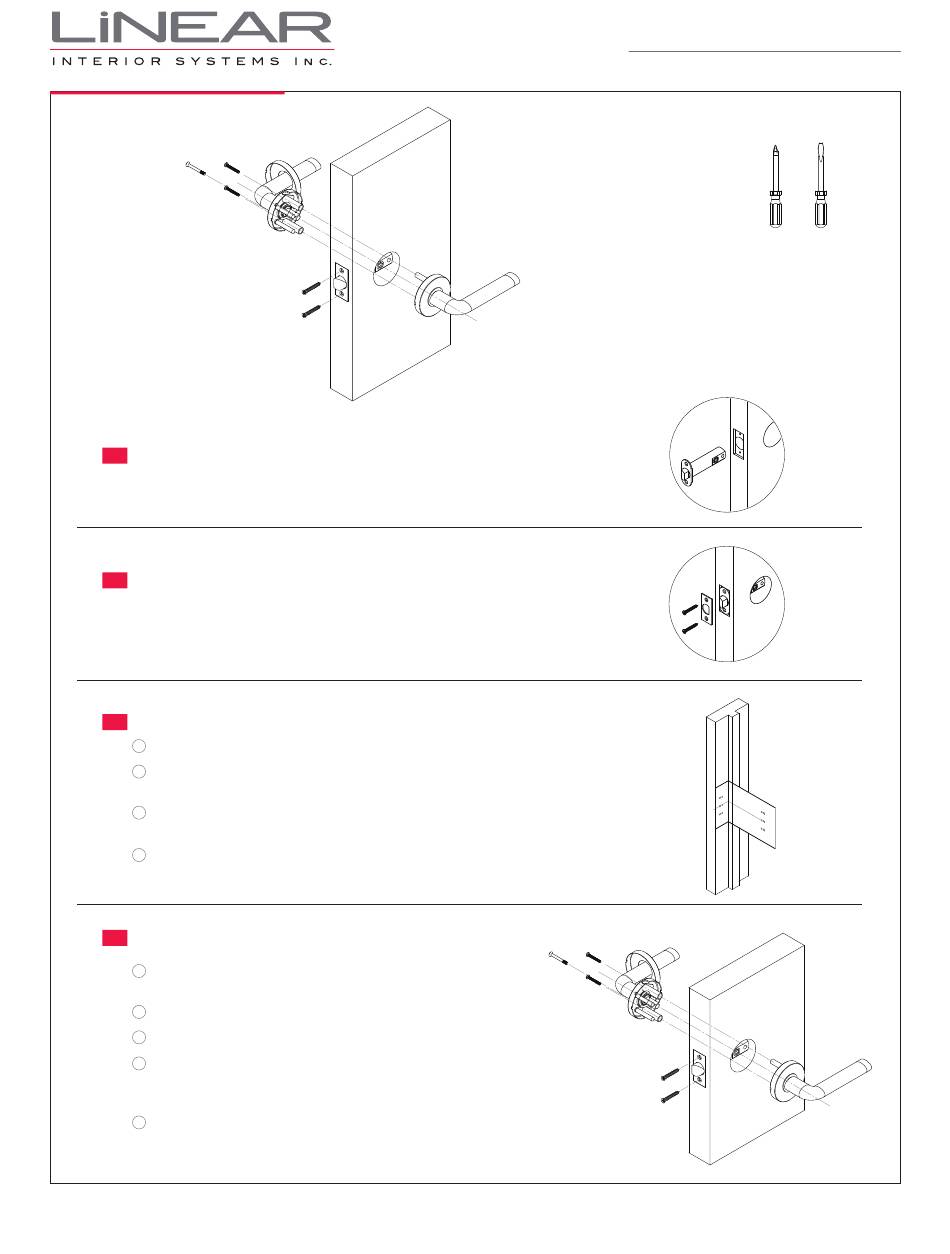

Linear T300 Series Installation Instructions

PRIVACY PIN
REPLACING AN EXISTING LOCK
INSTALL LATCH
1
Insert latch into the door edge and tap lightly into place. Turn latch tonge
according to strike handing, before installing face plate.
ATTACH FACE PLATE
2
Insert latch into the door edge and tap lightly into place. Turn latch tonge
according to strike handing, before installing face plate.
INSTALL STRIKE PLATE
3
Secure the latch strike to the jamb using wood strike screws provided.
A
If there is no strike prep, mark a centerline on the door jamb that aligns with the
B
centerline of the door latch. Drill one 1"(25mm) hole 5/8"(16mm) deep.
Use the D strike plate to make an outline on the door jamb and chisel 1/8"(3mm)
C
deep until it sits fl ush.
Drill two 1/8"(3mm) holes then secure strike with screws provided.
D
INSTALL LOCKSET
4
Insert Exterior Side (with two female threaded posts) guiding
A
the spindle into the latch.
Remove interior cover cap from the tabs provided.
B
Insert Interior Side guiding the spindle into the latch.
C
While holding together insert the two screws provided,
D
from interior side with guide holes provided and secure
the lockset to the door.
Clip on cover cap to conceal screws. Slip rose cover over lever
E
handle and guide into rose, and press to engage clip to secure.
LINEAR INTERIOR SYSTEMS INC.
T. 905-265-0055 F. 905-265-0035
(No door preparation Necessary)
PRIVACY PIN
info@linearinteriorsystems.com
T300 Series
INSTALLATION INSTRUCTIONS
TOOLS NEEDED
PHILLIPS FLAT HEAD
SCREWDRIVER SCREWDRIVER
www.linearinteriorsystems.com
PAGE 1
