Summary of Contents for SMARTPOINT SPCNTRL-WM

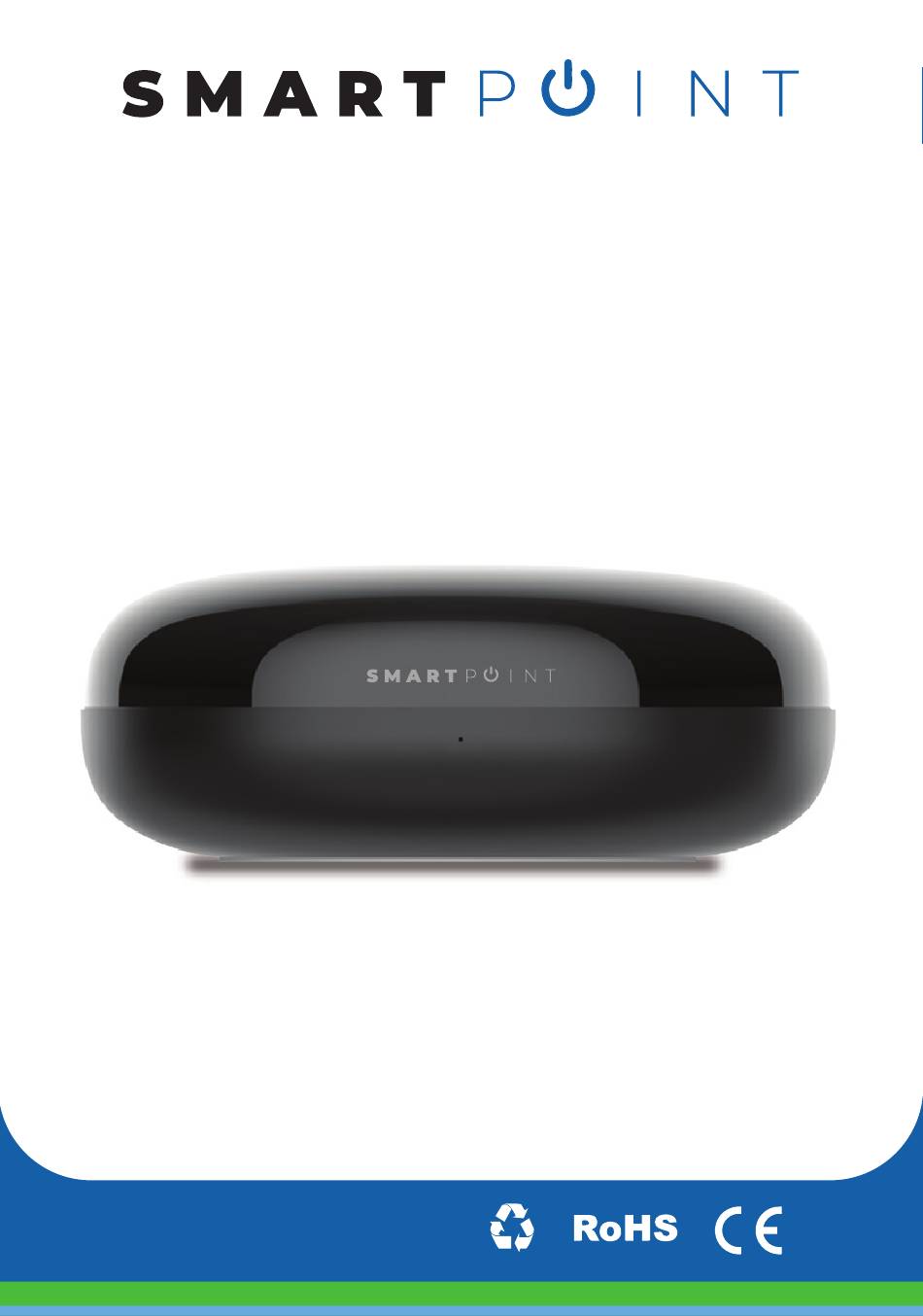

- Page 1 Smart WIFI Universal Remote Control USER MANUAL FCC ID:2AVRA-SPCNTRL-WM...
-
Page 2: Specifications
SPECIFICATIONS Model: SPCNTRL-WM Power Input: DC 5V/1A (Micro-USB 2.0) Standby Power: ≤0.4W Operating Temperature: 14°F~122°F Working humidity: ≤85% RH Wireless type: Wi-Fi 2.4GHz 802.11 b/g/n Infrared Frequency: 38Khz Infrared Direction: Multi-faceted infrared Infrared Distance: ≤26ft Supporting Systems: Android™ 4.0/iOS 8.0 or higher... - Page 3 FEATURES • Control IR remote controlled devices from anywhere • Programmable with Schedule • App and Voice Control • Works with Amazon Alexa and the Google Assistant...
-
Page 4: Product Configuration
PRODUCT CONFIGURATION Reset Button (Configuration Button) Power Outlet Port Network Configuration Indicator... -
Page 5: Download App
DOWNLOAD APP 1. Android: download “Smartpoint Home” app on Google Play. 2. iPhone: download “Smartpoint Home” app from the App Store. Smartpoint Home... -
Page 6: Registration And Login
REGISTRATION AND LOGIN 1. Run the “Smartpoint Home” app from your smart phone. 2. Register and login. -
Page 7: Add Device
ADD DEVICE 1. Plug in Smart Wi-Fi Remote Control into USB hub or computer. Hold reset button until indicator light blinks blue rapidly. 2. Make sure phone is connected to your Wi-Fi network and that it is a 2.4GHz network. 3. - Page 8 4. Confirm indicator light is blinking and press the “confirm indicator rapidly blinks” button. 5. Make sure phone is connected to the Wi-Fi network that the device will be connected to and that the network is a 2.4GHz network. Enter your password for the Wi-Fi network.
- Page 9 6. Connecting process will begin. Do not turn off Smart Wi-Fi Remote or phone while connecting. Wait for connection process to complete. 7. Once device has been successfully added, name the device what you would like it to be called in the app.
- Page 10 8. To connect an IR remote controlled device to the Smart Wi-Fi Remote, click on your Smart Wi-Fi Remote under “All devices” on your home page. Then click on “Add”. 9. Then select what kind of device you would like to add.
- Page 11 10. Then select the brand of the device you are adding. The Smart Wi-Fi Remote will automatically connect to your device or you will be asked to point the Smart Wi-Fi Remote at the device and press the button in the app to connect. 11.
-
Page 12: Remove A Device
REMOVE A DEVICE From the home screen, click on the device you would like to remove. 2. Then click on the edit symbol on the top right of the screen. 3. From there you would then click the “Remove Device” button at the bottom of the screen. - Page 13 How to control the Smart Wi-Fi Remote with Amazon Alexa Please make sure that your Alexa app is connected to your Amazon Echo and both work together successfully on your Wi-Fi home network. Step A. Log into your Alexa app, tap top left corner, and tap “Skills”.
- Page 14 Step B. Type “Smartpoint Home”, find “Smartpoint Home” app in the search results and tap “enable” button. Step C. Enter your account info for the “Smartpoint Home” app, tap “Link Now”, then tap “Authorize” on the next page to link Smartpoint Home account to Alexa.
- Page 15 Step E. Wait a few seconds for Alexa to detect the Smart Wi-Fi Remote from the Smartpoint Home app and you will find the device named “Smart Wi-Fi Remote” has been paired to Alexa app from “Smartpoint Home” app. If you already have your Smartpoint Home account linked with Alexa, Alexa will automatically detect the new device.
- Page 16 • Alexa, turn off the “TV” Note: The controlled device name is the name you give it on the “Smartpoint Home” app after adding remote to the Smart Wi-Fi Remote. If you also want to control the Smart Wi-Fi Remote with...
- Page 17 Step A. Once you are logged into your Google Home App, you should see buttons at the top to connect your Smartpoint Home account to the Google Home App. Step B. Tap the Smartpoint Home button to link your account with the Google Assistant.
- Page 18 Step C. Enter your account info for the “Smartpoint Home” app, tap “Link now”, then tap “Authorize” on the next page to link your Smartpoint Home account to the Google Assistant.
- Page 19 Step D. You will find that the Google Assistant has found the device named ”Smart Wi-Fi Remote” on this page. Now you can view and control your IR remote controlled devices connected to the Smart Wi-Fi Remote with the Google Home App.
- Page 20 See what happens by asking Google: “Hey Google, turn on the TV” “Hey Google, turn off the TV” Note: The controlled device name is the name you give it on the “Smartpoint Home” app after adding the remote to the Smart Wi-Fi Remote.
-
Page 21: Warranty Information
WARRANTY INFORMATION One Year Limited Warranty. For Customer Service, email us at: help@smartpointco.com Manufactured, marketed and distributed by Smartpoint LLC, under license. Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. Google, Android and Google Play are trademarks of Google LLC. - Page 22 FCC Notice: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's...
