Summary of Contents for i-mobile IMT-8 PLUS

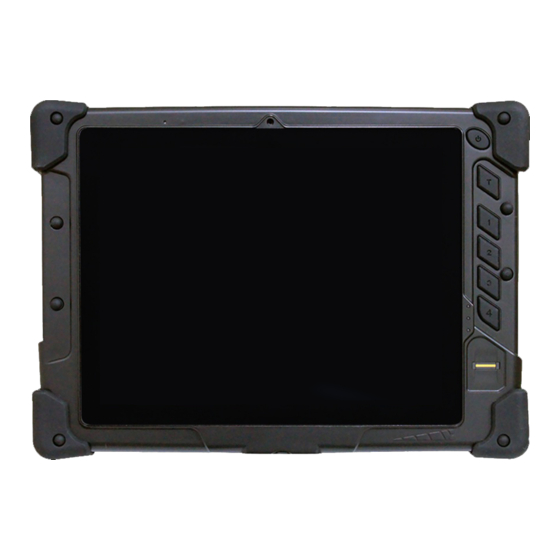

- Page 1 User’s Manual IMT-8 PLUS (2016/Jun./20) @mobile...
- Page 2 Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without the express written consent of the manufacturer. Disclaimer: The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaim any implied warranties of merchantability or fitness for any particular purpose.
- Page 3 Power Cord Requirements The power cord you received with this computer conforms to local specifications for use in the country where you purchased it. Power cord use in other countries may require an additional adapter and/or separate power cord. For additional information on local power requirements, contact an authorized dealer, reseller, or service provider.
- Page 4 Battery (Lithium-Ion) NOTE: Refer to following hazard statement within the service and operating documentation or on the adjacent label to the battery. 1. English CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY INSTALLED. REPLACE ONLY WITH SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER.
- Page 5 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may case harmful interference to radio communications.
-
Page 6: Table Of Contents
Table of Contents ........... EFORE SING OMPUTER Product Features ................2 Installation Guidelines ..............4 CHAPTER 1 ................................ETTING TARTED Unpacking the Product ..............7 Packing List ..................7 Power Supply .................. 8 Using the Battery ..................To install and remove the Battery Pack ........... Installing the Battery/ Remove / Replacing the Battery...... -
Page 7: Before Using Your Computer
Congratulations on your purchase of the product. You will soon be in command of the worlds most lightweight, efficient and secure solution for managing all of your technology and mission critical data. Scale the computer and streamline the costs of day-to-day business operations and multimedia demands. -
Page 8: Product Features
The Instructions Manual Product Features The product is a portable multimedia device empowering highly mobile users with wireless computing capabilities for day-to-day business and wireless applications. Its light weight and supreme portability combined with state-of-the-art multimedia capabilities provide exceptional writing, maneuvering, and on your feet computing. - Page 9 Before Using Your Computer Special Integrated Functions: Multiple special devices, 2M / 5M Pixel both sides Camera, can provide useful functions for business and industrial area. Enhanced Protective Equipment The computer, designed for IP65 ingress protection rating, can provide indoor and outdoor protections of no ingress of dust and water jets against enclosure without harmful effects.
-
Page 10: Installation Guidelines
The Instructions Manual Installation Guidelines Read the following before assembling or disassembling the computer: 1. Follow all warnings and instructions marked on the product and within the Manual. 2. Before you begin cleaning the computer, make sure that you have unplugged all power cords and the device is Powered Off. - Page 11 Before Using Your Computer a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the product. c. If the computer has been exposed to rain or water. d. If the computer does not operate normally when the operating instructions are followed.
-
Page 12: Chapter 1
Chapter Preview: Unpacking and setting up the Product Packing list Power Supply... -
Page 13: Getting Started
CHAPTER 1 - Getting Started Unpacking the Product Before unpacking the product, prepare a suitable workspace for your computer. Make sure the workspace is level, stable and near an electrical outlet. 1. Open the box and remove the contents preserving the integrity of the box as you may need it and all of the packing materials for future shipping. -
Page 14: Power Supply
The Instructions Manual □ 3. AC Power Adapter 6. Power core Power Supply The computer can be powered using either the built in battery or the AC Power Adapter plugged into any grounded AC power outlet. Using the Battery The primary source of power for the computer is a Lithium-Ion battery pack. The battery pack will first need to be installed on the backside of the computer. -
Page 15: To Install And Remove The Battery Pack
CHAPTER 1 - Getting Started To install and remove the battery pack: Using the Power Switch to power down the computer. Battery Switch Battery Lock Installing the Battery Turn the lock knob to Unlock position and gently put the batteries into the battery bay. -
Page 16: Caring For The Battery
The Instructions Manual Caring for the Battery Do not heat, tamper or place the battery in water or near a fire. Do not subject the battery to unusual forces such as hitting it, stepping on it or dropping it. Do not attempt to open or service the battery pack. -
Page 17: Chapter 2
This chapter contains six illustrations, highlighting each external component and its respective functions. Chapter Preview: Front view of the Computer Right side view of the Computer Left side view of the Computer Top view of the Computer ... - Page 18 The Instructions Manual Front View of the Computer Light Sensor Microphone Power button 8” TFT Panel Hot key1 Hot key2 Hot key3 Hot key4 8” TFT Panel Status LED Rubber Corner 8” inch TFT (1024x768) LCD Display with Touch Screen Control Panel: Data can be entered the computer module using the Finger or a soft/USB/wireless keyboard.
- Page 19 CHAPTER 2 – System Overview Microphone: Effortless input of monaural sound recording. Light Sensor The Brightness of Screen is variable following environment light Power Button: The computer Turn On / Off ( pressing button for 2 Seconds) ...
-
Page 20: Right Side View Of The Computer
The Instructions Manual Right Side View of the Computer DC In DC In OTG RS-232 DC-in Jack: Plug the DC (Direct Current) end of the AC Adapter into this jack for external power and battery recharging. Before plugging in the power cord, you must first verify that the external power voltage is appropriate for your geographical area. -
Page 21: Left Side View Of The Computer
CHAPTER 2 – System Overview Left Side View of the Computer Micro Network Jack(RJ45) Strap Hook Network Jack (RJ45): Interfaces with an Ethernet 10/100/1000 Mbps Base-T network connection. Micro SD Micro Secure Digital (SD) Card Slot Strap Hook: The user can grasp the machine by using the hand strip,... -
Page 22: Bottom View Of The Computer
The Instructions Manual Bottom View of the Computer Docking Port Docking Port ﹕ The extended multi-function included: the battery charger port, the USB ports supporting most USB mouse and keyboard devices, RJ-45 Internet port, RS-232 port, DC-In Jack, Microphone and Headphone. -
Page 23: Rear View Of The Computer
CHAPTER 2 – System Overview Rear View of the Computer MMCX Connector Battery Switch Battery Lock Battery Indicator Battery Pack Battery Indicator Speaker Switch... - Page 24 The Instructions Manual GPS: Support 20-channel GP Internal Speakers: The computer’s built-in a single speaker support audio applications for all media software. Volume and equalizer control can be adjusted via the OS or additional multimedia application software. Sound will mute when headphones are detected.
-
Page 25: Chapter 3
& & Chapter Preview: Caring for your Computer Configuring DRAM, and SIM Card... -
Page 26: Caring For Your Computer
The Instructions Manual Caring for Your Computer To guarantee a long life for the computer and to ensure it functions optimally, pay particular attention to the following recommended maintenance guidelines. Routine Care Follow these guidelines to keep the computer working properly: Do not attempt to disassemble or modify the computer in any way. -
Page 27: Caring For The Ac Adapter
CHAPTER 3 – Protecting & Maintaining Caring for the AC Adapter Be sure to only use the AC adapter that comes provided with this product or a compatible option from the manufacturer. Other adapters may cause damage to the computer and will not be covered under the warranty. Grasp the adapter plug and not the cord, when unplugging the adapter from an electrical outlet. -
Page 28: Configuring Ram And Sim Card
Configuring DRAM and SIM Card Configuring DRAM Remove these 5 screws on the Memory cover Remove the 1 screw and the Metal Cover Dismount the back stand. Configuring SIM Card Remove The Battery Pack Please insert the SIM Card to the slot ( Red Frame). -
Page 29: Chapter 4
CHAPTER 4 – Specifications & Software & & Chapter Preview: Specifications and Standard Features Software... -
Page 30: Specifications And Standard Features
The Instructions Manual Specifications and Standard Features Processor MT8382 Quad core 1.3G hz Operating System Android 4.4 Memory LPDDRII 1GB Display 8”-inch TFT (1024x768) LCD Touch Panel( Capacitive Type) LED Back Light / Sunlight Readable Pointing Device Touch Panel Screen and Stylus Pen Input Device Storage eMMC 8GB Wireless Connectivity... - Page 31 CHAPTER 4 – Specifications & Software GPS (optional) Support 20-channel GPS Multimedia Internal microphone and single speakers External volume on/off controls via hot key setting Battery External one 3-cell 3400mAh Removable Lithium-Ion Battery Pack. Short circuit, over-charge, over-discharge, over-current and abuses protected. Power Supply External AC Adapter (175g / AC Input 100~240V, 50/60Hz, 3 Pin Inlet / DC Output 16V, 4.0 A, DIM:107.7mm x 45.9 mm x 30 mm ) includes Power...
- Page 32 The Instructions Manual Mobility Dimensions: 251mm x 181mm x 39.12mm Warranty: ONE year limited warranty parts. Docking USB 2.0 x 4 RJ-45 RS-232 DC-IN Micro Phone Headphone VGA Port Environmental Specifications Operating temperature : -10° to 40° C (14° to 104° F) ...
-
Page 33: Software
CHAPTER 4 – Specifications & Software Software Using The Front Panel Hot Key Utility Please refer to the following descriptions for each of all 5 hot keys. Barcode Trigger Home Screen Back to previous page Volume UP Volume Down Key T : ... -
Page 34: Using The Bluetooth
The Instructions Manual Using The Bluetooth : Bluetooth allows the computer to wirelessly access a variety of Bluetooth enabled digital devices, such as cameras, mobile phones, headsets, printers, and GPS receivers. Users can also create networks and exchange data with other Bluetooth enabled computers or PDAs. -
Page 35: Using The Wireless Network
CHAPTER 4 – Specifications & Software Using The wireless network : Get to the “ Setting “ screen. Select “ WIFI” and Turn it On. Connecting the network API 4. Select “ Browser “ and Use network... -
Page 36: Making A 3.5G Mobile Network
The Instructions Manual Using The 3.5G Mobile Network : 1. Inserted the SIM Card. 2. Select “ More “ and Mobile Network 3. Make “ Mobile network settings “ Check the Icon of the 3.5G is appeared and perfected sign. Select “... -
Page 37: Using The Ethernet
CHAPTER 4 – Specifications & Software Using the Ethernet 1. Turn the wifi off 2. Select “ Browser “ and Use network... -
Page 38: How To Opening The Gps
The Instructions Manual How to opening the GPS 1. Select the GPS ICON on the desktop... -
Page 39: Using The Otg
CHAPTER 4 – Specifications & Software Using the OTG Using USB cable connected the OTG port with the another computer or storage USB port. Sliding down the screen Select “ Connected as a media device “... - Page 40 The Instructions Manual Turn on “ Media device (MTP)” Having a message showed on the another computer or storage...
- Page 41 CHAPTER 4 – Specifications & Software FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 42 The Instructions Manual body, as described in this user guide, is 0.791 W/Kg(Body-worn measurements differ among Tablet PC models, depending upon available accessories and FCC requirements). While there may be differences between the SAR levels of various Tablet PCs and at various positions, they all meet the government requirement for safe exposure.
- Page 43 Model No.: ATS065S-P160 Input: AC 100-240V 50-60Hz 1.4A Output: DC 16V, 4.07A i-Mobile Technology Corporation hereby declares that this Tablet PC is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. This information has to be presented in such a way that the user can readily understand it.
