Sunsky D1 Quick Start Manual

Car head up display
Hide thumbs

Advertisement

Quick Links

Download this manual
Car Head Up Display
(Model: D1)
This product Design Patent and Display Images Copyright had been registered with customs record
Product Introduction：
HUD short for Head Up Display,the main function is to reflect the car dashboard information (e.g.
speed,RPM,water temperature,voltage,trip distance etc),and keep the driver eyes always on road to
avoid the dangerous of lowering down head to read the instrument.
Special Reminder：
The working voltage of this product: 5V~18Vdc (12Vdc/200mA) .
This product is a dual system:Users can freely choose the mode. When the OBD system is not
compatible,please switch to the GPS system and plug with the USB cable.
Product function:
1. Multi-function area:RPM, water temperature, voltage, fuel consumption, altitude, driving distance,

Advertisement

loading
Need help?

Need help?

Do you have a question about the D1 and is the answer not in the manual?

Questions and answers

Related Manuals for Sunsky D1

Summary of Contents for Sunsky D1

  • Page 1 Car Head Up Display (Model: D1) This product Design Patent and Display Images Copyright had been registered with customs record Product Introduction： HUD short for Head Up Display,the main function is to reflect the car dashboard information (e.g. speed,RPM,water temperature,voltage,trip distance etc),and keep the driver eyes always on road to avoid the dangerous of lowering down head to read the instrument.

  • Page 2: Button Functions

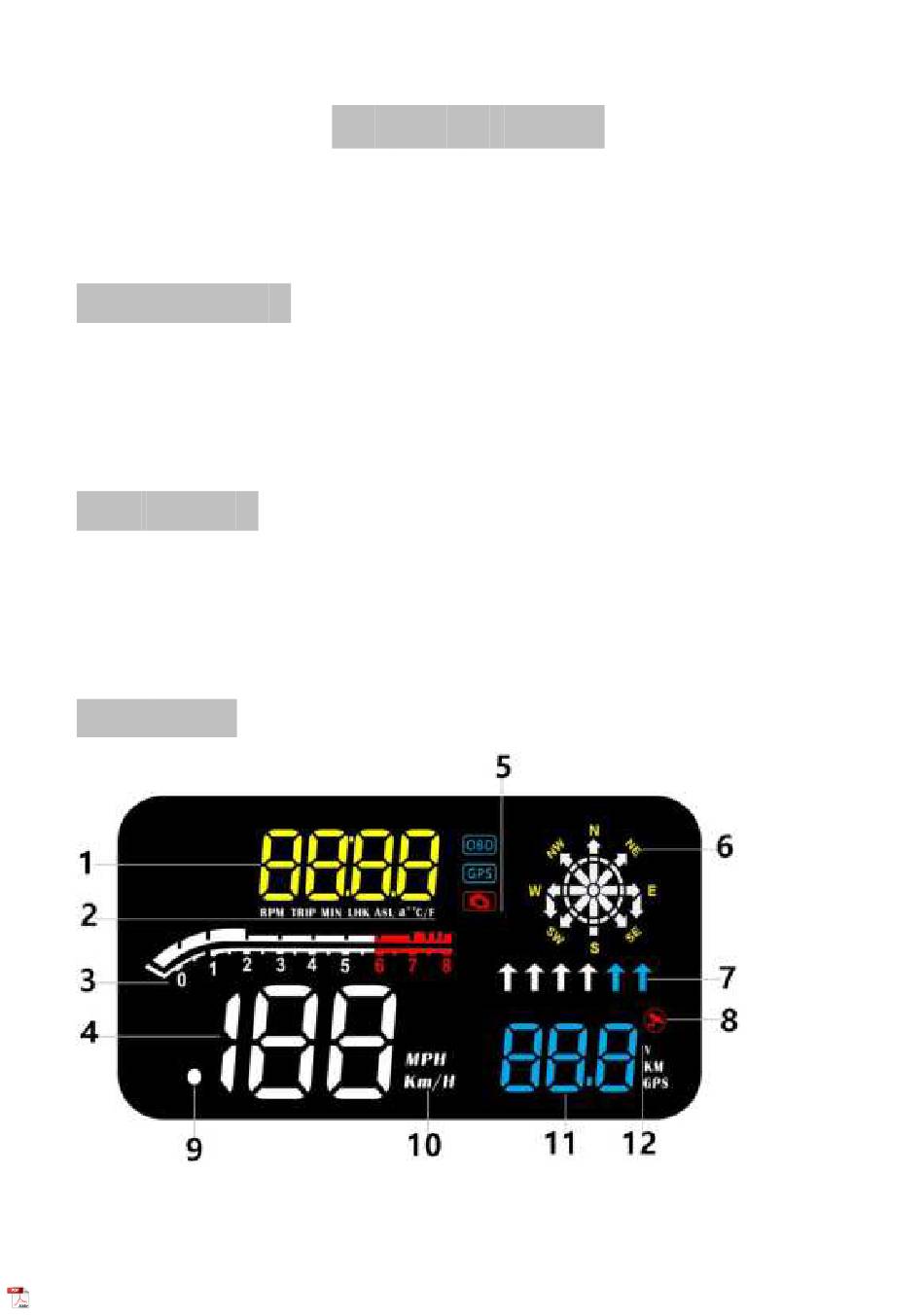

    navigation distance point, driving time,power test, number of satellites, clock 2. RPM=Rotating speed, TRIP=driving distance, MIN=driving minute, LHK=fuel consumption, ASL=altitude, a + =100km acceleration, °C/F=water temperature 3. RPM icon 4. Speed icon 5. System icon, Fault code icon 6. Compass (display navigation info when navigating),after the satellite is finding,the GPS light stops flashing and stays on for normal use.
  • Page 3 3.System selection Button Scroll button (on the left) 1. Vertical short press (quick press and release within 1 second): (1) to switch the display mode (2) to choose menu after entering the setup menu Vertical long press (press in the button >2s and release): (1) to enter the setting menu(Item1-14) (2) to save and exit after setting 3.
  • Page 4 OBD System (For OBD2 car) Function: vehicle speed, RPM, fuel consumption, water temperature, voltage, clock, driving mileage, driving time, driving direction, altitude, number of satellites, RPM icon GPS System (For all car) Function: vehicle speed, time, voltage, driving time, driving distance, driving direction, altitude, number of satellites, speed icon When the OBD system is not compatible,please pull down the system selection button to switch to the GPS system and plug with the USB cable...
  • Page 5 synchronized navigation information,compatible intelligent phones which meet the following requirement(Android 4.0 and IOS Iphone 5 or ↑) Android Phones:Please search keyword ’WiiYii’ in the Android Market Iphone:Please search keyword ’WiiYii’ in the APP Store Scan below QR code to download 1.Please download this software,install HUD and actuate your car,manually turn on the Bluetooth and positioned,click the icon of WiiYii,system will automatically search the Bluetooth and connect 2.If the mobile phone cannot connect to the Bluetooth device correctly, please follow the...
  • Page 6 Setting Mode(Menu mode) Vehicle long press the scroll button for 2 seconds to enter the setting item, vehicle short press to select the menu(1-14), pull up to switch the parameter value, vehicle long press for 2 seconds to save and exit. (As shown below) Menu Functions Adjust...
  • Page 7 Brightness 0=automatic Level photosensitive mode, 1-5= manual adjustment Water Water temperature 50-150 Temperature alarm is >120 ℃ , users Alarm can freely set this value Voltage alarm Voltage alarm is <10V, 0-15.0 10.0 users can freely set this value Fatigue Driving Remind after continuous 1.0-8.
  • Page 8 Shutdown Shut down 20 seconds 5-300 Time after the fire break, turn off the gas and electricity to 180, that is, shut down after 180 seconds. Time Time adjustment, choose displays 8 00:00- Calibration the time of your area, before the 23；00 after searching for star is found,...
  • Page 9 2.Only the car voltage displays and be automatic power off after 30 second (1)This product is only available for OBDII and EOBD cars when it is in OBD2 mode (2)OBD2 is a car protocol (U.S.A Cars:2003 Other regions:2008) (3)This product OBD2 mode does not support OBD I and JOBD (4)Switch to the GPS system using the USB cable to display 3.Wrong operation leads to crashes (1)Are there other OBD devices on your car(parking sensor, TPMS, lock lift window, ELM27)

  • Page 10: Shut Down And Restart

    (4)Tear off protective film “2” 6.Automatic start-up will auto off when step the brake and hybrid cars will turn off during driving. Method one: Enter the menu item 11 and adjust the value to 1. (See the menu settings) Method two: Setting shutdown delay to 300 seconds on the item 12, so that it can turn off after 5 minutes 7.HUD cannot auto shut down After the car engine stops, the RPM and speed on the machine can not be turned off, please enter...
  • Page 11 times, or replace the USB cable 2.No speed The GPS is flashing to search for stars. Please move the car to an open road. After the satellite is found, the GPS light will be on and off, and it can be used normally. 3.Can not automatically turn on or turn off repeatedly during driving When the OBD line is connected: the device will shutdown once the voltage is <13.2V for 3 minutes.
  • Page 12 Underground parking lots, tunnels, and overpasses, when there are obstructions, the signal will be unstable. Satellites will drift. Please drive to an open road. If the number of satellites found is more than 5, it will be normal. 8.Check the number of satellites Pull down the scroll button to switch to the GPS icon ( more than 5 satellites can be displayed normally) 9.Cannot automatically turn off after the car shutdown...
  • Page 13 (2)Whether the Bluetooth of the mobile phone is connected to other devices,delete the paired Bluetooth devices,and then bind WYHUD Turn off Bluetooth again and turn on the phone Bluetooth,or restart the phone (3) Make sure that other phones turn off Bluetooth 4.Phone cannot search for WiiYii APP (1)Check the phone system version and whether it supports Bluetooth 4.0, Apple system IOS9 or above, Android 4.4 or above...
