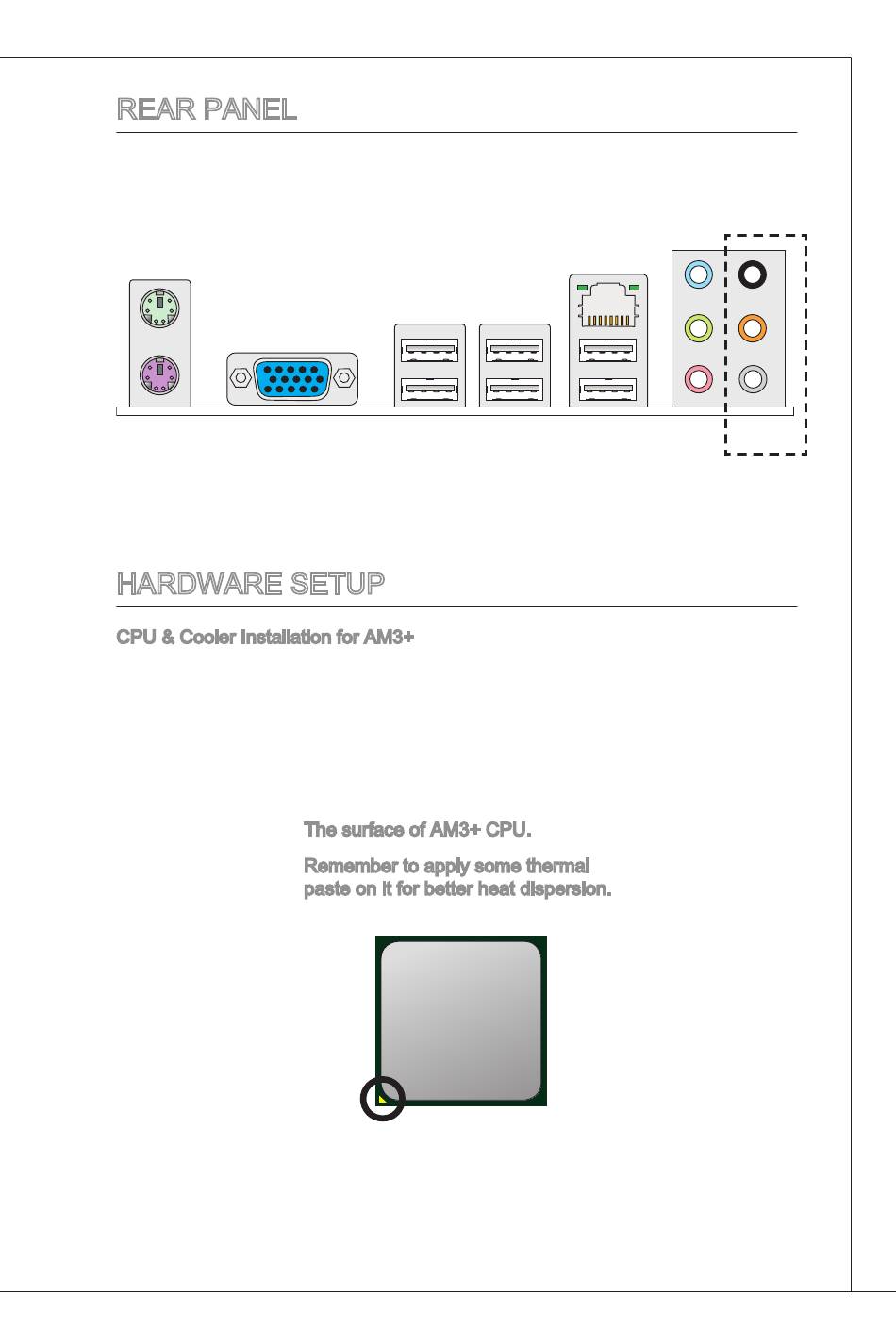

reAr PANeL

the rear panel provides the following connectors:
Mouse
VGA Port
keyboard

hArdWAre SetuP

CPu & Cooler installation for AM3+
When you are installing the CPu, make sure the CPu has a cooler attached on the
top to prevent overheating. Meanwhile, do not forget to apply some thermal paste
on CPu before installing the heat sink/cooler fan for better heat dispersion.
uSB 2.0 Ports
the surface of AM3+ CPu.
remember to apply some thermal
paste on it for better heat dispersion.
Gold arrow
LAN
Line-in rS-out
Line-out
CS-out
MiC SS-out
(optional)
MS-7641
