Summary of Contents for UTC Fire and Security Chubb FSM-ES

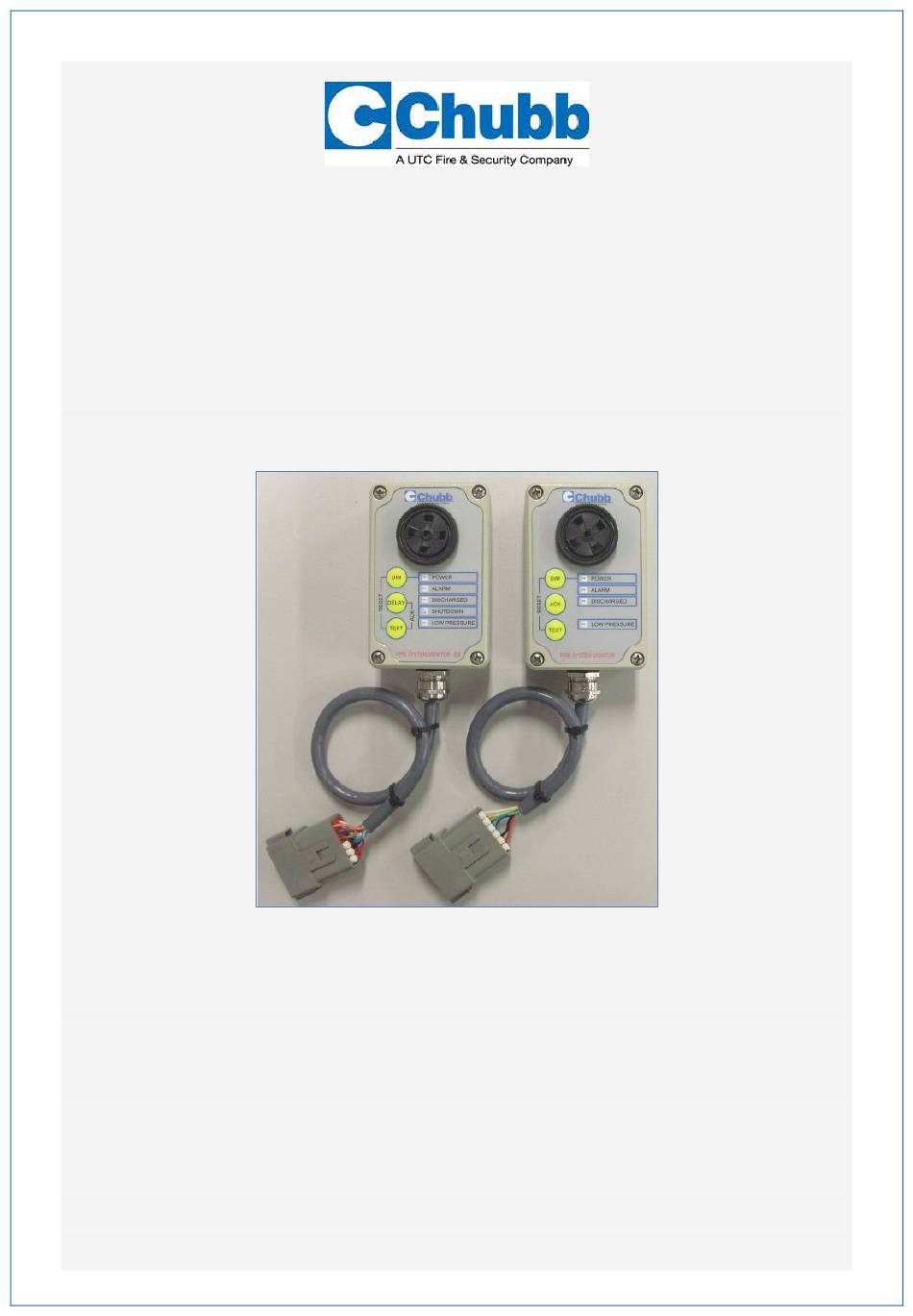

  • Page 1 Installation, Operation and Maintenance Manual © Chubb Fire & Security Pty Ltd - 2011...

  • Page 2: Publication Information

    Fire System Monitoring Panels Publication Information Development Craig Hafey Technical Manager – Vehicle Suppression Chubb Fire & Security A UTC Fire & Security Company 149-155 Milton St Ashfield NSW 1800 Tel: +61 (2) 9581-6364 Mobile: +61 (0) 427-023-335 www.chubb.com.au Publication: Version: Version 1.2 Date:...

  • Page 3: Pre-Face

    Fire System Monitoring Panels Pre-Face Document History: Version Summary of Change Original draft submitted for comment Minor changes to formatting Removed Company Confidential Fixed Figure 13. This manual is an uncontrolled document. Chubb Fire & Security Pty Ltd (“Chubb”) reserves the right to alter this manual at any time in accordance with our policy of continuous development.

  • Page 4: Table Of Contents

    Fire System Monitoring Panels General Information Contents Publication Information ........................2 Pre-Face ............................3 General Information ........................4 Contents ............................4 1: FSM-S and FSM-ES panels ......................6 Introduction ..........................6 Standard features ........................6 Models ............................7 Power Supply ..........................7 Field Wiring ..........................
  • Page 5 Fire System Monitoring Panels About this manual: This manual is written for those who perform tasks associated with the installation, operation and maintenance of fire suppression systems intended for use in mobile and transportable equipment. Chubb Fire & Security Pty Ltd (“Chubb”) assumes no responsibility for the application of any systems other than those addressed in this manual.

  • Page 6: 1: Fsm-S And Fsm-Es Panels

    Fire System Monitoring Panels 1: FSM-S and FSM-ES panels Introduction The FSM-S (Standard model) and FSM-ES (Engine shutdown model) panels comprise a combination indicator panel and user interface. The indicator panel provides visual and audible indication of system status, alarms, and faults and the user interface incorporates a RESET, TEST (LED’s and Buzzer), DIM (LED Brightness) and ACK (Acknowledge/Silence Buzzer) features.

  • Page 7: Models

    Fire System Monitoring Panels Models Fire System Monitor – ES (Engine Shutdown) Fire System Monitor – S (Standard) Part Number: 001-924 Part Number: 001-924.1 Figure 2 – FSM-ES Figure 3 – FSM-S Power Supply Both panels operates on a 8 to 35 volts operating range (nominal 12 or 24 volts) and the preferred power supply arrangement for is through a battery isolator or ignition circuit (Fig.

  • Page 8: Field Wiring

    Fire System Monitoring Panels Field Wiring The panels comprise of an IP65 rated enclosure and IP69 rated Deutsch DT series connectors. The pin out configuration of each panel is displayed in Figure 5 & 6 Inputs • Power input • Low pressure switch input •...

  • Page 9: 2: Installation

    Fire System Monitoring Panels 2: Installation Before installing a FSM panel, the equipment and the operators cabin should be surveyed to ensure that the intended mounting location will; • be visible and accessible to the operator in their normal position; •...
  • Page 10 Fire System Monitoring Panels FSM-ES – Configuring shutdown delay period A shutdown time delay is incorporated in the FSM-ES to allow the equipment operator to safely bring the equipment to rest before the shutdown is activated. A ‘DELAY’ button is provided for the operator on the display panel (Fig.

  • Page 11: Interfacing

    Fire System Monitoring Panels Interfacing Once the panel has been installed, connection to power, pressure switches and engine shutdown (if applicable) can be made via the Deutsch connector (Fig 11). For field wiring purposes, each panel is kitted with the mated plug (DETAIL A in Fig 11) and a pin diagram (See Figure 12 &...

  • Page 12: Pressure Switches

    Fire System Monitoring Panels Figure 13 - Detail A, FSM-S Field Wiring Pressure switches Two pressure switches inputs are available for use with the FSM panels. If the panels are being installed in conjunction with Chubb PEFS systems, the switches that are specified for use are; 1.

  • Page 13: Discharge Pressure Switch

    Fire System Monitoring Panels Pressure low switch The pressure low switch will open circuit if the suppression system develops a leak or if the system discharges. The open circuit condition will cause the ‘LOW PRESSURE’ LED to illuminate and the audible alarm to sound once every ten 10 seconds.
  • Page 14 Fire System Monitoring Panels Figure 16 – Field Wiring for Multiple PEFS cylinders Chubb Fire & Security Pty Ltd Technical Manual Page 14 of 22...

  • Page 15: 3: Manual Controls

    Fire System Monitoring Panels 3: Manual Controls DIM button This button control brightness of LED indicators on both panels. Hold the ‘DIM’ button down until the desired level is reached (Fig 17). Test button This button will test all indicators on both panels by illuminating all LEDS and sounding the audible alarm. The test mode will operate when the ‘TEST’...

  • Page 16: Acknowledge Function

    Fire System Monitoring Panels Acknowledge function An acknowledgement function is provided on both panels to suppress the audible alarm unit for a period of one (1) hour. Only a ‘LOW PRESSURE’ fault can be acknowledged (silenced). The acknowledge function is activated by;...

  • Page 17: 4: Operation

    Fire System Monitoring Panels 4: Operation Alarm / Discharge An alarm/discharge condition is initiated when an open circuit occurs on the discharge pressure switch input (Pins 5 & 6). An alarm/discharge condition will cause: • The ‘ALARM’ and ‘DISCHARGED’ LED’s to illuminate and latch on. •...

  • Page 18: 3: Commissioning

    Fire System Monitoring Panels 3: Commissioning A full commissioning test in accordance with AS5062-2006, Fire protection for Mobile and Transportable Equipment, must be completed in order to ensure that the panel is installed correctly and is fully functional. The outcomes of the test should be recorded as part of the fire suppression system commissioning report and completion documentation provided to the customer.

  • Page 19: 4: Troubleshooting

    Fire System Monitoring Panels 4: Troubleshooting Failure of a fire system monitoring panel to function properly will likely be caused by one or more of the following conditions: 1. Failure of the power supply 2. Incorrect installation 3. Damaged wiring or corrosion 4.

  • Page 20: 5: Wiring Diagrams

    Fire System Monitoring Panels 5: Wiring Diagrams FSM-ES Chubb Fire & Security Pty Ltd Technical Manual Page 20 of 22...

  • Page 21: Fsm-S

    Fire System Monitoring Panels FSM-S Chubb Fire & Security Pty Ltd Technical Manual Page 21 of 22...

  • Page 22: Feedback Form

    Fire System Monitoring Panels Feedback Form We welcome feedback regarding this manual. If you have any recommendations for improvement please provide details using this form. Fax to: Craig Hafey, +61 (2) 9581-6364 Email: Craig.Hafey@chubb.com.au 2. TITLE: Fire System Monitoring Panels - FSM-ES / FSM-S 1.
