Operating Instructions and Parts Manual
Electrostatic Air Filtration System

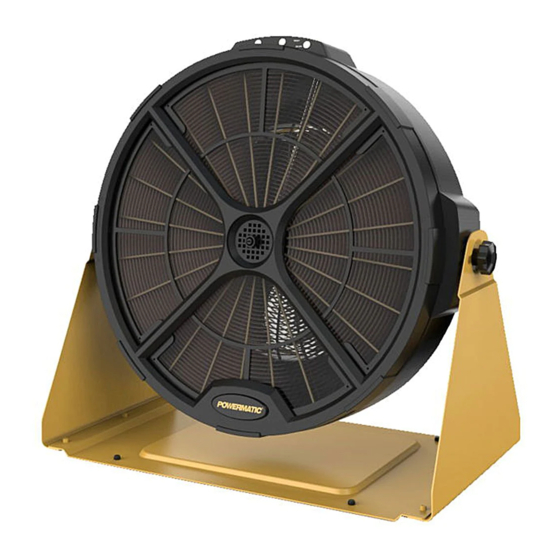

Model PM1250
This product earned the ENERGY STAR
strict energy efficiency guidelines set by the US EPA. US
EPA does not endorse any manufacturer claims of
healthier indoor air from the use of this product.
The energy efficiency of this ENERGY STAR
model is measured based on a ratio between the model's
CADR for dust and the electrical energy it consumes, or
CADR/Watt.
Powermatic
427 New Sanford Road
LaVergne, Tennessee 37086
Ph.: 800-274-6848
www.powermatic.com
®
by meeting
®
qualified
Part No. M-1791331
Edition 6 12/2021
Copyright © 2021 Powermatic

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM1250 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Powermatic PM1250

  • Page 1 CADR for dust and the electrical energy it consumes, or CADR/Watt. Powermatic 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-1791331 Ph.: 800-274-6848 Edition 6 12/2021 www.powermatic.com Copyright © 2021 Powermatic...
  • Page 2: Important Safety Instructions

    Disconnect the filtration unit from the power purpose whatsoever. If used for other purposes, source (unplug) before servicing or changing Powermatic disclaims any real or implied filters. warranty and holds itself harmless from any injury that may result from that use.
  • Page 3 WARNING: Some dust, fumes and gases created by power sanding, sawing, grinding, drilling, welding and other construction activities contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Some examples of these chemicals are: •...
  • Page 4: Table Of Contents

    13.0 Warranty and Service ..........................15 3.0 About this manual This manual is provided by Powermatic covering the safe operation and maintenance procedures for the PM1250 Electrostatic Air Filtration System. This manual contains instructions on installation, safety precautions, general operating procedures, maintenance instructions and parts breakdown. Your machine has been designed and constructed to provide consistent, long-term operation if used in accordance with the instructions set forth in this document.
  • Page 5: Pm1250 Electrostatic Afs Specifications

    Appliance Manufacturers Method for Measuring Performance of Portable Household Electric Room Air Cleaners. In accordance with AHAM’s 2/3 rule, these numbers are applicable to a room of up to 680 sq. ft. for airborne particles. Powermatic always recommends using an appropriately sized dust collector in conjunction with our air filtration systems.
  • Page 6: Pm1250 Mounting Hole Pattern

    The specifications in this manual were current at time of publication, but because of our policy of continuous improvement, Powermatic reserves the right to change specifications at any time and without prior notice, without incurring obligations. 4.1 PM1250 mounting hole pattern...
  • Page 7: Electrical Connections

    2. Grounded, cord-connected tools intended for use on a supply circuit having a nominal rating less than The PM1250 Electrostatic AFS is prewired for single 150 volts: phase, 120V power. It is provided with a plug designed for use on a circuit with a grounded outlet This tool is intended for use on a circuit that has an that looks like the one pictured in Figure 5-1.
  • Page 8: Unpacking

    Press and release Speed button until desired 6.0 Unpacking speed indicator is green. Press Timer button until desired timer indicator 6.1 Shipping contents is green. If Timer button is not pressed again for 3 seconds, the selected time indicator will flash Open shipping cartons and check that all parts are multiple times, then stay green.
  • Page 9: Anion Generator Maintenance

    9.2 Anion generator maintenance To remove filter: When filter life reaches programmed time (1000 Remove dust regularly from the anion generator (i.e. hours), red Reset indicator light will flash twice carbon brush) with the provided cleaning brush. See per second. Figure 9-1.
  • Page 10 Figure 8-1: Assembly Figure 8-2: Controls Figure 8-3: Remote control Figure 8-4: Filter replacement...
  • Page 11: Troubleshooting Pm1250 Electrostatic Afs

    10.0 Troubleshooting PM1250 Electrostatic AFS Table 4 Symptom Probable Cause Remedy* Machine will not start. No incoming power. Check plug connection. Cover improperly installed. Reinstall cover. If properly installed, red light will illuminate on control panel. Low voltage. Request voltage check from power company and correct low voltage condition.
  • Page 12: Replacement Parts

    Index No Part No Description Size 1 ....2211-J1000-01 ..Powermatic Logo ............. W100 x H36 mm ... 1 2 ....2101-J1000-01 ..Cover ......................1 3 ....2112-J1000-01 ..Cover Fastener ....................4 4 ....2203-J1000-01 ..Metal Ring...................... 1 5 ....
  • Page 13: Pm1250 Electrostatic Afs - Exploded View

    11.1.2 PM1250 Electrostatic AFS – Exploded View...
  • Page 14: Electrical Connections For Pm1250

    12.0 Electrical connections for PM1250...
  • Page 15: Warranty And Service

    Powermatic sells through distributors only. The specifications listed in Powermatic printed materials and on the official Powermatic website are given as general information and are not binding. Powermatic reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.
  • Page 16 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.powermatic.com...
