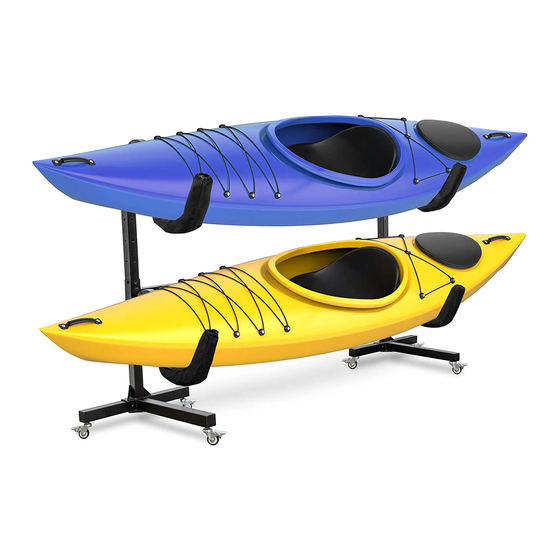

- Page 1 DELUXE FREESTANDING TWO-KAYAK STORAGE RACK WITH WHEELS Sku: RGFSKRWW User Guide...
- Page 2 STORAGE RACK WITH WHEELS Sku: RGFSKRWW User Guide ™ Thank you for purchasing the RaxGo Deluxe Freestanding Two-Kayak Storage Rack with Wheels. This User Guide is intended to provide you with guidelines to ensure that operation of this product is safe and does not pose risk to the user.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS This rack is intended for use with kayaks only. Do not attempt to mount other objects/persons on the rack. The total capacity of this rack is a maximum of two (2) kayaks, totaling 175 lbs. (79.4 kg). Do not exceed the 175 lbs. -
Page 4: Parts List
PARTS LIST PARTS LIST... - Page 5 3” Carriage Bolts PARTS LIST...
- Page 6 P arts List P art Name PARTS LIST 24” Base 24” Base P ost P arts List P art Name 3” Carriage Bolts Parts List 24” Base Part Name 3” Carriage 24” Base 20” Base Leg 3/4” Hex Bolts 3/4” Hex B 24”...
- Page 7 ts ex Bolts 2-3/4” Hex Bolts Cross Bar End (Male) PARTS LIST Cross Bar End (F emale) ” Hex Bolts Cross Bar Center racket 3-1/2” Hex Bolts Cross Bar Plate F oot Rack Arm ¾″ Hex Bolts 2 ¾″ Hex Bolts & Plate 3 ½″...
- Page 8 ASSEMBLY INSTRUCTIONS NOTE: For your safety and to prevent damage to the rack, it is recommended that two people assemble the rack together. Before assembly, ensure the wheels are in a locked position to prevent product damage and/or personal injury. 1.
- Page 9 2. Insert the post (d) into the base post (b) with the empty side facing the base leg (c). Attach the post (d) to the base post (b) using two (2) ¾” hex bolts (k) with a locking and thick washer on each. Make sure the welded nuts face the rear of the base and align with the corresponding holes.
- Page 10 4. Using the second cross bar plate (I) and two (2) of the 2 ¾” hex bolts (I), attach the assembled cross bar from step 4 to the second assembled base from steps 1-3. Make sure there are two (2) washers and a lock nut on each side to attach the plate to the frame.
-
Page 11: Specifications
The kayak rack is now fully assembled. Make sure the wheels are locked before loading kayaks onto the rack for added stability. Unlock the wheels only when moving the kayak rack around. SPECIFICATIONS Assembled dimensions (L x W x H): 94” x 26” x 52” (238.8 x 66 x 132.1 cm) Weight capacity: 175 lbs. - Page 12 Company’s property. Refunds can only be given if the original Product is returned. This Warranty does not apply to: (a) Any non-RaxGo™ Deluxe Freestanding Two-Kayak Storage Rack with Wheels product, hardware or software, even if packaged or sold with the Product;...
- Page 13 (g) Consumable parts, such as batteries, fuses, and bulbs; (h) Cosmetic damage; or (i) If any RaxGo™ Deluxe Freestanding Two-Kayak Storage Rack with Wheels serial number has been removed or defaced. This Warranty is valid only in the country where the consumer purchased the Product, and only applies to Products purchased and serviced in that country.
- Page 14 1-833-722-0121 RAXGO is a trademark of C&A IP Holdings, LLC in the US. All other products, brand names, company names, and logos are trademarks of their respective owners, used merely to identify their respective products, and are not meant to connote any sponsorship, endorsement, or approval.
