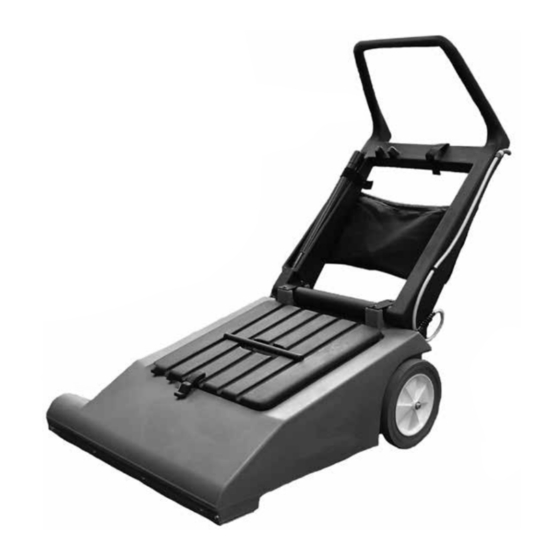

LARGE AREA VACUUM
INTRODUCTION
This operator's book has important information for the
use and safe operation of this machine. Read this
book carefully before starting the machine. Keep this
book and tell all operators to read the book. If you do
not follow the instructions, you can cause an injury or
damage equipment, furniture or buildings.
For additional information refer to the Triple S website
www.triple-s.com or write to:
Triple S
2 Executive Park Drive
Billerica, MA 01862
Carefully inspect all components to ensure that there
is no concealed freight damage. If such damage is
discovered, file a "CONCEALED DAMAGE REPORT"
immediately with the delivering carrier.
LAV-30
OPERATING & MAINTENANCE
READ THIS BOOK
The contents of this manual are based on the latest
product information available at the time of publica-
tion. Triple S reserves the right to make changes or
improvements to its machines without notice.
FOR YOUR CONVENIENCE, RECORD THIS
IMPORTANT INFORMATION:
MODEL_______________________________
SERIAL NUMBER______________________
PART NUMBER ________________________
DATE PURCHASED ____________________
INSTRUCTIONS
Advertisement
Table of Contents
Related Manuals for Parish LAV-30
Summary of Contents for Parish LAV-30
- Page 1 LARGE AREA VACUUM LAV-30 OPERATING & MAINTENANCE INTRODUCTION INSTRUCTIONS READ THIS BOOK This operator’s book has important information for the The contents of this manual are based on the latest use and safe operation of this machine. Read this product information available at the time of publica- book carefully before starting the machine.
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ AND UNDERSTAND ALL WARNINGS AND INSTRUCTIONS IN THIS BOOK BEFORE USING THIS MACHINE! If you do not understand, ask your supervisor. WARNING: To reduce the risk of fire, electric shock, or injury: 1. DO NOT USE THIS VACUUM FOR PICK UP OF WET DEBRIS. 2. - Page 3 Grounding Instructions This machine must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This machine is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. WARNING - Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the machine. If it will not fit the outlet, have a proper outlet installed by a qualified electrician. This machine is for use on a nominal 120-volt circuit, and has a grounded plug that looks like the plug illustrated in figure A. A temporary adapter that looks like the adapter illustrated in figures B and C may be used to connect this plug to a 2-pole receptacle as shown in figure B if a properly grounded outlet is not available. The temporary adapter should be used only until a properly grounded outlet (figure A) can be installed by a quali- fied electrician. The green colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw. NOTE: In Canada, the use of a temporary adapter is not permitted by the Canadian Electrical Code.
-
Page 4: Operating Procedures
OPERATING PROCEDURES WARNING! For the safe operation of this machine follow the instructions given in this booklet and the training given by your supervisor. Failure to do so can result in personal injury and/or damage to machine and property! DO NOT OPERATE MACHINE IN AN EXPLOSIVE ENVIRONMENT! NEVER USE THIS MACHINE TO PICK UP VOLATILE OR EXPLOSIVE MATERIALS! The model shown in this manual is intended for commercial use. -
Page 5: Maintenance
MAINTENANCE WEEKLY: 1. Inspect and clean the two vacuum inlet filters. Remove the cover from the machine. The filters are now accessible (see page 10). They are constructed of foam attached to a plastic mounting ring. Slide the filters off and clean by shaking or vacuuming. Replace if there are any rips, tears or can’t be cleaned. 2. Inspect and clean the exhaust filter. It is located under the handle on the top of the machine (see page 8). Remove the filter and clean by shaking, vacuuming or washing with water. Replace if there are any rips, tears or if it can’t be cleaned. VACUUM MOTOR MAINTENANCE: Have the vacuum motors inspected annually by a factory authorized service technician. If the carbon brushes are worn, they should be replaced. This service will prolong the life of the motor. - Page 6 SSS LARGE AREA VACUUM, MODEL LAV-30 Wand Recess Area on Handle LAV-30 Large Area Vacuum #54353 #201202 Bumper #930005 Pop Rivet Handle, Machine #653901 (Image Enlarged) Cover #652302 Kit, Hopper Latch #655001 Body, Machine Not Shown: #651301 Label, RH #655106...
-
Page 7: Switch Assembly
SWITCH ASSEMBLY Plate, Switch #656602 Switch, Rocker 20 Amp (2) Screw, #8x1/2 THP SMS (3) #911089 #W136D1 Not Shown: Lead Assembly, Switch #911211 Brush Switch Vacuum Switch COVER ASSEMBLY Bag Clamp Assembly Not Seen: Screws (2) Handle #962029 #653902 Clamps (2) #1394 Nuts (2) Bag Adapter... - Page 8 HANDLE & EXHAUST FILTER COMPONENTS Not Shown (at top of handle): Clamp Jacknut Handle #1394 #920026 #653901 Spring Clamp, Cable #228331 #612001 Screw Two (2) Sets: Screw #W343D Bracket, Handle #W343D #657501 Screw (2) #W516D Wiring Harness #911210 Connectors (5) Exhaust Filter #653301 #911179...
-
Page 9: Brush Assembly
BRUSH ASSEMBLY Shoe Brush #657901 Screw, #8x1/2 THP (8) Two (2) Sets: #W136D Bearing Housing #654201 Pulley, Brush Screw, 8-32x3/8 Flat PH (2) #656901 #962105 Set Screw (2) Guard, Belt #W168D #653602 Screw (3) Bearing (2) #W136D #902035 Brush Shaft, Long #650901 Shoe End #657701... -
Page 10: Vacuum Motor & Filters
VACUUM MOTOR & FILTERS Screw, 10-32x1/2 Type F #962030 (230V Only) Not Shown: Washer (1) Gasket, Motor Mount #W124D #633403 Lead Assembly, Green (2) #911212 Washer (1) #W124D Vacuum Motor, 115V (2) Screw w/lock tight, Motor Mount (4) #655204 #920618 Vacuum Motor, 230V (2) Nut (4) #655205... - Page 11 FOOT PEDAL & VACUUM ADJUSTMENT ASSEMBLY Nut, 1/4-20 (2) #920011 Rod, Vacuum Adjustment Cotter Pin #657402 #A13507 Screws, #8x1/2 THP (4) Screws, 8-32x5/16 PHP MS(4) #W136D #W500D Plate Foot Pedal (Lever for Door) Plate, Vacuum Door #652301 #655101 #652701 Gasket, Duct Seal, Vacuum Door #653401 #657601...
- Page 12 WARRANTY POLICY SSS LARGE AREA VACUUM, MODEL LAV-30 The Triple S LAV-30 wide area vacuum has been manufactured, tested and inspected in accordance with specific engineering requirements and is WARRANTED to be free from defects in workmanship and materials as follows: Five (5) years parts, One (1) year labor - Polyethylene components One (1) year parts and labor – All other components unless excluded below. This warranty extends to the original user/purchaser and only when used, operated and maintained in accordance with Triple S Operating and Maintenance instructions. This warranty does not apply to the following wear parts and accessories of the machine including: Part Number Part Name 908103 Cord Assembly Paper Filter Bags-10 pk 54354 54356 Cloth Filter Bag 633301 Filter 54143 HEPA Filter 653301 Exhaust Filter 650901 Brush Assembly 654101 Hose...
