Summary of Contents for ROVE G2800

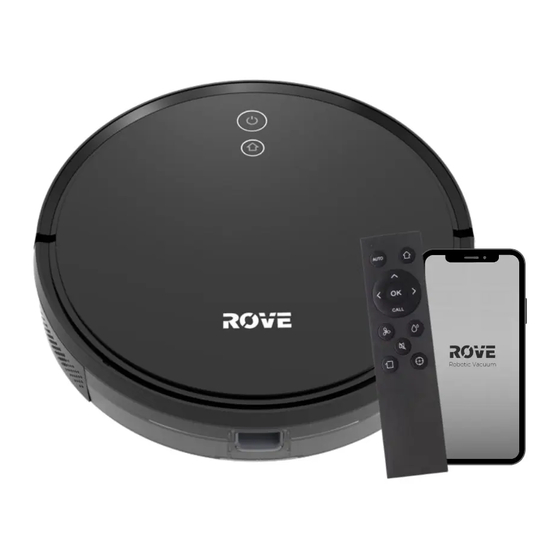

- Page 1 Gyroscope Navigation Smart Robotic Vacuum User Manual G2800 from APPLIED SCIENCE...
-
Page 2: Table Of Contents
C O N T E N T S SAFETY INFORMATION .......................1 WARNING.............................4 PRODUCT INTRODUCTION .......................5 ROVE SETUP..………….........................8 USAGE INSTRUCTION ..…………....................9 ROUTINE MAINTENANCE.........................12 PRODUCT INFORMATION......................15 TROUBLESHOOTING GUIDE......................16 COMMON PROBLEMS........................18 WARRANTY............................19 STATEMENT..........................20... -
Page 3: Safety Information
SAFETY INFORMATION Usage Limitations • This product is to be used for floor cleaning inside a home ONLY and cannot be used outside of the house, on non-ground surfaces (such as furniture) and not for commercial/industrial environments. • Please do not operate the product when the temperature is below 32°F or above 104°F, on wet surfaces, or over sticky substances. •... - Page 4 SAFETY INFORMATION 1. This device is only to be used with the power supply unit provided with it. 2. The adapter must be removed from the socket-outlet before cleaning or maintaining the device. 3. This device contains batteries that are only replaceable by skilled people. 4.
- Page 5 SAFETY INFORMATION Disposal Instructions: • The following information is only applicable to the disposal of this device, not its daily use. • The chemical substances contained in the battery will pollute the environment. Before disposing of this product, remove the battery and take it to a professional recycling station. The battery should only be removed after it has been used completely.
-
Page 6: Warning
WARNING! This symbol means that according to local laws and regulations, your product and/or its battery shall be disposed of separately from regular household waste. When this product reaches the end of its life, users have the choice to give this product to a professional recycling organization. Proper recycling of your product will protect human health and the environment. -
Page 7: Product Introduction
PRODUCT INTRODUCTION WHAT’S INCLUDED HEPA Filter x 1 + Sponge Foam Filter x 1 Left Side Brush x 1 Right Side Brush x 1 Charging Base x 1 Adapter x 1 Cleaning Brush x 1 600ml Dust Box x 1 Remote Control x 1... - Page 8 PRODUCT INTRODUCTION Robot Vacuum Filter Cover TOF Wall Sensor Dust Release Button Charging Base Detection Sensor Bumper Obstacle Detection Sensor Sensor...
- Page 9 PRODUCT INTRODUCTION Robot Vacuum On/Off/Clean/Pause Button Indicator Light • Press once to start/pause cleaning. • Blue: Connected to Wi-Fi. • Press and hold for 3 seconds to turn • Orange: Not connected to Wi-Fi. the device on/off. • Red: Error or low battery. •...
-
Page 10: Rove Setup
ROVE SETUP 1. Connect the adapter power cable to the charging base, and 3. Install the Side Brushes then place any excess cable into the charging base’ s inner Align the left and right brushes with the corresponding markings compartment. -
Page 11: Usage Instruction
Press any key during the cleaning process to pause cleaning. Note: • ROVE robot vacuum CANNOT be used to clean up liquids. • If the battery level is lower than 20%, the device will not be able to clean. Please charge the device before cleaning. - Page 12 USAGE INSTRUCTION EDGE CLEANING MODE SPOT CLEANING MODE Users can select edge cleaning mode on the app or remote control to Users can select the desired area on the app to deep clean deep clean an edge of a room. The vacuum will automatically drive it.
- Page 13 USAGE INSTRUCTION Remote Control Remote Control Batteries 1. Open the battery cover. 2. Insert two AAA batteries into the battery compartment as shown in the diagram above.
-
Page 14: Routine Maintenance
ROUTINE MAINTENANCE Side Brush Main Brush 1. Flip over the device and pull out the side brushes vertically. 1. Flip over the device. Press the buckle on the main brush cover to take out the main brush. 2. Reinstall the brushes after removing any trapped debris and 2. - Page 15 ROUTINE MAINTENANCE Dust Bin Filters 1. Press and hold the dust bin release button, then pull out 1. After a long period of use, remove the Net Filter, Sponge Foam the dust bin as shown below. Filter and HEPA Filter. 2.
- Page 16 ROUTINE MAINTENANECE Sensors (Regular Clean) Battery Use a soft, dry cloth to wipe all the sensors on the device, including • The vacuum robot is equipped with a high-performance lithium-ion the following: battery. To ensure optimal battery performance, keep the device charged.
-
Page 17: Product Information
PRODUCT INFORMATION Vacuum Robot Product Name Rove G2800 Gyroscope Navigation Robot Vacuum Cleaner Model Number G2800 Dimensions 13.78 x 13.78 x 3.15 in. 6.5 lbs. Weight Battery 2600mAh Lithium Battery 14.4V Input Voltage Rated Power Charging Base Dimensions 6.3 x 5.63 x 3.15 in. -
Page 18: Troubleshooting Guide
TROUBLESHOOTING GUIDE ERROR CODE SOLUTION The device was started without a dust bin. Reattach the Error 1: Dust bin removed, please check and restart. dust bin and start the device again . The cliff sensor has been obstructed or placed on non-level Error 2: Clean the bottom sensor and restart in ground. - Page 19 TROUBLESHOOTING GUIDE ERROR CODE SOLUTION Please power off and restart the machine. In cases of repeated Error 9: Error, shutting down. failure, please schedule maintenance for the device. Error 10: Something went wrong, please restart. Please check the robot’s status and restart it. Error 11: Please restart in new position.
-
Page 20: Common Problems
COMMON PROBLEMS Problem Type Solution • The battery is low. Place the device on the charging b as e and align its charging contact onto the charging base power charging pins. The device should automatically turn on. If the device is out of power, it may take some time to turn on. Cannot be started •... -
Page 21: Warranty
What is covered in my warranty? 1. The original unit and/or non-wearable components deemed defective, in ROVE ’s sole discretion, will be repaired or replaced for up to 1 year from the original purchase date. 2. In the rare event that a replacement unit is issued, the warranty coverage ends six months following the receipt date of the replacement unit or the remainder of the existing warranty, whichever is greater. -
Page 22: Fcc Statement
FCC Compliance Statement §15.19 Labeling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. §15.21 Information to user. - Page 23 Smart Robotic Vacuums G2800G1B1...
