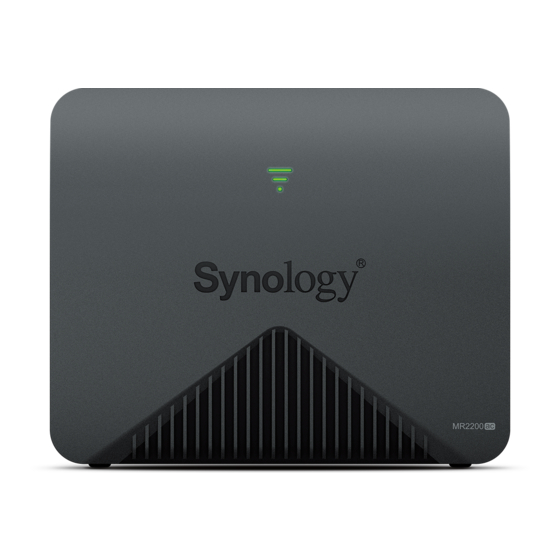

Synology Wi-Fi Router MR2200ac
Hardware Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MR2200ac and is the answer not in the manual?

Questions and answers

Related Manuals for Synology MR2200ac

Summary of Contents for Synology MR2200ac

  • Page 1 Synology Wi-Fi Router MR2200ac Hardware Installation Guide...

  • Page 2: Table Of Contents

    Chapter 1: Before You Start Package Contents Synology Wi-Fi Router at a Glance Safety Instructions Chapter 2: Set up Your Synology Wi-Fi Router Position Your Synology Wi-Fi Router Set up MR2200ac as Primary Wi-Fi Point Set up MR2200ac as Additional Wi-Fi Point...

  • Page 3: Chapter 1: Before You Start

    Before You Start Thank you for purchasing this Synology product! Before setting up your new Synology Wi-Fi Router, please check the package contents to verify that you have received all of the items below. Also, make sure to read the safety instructions carefully to avoid harming yourself or damaging your Synology Wi-Fi Router.

  • Page 4: Synology Wi-Fi Router At A Glance

    WAN connection. Power Port Connect the AC power adapter here. Power Button Press to power on/off the Synology Wi-Fi Router. RESET Button Press and hold for 4 seconds (Soft Reset) or for 10 seconds (Hard Reset). Note: For LED indicator information, please refer to "Appendix B: LED Indicator Table".

  • Page 5: Safety Instructions

    Safety Instructions Keep away from direct sunlight and away from chemicals. Make sure the environment does not experience abrupt changes in temperature or humidity. Place the product right side up at all times. Do not place near any liquids. Before cleaning, unplug the power cord. Wipe with damp paper towels. Do not use chemical or aerosol cleaners.

  • Page 6: Chapter 2: Set Up Your Synology Wi-Fi Router

    1 Use the included network cable to connect your MR2200ac (at the WAN port) to the ISP modem. 2 Connect one end of the power adapter to the power port on your MR2200ac, and the other end to the power outlet.

  • Page 7: Set Up Mr2200Ac As Additional Wi-Fi Point

    Set up MR2200ac as Additional Wi-Fi Point 1 Connect one end of the power adapter to the power port on your MR2200ac, and the other end to the power outlet. Press the power button to power on your MR2200ac. Wait for around two minutes until the STATUS LED indicator starts blinking blue.

  • Page 8: Set Up Srm

    Set up SRM 1 Use a computer or wireless device connected to the MR2200ac's local network. If you use a wireless device, scan and join the Wi-Fi network (SSID: Synology_serial number; Password: synology). 2 Open a web browser, and enter either URL into the address bar http://router.synology.com...
  • Page 9 6 Set up the operation mode. When choosing the Wireless Router External access mode, you can also enable to SRM so that only external access via the HTTP(S) port (e.g. 8000/8001) can reach SRM. 9 Chapter 2: Set up Your Synology Wi-Fi Router...
  • Page 10 • Auto IP: Choose this option if you rely on an ISP modem for automatic IP assignment. 8 The wizard will continue to set up your Synology Router, and it may take up to three minutes to complete the setup.
  • Page 11 Above is a general demonstration of the SRM setup steps. The steps and available options may somewhat Note: vary depending on your device type (e.g. PC or wireless device), access type (LAN, WAN, or Wireless LAN), and chosen operation mode (Wireless Router or Wireless AP). 11 Chapter 2: Set up Your Synology Wi-Fi Router...

  • Page 12: Appendix A: Specifications

    Appendix Specifications Item MR2200ac Model Description Synology Wi-Fi Router MR2200ac External Port USB 3.0 x 1 WAN Port Gigabit WAN x 1 LAN Port Gigabit LAN x 1 Power Adapter 12V/2A Size (H x W x D) (mm) 154 x 199 x 65 Weight (kg) 0.45 kg...

  • Page 13: Appendix B: Led Indicator Table

    1. Finding device: All three indicators will blink simultaneously. 2. Syncing: The three indicators will blink in turn. Model specifications are subject to change without notice. Please refer to www.synology.com for the latest information. Note: 13 Appendix B: LED Indicator Table...
  • Page 14 Section 5. License Limitations. The license set forth in Sections 1, 2 and 3 applies only to the extent that you have ordered and paid for the Product and states the entirety of your rights with respect to the Software. Synology reserves all rights not expressly granted to you in this EULA.
  • Page 15 Arbitration Law and related enforcement rules of the country in which Synology Inc. was organized. In such cases, the arbitration will be limited solely to the dispute between you and Synology. The arbitration, or any portion of it, will not be consolidated with any other arbitration and will not be conducted on a class-wide or class action basis.
  • Page 16 Section 3. Limited Warranty and Remedies 3.1 Limited Warranty. Subject to Section 3.6, Synology warrants to the Customer that each Product (a) will be free of material defects in workmanship and (b) under normal use will perform substantially in accordance with Synology's published specifications for the Product during the Warranty Period.
  • Page 17 Section 4. Limitations of Liability 4.1 Force Majeure. Synology will not be liable for, or be considered to be in breach of or default under this Warranty on account of, any delay or failure to perform as required by this Warranty as a result of any cause or condition beyond its reasonable control (including, without limitation, any act or failure to act by Customer).
  • Page 18 Arbitration Association, except as otherwise provided below. The arbitration will be conducted before a single arbitrator, and will be limited solely to the dispute between Customer and Synology. The arbitration, or any portion of it, will not be consolidated with any other arbitration and will not be conducted on a class-wide or class action basis. The arbitration shall be held in King County, Washington, U.S.A.
  • Page 19 5.9 Entire Agreement. This Warranty constitutes the entire agreement, and supersedes any and all prior agreements, between Synology and Customer related to the subject matter hereof. No amendment, modification or waiver of any of the provisions of this Warranty will be valid unless set forth in a written instrument signed by the party to be bound thereby.
  • Page 20 Statement Declaration of Conformity for the Radio Equipment Directive 2014/53/EU Hereby, Synology Inc. declares that this Wireless Router is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.synology.com/support/download/MR2200ac...
  • Page 21 Mindestabstand von 20 cm zwischen dem Strahlengerät und Ihrem Körper installiert und betrieben werden. Δήλωση Συμμόρφωσης με την Οδηγία για τον Ραδιοεξοπλισμό 2014/53/ΕΕ Με το παρόν η Synology Inc. δηλώνει ότι ο παρών Ασύρματος Δρομολογητής συμμορφώνεται με τις ουσιώδεις απαιτήσεις και τις λοιπές σχετικές διατάξεις της Οδηγίας 2014/53/ΕΕ.
  • Page 22 Déclaration de conformité pour la directive sur les équipements radioélectriques 2014/53/UE Par la présente, Synology Inc. déclare que ce routeur sans fil est conforme aux exigences essentielles et autres dispositions connexes de la directive 2014/53/UE.
  • Page 23 Dichiarazione di conformità alla Direttiva RED (Radio Equipment Directive) 2014/53/UE Synology Inc. dichiara che il router wireless soddisfa i requisiti essenziali e le altre disposizioni rilevanti della Direttiva 2014/53/UE. Il testo completo della dichiarazione UE di conformità è disponibile al seguente indirizzo Internet: https://www.synology.com/support/download/MR2200ac...
  • Page 24 Declaração de conformidade para a Diretiva 2014/53/UE relativa aos equipamentos de rádio Por este meio, a Synology Inc. declara que o Router Sem Fios está em conformidade com os requisitos essenciais e outras disposições relevantes da Diretiva 2014/53/UE. O texto integral da declaração de conformidade da UE está disponível no seguinte endereço de Internet:...
  • Page 25 Försäkran om överensstämmelse med direktivet för radioutrustning 2014/53/EG Synology Inc. Försäkrar härmed att den här trådlösa routern överensstämmer med de grundläggande kraven och andra gällande bestämmelser för direktivet 2014/53/EG. Den fullständiga texten för EG-försäkran om överensstämmelse finns tillgänglig på följande internetadress: https://www.synology.com/support/download/MR2200ac...
  • Page 26 Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 27 FOR MOBILE DEVICE USAGE (>20cm/low power) Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. FOR COUNTRY CODE SELECTION USAGE (WLAN DEVICES) Note: The country code selection is for non-US model only and is not available to all US model.
  • Page 28 Industry Canada statement: This device complies with ISED’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d’...
  • Page 29 350 MHz et de 5470 à 5725 MHz doit être conforme à la limite de la p.i.r.e; (iii) le gain maximal d'antenne permis (pour les dispositifs utilisant la bande de 5 725 à 5 850 MHz) doit être conforme à la limite de la p.i.r.e. spécifiée pour l'exploitation point à point et l’exploitation non point à...
  • Page 30 低功率電波輻射性電機管理辦法 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商 號或使用者均不得擅自變更頻率、加大功率或變更原設計之 特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通 信；經發現有干擾現象時，應立即停用，並改善至無干擾時 方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科學及醫療用電波 輻射性電機設備之干擾。 1. 使用此產品時應避免影響附近雷達系統之操作。 2. 高增益指向性天線只得應用於固定式點對點系統。 3. 「電磁波曝露量MPE標準值1mW/cm ，送測產品實測值為 0.814 」 mW/cm...
  • Page 31 クラス B VCCI 基準について この装置は、クラス Ｂ 情報技術装置です。この装置は、家庭環境で使用する ことを 目的としていますが、この装置がラジオやテレビジョン受信機に近接 して使用されると、受信障害を引き起こすことがあります。 取扱説明書に従って正しい取り扱いをして下さい。...
