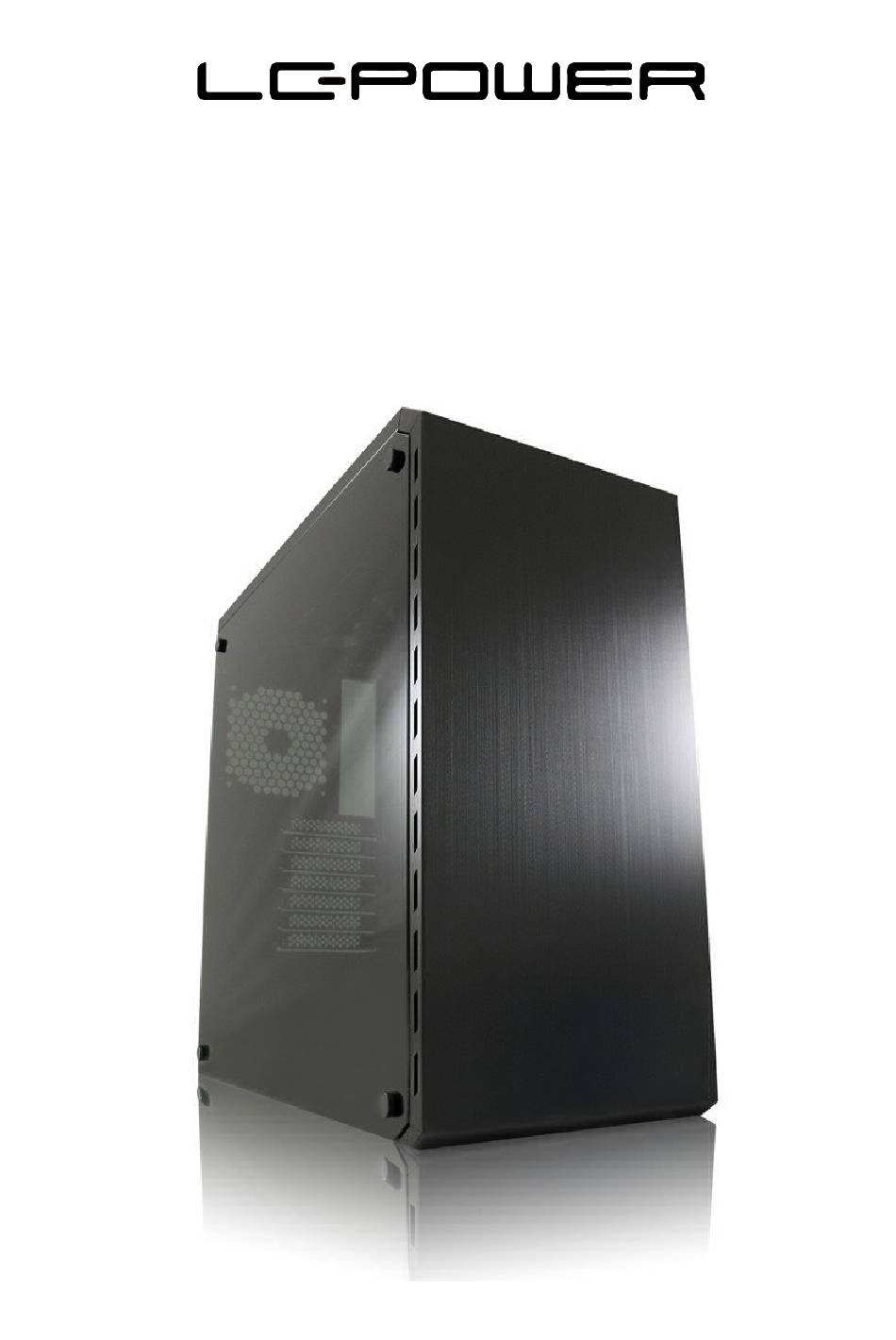

- Page 1 User manual Gaming 986B – Dark Shadow Gaming 986S – White Shadow...
- Page 2 Thank you for purchasing this case from LC-Power. Please read this manual before usage. Specifications may be subject to change without prior notice. 1. Specification Size 482 x 223 x 467 mm (h x w x d) ATX / micro ATX / mini ITX 5x 3.5“...
- Page 3 M5*10 TP3===>16pcs(FAN*16) 6#*4===>27pcs(MB*10,3.5"HDD*13,Power*4) 2. Installation 2-1.1 Open the box 2-1.2 Take out the glass side panels 2-1.3 Take out the chassis 2-2.1 Front case fan installation 1) Unscrew the bracket from the chassis 2) Fix the fans or the water cooling to the bracket 3) Screw the bracket back to the chassis...
- Page 4 2-3 Top case fan installation Press the fans to the top bracket to fix it 2-4. 3.5” HDD installation Press the HDD into the bracket to fix it...
- Page 5 2-5. 1 Fan installation on the back side of the HDD bracket 2-5.2 Mainboard installation with stand-off am screws #Additional 3x 3.5”HDD on MB tray # Additional 3x 2.5” HDD/SSD on MB tray 2-6 Tempered glasses side panel installation Alight 4 screw holes to washer and fasten screws...
- Page 6 The product has a two year warranty period from the date of purchase, service issues will be handled by your dealer. If the case is damaged due to improper operation, the warranty period expires immediately. Check www.lc-power.com or contact us by e-mail at support@lc-power.com. Silent Power Electronics GmbH...
