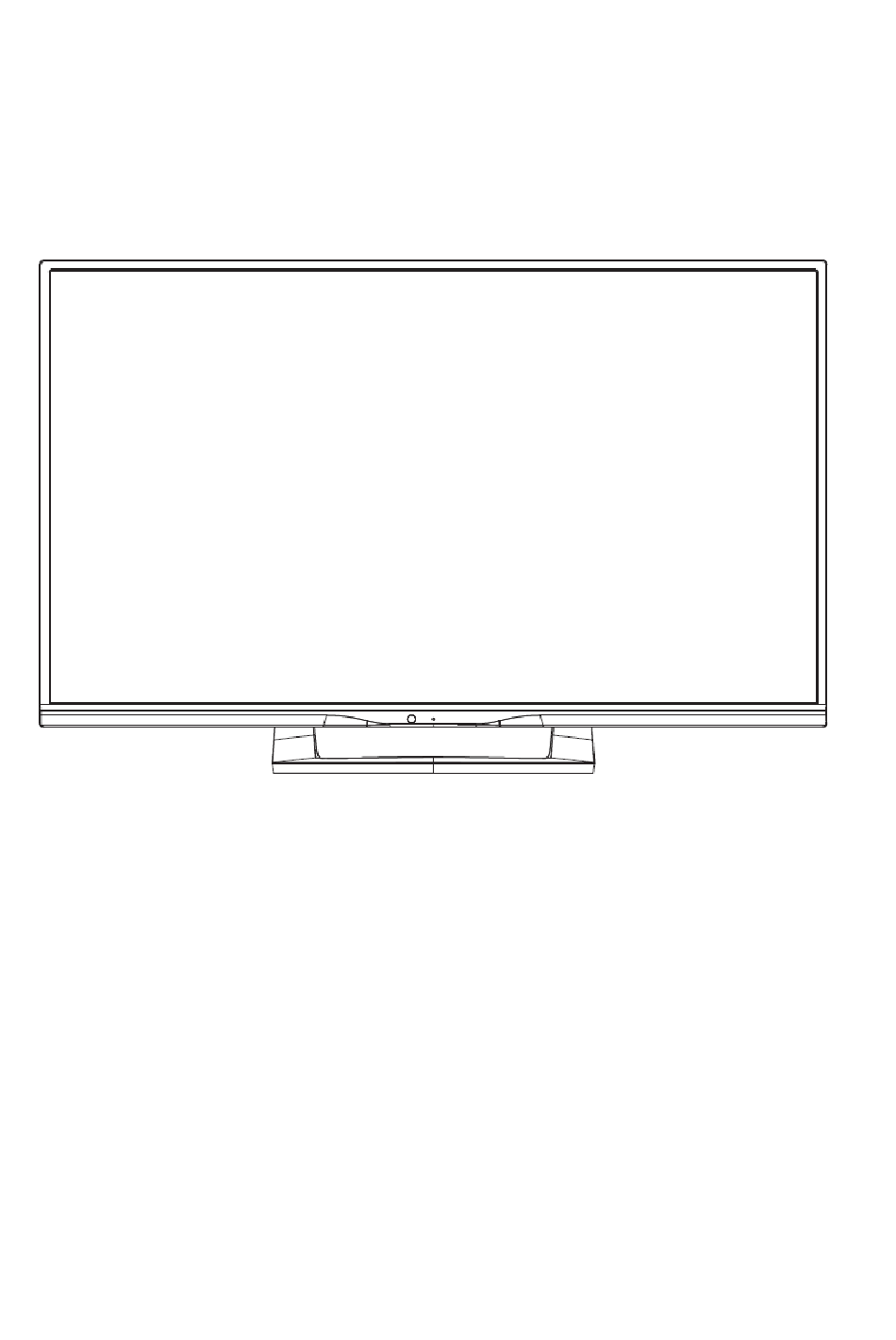

Service Manual
Model : LCD TV 55" SHARP
LC-55LE643U_FPTW
(AUO T550HVN06.0)
Top Confidential

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LC-55LE643U_FPTW and is the answer not in the manual?

Questions and answers

Related Manuals for Sharp LC-55LE643U_FPTW

Summary of Contents for Sharp LC-55LE643U_FPTW

  • Page 1 Service Manual Model : LCD TV 55" SHARP LC-55LE643U_FPTW (AUO T550HVN06.0) Top Confidential...

  • Page 2: Table Of Contents

    Table of Contents CONTENTS PAGE Sections 1. Features 2. Specifications 3. On Screen Display 4. Factory Preset Timings 5. Pin Assignment 6. Main Board I/O Connections 7. Theory of Circuit Operation 8. Waveforms 9. Trouble Shooting 10. Block Diagram 10-1 11.
  • Page 3 Also, any unauthorized changes or modifications to Amtrak products will void the user’s authority to operate this device. Thus SHARP Will not be held responsible for the product and its safety. CE CERTIFICATION This device complies with the requirements of the EEC directive 89/336/EEC with regard to “Electromagnetic compatibility.”...

  • Page 4: Features

    Chapter 1 Features Built in TV channel selector for TV viewing Built in HDTV, composite/Component video, HDMI ,ATV out and DTV out ,Audio line out, Audio optical out Built in auto adjust function for automatic adjustment of screen display Smoothing function enables display of smooth texts and graphics even if image with resolution lower than 1920x1080 is magnified Power saving to reduce consumption power too less than 0.5W On Screen Display: user can define display mode (i.e.

  • Page 5: Specifications

    Chapter 2 Specification 1. TFT LCD CHARACTERISTICS TFT-LCD SKD model T550HVN06.0 Item Specification Panel T550HVN06.0 Display Pixels 1209.6 (H) x 680.4 (V) Active Screen Size 55 inch Color Depth 8bit+FRC, 16.7M Pixel Pitch 0.21 (W) x 0.63(H) mm Luminance of White (cd/m ) 350 (Typical);...
  • Page 6 6. ENVIRONMENT Operating Temperature: 0~35°C (Ambient) Operating Humidity: 10%~90% (Non-Condensing) Operating Altitude: 0 - 14,000 feet (Non-Operating) 7. Dimensions (Physical dimension) (Unit: mm) Display Module Display Module + Base 726.2 768.44 Height 1239.5 1239.5 Width 69.0 292.8 Depth 8. Weight (Physical weight) a.
  • Page 7 (6) Do not touch, push or rub the exposed polarizer with glass, tweezers or anything harder than HB pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental to the polarizer.) (7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like chamois soaks with petroleum benzine.
  • Page 8 (8) A screw which is fastened up the steels should be a machine screw. (if not, it causes metallic foreign material and deal LCM a fatal blow) (9) Please do not set LCD on its edge. 9-3. Electrostatic Discharge Control Since a module is composed of electronic circuits, it is not strong to electrostatic discharge.

  • Page 9: On Screen Display

    Chapter 3 On Screen Display A. LED indicator display on the front LED indicator Status Remark AC power off By disconnecting the power cord White Power on Default: Off B. Specification and explanation of user control panel on the side i.
  • Page 10 This button allows the user to cycle through the input sources in the following sequence: TV, AV/Component, HDMI 1, HDMI 2, HDMI_SIDE, When the OSD is activated, the option can be confirmed pressing this button. SHARP On Screen Display MENU OSD Adjustment Main MENU A.
  • Page 11 PICTURE A. AV MODE (User/ Standard [Energy Star]/ Movie/ Game/ DYNAMIC/ Sport) B. BACKLIGHT (0~ 100) C. CONTRAST (0~ 100) D. BRIGHTNESS (0~ 100) E. COLOR (0~ 100) F. TINT (-50~ 50) G. SHARPNESS (0~ 20) H. SIZE & POSITION (Horiz. Position/ Vertical Position/ Horiz. Size/ Vertical Size) I.
  • Page 12 AUDIO A. SURROND (Off/ Movie/ News) B. AUTO VOLUME CONTROL (Off/ On) C. BASS (-12~ 12) D. TREBLE (-12~ 12) E. BALANCE (-10~ 10) F. LIP SYNC (0~ 5) G. TV SPEAKERS (Off/ On) H. AUDIO ONLY DIGITAL AUDIO OUT(Dolby Digital / PCM) J.
  • Page 13 SETUP A. NAME INPUT INPUT SOURCE (TV/AV IN/COMP/HDMI-1/HDMI-2/HDMI-3 (SIDE)) INPUT LABELS (Custom/Antenna/Blu-Ray/Cable/DTV/DVD/Game/Hi Def/PC/Sat/STB/VCR) SHOW KEYBOARD B. CEC LINK SETTINGS CEC LINK FUNCTION (Disable/ Enable) SYSTEM AUDIO CONTROL (Off/ On) DEVICE SEARCH C. MENU LANGUAGE (English/ French/ Spanish)) D. TIME & LOCAL SETTING TIME ZONE (Alaska/ Hawaii/ Pacific/ Mountain/ Central/ Eastern/ Atlantic/ Newfoundland/ Indiana/ Arizona) DAYLIGHT SAVING (Off/ On)
  • Page 14 CONFIDENTIAL – DO NOT COPY Page 3-6 File No. SG-0000242...
  • Page 15 A. ANALOG CLOSED CAPTION (Off/ CC1/ CC@/ CC3/ CC4) B. DIGITAL CLOSED CAPTION (Off/ CC1/ CC2/ CC3/ CC4/ CS1/ CS2/ CS3/ CS4/ CS5/ CS6) C. DIGITAL CC OPTIONS Caption Style (As Broadcast/Custom) Text Size (As Broadcast/Small /Standard/Large) Font (As Broadcast/ Playbill/ Newsprint/ Computer/ Modem /Casual/ Script/ Capitols) Color (As Broadcast/Black/White /Green/Blue/Red/Cyan...
  • Page 16 VIEW MODE A. NORMAL B. WIDE C. ZOOM D. PANORAMIC) CHANNEL A. TV MODE (Antenna/ Cable) B. AUTO CHANNEL SCAN C. PARTIAL CHANNEL SCAN Scan Mode (Analog & Digital/ Analog From Channel To Channel Start Scan D. FIND CHANNEL Enter Channel Number Add Channel E.
  • Page 17 SLEEP TIMER A. OFF B. 30 MINUTES C. 60 MINUTES D. 90 MINUTES E. 120 MINUTES F. 180 MINUTES Media Operation When USB disk is inserted or RCU USB button is pressed, USB selection / Media Type selection is showed up and can play Photo / Music / Video media. CONFIDENTIAL –...
  • Page 18 CONFIDENTIAL – DO NOT COPY Page 3-10 File No. SG-0000242...

  • Page 19: Factory Preset Timings

    Chapter 4 Factory preset timings This timing chart is already preset for the TFT LCD analog & digital display monitors. FHD video digital preset modes at HDMI Mode No. Resolution 480i 480p 720p 1080i 1080p Video input Mode No. Resolution 480i 480p 720p...

  • Page 20: Pin Assignment

    Chapter 5 Pin Assignment HDMI CONNECT PIN ASSIGNMENT: Signal Assignment Signal Assignment TMDS Data2+ TMDS Data2 Shield TMDS Data2- TMDS Data1+ TMDS Data1 Shield TMDS Data1- TMDS Data0+ TMDS Data0 Shield TMDS Data0- TMDS Clock+ TMDS Clock Shield TMDS Clock- Reserved (N.C.
  • Page 21 IF-output level: 1Vp-p minimum Frequency: 57.00~861.00 MHz QAM system (supporting clear QAM) IF-output level: 1Vp-p minimum Frequency: 57.00~861.00 MHz AV/Composite Video (CVBS) Connector a. Frequency: H: 15.734KHz V: 60Hz (NTSC) b. Signal level: Video ( Y + C ):1Vp-p Sync (H+V):0.3V below Video (Y+C) c.
  • Page 22 Analog Audio Out a. Signal level: 2Vrms (Max) b. Impedance: 600Ω c. Frequency response: 20Hz-20KHz d. Connector type: RCA L/R Page 5-3 CONFIDENTIAL – DO NOT COPY File No. SG-0000242...

  • Page 23: Main Board I/O Connections

    Chapter 6 Main Board I/O Connections JP1 C [Power Board to Main BD] ONNECTION Description +19V +19V +19V +12V_ON_OFF BL_ON/OFF BL_DIMMING_1 BL_DIMMING_2 J13 C [Main BD to IR Light Sensor BD] ONNECTION Description IR_POWER LED_White LS_SCL LS_SDA JI3 C [Main BD to Display BD] ONNECTION Description IR_Power...
  • Page 24 JA1 C [Main BD to SPEAKER ] ONNECTION Description JL2 C [Main BD to Panel Side] ONNECTION Description LVDSVDD LVDSVDD LVDSVDD LVDSVDD LVDSVDD B2_RXE3+ B3_RXE3- B4_RXEC+ B5_RXEC- B6_RXE2+ B7_RXE2- G0_RXE1+ G1_RXE1- G2_RXE0+ G3_RXE0- CONFIDENTIAL – DO NOT COPY Page 6-2 File No.
  • Page 25 G6_RXO3+ G7_RXO3- R0_RXOC+ R1_RXOC- R2_RXO2+ R3_RXO2- R4_RXO1+ R5_RXO1- R6_RXO0+ R7_RXO0- LVDS_FORMAT Tcon_SDA Tcon_SCL CONFIDENTIAL – DO NOT COPY Page 6-3 File No. SG-0000242...

  • Page 26: Theory Of Circuit Operation

    Chapter 7 Theory of Circuit Operation The route of HDMI CON input The passing signal is processed with the MSD8220. Then MSD8220 generates a LVDS for display device. The route of HDTV & Component input HDTV & Component signal is inputted to the MSD8220.After processing, MSD8220generates a LVDS for display device.
  • Page 27 MSD8220 Ⅰ. GENERAL DESCRIPTION The MStar MSD8220 family consists of a DTV front-end demodulator, a backend decoder and a TV controller and offers high integration for advanced applications. It combines a transport de-multiplexer, a high definition video decoder, an audio decoder, a dual-link LVDS transmitter, a mini-LVDS transmitter, an EPI transmitter and an NTSC/PAL/SECAM TV decoder with a 3D comb filter (NTSC/PAL).
  • Page 28 Functional Block Diagram Page 7-3 CONFIDENTIAL – DO NOT COPY File No. SG-0000242...
  • Page 29 GENERAL FEATURE LIST MSD8220LBMP is a highly integrated single chip solution for digital ATSC TV system. Key features include: 1. Digital and Analog TV Front-End Demodulator 2. Multi-Standard A/V Format Decoder 3. The MStarACE6UC Video Processor 4. Home Theater Sound Processor 5.
  • Page 30 ■ AVS Video Decoder Optional □ Jizhun profile, level 6.0 □ Max. resolutions up to 1920x1080@30fps □ Supports bit rate up to 20Mbps ■ Hardware JPEG □ Supports sequential mode, single scan □ Supports both color and grayscale pictures □ Following the file header scan the hardware decoder fully handles the decode process □...
  • Page 31 ■ Analog RGB Compliant Input Ports □ Two analog ports support up to 1080P □ Supports PC RGB input up to SXGA@75Hz □ Supports HDTV RGB/YPbPr/YCbCr □ Supports Composite Sync and SOG Sync-on-Green □ Automatic color calibration □ AV-link support ■...
  • Page 32 - Arbitrary frame rate conversion □ MStar Professional Picture Enhancement: - Dynamic brilliant and fresh color - Dynamic Blue Stretch - Intensified contrast and details - Dynamic Vivid Skin - Dynamic sharpened Luma/Chroma edges - Global and local dynamic depth of field perception - Accurate and independent color control - Supports sRGB and xvYCC color processing - Supports HDMI 1.3 deep color format...
  • Page 33 ■ ATSC/QAM Demodulator □ ATSC A/53 compliant 8VSB □ ITU-T J.83 Annex B, SCTE DVS-031 compliant 64/256QAM receiver □ Integrated 11-bit A/D converter (for optional external A/D converter support) □ All digital demodulation □ Integrated deinterleaver RAM for all modes (No need of external memory for deinterleaver) □...
  • Page 34 3. Thermal Characteristics 4. HDMI AC/DC Characteristics. 5. LVDS AC Characteristics. Page 7-9 CONFIDENTIAL – DO NOT COPY File No. SG-0000242...
  • Page 35 Flash: MX25L3206EM2I-12G Page 7-10 CONFIDENTIAL – DO NOT COPY File No. SG-0000242...
  • Page 36 Page 7-11 CONFIDENTIAL – DO NOT COPY File No. SG-0000242...
  • Page 37 Page 7-12 CONFIDENTIAL – DO NOT COPY File No. SG-0000242...
  • Page 38 Page 7-13 CONFIDENTIAL – DO NOT COPY File No. SG-0000242...
  • Page 39 Page 7-14 CONFIDENTIAL – DO NOT COPY File No. SG-0000242...
  • Page 40 Page 7-15 CONFIDENTIAL – DO NOT COPY File No. SG-0000242...
  • Page 41 Page 7-16 CONFIDENTIAL – DO NOT COPY File No. SG-0000242...
  • Page 42 Page 7-17 CONFIDENTIAL – DO NOT COPY File No. SG-0000242...
  • Page 43 Page 7-18 CONFIDENTIAL – DO NOT COPY File No. SG-0000242...
  • Page 44 Page 7-19 CONFIDENTIAL – DO NOT COPY File No. SG-0000242...
  • Page 45 Page 7-20 CONFIDENTIAL – DO NOT COPY File No. SG-0000242...
  • Page 46 Page 7-21 CONFIDENTIAL – DO NOT COPY File No. SG-0000242...
  • Page 47 Audio Amplifier: TAS5705L Page 7-22 CONFIDENTIAL – DO NOT COPY File No. SG-0000242...
  • Page 48 Page 7-23 CONFIDENTIAL – DO NOT COPY File No. SG-0000242...

  • Page 49: Waveforms

    Chapter 8 Waveforms TMDS 1080I input: B4_RXEC+ / B5_RXEC TMDS 1080P input R0_RXOC+ / R1_RXOC CONFIDENTIAL – DO NOT COPY Page 8-1 File No. SG-0000242...
  • Page 50 YCbCr 1. 100% color bar 標準信號 (Component _ Y) (Component _ Pb) (Component _ Pr) 2. 最高頻的 timing 訊號為１黑 1 白或 multi burst 訊號(for CVBS) (Component _ Y) CONFIDENTIAL – DO NOT COPY Page 8-2 File No. SG-0000242...
  • Page 51 (Component _ Pb) (Component _ Pr) 3. 25% gray 訊號 (Component _ Y DC_ON) (Component _ Y DC_OFF) (Component _ Pb DC_ON) (Component _ Pb DC_OFF) CONFIDENTIAL – DO NOT COPY Page 8-3 File No. SG-0000242...
  • Page 52 (Component _ Pr DC_ON) (Component _ Pr DC_OFF) CONFIDENTIAL – DO NOT COPY Page 8-4 File No. SG-0000242...

  • Page 53: Trouble Shooting

    Chapter 9 Trouble shooting (TV, COMPOSITE, VIDEO) IS NOT DISPLAY CORRECTLY Start 1. Check video Input signal good? 2. Check DVD player 1. Check VIDEO signal 2. Check signal between U1 U1 input correct? (IF IN AV mode) 1. Check power system U1 : +3V3SB, +1.2V, U1 output correct? +1.8V_DDR2...
  • Page 54 HDMI ) IS NOT DISPLAY CORRECTLY Start 1. Check video Input signal good? 2. Check host’s setting 1. Is JL2 connected good? 2. Is panel working ok? – Page 9-2 CONFIDENTIAL DO NOT COPY File No. SG-0000242...
  • Page 55 TROUBLE OF DC-DC CONVERTER Start The voltage is +19V 1. Check power cable connection JP1 CPE1 The voltage is +5V CPE7 The voltage is +3V3SB The voltage is +12V CPE9 The voltage is +1.15V C128 The voltage is +3.3V CPE5 The voltage is +1.8V CPE6 –...
  • Page 56 (TV_SIDE, AUDIO) IS NOT DISPLAY CORRECTLY Start 1. Check Audio source Input signal good? 2. Check the player of source 1. Check signal of Main Board 2. Check amplifier (UA1) Input correct? 1. Check MSD8220 audio out, MSD8220 Pin63~Pin66 Check signal correct? 1.

  • Page 57: Block Diagram

    Chapter 10 Block Diagram System Block Diagram TCN4 TCN3 TCN6 TCN5 Mini-LVDS R Port LVDS Port Mini-LVDS L Port NOR FLASH NOR FLASH INTERFACE 32Mbit IR/POWER INDICATOR (SPDIF_OUT) SPDIF OUT SPDIF OUT UART Wave Audio DSP SPEAKER AMP MSD8220LB SPEAKER OUT NPCA110DA0YX TAS5707LPHP (LINEOUT_R/L)
  • Page 58 Power Tree vol. 20 AMPVCC TAS5707LPHP vol. 25 Imax=2.2A BEAD Irms=210mA +3.3V PWR19 +12V LVDSVDD JL2/JL3 UP18 4835P LVDS CONN AC ON Imax=540mA EUP3484 Irms=420mA Ipeak=1.05A FBL1 AUO 55" DC ON Ipeak=780mA BEAD Irms=3.52A (AUDIO MAX) +3V3SB UP17 5VSB UP15 EUP3484 2.2uH MSD8220LB...

  • Page 59: How To Enter Factory/Service Mode

    Chapter 11 How to Enter Factory/Service Mode Enter Factory Menu 1. Let the TV under a input source TV, AV IN, Component or HDMI Not in the Setup Wizard or MMP 2. Press <MENU> key to show the Main Menu 3.

  • Page 60: How To Update Fw

    Chapter 12 How to update FW Update FW 1. Prepare a USB Flash Stick and format as FAT32 format. 2. Copy the upgrade file “MERGE.bin” into the USB Flash Stick. 3. Unplug the AC cable from the TV, let TV power off. (No AC power) 4.

  • Page 61: Spare Parts List

    Chapter 13 Spare Parts List DESCRIPTION PART NO REMARK POLYSWITCH 0.75A 8V SMD (1206L075THYR) 9LE018467510083 9LE028024000313 X'TAL 24MHZ 49S 20PF 30PPM -20~70'C LF Y100 9LE030062000130 USB CONN. A TYPE 90' (3AL04S-305-ZC) L-F 9LE030064000070 OPTO CONN. Transmitter (JST1221) L-F (2nd) RCA JACK 1ROW 2I/O 90' (W-R) 9LE030290200039 (RCA215D-01) LF RCA JACK 2ROW 2I/O 90' (W-R)
  • Page 62 PE BAG (180W*290L*0.04t)(PE-LD)(ACC.-1) 9LE192511005060 EPE BAG(W1350*L950*0.3t)(LC-55LE643U) 9LE192511005080 PE BAG(W600*L450*0.06t)(LC-55LE643U) CARTON(AE/FLUTE)(Mexico) Sharp 9LE192512023320 LC-55LE643U 9LE192513015780 QSG Sharp LC-55LE643U/LC-65LE643U 9LE192514005530 Registration Card Sharp LC-32LE451U 9LE192514005550 Flyer Service Card Sharp 9LE192521001730 CORNER BAR(L2400*50*50*5t) .167 SLIP SHEET(L1150*W1480*0.9t/OPEN SIDE 9LE192521002090 .042 1150) 9LE192521019440 PAPER SHEET(L1400*W1100*8t) .084...
  • Page 63 9LE193612000030 SHIPPING LBL(#80 art paper)(11cm x 7.5cm) .0417 9LE193613002420 S/N LBL(#80 art paper)(55x15mm) 9LE193613002500 S/N LBL(Black) 40*8(PET 50#) 9LE193614006020 CARTON LBL(art paper 80#)(50*15) Sharp 9LE194712000311 ACETATE CLOTH TAPE 27*75mm 9LE194712000341 ACETATE CLOTH TAPE 20*20mm 9LE194712000341 ACETATE CLOTH TAPE 20*20mm 9LE194712000401...

  • Page 64: Complete Parts List

    Battery Zn-Carbon 1.5V AAA(R03UG) TOSHIBA LF Assembly Pull 9LE 060250000010 Battery Zn-Carbon 1.5V AAA(R03) MITSUBISHI Assembly Pull 9LE 098003063211 REMOTE IR 38KHZ 47KEY GJ221-R FOR SHARP r1.0 LF Assembly Pull 9LE 098009000080 ROKU Streaming stick (3400P) Assembly Pull 9LE 098009000090...
  • Page 65 ACETATE CLOTH TAPE(20*75*0.25t)(WHITE) Assembly Pull 9LE 194725000670 BOPP FILM(L1300m*W380mm*0.035t) Assembly Pull 9LE 365519320300 SET ASS'Y LC-55LE643U_FPTW (AUO T550HVN06.0) Phantom 9LE 03351006AF51 SPK 10W 6ohm (1150*650mm) +spong FPTW for LC-65 & LC55 Assembly Pull 9LE 046010040980 A2001-4/P24014 10368#28 1100mm(A) G/Y HF...
  • Page 66 9LE 194724001550 MYLAR(FRPP/250*250*0.45t)(BLK)(LC-55LE643U) Assembly Pull 9LE 363202420189 IR BD ASS'Y SHARP (LC-32RA10U_NS6738S) Assembly Pull 9LE 363202420189M IR BD ASS'Y SHARP (LC-32RA10U_NS6738S) MI Phantom 9LE 045112500406 WAFER 1.25mm 4P 180' DIP KINK (M24014) L-F Assembly Pull 9LE 045112500403 WAFER 1.25mm 4P 180' KINK (A1251WV0-4P) L-F...
  • Page 67 Child Level Child P/N Specification Supply Type Circuit Number 9LE 194720002930 RUBBER PAD(SILICON/606*2.5*0.4t)(GRAY) Supplier 9LE 194720002940 RUBBER PAD(SILICON/687*2.5*0.4t)(GRAY) Supplier 9LE 194720003090 RUBBER PAD(SILICON/606*2.5*1.0t)(DEEP GRAY) Supplier 9LE 194720003100 RUBBER PAD(SILICON/687*2.5*1.0t)(DEEP GRAY) Supplier 9LE 181303008010 BOTTOM COVER(SECC 0.6t)(EM55FTR)(AUO)ASS'Y Assembly Pull 9LE 170114000910 SNAP BUSHINGS(GM-132)(BLK) Supplier 9LE 171303008010...
  • Page 68 Child Level Child P/N Specification Supply Type Circuit Number 9LE 045120000406 WAFER 2.0mm 4P 180' DIP KINK (M24264) HF Assembly Pull 9LE 045120030403 WAFER 2.00mm 4P 180' KINK (A2001WV2-4P) L-F Assembly Pull 9LE 045120000606 WAFER 2.0mm 6P 180' DIP KINK (M24266) HF Assembly Pull 9LE 045120030603 WAFER 2.00mm 6P 180' KINK (A2001WV2-6P) L-F...
  • Page 69 Child Level Child P/N Specification Supply Type Circuit Number 9LE 011231042516 C/M Multi. 0.1uF 25V X7R 0603 Assembly Pull 9LE 011551042516 C/M Multi. 0.1uF 25V X7R 0603 Assembly Pull 9LE 011131045116 C/M MULTI 0.1uF 50V X7R 0603 Assembly Pull CA67 9LE 011231045116 C/M Muitl.
  • Page 70 Child Level Child P/N Specification Supply Type Circuit Number C123,C128,C147,C165,C188,CA68,CP10,CP11,CP12,CP13,CP2,CP4,CP 9LE 011231061155 C/M Multi. 10uF 10V X5R 0805 L-F Assembly Pull 42,CP5,CP64,CP65,CP7,CT32,CU22 9LE 011551061155 C/M Multi. 10uF 10V X5R 0805 Assembly Pull 9LE 011231062554 C/M Multi. 10uF 25V X5R 1206 Assembly Pull CP57,CP68,CP75 9LE 011551062554...
  • Page 71 Child Level Child P/N Specification Supply Type Circuit Number 9LE 013068091654 RES. CF 68 ohm 1/16W J 0402 Assembly Pull 9LE 013075091654 RES. CF 75ohm 1/16W J 0402 Assembly Pull RV3,RV6,RV7 9LE 013082000055 RES. CF 820ohm 1/10W J 0603 Assembly Pull RI12 9LE 013110031614 RES.
  • Page 72 Child Level Child P/N Specification Supply Type Circuit Number 9LE 041050005643 TR NPN 0.2A 40V METR3904-G SOT-23 HF Assembly Pull 9LE 042020073636 MOSFET P-CH 9.5A 30V SSG4835P SOP 8PIN LF Assembly Pull 9LE 042020093642 MOSFET P-CH 9A 30V APM4317KC-TRG SOP-8 HF Assembly Pull 9LE 042020092643 MOSFET P-CH 3.2A 30V ME2303-G SOT-23 HF...
  • Page 73 Child Level Child P/N Specification Supply Type Circuit Number 9LE 039060050293 Schottky Diode 0.2A 30V BAT54C-7-F SOT-23 HF Assembly Pull 9LE 039060110273 Schottky Diode 0.2A 30V BAT54C SOT-23 HF Assembly Pull 9LE 043071043079 IC POWER SWITCH 2.1A AP2191WG-7 SOT-23-5 HF Assembly Pull 9LE 043071050071 IC POWER SWITCH 1.5A APL3551CBI-TRG SOT-23-5 HF...
  • Page 74 < G P I O S E T T I N G B L O C K > < L E V E L S H I F T B L O C K > TC103 1uF/16V 0603C TD10 TD11 1N5819HW TR15 SOE_A 1N5819HW...
  • Page 75 LVDSVDD LVDS POWER SWITCH Tcon_WP RL52 Tcon_SDA RL53 CSOT 48" OC: RL52/RL53/RL54 22ohm Tcon_SCL RL54 LVDSVDD AUO 55" OC(60Hz): RL49/RL50/RL51 22ohm FBL1 RL59 0805R Panel Aging Enable RL58 TPS49 LVDS FORMAT OPEN JEDIA TPS50 Adrian Modify 20131211 Tcon_SDA RL49 0805L Tcon_WP RL50 RL40 +12V RL41...
  • Page 76 DAMP I2S SP CON AUD_AC_OFF_MUTE RA36 RA38 CA43 0.047uF/25V CA45 0.1uF/25V I2S_SDIN I2S_SDIN AUD_AC_OFF_MUTE 10 0603C I2S_SCLK RA33 I2S_OUT_BCK 4,11 AC OFF_DET CA44 4700pF/50V I2S_LRCLK RA34 AC OFF_DET 4 I2S_OUT_WS 4,11 0603C CAE13 220uF/25V I2S_MCLK RA35 I2S_OUT_MCK 4,11 MUTE_CTL GND2 MUTE_CTL AMPVCC RA37...
  • Page 77 NPCA110D Audio DSP DAMP I2S I2S_DIN I2S_OUT_SD External I2C controller for tuning: I2S_OUT_BCK I2S_OUT_BCK 4,12 I2S_OUT_WS * Unmount RW7 and RW8. I2S_OUT_WS 4,12 +3.3V I2S_OUT_MCK I2S_OUT_MCK 4,12 * If a weak pull-up on I2C is needed, mount RW4 and RW5. * I2C controller connections: I2S_SDIN I2S_SDIN - I2C SCL to TP9.
  • Page 78 LINE OUT_MUTE LINE OUT_MUTE +5VSB LINEOUT CIRCUIT AUD_AC_OFF_MUTE AUD_AC_OFF_MUTE RA64 BAV70 LINE OUT_MUTE RA65 SPDIF_OUT SPDIF_OUT RA66 +3.3V AUD_AC_OFF_MUTE LMBT3904LT1G LINE_OUT_L LINE_OUT_L LA15 RA67 LINE_OUT_R LINE_OUT_R CA78 0805L CAE5 1uF/10V 220uF/16V CA76 CA77 RA69 RA68 0.1uF/16V 100K 0805C SCS520S PVDD PGND SGND AL1_OUT AR1_OUT...
  • Page 79 ADIN1 KEY0-in RI18 ADIN0 IR + Light Sensor + Power Indicator 2R00-1X4M IR_Power WHITE_LED +3.3V OIRI RI13 Adrian Modify 20131104 RI14 IR_Power +5VSB 1206R WHITE_LED GPIO_SCL RI17 LS_SCL GPIO_SDA RI20 LS_SDA 2R00-1X6M CI12 CI14 0.1uF/16V 10pF/50V 10pF/50V 100pF/50V Adrian Modify 20140114 For Sharp ESD Air 15KV...
  • Page 80 +3.3V TUNER_3V3 FBP10 USB1_D- USB1_D- 4 USB1_D+ Irms :210mA USB1_D+ 4 80ohm/6A CT33 CT32 0805L 0.1uF/16V 10uF/10V TUNER_SCL TUNER_SCL 4 0805C TUNER_SDA TUNER_SDA 4 TUNER_3V3 IFAGC_T IFAGC_T 4 VIFP VIFP RT21 RT20 VIFM VIFM RT18 TUNER_SCL RT19 TUNER_SDA GND_1 GND_2 ANT PWR CT19 CT20...
  • Page 81 HDMI port 1 (Side HDMI port) UART_TX UART_TX UART_RX UART_RX 471511003 UH13 CASE HDMI_1_RX_2 C E C & A R C IO4_C IO4_R CASE HDMI_1_RX_2B HDMI_2_RX_0 HDMI_2_RX_0 4 IO3_C IO3_R HDMI_2_RX_0B HDMI_2_RX_0B 4 _HDMI_1_RX_2 HDMI_1_RX_1 HDMI_2_RX_1 HDMI_2_RX_1 4 IO2_C IO2_R MHL_CABLE_DET RH51 HDMI_1_RX_1B...
  • Page 82 Y P b P r 0 & A U D I O L I N E I N T O P N E A R L Y C o n n e c t o r N E A R L Y I C C O M P 1 i n p u t C170 1000pF/50V RGB1_SOG...
  • Page 83 SPI_Flash-CSN SPI_Flash-CSN 4 SPI_Flash-SCK SPI_Flash-SCK 4 SPI_Flash-SDI SPI_Flash-SDI 4 SPI_Flash-SDO SPI_Flash-SDO 4 FLASH_WP FLASH_WP RESET RESET RESET Serial Flash +3V3SB +5VSB RS29 RS30 RS21 RS25 RESET POCE0# RESET PDD7 HOLD# RS31 HOLD Flash_WP# POOE# SCLK RS24 PDD6 PDD6 0.1uF/16V APX810-44SAG-7 1000pF/50V W25Q32FVSSIG RS33 RS34...
  • Page 84 L V D S I n t e r f a c e H D M I I n t e r f a c e +1.8V_DDR2 LINE OUT_MUTE LINE OUT_MUTE 10 LINE_OUT_L R7_RXO0- LINE_OUT_L 10 R7_RXO0- 13,14 LINE_OUT_R R6_RXO0+ LINE_OUT_R 10 R6_RXO0+ 13,14...
  • Page 85 PWR-ON/OFF PWR-ON/OFF 4 STANDBY STANDBY PWR-ON/OFF H :Power on L :Power off +3.3V +5VSB +3V3SB STANDBY POWER +3V3SB +3.3V Power RP65 RP55 CP27 AP2309GN UP15 0.1uF/16V SOT23_GSD LA8013A +3V3SB RP57 CP20 2.2uH/1200mA 0.1uF/16V LL4148WP 1206D CP23 10uF/10V 0.1uF/16V RP68 CP28 RP59 0.1uF/16V 100K_F CP10 RP62 0402R 10uF/10V...
  • Page 86 +12V_ON_OFF +12V_ON_OFF 4 +19V POWER IN BL_ON_OFF BL_ON_OFF 4 BL_DIMMING1 BL_DIMMING1 4 + CPE1 BL_DIMMING2 BL_DIMMING2 4 220uF/25V 0.1uF/25V POWER_SW_ON_OFF RP10 +12V_ON_OFF RP13 BL_ON/OFF  low=OFF , high=ON PWM1 BL_DIMMING_1  low=OFF , high=ON BL_ON/OFF PWM2 BL_DIMMING_2 DIMMING 2R00_1X10ML Duty: 20%~100% Adrian Modify 20130916 BL_ON/OFF BL_ON_OFF RP11 RP12 H :Backlight on 0.1uF/16V...
  • Page 87 Block Diagram TCN4 TCN3 TCN6 TCN5 Mini-LVDS R Port LVDS Port Mini-LVDS L Port NOR FLASH NOR FLASH INTERFACE 32Mbit IR/POWER INDICATOR (SPDIF_OUT) SPDIF OUT SPDIF OUT UART Wave Audio DSP SPEAKER AMP MSD8220LB SPEAKER OUT NPCA110DA0YX TAS5707LPHP (LINEOUT_R/L) Line Out LINE OUT (VIFP/VIFM) TUNER...
  • Page 88 Power Tree vol. 20 AMPVCC TAS5707LPHP vol. 25 BEAD Imax=2.2A Irms=210mA +3.3V PWR19 +12V LVDSVDD JL2/JL3 UP18 4835P LVDS CONN AC ON EUP3484 Imax=540mA Ipeak=1.05A Irms=420mA FBL1 DC ON AUO 55" Ipeak=780mA Irms=3.52A (AUDIO MAX) BEAD +3V3SB UP17 5VSB UP15 EUP3484 2.2uH MSD8220LB...
  • Page 89 Tommy 20120327 Vincent 20120926 Change J1 from 1.25mm 5pin to 2.0mm 4pin KeyPad Order Change Change 0603 to 0402 Power MENU Input CH+ CH- VOL+ VOL- 20120816 +5VSB +5VSB Change 0402 to 0603 ADIN-1 ADIN-2 2K_F 2K_F 2K_F 1R25_1X4ML 1uF/16V POWER MENU INPUT...
  • Page 90 ME request change from DIP 2.0 180 degree to DIP 1.25 90 degree ME request change from DIP 1.25 90degree to DIP 1.25 180 degree +5V0 FM-A438FN-5CN 1R25S_1X4ML Vout 10uF/16V 0805/X7R +5V0 IR_Power NC/0.1uF/16V +5V0 LED1 0.1uF/16V LED WHITE M02-0603QZD NOTE : NC MEANS "NOT CONNECTED ON PCB BOARD"...
  • Page 91 PAGE REVISION SHEET NUMBER 1 of 4 AC INPUT & PFC SECTION 300V_PFC_DC_P (2Page) DP802 DP803 SD560B SD560B CP813 0.22nF 1000V BD801S TS6K60 TS4K DP808C BYV29X600 SOD113 BBP802 BBP801 LEAD BEAD LEAD BEAD TP801CS 180uH LPD6G-3PFC SA804 SA802 TSA-A1BC501N TSA-A1BC501N LX802S CP801S SQ231809...
  • Page 92 PAGE REVISION SHEET NUMBER 2 of 4 LLC SECTION COLD A19V & VDRV SECTION FP803S JUMPER (3Page) (1Page) BBM804 BBM803 DM855C F18 RH 3.5X5X0.85-WT F18 RH 3.5X5X0.85-WT SFF1005G AXIAL AXIAL ITO-220AB TM801CS BBM807 LAE5A-4LM VLINK VLINK LEAD BEAD DM801 BBM809 1N4007 LEAD BEAD DO-41...
  • Page 93 PAGE REVISION SHEET NUMBER DRIVE SECTION VDRV_DC_S (2Page) R9501 R9509 1608 1608 UP_TP R9514 220KF DIM1 R9503 1608 21KF 1608 IC9501 KIA431AM SOT-23 R9504 C9501 30KF 100nF 1608 1608 R9109 100F RB913 1608 3216 D9102 C9101 BAV70 R9110 470nF 450V SOT-23 D9101 1608...
  • Page 94 PAGE REVISION SHEET NUMBER Page 8 of 9 ETC. HEAT SINK SUPPORT LABEL LUG2 LUG1 Bar-Code Label @para1 @para2 GND_P LUG3 Bar-Code Label GND_S GND_S TRACE-LABEL @para1 @para2 GND_P_1 PRODUCTION TABLE PCB PRESS HOLE LEAD FREE MARK USER DATE NOTE AMTRAN 14.01.06.
  • Page 99 55.55T16.C03 T-CON ASS'Y for T550HVN06.0(AUO) 9LE171304019010 BASE BKT(SGCC 1.6t)(LC-55LE643U) 9LE172040030651 MAC. SCREW-MRF M3.0*6.0L, BLK-Ni 9LE172550040650 MAC SCREW-MI M4-0.7*6.0L ,Ni,NYLOR 9LE363202420189 IR BD ASS'Y SHARP (LC-32RA10U_NS6738S) 9LE172130030620 TAP. SCREW-TF #3.0*6.0L,Ni 9LE046010060640 A2001-6/P24014 10368#28 700mm(4A) G/Y HF 9LE170110000700 BASE FOOT (SILICON RUBBER/ D18.0*2.0t)(447C) 9LE046010100360...
