Nextech 8000945 User Manual

4. MEMORY CARD SLOT
• SD/MMC
This slot labeled as "SD/miniSD/MMC/RS-MMC" can accept Secure Digital (SD),
Secure Digital High Capacity (SDHC), mini SD, Multi media or RS MMC cards, etc.
(The mini SD card should be loaded from the middle of the slot and requires an
adapter to be read.)
• M2
The slot labeled as "M2" accepts M2
memory cards without an adapter.
• LED Indicator Description
The card reader has an LED status
indicator for power and data access.
Power On: The red LED indicator will
be lit when reader is linked by USB port.
Data Access: The red LED indicator will flash while data transmitting.
1. FEATURES
• Compliant with USB specification 1.1 & 2.0
• Reads a wide range of memory cards; such as SD, SDHC, Mini SD, Mini SDHC,
RS-MMC, Micro-SD, Micro SDHC, MS Duo, M2, etc.
• Hot swappable and Plug & Play capability.
• Memory card slots can be used at the same time for data exchange within Micro
SD and SD slots (excludes MS and M2 slots)
• USB powered, no external power supply required.
2. SYSTEM REQUIREMENTS
• A computer with one available USB port.
• Windows 98SE/2000/XP/Vista/7/8, Mac OS V10.4 or above, Linux Kemel 2.4 or
above.
3. PACKAGE CONTENTS
• 1 x SD Multi Card Reader
• 1 x User Manual
SD
USB
We made every effort to ensure that the information and procedure in this guide is accurate and
complete. No liability can be accepted for any errors or omissions and we reserve the right to
make any changes without further notice to any products herein.
Note: Please do not remove any of the inserted
media memory card(s) while data is being
transmitted between the PC and the card reader
or when the access green indicator is flashing.
This may cause your computer to crash and
you may lose valuable data.
Built-in USB cable never gets lost or misplaced
5. PRODUCT SPECIFICATIONS
SPECIFICATIONS
Standards Compliant USB specification Rev. 2.0, USB mass storage class drive
Micro SD/M2, SD/MMC, MS/MS Duo
Four Memory Slots
Supported Media Card Secure Digital (SD), Secure Digital High Capacity (SDHC), MultiMediaCard(MMC), MMCplus, Memory
Stick PRO, Mini SD, Mini SDHC, MicroSD, MicroSDHC, MMCmobile, RS-MMC, MMCmicro, Memory
Stick Duo, Memory Stick PRO Duo, Memory Stick MICRO(M2)
Indicators One power on indicator, One media card detect and data access indicator
Interface 5-pin mini USB support USB 1.1/2.0
System Support Windows 98SE, XP, VISTA 32/64bit, Windows7, Windows 8
Linux OS 2.4.X or above, Mac OS 10.4 or above
Operating Temperature 0°C ~ 40°C
-20°C ~ 60°C
Storage Temperature
Operating Humidity 0% ~ 80% RH, non-condensing
Certification FCC Class B, CE
Specifications are subject to revision or update without notice.
DISCLAIMER
Manufactured in China
4. MEMORY CARD SLOT

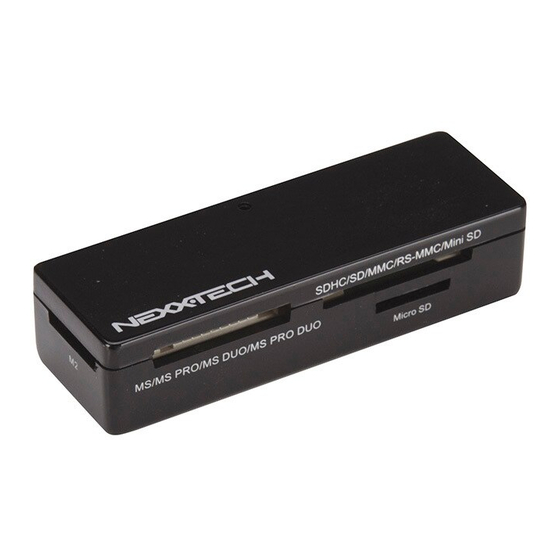

The card reader provides four slots for different types of media memory cards. You
must load each media card in the correct slot. Do not attempt to insert the card in
the reverse direction by force. Inserting in the wrong slot or wrong direction may
damage your memory card and card slot. Please read the following description and
illustrations clearly before using the card reader.
SDHC/SD/MMC/RS-MMC/Mini SD
MS/MS PRO/MS DUO/
MS PRO DUO
Micro SD
• MS/MS Duo
This slot labeled as "MS/MS Duo" accepts Memory Stick, MS Pro, MS Duo, MS
Pro Duo, and MS Micro memory cards.
• MicroSD
The MicroSD slot accepts MicroSD/T-FLASH memory cards without an adapter.
LIMITED WARRANTY
THE SOURCE WARRANTY
The Source warrants that this product will be free from defects in materials and workmanship for a
period of one (1) year from the date of purchase. Within this period, simply take the product and your
proof of purchase to any The Source store or dealer and the product will be repaired without charge
for parts and labour. The Source reserves the right to charge for transportation. Any product which has
been subject to misuse or accidental damage is excluded from this warranty.
This warranty is only applicable to a product purchased through The Source company owned stores
and dealers and to a product that is presented for repair in a country where The Source offers the
product for sale. While this warranty does not confer any legal rights other than those set out above,
you may have additional statutory rights which will vary under the laws of the various countries, states,
province and other governmental entities in which The Source operates. This warranty is subject to all
statutory rights you may have in the country of purchase.
Imported by The Source
Barrie, Ontario, Canada, L4M 4W5
Manufactured in China
www.thesource.ca
