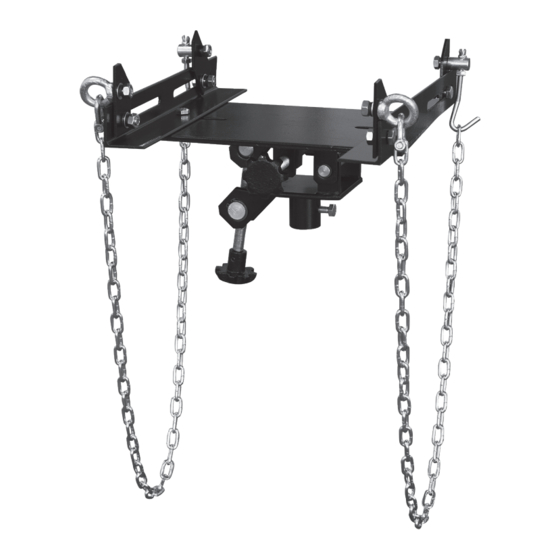

Summary of Contents for K Tool International XD KTI-63134A
- Page 1 KTI-63134A OWNER’S MANUAL 1,000 LBS TRANSMISSION JACK ADAPTOR Minimum Lifting Maximum Lifting Saddle Forward Saddle Capacity Base L x W Range Range Tilt Backward Tilt 1000 lbs. 49-5/8 inch 68-3/4 inch 14° 72° 22-1/4 x 21-3/8 inch WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov...
- Page 2 GENERAL SAFETY RULES WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in serious injury. CAUTION: Do not allow persons to operate or assemble this jack until they have read this manual and have developed a thorough understanding of how the jack works. WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur.
- Page 3 SAFETY MARKINGS WARNING! 1. Study, understand, and follow all instructions before operating this device. 2. Do not exceed rated capacity. 3. Use only on hard, level surfaces, with less than 3 degrees of slope. 4. Lifting device only. Immediately after lifting, support the vehicle with appropriate means. 5.
- Page 4 PARTS BREAKDOWN Ref. Description Ref. Description Pin 5x242 Nut M10 andwheel Washer 101 crew1 Bolt M10x25 etaining ring 252 Upper bracket assembly iddle axis Corner plate ower bracket assembly Lifting bolt M10 etaining ring 162 shackle Chain Short axis Countertop side panel Bench panel parts Hook Long spiral rod...
- Page 5 WARRANTY K-Tool International HD and XD service-related equipment 2 Year Limited Warranty. K-Tool International warrants that all jacks and service-related equipment will be free from defects in material and workmanship for a period of 2 years following the original date of purchase. This warranty is extended to the original retail purchaser only.
