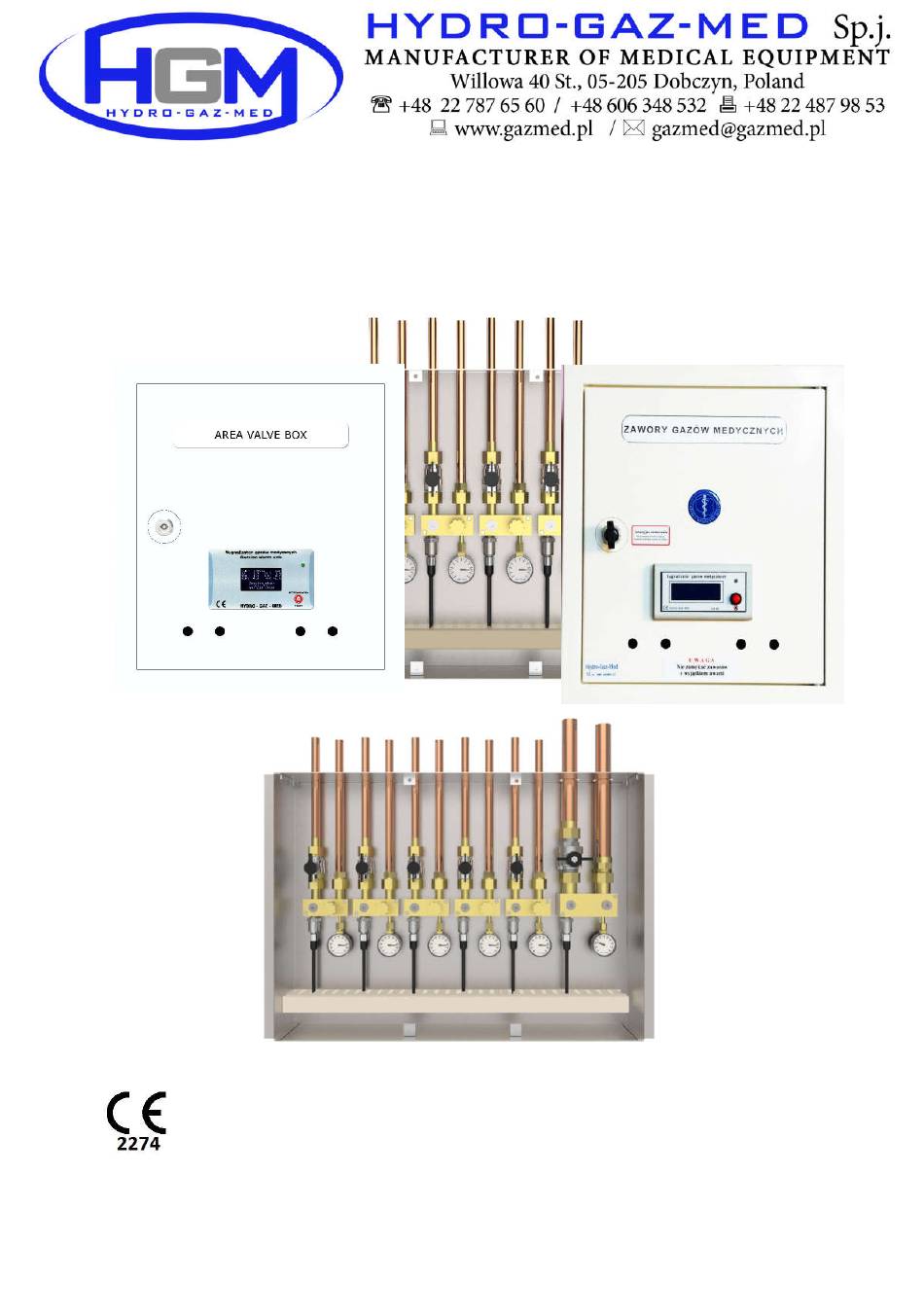

- Page 1 Valve box “SZI” for compressed medical gases and the vacuum complying to EN ISO 7396-1 INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
Table of contents 1. Technical data ..........................3 1.1 Information about the device ...................... 3 2. Application ............................3 3. Construction ........................... 4 4. Installation ............................4 5. Operation ............................4 5.1 First start-up ..........................4 6. Maintenance / repair ........................5 6.1 List of spare parts ........................ -
Page 3: Technical Data
Pressure: compressed gases 0 – 10 bar vacuum 0 - -0.9 bar Weight Outer dimensions (WxHxD) SZI-1 4.5 kg 380x450x90 SZI-2 6.1 kg 380x450x90 SZI-3 7.3 kg 380x450x90 SZI-4 10.5 kg... -
Page 4: Construction
3. Construction The housing of the valve box contains up to 6 shut-off valves, analog pressure converters 0-5V, emergency supply point type NIST and gas alarm unit with LCD display mounted on the doors. 4. Installation Wall mounting of the housing – the doors should be disassembled prior to the assembly. ... -
Page 5: Maintenance / Repair
According to EN ISO 7396-1, the valve box is equipped with the physical unsealing. For this purpose the relevant shut-off valve must be closed, the pipeline behind the valve should be emptied. Then, physical cut-off may be unscrewed and screwed in again after the works. For the emergency supply, NIST connectors should be used. - Page 6 7. Cosntruction diagram Shut off valves Phisical opening emergency supply Pressure of pipeline point NIST transducer Manometer system...
-
Page 7: Alarm System
8. Alarm system 8.1 Alarm unit mounted in valve box Functions: transmission of data to the remote alarm unit and display of information on the status of the monitored gases together with visual and audio alarm status. Power input: < 750mW Length: 148 mm Width:... -
Page 8: Description Of Connections In Alarm Unit
8.2 Description of connections in alarm unit 12V DC connection block +12V Blocks for connecting analog converters 9. Remote alarm unit 9.1 Under plaster version Functions: displays informations on a status of monitored gasses together with visual and audio signalling the alarm status. The remote alarm unit operates identically as the alarm unit mounted in the valve box. -
Page 9: Assembly Drawing Of Under Plaster Alarm Unit
9.1.1 Assembly drawing of under plaster alarm unit 9.2 Remote alarm unit – on wall version Alarm unit is equipped in touchscreen. On the screen there is TEST buton, which should be weekly used to check functioning of alarm unit. On the housing we have dual color LED from visual signal. -
Page 10: Display
To mute the audio signal we need to touch the bell symbol on the screen. After 15 minutes, if the cause of the alarm was not removed, audio signal returns. It will be returning till cause of the alarm will not be gone. During normal work green is LED is constantly ON. -
Page 11: Connecting Cables
9.2.3 Mounting procedurę Install plastic casing Mount the alarm unit with one screw to plastic casing Mark the other hole Drill the second hole and mount the fisher in Prepare cable (see clause 8.6) Pull the cable out of the wall through the plastic casing, max length from the wall 5-8 cm Put the plug in the alarm unit Mount the alarm unit Put the plugs in the holes after the screws... -
Page 12: Exemplary Diagram Of The Central Monitoring System
9.4 Exemplary diagram of the central monitoring system Front view Alarm units Alarm units Alarm unit To computer with MS Windows®... - Page 13 Back view Alarm units Alarm units Alarm unit To computer with MS Windows®...
