U S E R M A N U A L
Manual Version 2.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3B-205 SMS-Master and is the answer not in the manual?

Questions and answers

Summary of Contents for SMS-Steckdose 3B-205 SMS-Master

  • Page 1 U S E R M A N U A L Manual Version 2.1...

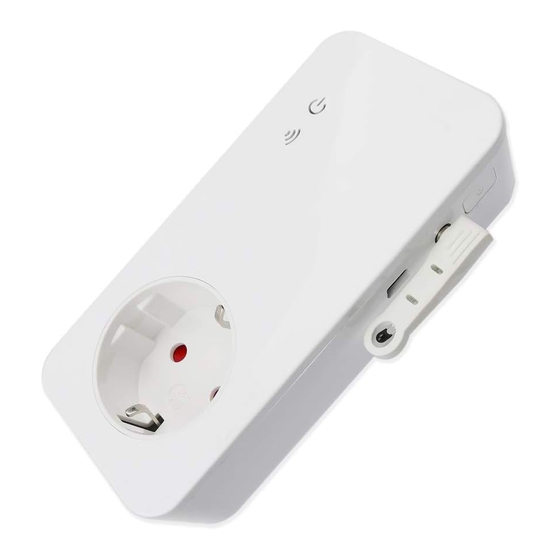

  • Page 3 Thank you for purchasing the 3B-205 SMS-Master power socket. 3B-205 SMS-Master working with 4G LTE SIM card, is a simple and powerful system to remote control the power to the electrical devices or electrical outlets at home via SMS or app in mobile.

  • Page 4: Table Of Contents

    Sms-Steckdose User Manual Content For your safety Exception clause 1.1 Package contents. 1.2 Sockets instructions 1.3 Light indicator 2.1 User authorization level 2.2 About the SMS Command 3.1 Start to use 3.2.1 Register Master-number 3.2.2 Change Master number 3.4 Pairing slave socket 3.5 Control socket power...
  • Page 5 Sms-Steckdose User Manual 3.6 Delay control of the socket output. 3.7 Schedule control 3.8 Temperature control 3.9 Temperature alarm 3.10 Socket output change SMS alert. 3.11 Mains power change SMS alert 3.12 SMS notification to User. 3.13 Calling control settings 3.14 Check status...
  • Page 6 Sms-Steckdose User Manual 1. Purchase a GSM SIM card (mobile phone card) from GSM network service provider and install it in the socket. This SIM card number is referred to as 3B-205 SMS-Master number on this brochure. 2. The user needs to activate the Caller ID Presentation function of SIM card, and deactivate PIN code of the SIM.

  • Page 7: For Your Safety

    Sms-Steckdose User Manual For your safety • This socket was designed for home or office use. Do not use it on the electrical appliance which is for industry or business operation, for example, iatrical appliances, large heaters, and refrigerates. •...
  • Page 8 Sms-Steckdose User Manual • Do not plug this socket in a row, only connect one electric device directly to this socket. • Do not open the case. • Prevent this socket from fall or beeing shaked, otherwise, it can be damaged.

  • Page 9: Exception Clause

    For the latest socket information, please visit: www.sms-steckdose.ch We don’t guarantee for the document veracity, reliability or any content except regulate in proper laws. Including no guarantee for socket suitable market or suitable area promise.

  • Page 10: Package Contents

    Sms-Steckdose User Manual 1.1 Package contents USER MANUAL Manual Version 1.0 GSM power socket Temperature Sensor User Manual (1 unit) (1 Pc) (1 Pc) www.sms-steckdose.ch...

  • Page 11: Sockets Instructions

    Sms-Steckdose User Manual 1.2 Sockets Instructions www.sms-steckdose.ch...
  • Page 12 Sms-Steckdose User Manual 1.1 Package contents www.sms-steckdose.ch...

  • Page 13: Light Indicator

    Sms-Steckdose User Manual 1.3 Light Indicator Indicator Action Status Turning off Socket power output OFF Power LED Constant light Socket power output ON Flash slowly Searching network Slowly breath Working in standby mode. Wireless signal Two fast and one slow Flash...

  • Page 14: User Authorization Level

    Socket settings can be set or adjusted via an SMS command. There are two mobile phone user controlling levels: Master-user (“Master”): Only one Master has the authorization to use all features of 3B-205 SMS-Master. To enable all the functions on the socket, the Master must store his/ her mobile number in the socket’s memory. Only one Master’s mobile number is allowed for a socket.

  • Page 15: About The Sms Command

    SMS command format: #code#content#. • Maximum sixteend digits are allowed for the phone number • 3B-205 SMS-Master will reply to the user after it receives the SMS command. Note • The “#” symbol must not be ignored when typing an SMS command.
  • Page 16 The socket default power output is OFF. Insert the plug of the electronic appliance in the 3B-205 SMS-Master electrical outlet. M button (See 5 in Figure 1) can be pressed for about one second to switch on or off the socket output. After adding user numbers to the socket, users can send SMS commands to control the power supply output.

  • Page 17: Register Master-Number

    • GSM network’s signal strength may affect the socket feature. Therefore, before using, the user should ensure that 3B-205 SMS-Master is used in an area with a strong GSM network signal. • For the first time use, the user should perform a test-run by sending SMS to the socket. This allows the user to check the GSM network connection of the socket.
  • Page 18 New MasterNumber should be the new Master mobile phone number. 3.3.1 Register User-number Up to 4 User numbers can be stored on the device. User-number have the authority to send SMS commands to switch on or cut off the 3B-205 SMS-Master power output. * Method...

  • Page 19: Pairing Slave Socket

    Delete a User number: #15#User-Number# Delete all users: #15# 3.4 Pairing slave socket (Only 3B-205 SMS-Master-F support) Master sends SMS to paring slave socket 3B-202 with 3B-205 Master socket, before paring, need to make sure slave socket is reset to factory settings, if the slave already paired with other Master socket before, need to keep press the M button on the slave socket for 5 seconds to reset the slave socket to factory setting.

  • Page 20: Control Socket Power

    Sms-Steckdose User Manual Slave socket LED flash slowly for some seconds and go to slowly breath status after connected with Master socket socket. Note • “name” is the slave socket ID communicate with GSM socket, operate slave socket by sending SMS request included “name”...

  • Page 21: Delay Control Of The Socket Output

    Sms-Steckdose User Manual Method 2: Master sends following SMS message to socket in order to: Turn on socket output: #01#0# Tum off socket output: #02#0# (10) 3.6 Delay control the socket output Description • The socket output can be set to delay switch ON/OFF for a period time.

  • Page 22: Schedule Control

    Sms-Steckdose User Manual Method Master sends following SMS message in order to: Delay switching on after a certain minutes: #12#0#Minutes#1# (11) Delay switching off after a certain minutes: #12#0#Minutes#0# (12) • Minutes are time parameters, range is 1-720. 3.7 Schedule control 3.7.1 Activate schedule control...
  • Page 23 Sms-Steckdose User Manual Method Master sends following SMS message in order to: Turn on schedule control function: #19#0#1# (13) Socket will auto switching on or off the output according to the schedule settings. 3.7.2 Set schedule Description After successful setting of time duration to switch on the socket output, the schedule parameter will be saved on the socket until socket reset to factory settings.
  • Page 24 Sms-Steckdose User Manual • WorkDay: one digit, the values lie in the range of “0” to “8”. The following table contains the descriptions of each value: Value Corresponding day Everyday Monday Tuesday Wednesday Thursday Friday Saturday Sunday Monday to Friday Weekend •...

  • Page 25: Temperature Control

    Sms-Steckdose User Manual • The socket output will switch on at the StartTime and cut off at the EndTime. • For example: #20#0#1#0000#2130#, 0000 means time 00:00(hh:mm)AM, 2130 means time 9:30PM. Turn off schedule control function: #19#0#0# (15) 3.8 Temperature control 3.8.1 Activate temperature control function...
  • Page 26 Sms-Steckdose User Manual • There are warming mode and cooling mode for temperature control function. In warming mode, socket will auto turn on when temperature lower than smaller temperature value, and turn off when higher than bigger temperature value; Cooling mode, socket will auto turn on when temperature higher than bigger temperature value and turn off when temperature lower than smaller value.

  • Page 27: Temperature Alarm

    Turn off temperature control: #23#0#0# (18) 3.9 Temperature alarm Description A range of temperature can be pre-set onto each socket. In this case, if the surroundings temperature is detected out of the pre-set temperature range, the 3B-205 SMS-Master will www.sms-steckdose.ch...

  • Page 28: Socket Output Change Sms Alert

    Sms-Steckdose User Manual auto-send the SMS alarm message to your mobile phone. This feature depends on the temperature sensor. Method Master sends following SMS message in order to: Activate over-temperature alarm: #21#0#1# (19) Set temperature range: #22#0#MinTemp#MaxTemp# (20) • Min Temp and Max Temp: The values can be set within the range of -10 to 50 centigrade degree.

  • Page 29: Mains Power Change Sms Alert

    3.11 Mains power change SMS alert Description 3B-205 SMS-Master will default sending SMS notify when main power supply lost or restore. It only alert when 3B-205 SMS-Master power supply change, slave socket 3B-202 power supply change will not report. Master can enable/disable this SMS notification.

  • Page 30: Sms Notification To User

    (26) Deactivate SMS alert to User #16#0# (27) 3.13 Calling control settings Master and user number default allow calling 3B-205 SMS-Master to switch power output, default without SMS reply when calling switch power. Master sends following SMS to set: www.sms-steckdose.ch...

  • Page 31: Check Status

    Sms-Steckdose User Manual Calling control function – ON (Default): #09#1# (28) Calling control function – OFF: #09#0# (29) SMS when calling operation – ON: #49#1# (30) SMS when calling operation – OFF (Default): #49#0# (31) Any number calling control – ON: #31#1# (32) Any number calling control –...

  • Page 32: Weak Gsm Signal Notification

    Sms-Steckdose User Manual Socket under “delay control it will show character “D” after this socket temperature value, when socket under “Temperature control”, it will show character “T” after this socket temperature value, when socket under “Schedule control”, it will show “C” after this socket temperature value.
  • Page 33 Sms-Steckdose User Manual Method The Master user sends following SMS message in order to set: Check GSM signal and network status: #27# (39) Activate SMS alarm upon weak GSM signal: #27#1# (40) Deactivate SMS alarm upon weak GSM signal (Default): #27#0#...

  • Page 34: Resetting The Socket

    Sms-Steckdose User Manual 3.16 Resetting the socket Description • This function resets all programmed settings to their original values, including cleaning all user number, timing parameter and temperature parameter. • If the setting status is wrong or the malfunctions can’t be corrected, users can restore the socket to its original status to make it work normally.

  • Page 35: Main Technical Parameters

    Data interface 16A 3500W Max loading 433Mhz FSK (Only 3B-205 SMS-Master-F support) RF frequency Up to 30 meters (Only 3B-205 SMS-Master-F support) Slave socket distance -10°C~50°C Temperature sensor range Cat4 LTE FDD:B1, B3, B5, B7 ,B8 ,B20 | LTE TDD: B40 4G LTE working band www.sms-steckdose.ch...

  • Page 36: Appendix: Sms Commands List

    Sms-Steckdose User Manual Appendix: SMS commands list Category Function Command Register Master-number (1) #00# Change Master-number (2) #14#NewMasterNumbe Add User-number (3) #06#User-Number# Define the user Check User-number (4) #06# Delete User-number (5) #15#User-Number# Delete all User-number (6) #15# Pairing slave socket...
  • Page 37 Sms-Steckdose User Manual Category Function Command Delay switching OFF after a certain minutes (12) #12#0#Minutes#0# Schedule control function - OFF (13) #19#0#1# Calendar control Set schedule control parameters (14) #20#0#WorkDay# StartTime#EndTime# Schedule control function - OFF (15) #19#0#0# Temperature control function - ON...
  • Page 38 Sms-Steckdose User Manual Category Function Command (21) 21#0#0# Temperature alarm function - OFF (22) #03#1# SMS when press button – OFF (Default) (23) #03#0# SMS when press button - OFF (24) #05#1# SMS when power lost - ON (Default) notification...
  • Page 39 Sms-Steckdose User Manual Category Function Command Delay switching OFF after a certain (12) #12#0#Minutes#0# minutes Calendar Schedule control function - OFF (13) #19#0#1# control Set schedule control parameters (14) #20#0#WorkDay# StartTime#EndTime# Schedule control function - OFF (15) #19#0#0# Temperature control function - ON...
  • Page 40 Sms-Steckdose User Manual Category Function Command Any number calling control – ON (32) #31#1# Any number calling control – OFF (Default) (33) #31#0# Check socket status (34) #07# Check S “Delayed Control” status (35) #34# Check "Schedule control” status (36) #33# Check status Check “Temp control”...
