Angstrom AVIO Series Installation Manual

AVIO Series Black or White
Congratulations! You have purchased a high quality
stereo loudspeaker. When matched to comparable
electronic equipment, expect years of quality high
fidelity sound. We are constantly striving to provide
the very best technology has to offer.
The following manual is designed to give you,
the installer or owner, basic information as to
the speaker's installation and operation. It is
beyond the scope of this manual to go into all the
details that must be taken into consideration in a
sophisticated high fidelity system.
If you have any questions regarding this speaker
which are not answered by this manual, contact your
local dealer for assistance. For the most current
information please visit

REAR CONFIGURATIONS

Elegant cover
conceals and protects
connection terminals
Rear Mounted View with
SE-DBLSVL Swivel
Bracket (not included)

BOX CONTENTS

(2) Cabinet Speakers notched &
(2) "U" brackets solid end-caps
(not included w/ AVIO-500)
391 Marwood Drive, Unit 6, Oshawa, ON L1H 7P8 • TEL: 416-988-8806
Rev. A Rev. A
www.angstromloudspeakers.com.
Bookshelf
Configuration
Shown with
the included
U-Bracket
(8) rubber feet
Angstrom Loudspeakers MC
www.angstromloudspeakers.com

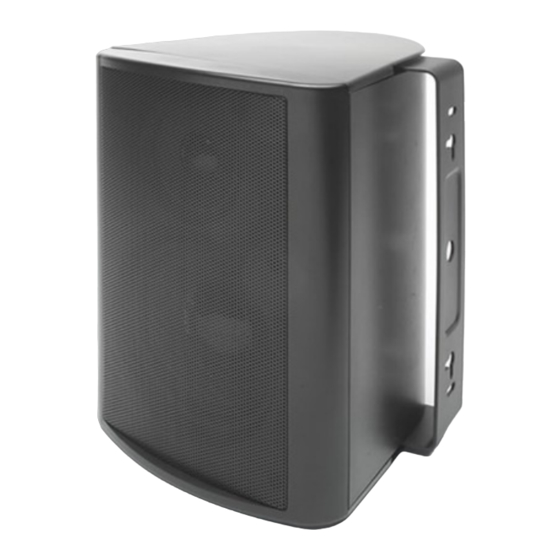

5-1/4", 6-1/2", 8" Cabinet Loudspeaker

GENERAL DESCRIPTION

These two-way speakers have specially designed
woofers with linear long throw butyl rubber
surrounds for long life and superior damping. Dome
tweeters are utilized for excellent high frequency
dispersion throughout your entire listening
environment. The frame and grille can be custom
painted to match the room decor.

SHIPPING DAMAGE

Each speaker is thoroughly tested before it leaves
the factory. However, in shipment, accidents may
occur. Please inspect your speakers carefully
when you receive them to make sure there is no
damage. If there is, please notify your dealer, or
supplier immediately for assistance. If you received
your speakers by public transportation, report the
damage at once to the shipping company.
Overall (W x H x D)
AVIO-500 7-1/4" x 10" x 7-1/2"
AVIO-505
7-1/4" x 10" x 7-1/2"
AVIO-605
8-3/4" x 11-3/8" x 8-5/8"
AVIO-805 10-5/8" x 13-3/4" x 10-5/8"
Indoor / Outdoor
(mounting bracket increases depth by 3/4")
(mounting bracket increases depth by 3/4")
(mounting bracket increases depth by 1")
(mounting bracket increases depth by1-1/4")
