BEFORE BEGINNING
Identify and verify that you have all the parts listed. Read
thru the instructions at least once, familiarizing yourself with the
parts and their use before proceeding.
You'll need a 7/16" wrench for assembly. The 5380 90º
Corner Connector is designed to work with our Ultra Tracks.
NUT006
WS002
HB020
Slide one
Ultra Track on
to ribs of a Corner
Connector, and the
heads of the 3/4" bolts, until
the end of the Ultra Track is flush
with the ends of the ribs, then tighten
the cap nuts. Repeat for the remaining three
Ultra Tracks and Corner Connectors.
There are two 1/4-20 threaded
holes in the Corner Connector which are
mounting holes for our 5320-5360 Templates. They
should not be used during this assembly process.
H e
l t
B o
u r
p t
c a
k
a c
T r
90º Corner Connector
Owners Manual
Please Read Carefully!
Parts List:
Please identify and verify that you have all of the parts
listed below prior to assembly.
Part
Description . . . . . . . . . . . Quantity
5380B
90º Corner Connector . . . . . . . . . . . . . . . . . . . 1
5861
1/2" stud handle . . . . . . . . . . . . . . . . . . . . . . . . 2
WS002
washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
NUT006
cap nut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
5760B
oval nut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
HB020
3/4" bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
5300S
1/4" spacer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

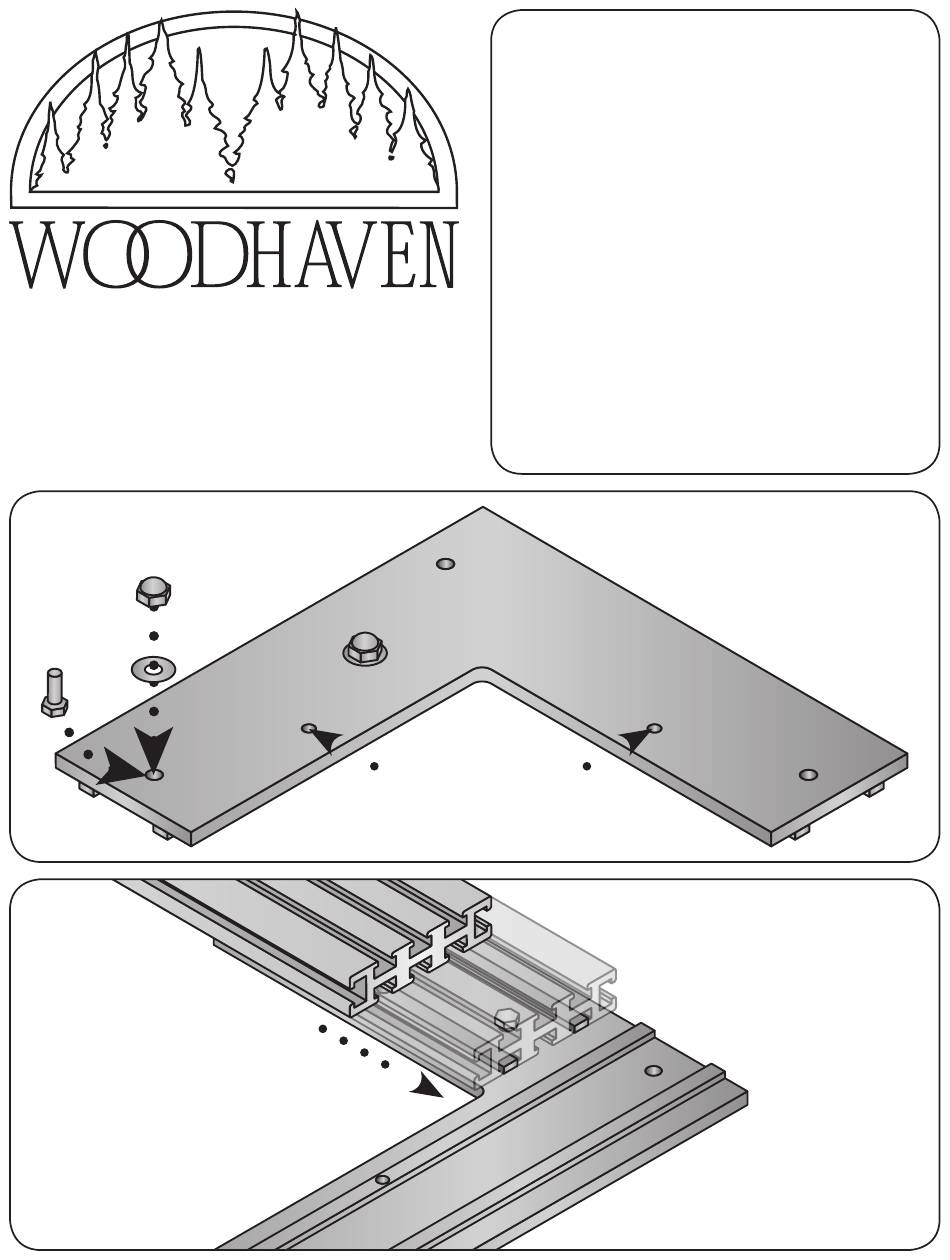

ASSEMBLY
From the underside of the Corner
Connector (5380B), insert two 3/4" bolts
(HB020) thru the holes shown. On
5 3
8 0
B
a d
i n
e d
o t
S l
k
a c
T r
i t h
t r a
w
U l
h
u s
b s
F l
R i
5380
the end of each bolt, place a
washer (WS002) and start
a cap nut (NUT006).
If you purchased the 5380K
MDF Door Kit, it consists of
four Ultra Tracks (two 4432 -
32" & two 4448 - 48", capacity
11-3/4" sq. up to 29" x 45") and
four Corner Connectors (5380).
T ogether these parts make
up an adjustable four
sided frame, which is
the primary use for
these parts. Smaller
parts can be held by cutting
3/4" thick spacers to fit between
the Ultra Track and the part.
Advertisement
Table of Contents
Summary of Contents for Woodhaven 5380
- Page 1 5380 90º Corner Connector Owners Manual Please Read Carefully! Parts List: Please identify and verify that you have all of the parts listed below prior to assembly. Part Description . . . . . . . . . . . Quantity...
- Page 2 Slide the end of one long Ultra Track onto the oval nuts/ribs/Corner Connector that's connected to a short Ultra Track to form an "L" shape and tighten the two handles. Repeat for the remaining two Ultra Tracks/ Corner Connectors, adjusting it to the t " L " same size as the first "L" assembly. Place the two "L" assemblies so the ends of their Ultra Tracks can be slid together simultaneously on to the free ends of the two remaining Corner Connectors. Slide them together and tighten the handles to complete the assembly. To adjust the assembly, loosen the four handles of two opposing "L" assemblies. Simultaneously slide the two "L" assemblies together or apart as needed. Never attempt to adjust all four "L" assemblies at the same time. If necessary, periodically spray the ribs and underside of the Corner Connectors with a dry lubricant or silicone spray. Never force the assemblies or you may damage the ribs of the Corner Connectors. You'll use four 1/4" spacers (5300S - one per 5380) to elevate the tracks 1/4" above your material so the router can follow the edge of the tracks. ©Copyright WOODHAVEN INC. 4/30/15 (800) 344-6657 or www.woodhaven.com...
