DI-ACRO

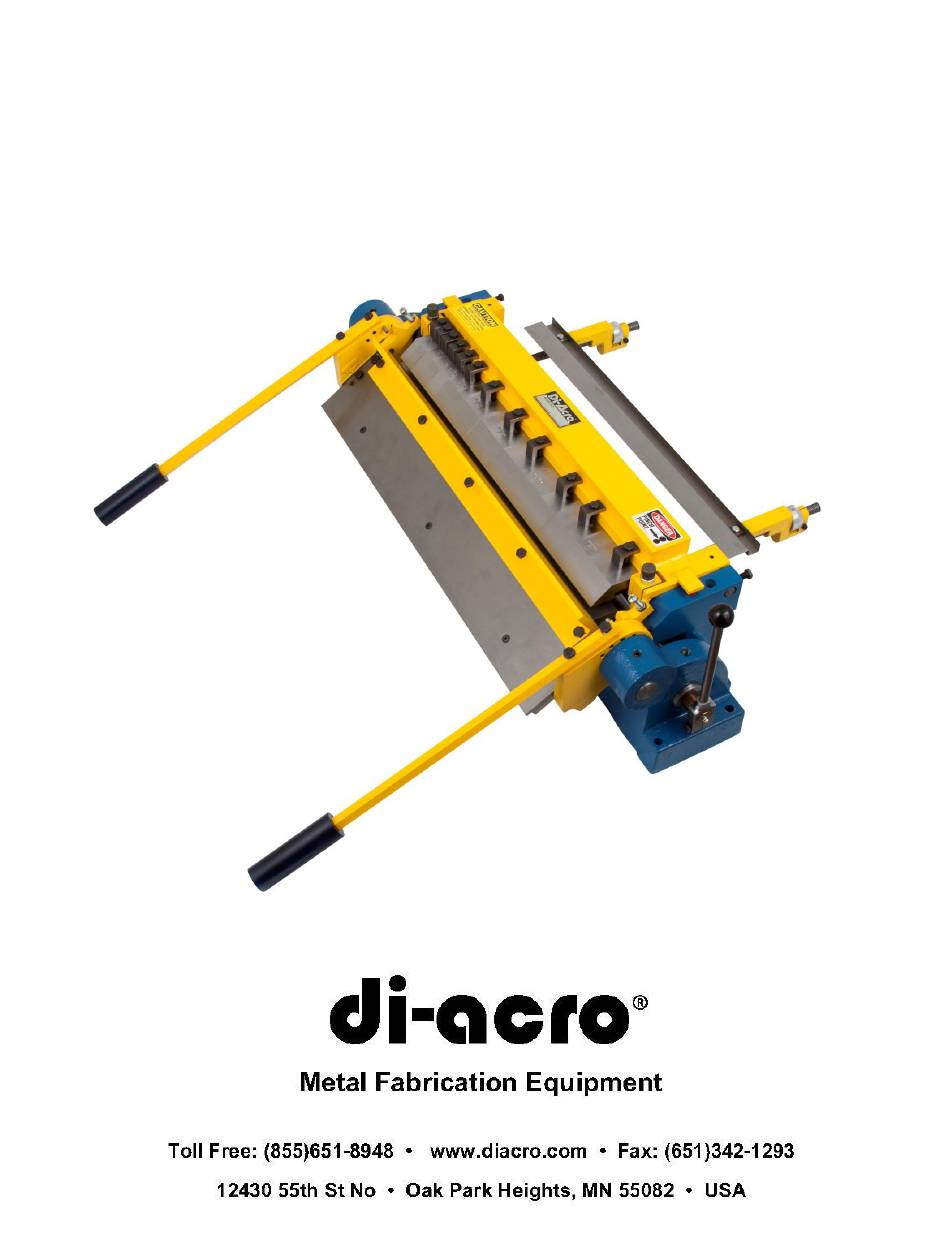

#24 FINGER BRAKE
INSTRUCTION MANUAL
REV. F 6/12
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 24 and is the answer not in the manual?

Questions and answers

Summary of Contents for Di-Acro 24

  • Page 1 DI-ACRO #24 FINGER BRAKE INSTRUCTION MANUAL REV. F 6/12...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY INFORMATION PG. 3 MAINTENANCE PG. 3 ANGLE ADJUSTMENT PG. 4 NO. 24 FINGER BRAKE PARTS LIST PG. 5-6-7 MICROMETER BACK GAUGE PG. 8 OPTIONAL STAND PG. 9 WARRANTY & LIMITATION OF LIABILITY PG. 10 REV. F 6/12...
  • Page 3: Safety Information

    Safety Instructions Before brake is set up for operation, mount on work bench or stand with brake base flush with the front edge of stand or work bench and bolt in place. *IF BRAKE IS MOUNTED ON ITS OWN STAND, SECURE STAND TO FLOOR Maintenance Lubricate shaft as needed.
  • Page 4: Angle Adjustment

    FORMING A REVERSE BEND = 1/4 PART FINGERS BOTTOM PLATE NOTE: Di-Acro Brakes are rated for 1” minimum flange when bending full capacity. Caution should be used if necessary to bend heavier gauge material in short widths. SPECIFICATIONS – FINGER BRAKES Model No.
  • Page 5 # 24 FINGER BRAKE PARTS BREAKDOWN 8347820-080 REV. F 6/12...
  • Page 6 PARTS LIST 8347820-080 ITEM PART NUMBER DESCRIPTION BASE-24” FINGER BRAKE 8346110-100 8346120-200 SHAFT 346-1103024 BUSHING HOUSING 8346110-302-1 BRONZE BUSHING 346-1208030 CLAMP HANDLE BLOCK 8500111-300 HANDLE ROD 8120810-700 PLASTIC KNOB 8690100-200 DRIVE FITTING-3/16 8346110-311 SIDE 20A0516C1104 SCREW-SHCS 5/16-18X1-1/4 8510211-600 SPRING 8046110-204...
  • Page 7 PARTS LIST - CONTINUED ITEM PART NUMBER DESCRIPTION 8500122-000 FOLDING BAR STOP 8346122-000 RIGHT ARM 8046122-002 FOLDING BAR BACK 8346110-400 BOTTOM PLATE 8146122-000 FOLDING BAR SUPPORT 8346120-801 HANDLE ARM 8120310-100 HANDLE GRIP 20A0516C1000 SCREW-SHCS 5/16-18X1 21A0308C1104 SCREW-HHCS 3/8-16X1-1/4 21A0308C1102 SCREW-HHCS 3/8-16X1-1/2 19A0308X1102 PIN-DOWEL 3/8X1-1/2 8251470-101...
  • Page 8: Micrometer Back Gauge

    MICROMETER BACK GAUGE Typically the back gauge is assembled when the finger brake is shipped from the factory. Occasionally it is removed for ease of palletizing. To install and/or zero the gauge follow the instructions below. (Refer to parts breakdown pages 5.6,7) 1.
  • Page 9: Optional Stand

    OPTIONAL STAND PART NUMBER 8346110-900 STAND DIMENSIONS ARE: 38” WIDE, 15” DEEP, 33-1/4” HIGH CALL DI-ACRO FOR PRICE AND AVAILABILITY Fasteners needed to attach Finger Brake to stand are the following: Fasteners to attach stand to floor are not included...
  • Page 10: Warranty & Limitation Of Liability

    Warranty & Limitation of Liability Defective parts, of a product manufactured by DI-ACRO, will be replaced or repaired at no charge for twelve (12) months following delivery to the original purchaser. Labor is included for the first 90 days. This warranty becomes void when products have not been used according to instructions furnished by DI-ACRO, nor does it cover any altered parts or unauthorized repairs.
