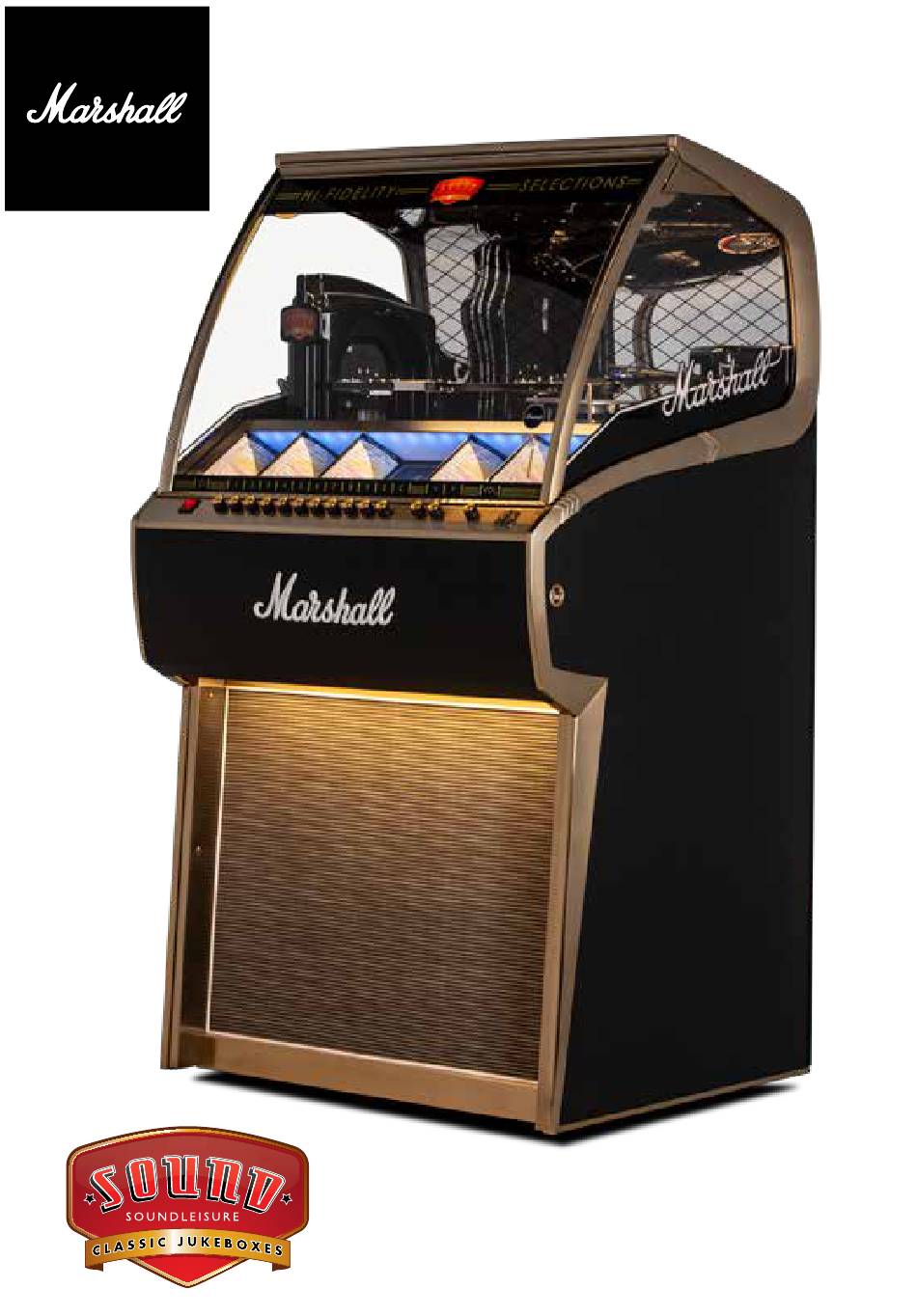

- Page 1 Marshall LP Jukebox User Manual Series 3 : Build 7.0...
-
Page 2: Table Of Contents
Contents 1. Introduction Pg 3 2. Important safety instructions Pg 4 3. Taking delivery / Transit mode Pg 7 4. Label magic Pg 12 5. Inserting title cards Pg 13 6. Loading discs Pg 14 7. Playing the Jukebox Pg 16 8. -
Page 3: Introduction
Introduction Thank you for your purchase of the Marshall Vinyl Jukebox. A shared passion for the music Marshall Amplifiers helped create brought Sound Leisure and Marshall together in a unique collaboration, resulting in the development of this incredible custom Classic Jukebox. Designed and hand built in Leeds, UK, this product has been designed and built to give you many years of enjoyment and trouble free use. -
Page 4: Important Safety Instructions
Important Safety Instructions • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with a dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. - Page 5 Additionally • This Jukebox contains high voltage & high temperature parts. Do not attempt to carry out any work that is not specifically instructed in this manual. If the Jukebox fails to operate correctly, switch off the machine and contact Sound Leisure.
- Page 6 FIG1 : Lock locations & rear panels Main cabinet locks. Please note there is a lock on both the left and right of the Jukebox. Coin reject cup Rear cabinet door lock Mains power socket and switch Earth bond Audio Out sockets and RESET button...
-
Page 7: Taking Delivery / Transit Mode
Taking Delivery / Transit Mode Once the Jukebox has been positioned in its designated space the following instructions will allow you to prepare it for use. The keys to open the Jukebox will be found attached to the rear of the cabinet. The keys will open the side locks and the rear cabinet lock. - Page 8 Removing the transit retaining bolts and foam. • Unlock the front of the Jukebox and raise the front glass to its highest position. The gas struts will hold the weight of the front glass. • Look downwards into the mechanism and you will see the 2 x 10mm retaining bolts as denoted in FIG 2 and a section of retaining foam underneath the mechanism arm.
- Page 9 FIG2. LP Mechanism as seen from above Retaining foam Location of 2 x 10MM retaining bolts. LP mechanism arm FIG3. LP Mechanism playing area Transit plate Stylus Transit Retaining Tone retaining screws Anti skate cover plate foam weight - (slide forward packaged towards you to remove)
- Page 10 Placing the Jukebox in Transit mode REMOVE ALL RECORDS BEFORE TRANSIT • Should you need to move your Jukebox it is recommended you put it into “Transit” mode. This ensures that nothing can be damaged whilst the Jukebox is transported. •...
- Page 11 Installing the Anti Skate weight The Long Player is supplied with an anti skate weight. This helps to create a smooth playing system. Upon delivery you will find this weight contained within a plastic bag on the front of the tone arm transit plate. (see page 9) How to install the anti skate weight (FIG.4) •...
-
Page 12: Label Magic
Label Magic Sound Leisure has developed the Label Magic title card printing jukebox title card printing software software to facilitate the easy design and printing of title cards for your Sound Leisure Jukebox. Included in the welcome pack supplied with your Jukebox is a FREE 12 month subscription to Sound Leisure’s Label Magic title card printing software. -
Page 13: Inserting Title Cards
Inserting title cards Title Cards Perforated blank title cards and Sound Leisure’s Label Magic printing software are included in your Jukebox welcome pack. For further details on installing your software and your FREE 12 month subscription code please see the postcard included in the welcome pack or visit : soundleisure.com/classic-Jukeboxes/accessories/label-magic-title-card-software This will assist you in designing and printing title cards. -
Page 14: Loading Discs
CAUTION! MOVING PARTS! THE MECHANISM OF THE JUKEBOX • CONTAINS MOVING AND ROTATING PARTS. PLEASE BE VERY CAREFUL WHEN LOADING OR OPERATING WITH THE FRONT GLASS OPEN. ENSURE THAT LOOSE CLOTHING, JEWELERY, LONG HAIR ETC ARE KEPT AWAY FROM THE JUKEBOX MECHANISM The Long Player Jukebox has an auto loading mechanism to ensure the safe delivery of your vinyl records. - Page 15 • Set the speed of the record by pressing the “SPEED” button. 12” singles usually play at 45RPM - LP records usually play at 33-1/3rd NOTE : THE JUKEBOX WILL NOT PLAY 7” SINGLES Green = 33 RPM Red = 45 RPM •...
-
Page 16: Playing The Jukebox
Playing the Jukebox Making Selections • When the records and labels are installed, selections can be made using the keyboard at the front of the Jukebox or via the remote control. • To play a record, select the 3 digit number as specified on the title card. For instance 103 (side A) or 203 (side B) or play both sides of the record (side A &... - Page 17 FIG7 : remote control Selections and additional functionality of the Jukebox can be controlled via the remote control supplied with your Jukebox. Sleep mode (places the Jukebox into low power standby) Switches amplifier to Switches amplifier to Bluetooth input Jukebox input Switches amplifier to Aux input Mute vol...
- Page 18 Adjusting Volume As a precaution against overloading the speakers when switching the Jukebox on, the volume is preset to a low level. • To raise the volume to the preferred level, select a track, wait until the disc is playing, then adjust the volume using the ‘VOL 1’ volume keys on the remote control or use the twisting volume button on the right hand side of the Jukebox button bank to the left or right.
- Page 19 Shuffle Mode The Jukebox features a random shuffle mode. This feature allows continuous play until the function is disabled. If a manual selection is made when shuffle mode is enabled then the currently playing track will play out before the chosen selection is played.
- Page 20 Direct Play Mode The Long Player mechanism can be used as a regular turntable allowing a quick way to play an album without having to load it into the changer mechanism. The Direct mode will play side A before flipping the record to play side B it will then wait until the record is removed before entering back into normal Jukebox mode.
- Page 21 During Direct Play: • Pressing the Previous button on the remote will restart the same side of the record. • If playing the A side pressing Next will flip the record and play the B side. • If playing the B side pressing Next will flip the record back to the A side and end playback.
-
Page 22: Connecting External Audio Devices
FIG8 : Rear of Jukebox : Door open Speaker D4 Digital Bluetooth matching Amplifier Module Audio Out connection and Mains input RESET button and switch Connecting external audio devices Connecting an audio source to the Jukebox input Audio sources, such as DAB radios or streaming devices can be connected to Aux 2 input on the D4 amplifier. - Page 23 Please note: It is recommended that the audio output level of the connected device is kept at between 3⁄4 and full and the volume is adjusted using the volume control of the Jukebox. Connecting to the Jukebox audio output An audio output is provided to allow the Jukebox to play through another amplifier, such as Surround Sound or Multi-room audio system.
-
Page 24: Adding Additional Speakers
Adding additional speakers The D4 Digital Amplifier has 4 independent outputs, configured as 2 stereo pairs. Channels 1 and 2 are used to drive the Jukebox’s internal speakers. Channels 3 and 4 (left and right) can be used to connect additional external speakers. - Page 25 FIG10 : Speaker matching pad Shown with default Jukebox speakers connected Connect to Connect to left external right external speaker speaker...
-
Page 26: Adjusting Amplifier Settings
Adjusting amplifier settings It is possible to adjust the audio equalisation of the amplifier to suit a specific environment or taste. There are separate settings for the internal Jukebox speakers (Channel 1/2) and any additional speakers that may be connected (Channel 3/4). - Page 27 Aux Input 1 • This Menu sets the master volume level for Auxiliary Input 1. This allows the volume of the Auxiliary input to be balanced against the volume of the CD mechanism. Aux Input 2 • This Menu sets the master volume level for Auxiliary Input 2. See Aux Input 1 for description.
- Page 28 Loudness • When switched on the loudness control will provide a dynamic boost to the bass and treble when the Jukebox is used at low volume, the lower the volume the higher the boost. This is a subtle effect that adds clarity to music at low volumes.
-
Page 29: Bluetooth
Bluetooth The Jukebox allows audio streaming via Bluetooth. To pair an audio device to the Jukebox. • Press the BT PAIR button on the Jukebox remote control. • “BT ON” will show on the Jukebox display. • Turn on the Bluetooth connection on your audio device and begin searching for devices (refer to your audio device manual for instruction on how to search and pair to a device). -
Page 30: Jukebox Lighting Adjustment
Jukebox Lighting Adjustment It is possible to adjust the brightness and colour of the lighting of your Jukebox via the remote control. There are 10 preset patterns that affect the top (interior), bottom (grille) and name plate areas of the Jukebox. The colour of the lighting in the title rack can also be set to one of 10 patterns To Set the colour pattern on your Jukebox •... - Page 31 Main Jukebox Lighting patterns Pattern Top Light Bottom Light Name Plate Light number static warm static warm static warm static warm static warm colour chase static warm static warm colour pulse static warm colour change pulse colour chase colour change colour change pulse colour chase pulse...
-
Page 32: Troubleshooting And Error Codes
Troubleshooting and error codes Great care has been taken to ensure your discs are protected whilst in the Jukebox. The mechanism carries out numerous checks to ensure it is running correctly. In the unlikely event of an error the mechanism will freeze position and one of the following error codes will be displayed on the LED. - Page 34 • NOTES...
- Page 35 • NOTES...
- Page 36 • NOTES...
- Page 37 • NOTES...
- Page 40 For any further information or technical support please call Sound Leisure : Sound Leisure Limited Sandleas Way Leeds LS15 8AR T: +44 (0) 113 232 1700 F: +44 (0) 113 232 1701 E: Letstalk@soundleisure.com www.soundleisure.com Twitter : @classicJukebox Facebook.com/classicJukeboxes Intagram : @soundleisurejukeboxes...
