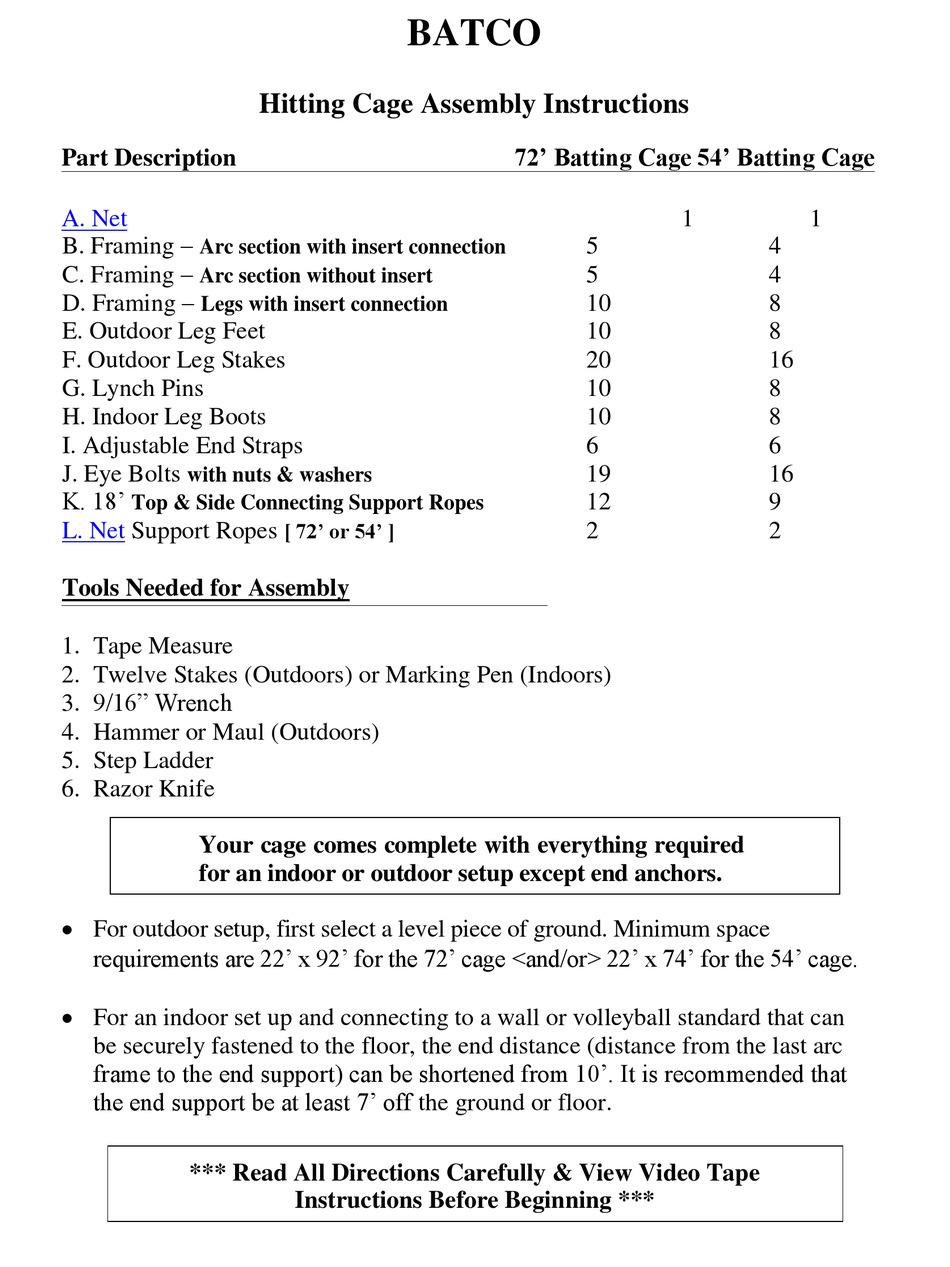

Batco CA54-O-1 Assembly Instructions

Hitting cage

Part Description

A. Net

B. Framing –

Arc section with insert connection

C. Framing –

Arc section without insert

D. Framing –

Legs with insert connection

E. Outdoor Leg Feet

F. Outdoor Leg Stakes

G. Lynch Pins

H. Indoor Leg Boots

I. Adjustable End Straps

J. Eye Bolts

with nuts & washers

K. 18'

Top & Side Connecting Support Ropes

L. Net

Support Ropes

1. Tape Measure

2. Twelve Stakes (Outdoors) or Marking Pen (Indoors)

3. 9/16" Wrench

4. Hammer or Maul (Outdoors)

5. Step Ladder

6. Razor Knife

Your cage comes complete with everything required

for an indoor or outdoor setup except end anchors.

 For outdoor setup, first select a level piece of ground. Minimum space

requirements are 22' x 92' for the 72' cage <and/or> 22' x 74' for the 54' cage.

 For an indoor set up and connecting to a wall or volleyball standard that can

be securely fastened to the floor, the end distance (distance from the last arc

frame to the end support) can be shortened from 10'. It is recommended that

the end support be at least 7' off the ground or floor.

*** Read All Directions Carefully & View Video Tape

BATCO

Hitting Cage Assembly Instructions

[ 72' or 54' ]

Instructions Before Beginning ***

72' Batting Cage 54' Batting Cage

Table of Contents

Do you have a question about the CA54-O-1 and is the answer not in the manual?

Page 1 BATCO Hitting Cage Assembly Instructions 72’ Batting Cage 54’ Batting Cage Part Description A. Net B. Framing – Arc section with insert connection C. Framing – Arc section without insert D. Framing – Legs with insert connection E. Outdoor Leg Feet F.
Page 2 Assembly Instructions Prior to assembling the cage, it is necessary to premeasure and mark the location for the two end supports as well as the location for each of the legs. The total distance from end anchor to end anchor measures 92’ for a 72’...
Page 3 3. Lay out the batting cage net (A) inside the stakes or markings with the vinyl sleeves running side to side rather than end to end. Be sure the Velcro openings on the sleeves are facing upwards. Please note that one end of the batting cage has a zippered opening.
Page 4 through the net and make the connection with the snap to the eyebolt above the sleeve. Continue this until all the top ropes are connected. Now snap the remaining 18’ ropes to the eyebolts at the side Velcro flap openings. Snap the ropes on the outside of the cage and run the cable under the net (or inside the cage) to the next arc.
Page 5 4. No one should enter the BATCO batting cage without the wearing of an approved batting helmet 5. Always use prudence and caution when using the batting cage. Safety must always be a priority.
