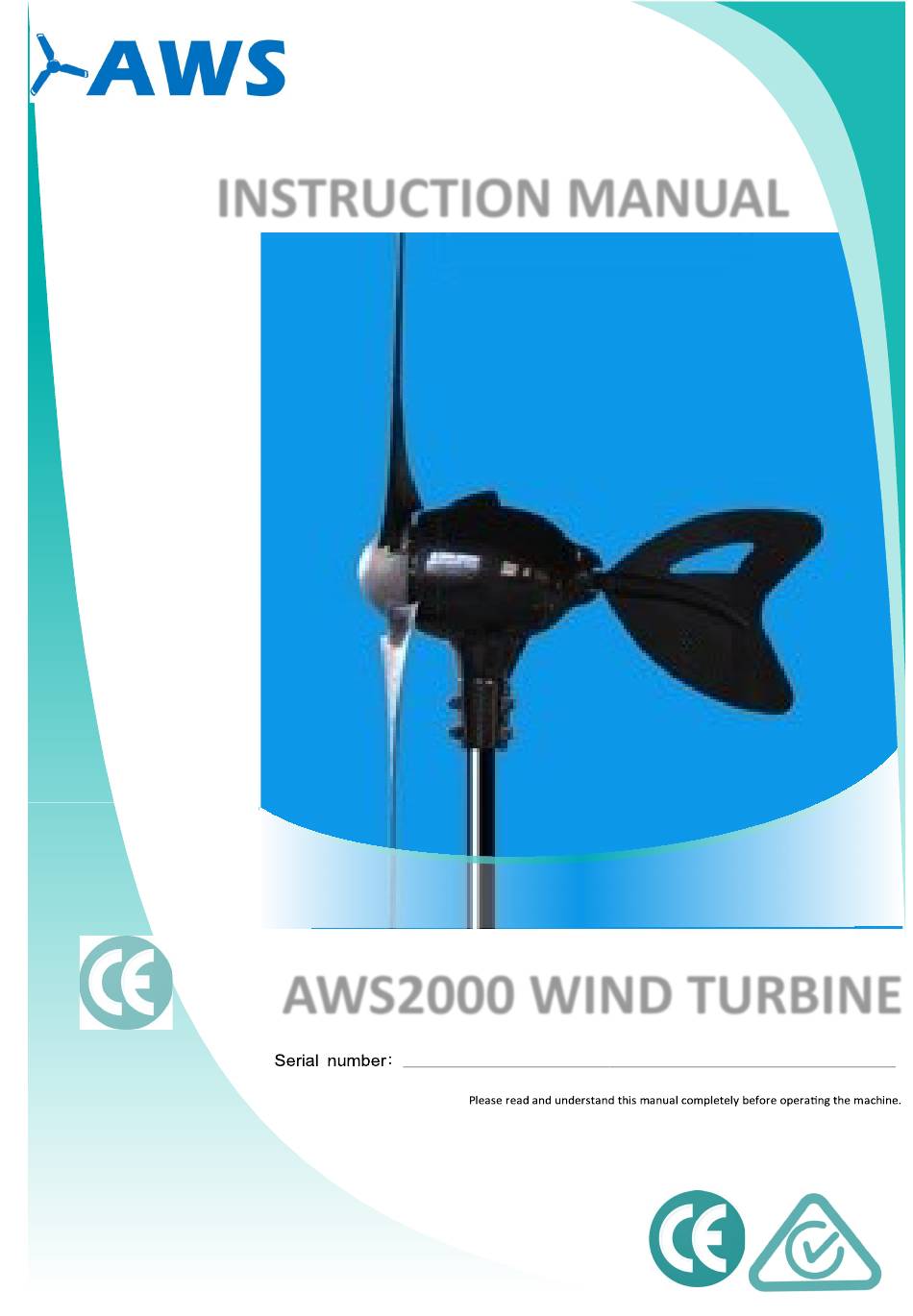

AUSTRALIAN WIND AND SOLAR
Your best solution for all your power needs
INSTRUCTION MANUAL
AWS2000 WIND TURBINE
www.australianwindandsolar.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AWS2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AWS AWS2000

  • Page 1 AUSTRALIAN WIND AND SOLAR Your best solution for all your power needs INSTRUCTION MANUAL AWS2000 WIND TURBINE www.australianwindandsolar.com...
  • Page 2: Table Of Contents

    AWS2000 Wind Turbine Page Table of Contents Getting started 2. Safety instruction 3. Installation siting 4. Specifications 5. Part name 6. Assembling module 6.1 Verify the following upon purchase 6.2 Assembly procedure 6.3 Attaching to pole 7. Connecting the system 7.1 Before connecting...
  • Page 3: Getting Started

    1.Getting Started ☼ 2.Safety instruction...
  • Page 4 Be aware that failure to use the product in the manner indicated by may, depending on circumstances, also have severe consequences. All of the symbols described above indicate important safety information. Obey all safety information when using this product.
  • Page 5: Installation Siting

    3.Installation siting...
  • Page 6: Specifications

    Wind Turbine Type Horizontal axis, up-wind UPC Code 839290007075 Rotor Diameter 1776mm (69.9”) Weight 18kg (38lbs) Mount Diameter 48.6mm (1-15/16”) Number of Blades Blade Material Carbon-fibre Blade Mass (per piece) 532g Body Material Aluminum die cast Product Finish Teflon-based paint Generator Synchronous-type, three phase power generator with neodymium iron boron mag- nets...
  • Page 7: Part Name

    6. Assembling module 6.1 Verify the following upon purchase Tail Unit The body Unit and the tail is packed in the same box. Optional parts: Remote Monitor System...
  • Page 10: Connecting The System

    7.Connecting the System 7.1 Before connecting...
  • Page 11: Connecting The Wind Generator Output Cable Extension

    7.5 Connection example...
  • Page 12: Connecting The System

    7-6 Connecting the System...
  • Page 13: Considerations When Choosing Peripheral Materials/Device

    Mode Indicator Light Status Cause Next Operation Start/Restart No light Not generating power The power is off, or the wind Status in normal operating (Wind speed range: is weak and the rotor is ro- mode 0—3m/s, 0—11KPH, 0— tating below 420rpm or the 6.7MPH) DPDT Switch is on brake posi- tion.
  • Page 14: Mounting Tower

    The batteries in series within a group have to be the same type, chemical, age and capacity (in Ah). You can connect several 48V groups in parallel to increase the battery bank capacity in Ah. However the capacity of a 48V group is the same of each single battery in series within the group (no Ah in- crement).
  • Page 15: Cable Diameter Size

    9.3 Cable Diameter Sizes: To select the appropriate cables gauge, measure the distance between the turbine and the batter- ies. Make sure to include the height of the tower. Please refer to the following wire gauge chart. Distance between Cross Diameter of AWG # Maximum...
  • Page 17: Maintaining The Generator System

    FEET METER OUTPUT POWER 1-500ft 0-150m 100% 500-1,000ft 150-300m 1,000-2,000ft 300-600m 2,000-3,000ft 600-900m 3,000-4,000ft 900-1,200m 4,000-5,000ft 1,200-1,500m 5,000-6,000ft 1,500-1,800m 6,000-7,000ft 1,800-2,100m 7,000-8,000ft 2,100-2,400m 8,000-9,000ft 2,400-2,700m 9,000-10,000ft 2,700-3,000m If replacement is necessary, only use parts specified by Australian Wind and Solar. Use other parts could cause accidents or malfunction.
  • Page 18: Troubleshooting

    Problem Symptom Solution Insufficient charging current to the Insufficient wind speed, below the Wait for better wind speed condi- battery bank when the rotor is run- start-up speed (11KPH, 7MPH) tion Insufficient charging current to the Rotor and/or yaw bearings within This requires about 60-100 hours of battery bank when the rotor is run- the break-in period...
  • Page 19 The turbine (especially its tail) is Swirling air because of turbulence Change the location and/or in- yawing continuously crease the height of the tower/ Every time the rotor shaft begins to Open circuit in the DC connection Check for loose or open connec- spin, it stops suddenly with a strong between the turbine and the tions in the cables.
  • Page 20: Warranty Information 2

    The battery bank voltage increases The indicator light status is flashing Normal if the battery bank is fully easily and fast, forcing the unit to red (controlled rpm mode of opera- charged and there is not/low power activate the controlled rpm mode tion) consumption from the loads con- and even the complete stop very...
  • Page 21 Phone: 1300 736 458 Email: admin@australianwindandsolar.com Website: australianwindandsolar.com Warranty Registration Card Client Name Model Number Installation Date Installation Location Other Requirements Send at least three photos of the working wind turbine Warranty Service Card Client Name Model Number Installation Date Phone Number: Application Procedure Email:...
