JR ProPo E-SW-G Operation Manual

ELECTRONIC SWITCH
OPERATION MANUAL
Thank you for purchasing
this product
To allow correct and safe use of this product,
Please be certain to read this operation manual.
Features
・The electronic switch avoids problems with
faulty switch contacts.
・Fail safe design - removing the switch plug
powers up your radio system.
・Two choices of connector available
: Deans Ultra Plug or XT60
For your safety, be sure to observe
the following points
In order to protect against injury to users or third parties,
or damage to property, please observe the following.
The informtion is divided and explained using the following symbols.
"Caution Items" are explained
using this indication.
"Obligatory Items" are explained
using this indication.
"Prohibited Items" are explained
using this indication.
If the product is used with a voltage other
than the rated voltage,it will be damage.
Pay adequate attention to the remaining
battery capacity during flights.
Be sure to securely mount the switch to the
airframe.
Do not disassemble or modify this product.
Do not get the product wet or damage may
occur. Do not use the product in environm-
ents where condensation occurs.
Do not use any component which has been
damaged, included wires or connectors.
Specifications
Product name：E-SW-G
Weight：0.56 oz / 16ｇ
Dimensions：0.77x1.16x0.37 inch
(w/o Cable) 19.5x29.5x9.5mm
Length：12.6 inch / 320 mm
Operating voltage：4.5-8.5V
CAUTION
Please note this is not a voltage
regulator. When using voltages
above 6.0V, use high-voltage
compatible servo
Contents

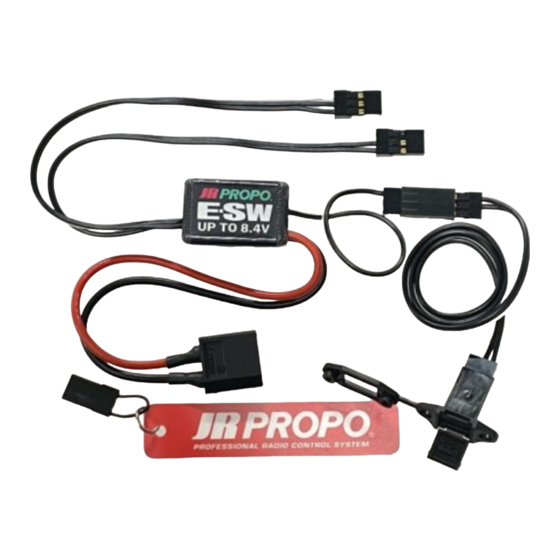

●Main Unit ●E-Switch Adapter L150
●E-Switch Pulg ●Tap Screw（2）
● Manual
Cautions
Be sure to disconnect the battery from
switch unit between flying sessions.
Leaving the battery connected,even with the
switch plug inserted, results in a small resi-
dual current draw that will eventually flatten
the receiver battery and potentially damage it.
1. Be sure to close the switch hatch to avoid damage
from water, or oil orother substances which may aff-
ect the operation of
the switch.
Be sure to completely
close the cover when flying.
2. Securely mount the switch to the aircraft using
the supplied screws and switch cover.
3. Please be sure to respect connector polarity.
Reverce conne ction will damage the switch

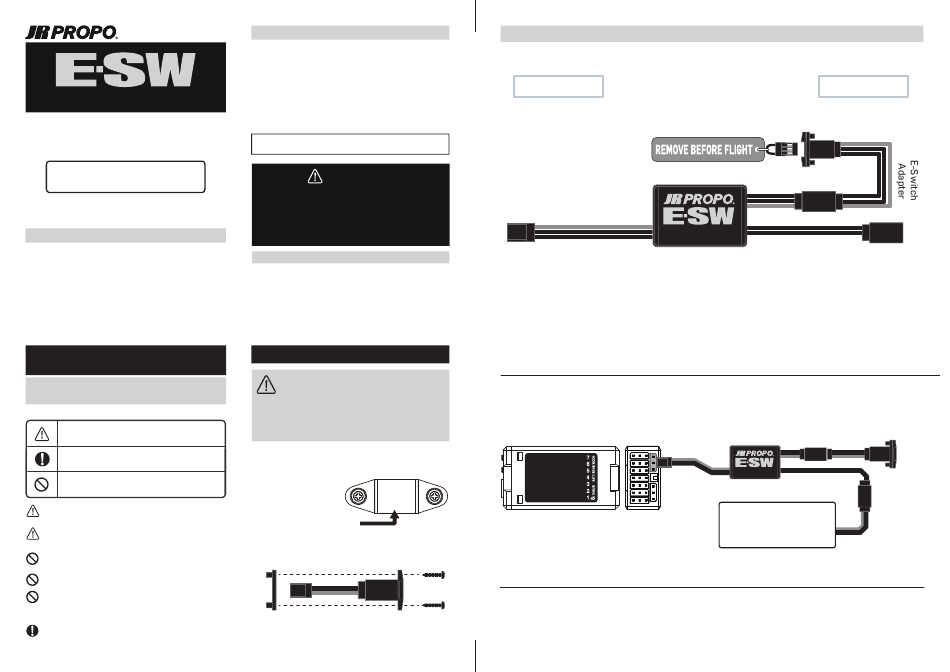

Configuration and Installation
To the receiver
ON/OFF Switch plug
＊Removing the switch plug turns power ON.
Note: The plug is not sensitive to insertion direction.
Power supply connector
＊Connect to BIND / BATT / SENS
UP TO 8.4V
■ Example of connection to the DMSS 8ch Receiver.
Connector
DMSS
8ch
RECEIVER
For U.S.A.: service@deeforce.net (Ph: 217-369-2854)
For Australia: info@rcdepot.com.au (Ph:07-3879-6692)
For other overseas Countries: rcdepot.overseas@gmail.com
To the battery
E-SW Port
Battery Port
ESW
UP TO 8.4V
Receiver Battery
Li-Po 2cell / Li-Fe 2cell
(Sold separately）
