USER GUIDE
Version 1.0.0
WRP-1000 Series

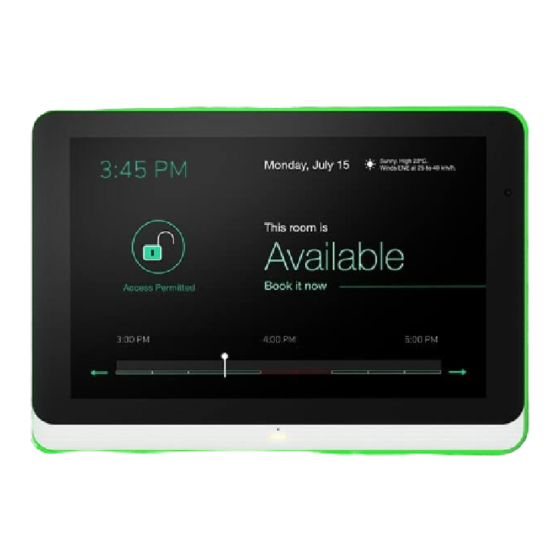

IAdea 10.1" All-In-One Meeting Room Panel with NFC &
RFID, optional HID, and Touch
America
20 Fairbanks,
Ste, 170 Irvine, CA 92618
California, U.S.A
Taiwan
114, 3F, No. 21
Ln. 168, Xingshan Rd.
Neihu Dist., Taipei, Taiwan
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for IAdea WRP-1000 Series
- Page 1 USER GUIDE Version 1.0.0 WRP-1000 Series IAdea 10.1” All-In-One Meeting Room Panel with NFC & RFID, optional HID, and Touch America 20 Fairbanks, Ste, 170 Irvine, CA 92618 California, U.S.A Taiwan 114, 3F, No. 21 Ln. 168, Xingshan Rd. Neihu Dist., Taipei, Taiwan...
- Page 2 NFC logo M3 x 13 M3 x 6 sticker 2 pcs & 1 pc & 1 spared 1 spared (For mounting at top (For mounting at the two corners of flush top center of flush mount) mount) Copyright©2019 IAdea Corporation...
- Page 3 WRP-1000 10.1” All-In-One Room Panel User Guide Physical view and features Copyright©2019 IAdea Corporation...
- Page 4 2 - 4 hours to evaporate prior to usage. Users are recommended to keep the mount bracket in direct contact with the to-be-mounted surface when operating the room panel to ensure the weight of the device is fully supported by the flush wall mount. Copyright©2019 IAdea Corporation...
- Page 5 Fixing the screws from two corners at bottom of flush mount and the screw at the center top is a recommended procedure that is stable, easier, and faster when mounting the room panel. Wall mounting with flush mount bracket and screw Copyright©2019 IAdea Corporation...
- Page 6 WRP-1000 10.1” All-In-One Room Panel User Guide Glass mounting with flush mount bracket and screw Mounting close to window frame Copyright©2019 IAdea Corporation...
- Page 7 Language) ..” For system configurations, select “Advanced.” Important recommended configurations: 1. Set correct time, date, and time zone for properly scheduled playback. 2. Set password to prevent unauthorized access during setup menu. 3. Set network for establishing network connection. Copyright©2019 IAdea Corporation...
- Page 8 2. Create a folder named "DEBUG" (case insensitive) in the root of USB stick. 3. Make sure room panel is operating (see welcome screen or playing content). 4. Insert the USB stick into display and wait for yellow dot on upper right corner to stop blinking. Copyright©2019 IAdea Corporation...
- Page 9 Repeat step 1-4 again and make sure to wait until stop blinking. 6. Zip the "DEBUG" folder and send to IAdea Support Team. Reset system to factory default Factory resetting the room panel will result in removal of all saved contents, passwords, and configurations in settings.
- Page 10 Wiring guide for access control To connect with your access control device, please choose the Wiegand reader option by following below steps: Enter settings and click on “Expansion port”. Click on “Expansion port mode” Choose “Wiegand reader”. Copyright©2019 IAdea Corporation...
- Page 11 Output, open-drain output Signal Parameter Minimum Typical Maximum Unit Output voltage Output current Low level output voltage GPIO2 Low level output GPIO3 current GPIO4 High level input GPIO6 2.11 voltage GPIO7 Low level input -0.5 0.79 voltage Copyright©2019 IAdea Corporation...
- Page 12 Note: The Access Control reader PIN layout shown above is for reference only. Please refer to your Access Control reader documentation for its exact PIN layout. Warning: Wiring the WRP-1000 incorrectly may permanently damage the WRP-1000. Please ensure the wiring is correct before powering on the devices. Copyright©2019 IAdea Corporation...
- Page 13 Flush mount bracket and screws Glass mount 3M tape Supplied accessories Glass cover sheet Mount sheet Quick start guide IAdea PGM-002 glass mount IAdea PTM-101 tilt mount Optional accessories IAdea PVK-102 table stand IAdea PWM-011 & PWM-041 window mount Copyright©2019 IAdea Corporation...
- Page 14 CE / FCC / RoHS 1-year limited parts & labor* (varies based on region, contact Warranty sales for more details) Available SKU WRP-1000-A IAdea standard with NFC & RFID embedded. WRP-1000-H IAdea standard with HID module embedded. Copyright©2019 IAdea Corporation...
