METRUM ComMi Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1-0002-1117
2019
ComMi
Energy Management and Control Unit
Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ComMi and is the answer not in the manual?

Questions and answers

Summary of Contents for METRUM ComMi

  • Page 1 1-0002-1117 2019 ComMi Energy Management and Control Unit Installation Manual...
  • Page 2 Installation Manual © 2019 Metrum Equipamentos de Medição e Testes LTDA. All rights reserved.

  • Page 3: Table Of Contents

    Communication ................... 10 RS-485 ........................10 Ethernet ........................11 Power Supply ....................12 Turning the device on ................13 RESET Button Functions ................14 LED Indicators ....................15 © 2019 Metrum Equipamentos de Medição e Testes LTDA. All rights reserved.

  • Page 4: Safety Precautions

    Use personal protective equipment (PPE) appropriate to the practice to be ⚫ performed; Unplug all devices that will be connected to ComMi before making connections; ⚫ Proper operation of this equipment depends on proper handling, installation ⚫...

  • Page 5: Notes

    ComMi 2 Notes  A Metrum Equipamentos de Medição & Testes Limitada, as manufacturer of this equipment, reserves the right to make any changes in this installation manual without previous notice;;  The images contained in this installation manual are merely illustrative and of no more than instructional value.

  • Page 6: Introduction

    Installation Manual 3 Introduction ComMi is a Energy Management and Control Unit. This data concentrator has as its primary feature the integration of information from energy meters and protocols. The equipment receives records the data of the energy vectors and displays them in an embedded interface with access via browser.

  • Page 7: Overview

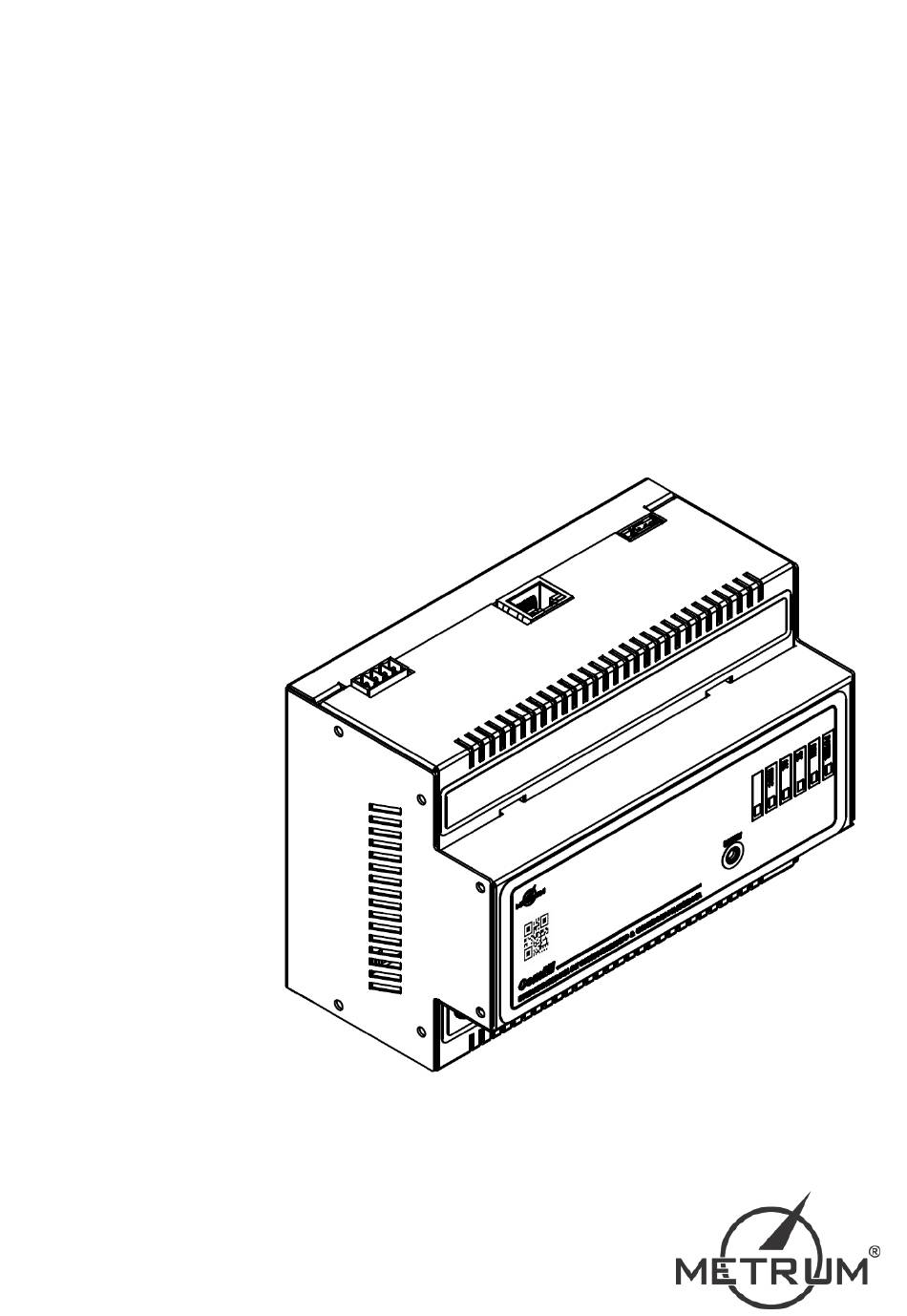

    4 Overview Main Components Figure 2 – Perspective View 1. RS-485 Input. 2. 10/100BASE-TX (802.3u) Input. 3. 24VCC Power Supply. 4. Indicator LED’s. 5. RESET Button. 6. QR Code. © 2019 Metrum Equipamentos de Medição e Testes LTDA. All rights reserved.

  • Page 8: Installation

    Installation Manual 5 Installation Dimensions Figure 3 – Dimensions © 2019 Metrum Equipamentos de Medição e Testes LTDA. All rights reserved.

  • Page 9: Din Rail

    ComMi 5.2 DIN Rail Figure 4 – DIN Rail 1. DIN Rail. © 2019 Metrum Equipamentos de Medição e Testes LTDA. All rights reserved.

  • Page 10: Communication

    Maximum devices connected 1. Unleash approximately 6mm of wire; 2. According to the need of the user, make the connection of the wires in the connector, screwing them to it; © 2019 Metrum Equipamentos de Medição e Testes LTDA. All rights reserved.

  • Page 11: Ethernet

    1, D signal at terminal 2, ground signal terminal 3 and shielding signal at terminal 4. Figure 6 – Terminals Ethernet Figura 7 – Conexão Ethernet Table 2 - Ethernet Wire Twisted pair cable CAT5 or CAT6 © 2019 Metrum Equipamentos de Medição e Testes LTDA. All rights reserved.

  • Page 12: Power Supply

    Connector Type push-in spring connection Wire 26AWG to 20AWG Nominal Voltage 18 to 32Vcc Cable stripping 1. Make sure that the wires used in the connection are de-energized; © 2019 Metrum Equipamentos de Medição e Testes LTDA. All rights reserved.

  • Page 13: Turning The Device On

    7. Check if the wire is securely attached to the connector. 5.5 Turning the device on 1. Check that the voltage is within the specified limits; 2. Power the device through connector "3" in Figure 2. © 2019 Metrum Equipamentos de Medição e Testes LTDA. All rights reserved.

  • Page 14: Reset Button Functions

    Fonte: HARTINGGroup. HARTING har-flexicon® 2,54 mm. Youtube, setembro/2014. Disponível em: <https://www.youtube.com/watch?v=FezFXHCmwqQ>. Acesso em: agosto/2017. 5.6 RESET Button Functions 1. Resets the device if pressed quickly; 2. Restores factory settings if pressed for 5 seconds. © 2019 Metrum Equipamentos de Medição e Testes LTDA. All rights reserved.

  • Page 15: Led Indicators

    Figure 11 - LED Panel Table 5 - LEDs FUNCTION DESCRIPTION STATUS POWER Device powered on Constant Application running Blinking Transmiting data Blinking Receiving data Blinking SYNC Synced date and time Constant © 2019 Metrum Equipamentos de Medição e Testes LTDA. All rights reserved.
  • Page 16 Installation Manual Notes © 2019 Metrum Equipamentos de Medição e Testes LTDA. All rights reserved.
  • Page 17 ComMi Notes © 2019 Metrum Equipamentos de Medição e Testes LTDA. All rights reserved.
  • Page 18 Installation Manual Notes © 2019 Metrum Equipamentos de Medição e Testes LTDA. All rights reserved.
  • Page 19 ComMi Notes © 2019 Metrum Equipamentos de Medição e Testes LTDA. All rights reserved.
  • Page 20 Installation Manual Metrum Equipamentos de Medição e Testes LTDA Rua Leiria, 174 Bairro São Francisco Belo Horizonte – MG CEP.: 31255-100 Tel: +55 31 3492-6944 www.metrumsistemas.com.br Suporte técnico: suporte@memt.com.br © 2019 Metrum Equipamentos de Medição e Testes LTDA. All rights reserved.
