WillowWood FND-134150 Instructions

Aluminum Slide Adapter Instructions

WHAT'S IN THE BOX

Aluminum Slide Adapter with 4-Hole Rotatable Pyramid (FND-134150) or
Aluminum Slide Adapter with 4-Hole Pyramid (FND-134125)
4 M6 X 16 Screws
4 M6 X 35 Screws
Instructions
Note: The pyramid dome on the Aluminum Slide Adapter is held in place by a magnet with an intensity of
28 gauss at the magnet surface, and 0 gauss at a distance of 4" from the surface. This intensity is comparable
to that of a refrigerator magnet. Please share this information with the amputee, in the event that the amputee
is wearing a pacemaker or any other device that could be affected by magnetism.

INSTALLATION

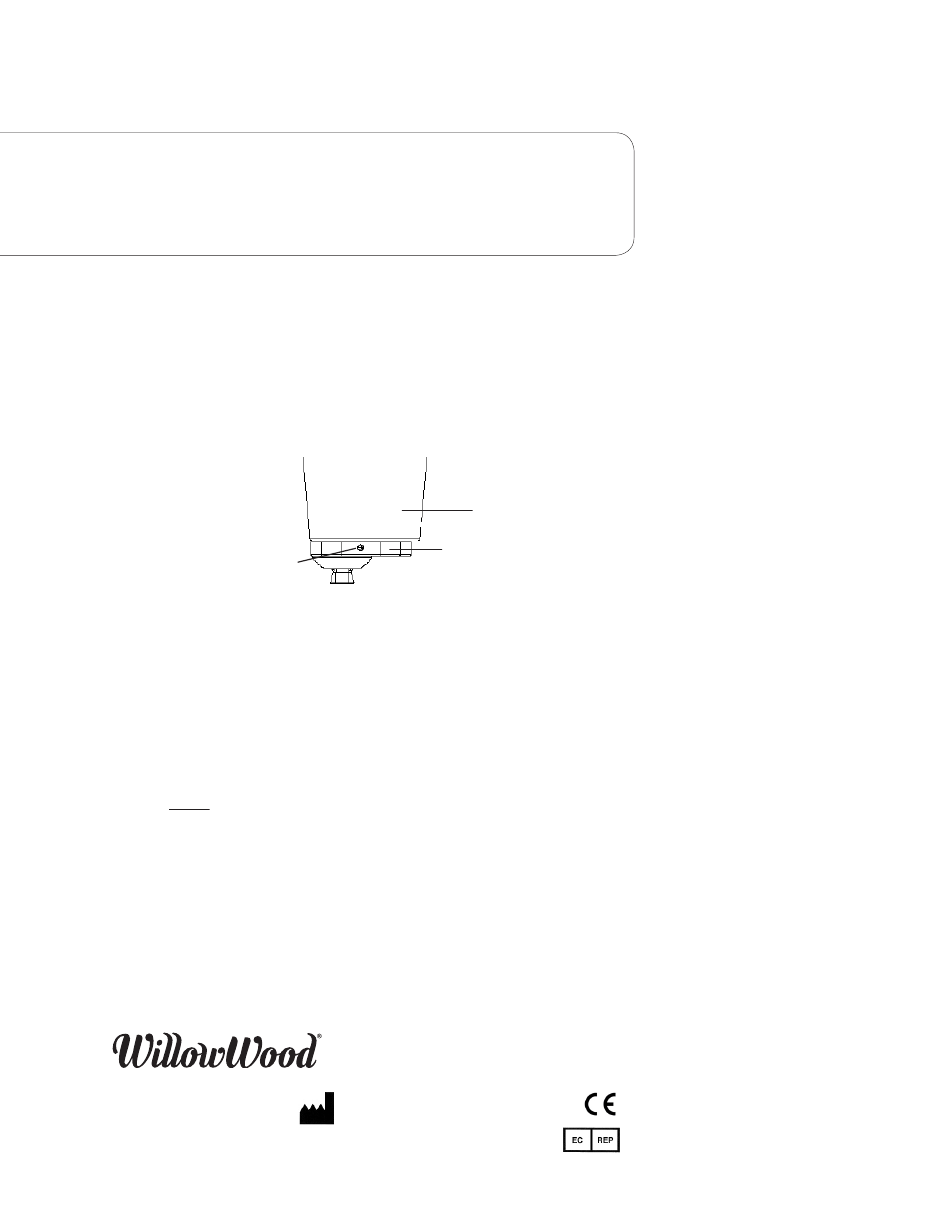

1. Using the four M6 X 16 screws included with the Slide Adapter, attach the Slide Adapter to the socket as shown.
(Alternately, use the M6 X 35 screws that are also included with the Slide Adapter to attach the Slide Adapter to
an Alpha Lock or Alpha Locking Lanyard.) Tighten the screws to 12 Nm or 9 ft-lbs.
5 mm Setscrew
2. Connect a pyramid receiver component of your choice to the Slide Adapter. Tighten the setscrews using the
torque and threadlocker specifications provided by the manufacturer of the pyramid receiver.
Note: the purpose of the 5 mm setscrew is only to keep the pyramid from sliding when angular adjustments
are made. If the 5 mm setscrew is tight before attaching the receiver, it will prevent the dome from locking
tightly against the housing and titanium pyramid.
3. To make a slide adjustment:
a. Loosen the 5 mm setscrew on the side of the Slide Adapter.
b. Loosen two adjacent 8 mm setscrews on the pyramid receptacle.
c. Slide the pyramid to the desired position.
d. Before tightening the 5 mm setscrew, tighten the 8 mm setscrews using the torque and threadlocker
specifications provided by the manufacturer of the pyramid receptacle.
e. Hand-tighten the 5 mm setscrew on the side of the Slide Adapter.
4. To make a rotation adjustment (applicable only to FND-134150):
a. Loosen two adjacent 8 mm setscrews on the pyramid receptacle.
b. Rotate the pyramid to the desired position.
c. Tighten the 8 mm setscrews using the torque and threadlocker specifications provided by the manufacturer
of the pyramid receptacle.
The Ohio Willow Wood Company
15441 Scioto Darby Road
Mt. Sterling, OH 43143
phone 740.869.3377 / 800.848.4930
fax 740.869.4374 www.willowwoodco.com
Socket
Slide Adapter
Ohio Willow Wood Company B.V
Keizersgracht 62/64
1015 CS Amsterdam
The Netherlands
PN-1452-F 15 OCT 2013
