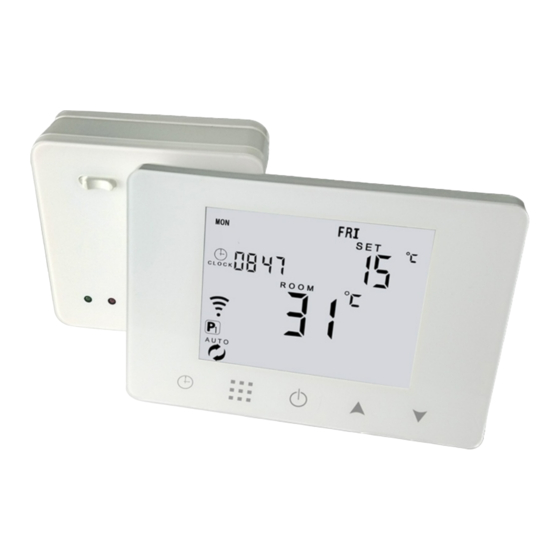

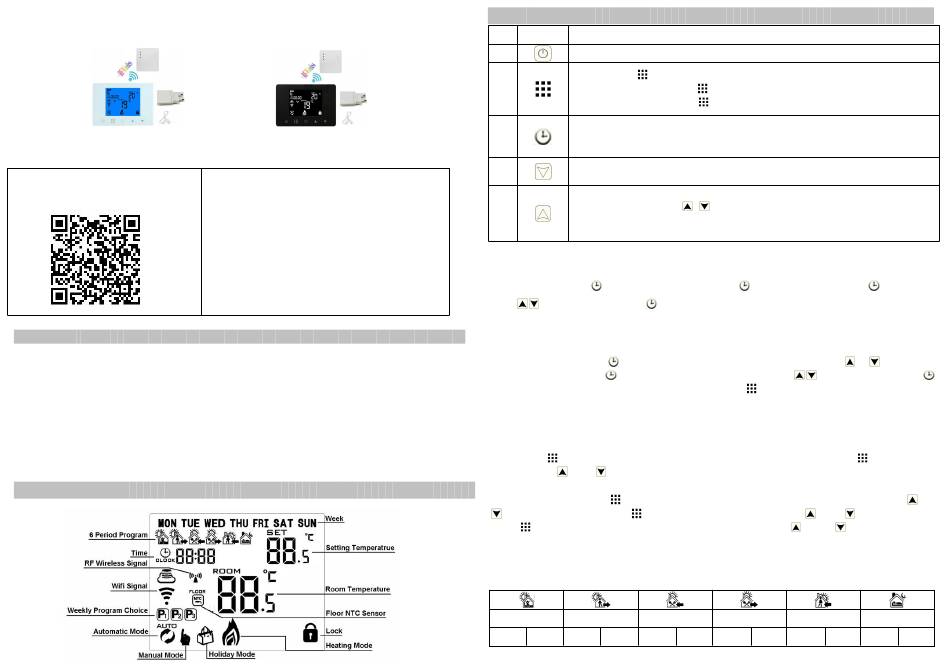

HY09RF WIFI Wireless Thermostat User Manual
HY09RF-1 WIFI
Scan below QR or download "Smart RM"
app from Google play and app store.
Technical Data
☆ Power: Receiver:230Vac 50/60HZ
Transmitter: USB power supply/4*AAA Batteries
☆ Display accuracy: 0.5°C
! Pls remove batteries when USB power is working.
☆ Probe sensor: NTC(10k)1%
☆ Contact capacity: 5A/250V(WW);16A/250V(WE) ☆ Output: Switch relay
☆ Working environment temperature: 0~70°C
☆ Range of temperature adjustment: 5~35°C
Home Screen
HY09RF-2 WIFI
● When power on state, long press receiver
button"push" to match wifi. Normally on is EZ mode.
Blinking is AP mode. Successive blinking is matching.
● The App advanced password is 123456
!
Considering battery usage, RF data updates
every 20 minutes. If shorten interval, pls use USB
power and remove batteries. Follow B05, B06
operation.
☆ Range of temperature display: 0~40°C
☆ Insulating condition: Normal environment
☆ Running program: Set per 1 week as a cycle
☆ Installation: Wall mounted or on battery seat
☆ Size(mm)：130*90*25
Quick Operation
Turn ON/OFF
NO Icon
A
1 Short press to switch automatic mode and manual mode
2 Power on state, long press for 3-5 seconds to do programmable setting
B
3 Power off state, long press for 3-5 seconds to do advanced setting
1 Confirm key
2 Short press it to set time
C
3 Holiday mode setting.
1 Decrease key
2 Long press to lock /unlock
B
1 Increase key
2 Auto mode state, press ,
D
3 Long press to check external sensor temperature
(only used for the receiver with external sensor)
Power on state, press to set minute. Second press
Time Setting
Press , to change value. Press again to confirm.
Holiday Mode Setting
Power on state, long press for 3-5 seconds to do holiday mode setting. Press
"OFF" to "ON". Then press to switch days and temperature, press
again to confirm. If you want to close holiday mode, press
Programmable Mode Setting
6 times period setting: 5+2 days(factory default),6+1 days, 7 days
Long press " " 3-5 seconds to do Programmable Mode Setting . Short press "
confirm. Press " " and " " to adjust value.
Power on state, long press " " 3-5 seconds to enter into first time period then set hour. press " " and
" " to adjust hour, short press " " to confirm then set minutes, press " " and " " to adjust minutes,
press " " to confirm then enter into temperature setting, press "
follow the steps of first time period to set second time period, thirdly time period ......
After finish setting , stand for about 10 seconds ,it will save setting then exit .
Wake up Out door Back home
6： 00 20℃ 8： 00 15℃
11： 30
Description
to enter into temporary manual mode
to set hour. Third press
or
, to change value. Press
" and " " to adjust value. Pls
Out door Back home
15℃ 15℃ 15℃
13： 30 17： 00
to set week.
to change
" to switch and
Sleep
15℃
22： 00
