pleasant hearth LS920-96 Quick Start Manual

W a r m i n g Y o u r H o m e. W W r a r a r r m m n i i n i i
Ref.# Description
A
B U-Shape Tube
C Bottom Tube - Sides 4 40-08-173
D Bottom Tube - Middle 2 40-08-174
E Support Bar
AA M8X65 Bolt
2)
CC
DD
3)
Questions, problems, missing parts? Before returning to your retailer,
8280 Austin Avenue
Morton Grove, IL 60053
877-447-4768
g g Y Y o o o o r u r u H H o o e m m . e e e W W W a r m i n g Y o u r H e a r t.
8 Ft. Log Rack
Model #LS920-96
Qty.
Upright 2 40-08-170
2 40-08-171
1 40-08-175
16 40-09-990
DD
EE
AA
call our customer service department at 1-877-447-4768,
8:30 a.m.-4:30 p.m., CST, Monday-Friday.
a r a a r a m m n i n i g g g g Y Y Y Y o o r u r u r r H H H H e e a a . t r t r
Part#
Ref.#
BB
CC
DD
EE
FF
GG

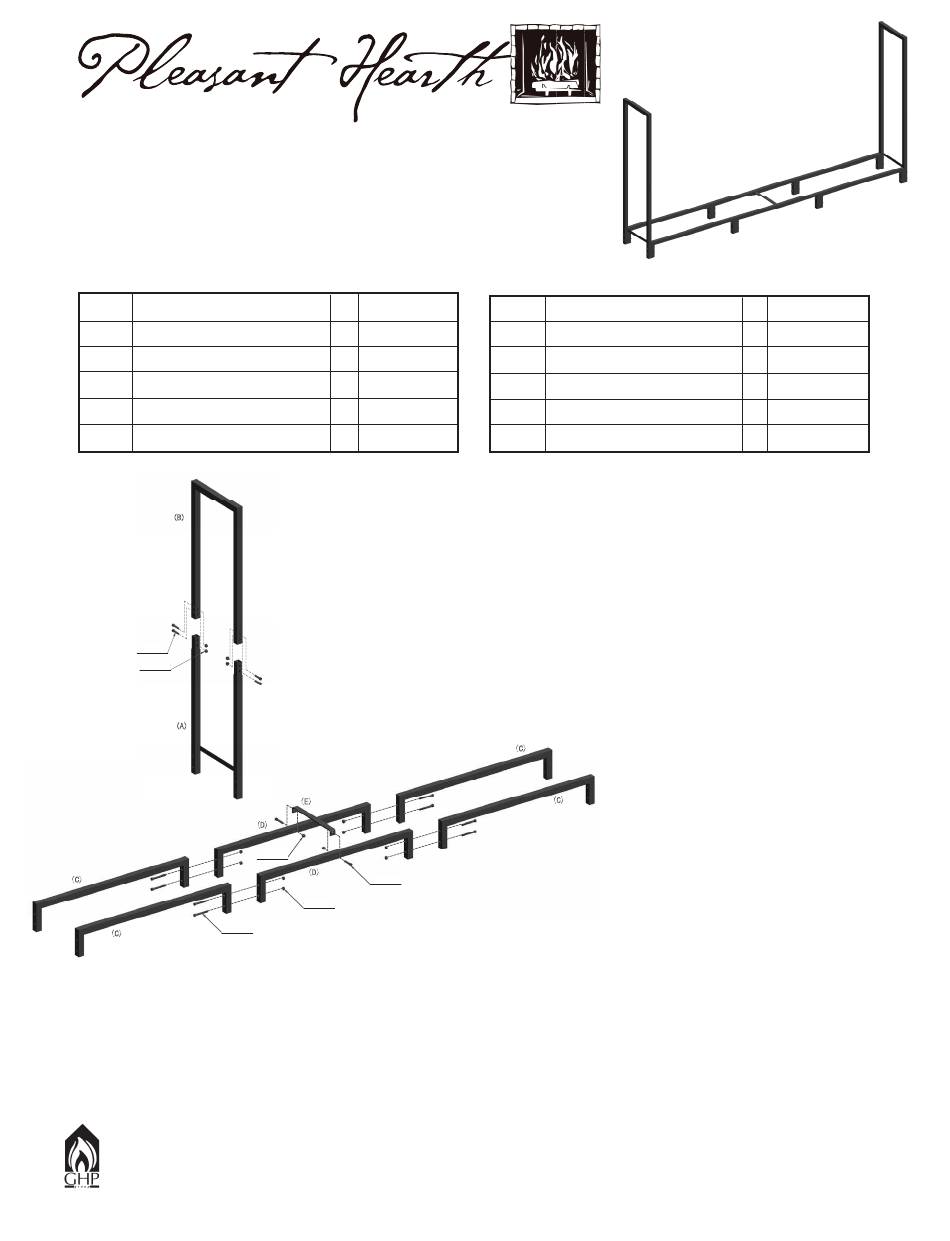

INSTRUCTIONS:
1) Remove all contents from package.
2) Slip one U-shape tube (B) onto the top of an
upright (A). Slip two M8X35 bolts (CC) through
predrilled holes, attach M8 cap nuts (DD), and
tighten with wrench (FF) and Allen wrench (GG).
Repeat with second U-shape tube (B) and
upright (A).
3) Attach a bottom tube - side (C) to each end of a
bottom tube - middle (D) by inserting two M8X65
BB
bolts (AA) through the predrilled holes. Secure
with Keps nuts (EE), and tighten with wrench (FF)
and Allen wrench (GG). Repeat with second
bottom tube - middle (D).
Attach support bar (E) by inserting two M8X40
bolts (BB) from the outside through the predrilled
holes in the bottom tubes - middle (D) and the
support bar (E). Attach M8 cap nuts (DD) and
tighten with wrench (FF) and Allen wrench (GG).
Continued on back
Description Qty.
M8X40 Bolt 2 40-09-996
M8X35 Bolt 8 40-09-991
M8 Cap Nut 10 40-09-992
Keps Nut 16 40-09-985
Wrench 1 40-09-986
Allen Wrench 1 40-09-993
Part#
Printed in China
40-10-122
