Horizon International BQ-P6 Service Manual

Binder padder and spine taper

Advertisement

Standard BQ-P6
Binder Padder and
Spine Taper
Service Manual
Provided By
http://www.MyBinding.com
http://www.MyBindingBlog.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BQ-P6 and is the answer not in the manual?

Questions and answers

Horatio Bennett
March 4, 2025

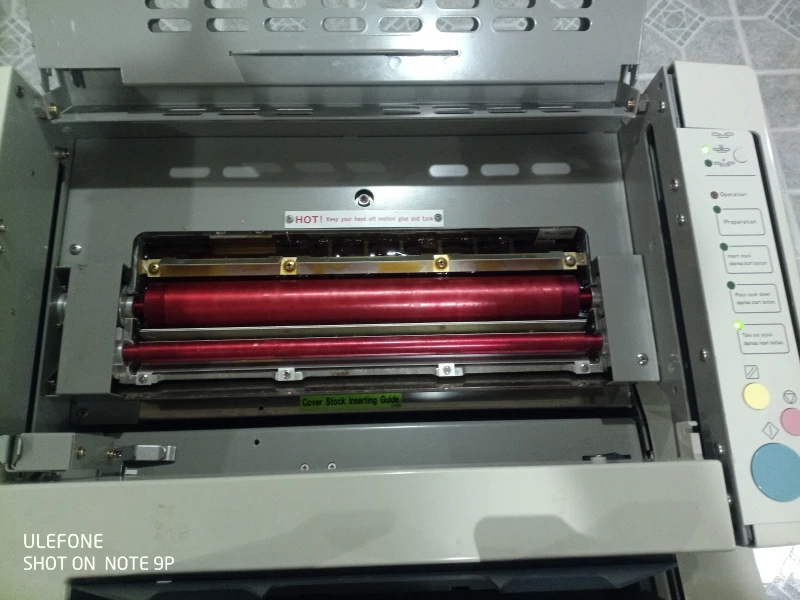

"My wife purchased a Horizon Binding Machine (BQ-P6) several years ago before we got married. We still have the manual but it's not helping. She didn't use it much. After we got married, I tried using it. While it starts up fine, the glue rollers don't turn, and some buttons on the control panel are unresponsive. It must have sat for close to 15 years, unused. It still has glue in its chambers around the rollers. When I turned it on the glue does melt, but the rollers do not turn (I assume they are supposed to?) When I hit the large blue button, it clicks but nothing happens. When I hit the yellow button there is a click and the 'operations' light blinks orange. She bought it new but never did get in the book binding business. As I can see, if I can get the rollers turning so as to glue the book spine, we would be rolling... I **** 82 years old, so we are not getting into the business - and we are not planning on buying another. It's just a hobby we will take up since this machine is sitting here, unused... Can you assist me?"

User image 67c72438a9617
1 comments:
Mr. Anderson
May 14, 2025

The manual does not directly state reasons for glue rollers not turning on the Horizon BQ-P6 after years of inactivity. However, possible related causes may include:

1. Dried or hardened glue in the glue roller mechanism.
2. Mechanical parts stuck due to lack of use or lubrication.
3. Electrical issues such as a malfunctioning motor, clutch, or switch.
4. Faulty Control P.C.B. not detecting or activating the components.

Further inspection of the glue roller motor, switches, and Control P.C.B. is recommended.

This answer is automatically generated

Summary of Contents for Horizon International BQ-P6

  • Page 1 Standard BQ-P6 Binder Padder and Spine Taper Service Manual Provided By http://www.MyBinding.com http://www.MyBindingBlog.com...
  • Page 2 SERVICE MANUAL BQ-P6 Perfect Binder Kyoto,Japan 510 Kuze Ooyabu-cho Minami-ku, Kyoto 601-8206, Japan Phone:+81-75-934-6700, Fax:+81-75-934-6708, URL http://www.horizon.co.jp/...
  • Page 3: Foreword

    FOREWORD Perfect Binder Model BQ-P6 This manual is designed to help you to keep the machine in a good operating condition. Read, study and keep this manual in a safe and convenient place. Do not perform any maintenance until you read and understand the instructions in this manual.
  • Page 4: Safety Instruction

    WARNING, CAUTION. If safety instructions are ignored, personal injury will result. 2. HORIZON INTERNATIONAL INC. cannot anticipate every possible situa- tion that might involve a potential hazard. The instruction in this manual are therefore not all inclusive. 3. Be sure to unplug the power cord when replacing the parts or repairing the machine.
  • Page 5: I Necessary Tool For Maintenance And Repair

    I Necessary Tool for Maintenance and Repair Use the following tools for maintenance and repair. Screw Driver No. 2 Screw Driver 6 to 7 mm Allen Wrenches 1.5, 2, 2.5, 3, 4, 5, and 6 mm Open-ended Wrench 5.5 x 7 mm 8 x 10 13 x 17 Box Wrench...
  • Page 6: Table Of Contents

    Contents FOREWORD .......................... I Safety Instruction ........................II I Necessary Tool for Maintenance and Repair ..............III II Signs and Abbreviations in this manual ................III 1. Specifications ........................1 2. Operation Procedure ...................... 2 3. Leveling Adjustment for Glue Application ..............4 4.
  • Page 7: Specifications

    Maximum Book Size Up to A4 Size Maximum Book Thickness 25 mm ( 1" ) Binding Type Cover Binding, Tape Binding  and Padding Production Speed Cover / Tape Binding Mode:  30 seconds / book (50 Hz)                                                 27 seconds / book (60 Hz) Pad Binding Mode:                 36 seconds / book (50 Hz)                                                 33 seconds / book (60 Hz) Warming Up Time 13 minutes Power Consumption 100 V - 50/60 Hz  1050 W 115 V - 60 Hz  1050 W 230 V - 50 Hz  1050 W Machine Dimentions  560 x 460 280 mm (W x D x H) (22" x 18" x 11") Machine Weight 32 kg ( 64.8 lb ) Melt Tank Capacity 350 g...
  • Page 8: Operation Procedure

    2. Operation Procedure Cover/Tape Binding Mode Operation Action (Operation Panel LED) Sensor or Switch Turn on power switch. - Clamper home position switch - Heater begins to warm up. - "Preparation" lamp illumi- - Nipper upper limit nates. microswitch OFF - "Cover/Tape Mode"...
  • Page 9 2. Operation Procedure Padding Mode Operation Action (Operation Panel LED) Sensor or Switch - Clamper home position switch - Heater begins to warm up. Turn on power switch. - "Preparation" lamp illumi- - Nipper upper limit nates. microswitch OFF - "Cover/Tape Mode" lamp illuminates.
  • Page 10: Leveling Adjustment For Glue Application

    3. Leveling Adjustment for Glue Application Clamper Nippers Application Drum Scrape Roller Operation Side Level 0 Scrape Roller (While stock is set.) Adjust Bolt Pivot Lock Screw Nipper Base Bearing Lock Bolt (Yellow) Lock Bolt (Black) Bottom Plate Construction Each section is adjusted based on the upper surface of application drum as the pivot of appli- cation drum is fixed to the standard position.
  • Page 11: Drive Section Descriptions

    4. Drive Section Descriptions A. Clamper and Melt Tank Clamper Reverse Position Switch Clamper Chain Clamper Home Position Switch Scrape Roller Application Roller Clamper Drive Gear Motor A : Idler Pulley Torque Clutch Drive Chain View from the Right Side 1.
  • Page 12: How To Remove Cover

    5. How to Remove Cover CAUTION - Be sure to turn power off before any cover is removed. - Melt tank is heated up to 180 ˚C. Wait until melt tank is cooled down before covers are removed. Clamp Cover (C) Melt Tank Cover B (Black) A (Black)
  • Page 13: Troubleshooting

    6. Troubleshooting A. Glue is not applied on spine (partially). (Cause) (Remedy) Nipper base is too high. Lower nipper base. Loosen two lock bolts (Black) on the operation side and turn adjust bolt (Yellow) clockwise, and bearing will lower and nipper base lower. NOTE - If nipper level is lowered too much, glue is not ap- plied enough.
  • Page 14 - Do not adjust adjust bolt more than 1/4 turn at one time. Nipper base lowers by 0.1 mm with 1/4 turn. - Turn both adjust bolts equally. C. BQ-P6 stops suddenly during operation and not possible to start with any button. (Cause 1)
  • Page 15 6. Troubleshooting D. Clamper stops during operation. (Motor is making noise and application drum is rotating.) (Cause 1) Remedy 1) Torque clutch is adjusted Adjust torque again. improperly, and drive power is not transmitted. Serial Number : from 03915 to 03999, 049 -, 058 -, 059 -, from 01001 Move clamper to the far side by hand.
  • Page 16 Remove clamper cover, loosen clamper fix bolts and center are not parallel. adjust clamper so that nipper and clamper are parallel. Clamper Fix Bolts G. All lamps on operation panel flash and BQ-P6 does not work. (Remedy) (Cause) Adjust the positions of nipper highest and lowest Nipper does not work properly.
  • Page 17 6. Troubleshooting H. BQ-P6 does not work with "Preparation" LED illuminating. (Cause 1) (Remedy 1) Thermal fuse is blown. Replace thermal fuse. (167˚C) NOTE - Do not put excessive strength on terminal of thermal fuse when replacing thermal fuse. (Cause 2) (Remedy 2) Heater is blown.
  • Page 18: Sensor And Electronic Parts Locations

    7. Sensor and Electronic Parts Locations Drive Motor Heater 1100W Clamper Switch Operation Panel P.C.B.QPW-417 Melt Tank Cover Safety Switch EGO Sensor Clamper Home Position Switch Circuit Protector 8A/15A Stock Presence Microswitch Nipper Upper Limit Microswitch Nipper Lower Limit Microswitch Nipper Safety Switch Nipper Motor Power Supply...
  • Page 19: Switch Position Adjustment

    8. Switch Position Adjustment A. Nipper Upper / Lower Limit Microswitch Adjustment Nipper upper limit microswitch :Adjust the position of switch cam so that microswitch is off when the positions of nipper arms is either Fig. A or B. (Refer to page 12.) Nipper Arms Nipper Arms Fig.
  • Page 20: Control P.c.b. Led Descriptions

    9. Control P.C.B. LED Descriptions CON6 CON1 CON2 CON3 CON4 L5 L6 L7 L8 L9 L10 L11 L12 L13 L14 L15 L16 CON5 Nipper Up Nipper rises from nipping position. Nipper Down Nipper lowers to nip stock. Clamper Home Position Switch Clamper Reverse Switch Nipper Home Position Switch Illuminates at home position.
  • Page 21: Electronic Circuit Diagram

    10. Electronic Circuit Diagram QPW 417 Circuit Protector Panel P.C.B.
  • Page 22: Check Mode

    11. Check Mode Turn on power switch during pressing start button. - Padding or cover/tape binding mode lamps illuminate and the following actions are repeated automatically; clamper moves, clamper reverse and nipper moves to nip stock. Turn on power switch during pressing stop button. - Padding mode and cover/tape mode lamps flash.
  • Page 23: Melt Tank Replacement

    12. Melt Tank Replacement Serial Number : 029 -, 039 -, 049 -, 059 -, 010 - and 020 - CAUTION - Melt tank and hot melt glue have been heated very high temperature, so take utmost care when replacing. 1.
  • Page 24 12. Melt Tank Replacement Serial Number : from 03001 CAUTION - Melt tank and hot melt glue have been heated very high temperature, so take utmost care when replacing. 1. Remove melt tank cover and rear cover. 2. Disconnect heater connector. 3.
