Direct in Line Plug-in
Surge Protective Device
Paperless Datasheet
Going green and protecting environment is manufacturers' responsibility. Each WatchfulEyE product has a link of
downloading data sheet on its enclosure:
http://datasheet.watchfuleyesolutions.com/US121104.html
Model & Ordering Code
Model
WTH-SG/RJ45-KG
WTH-SG/RJ45-KG
Certificates of Products
DIN-rail Mount
Wall Mount
Ordering Code
US121104
www.watchfuleyesolutions.com - Page 01 - Back to TOP -
Waterproof Box
Rack Mount
UPC/EAN Code
(0) 811914030027
Internal View
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for WatchfulEye WTH-SG/RJ45-KG

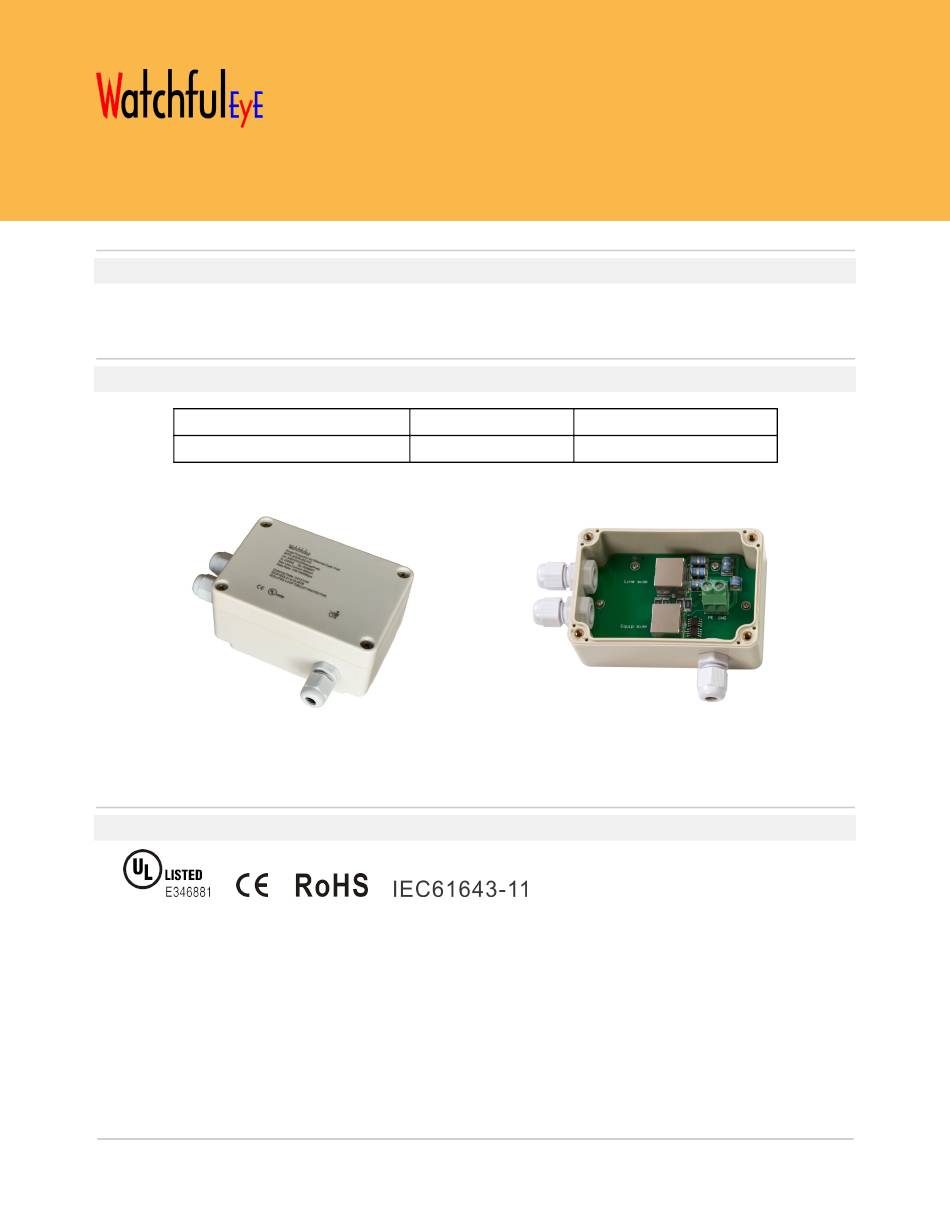

- Page 1 Wall Mount Waterproof Box Rack Mount Surge Protective Device Paperless Datasheet Going green and protecting environment is manufacturers' responsibility. Each WatchfulEyE product has a link of downloading data sheet on its enclosure: http://datasheet.watchfuleyesolutions.com/US121104.html Model & Ordering Code Model Ordering Code...
- Page 2 WTH -SG/RJ45 Series surge protective devices are applied to surge protection for data communication systems. WTH-SG/RJ45-KG is connected in series in CAT6 network cables, compatible with 10/100/1000/10000 (10G) Base-T Ethernet systems, protecting the equipment which are connected to the network (e.g. computers, routers, PoE devices, etc.) against damages by over-voltage surge.
-
Page 3: Main Features
Direct in Line Plug-in DIN-rail Mount Wall Mount Waterproof Box Rack Mount Surge Protective Device Main Features 1. Waterproof enclosure design 2. Waterproof terminal threading, suitable for indoor or outdoor applications 3. UL certified f1 anti-acid rain and anti-ultraviolet enclosure material, ensuring the aging resistance of shell for outdoor 4. - Page 4 Direct in Line Plug-in DIN-rail Mount Wall Mount Waterproof Box Rack Mount Surge Protective Device Application www.watchfuleyesolutions.com - Page 04 - Back to TOP -...
- Page 5 If you don't know whether the system is 100M or 1000M, which PoE structure or wiring mode the system is, the full line surge protection mode of GDT+TVS avoids the confusion of your selection. 7. The PE/GND of WTH-SG/RJ45-KG has two terminals, what's the use of a GDT connected in series between the two terminals? The PE/GND of WTH-SG/RJ45-KG has two terminals.
- Page 6 Direct in Line Plug-in DIN-rail Mount Wall Mount Waterproof Box Rack Mount Surge Protective Device FAQ & Help (2/2) 8. What is the role of GDT connected in series between 5-8 lines? 4-5 and 7-8 PoE lines, on the basis of common mode (line-ground) surge protection, add additional differential mode (line- line) surge protection, providing more refined protection.
-
Page 7: After-Sale Services
Wall Mount Waterproof Box Rack Mount Surge Protective Device Download WatchfulEyE Official App To learn about more products and updates from company, please scan QR code to download the official App: After-sale Services Watchful Eye provides a 5-year quality warranty globally.
