ProEdge AC-EX150-HD-C9R Quick Start Manual

AC-EX150-HD-C9R
Uncompressed 1080P signal, 150m receiver
Quick Start Guide

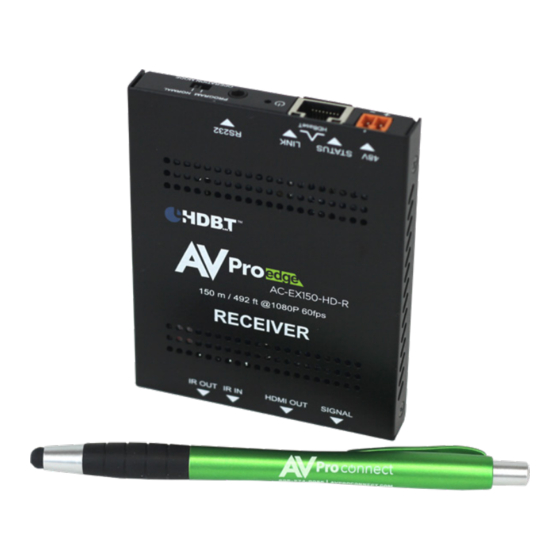

Built specifically for the Cloud 9, this 150 meter HDBaseT receiver
can extend an uncompressed 1080p video signal up to 150 meters over
a single CAT 6a/7. Because of its slim
design, this receiver can be mounted
virtually anywhere!
This quick start guide will be
going through:
• Set up of the Receiver
• Troubleshooting

Setup of the Receiver:

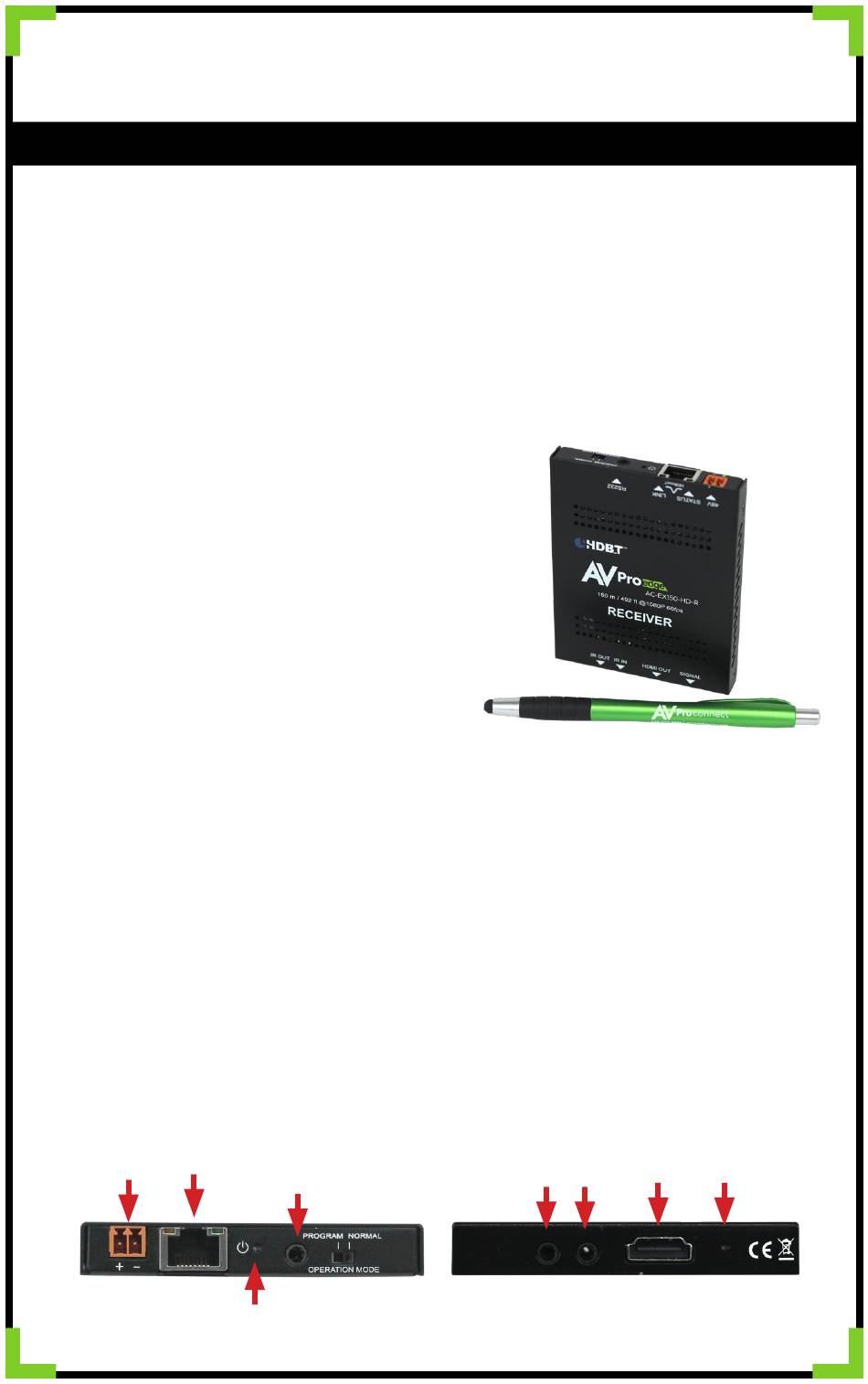

Installation is simple! Only 3 connections need to be made
1) a Category cable needs to be plugged from the Cloud 9 to the HDBT port on
the receiver
2) a short HDMI cable from the HDMI output to the display
3) power supply plugged into the 48V power connector on the receiver
48V power
HDBT HDMI
connector
HDMI status light
IR OUT IR IN
Out
3.5mm RS232
power Indicator
