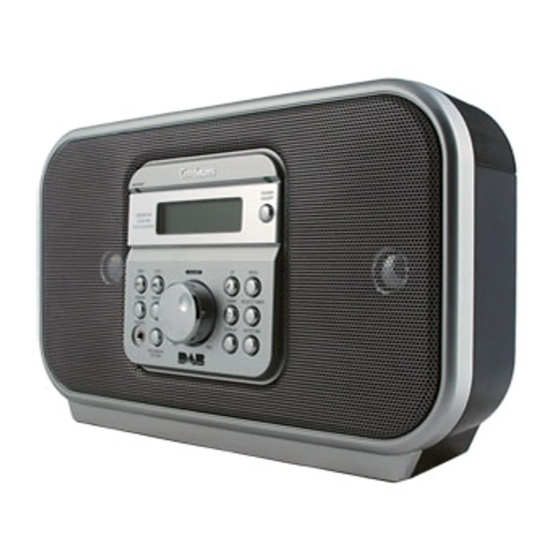

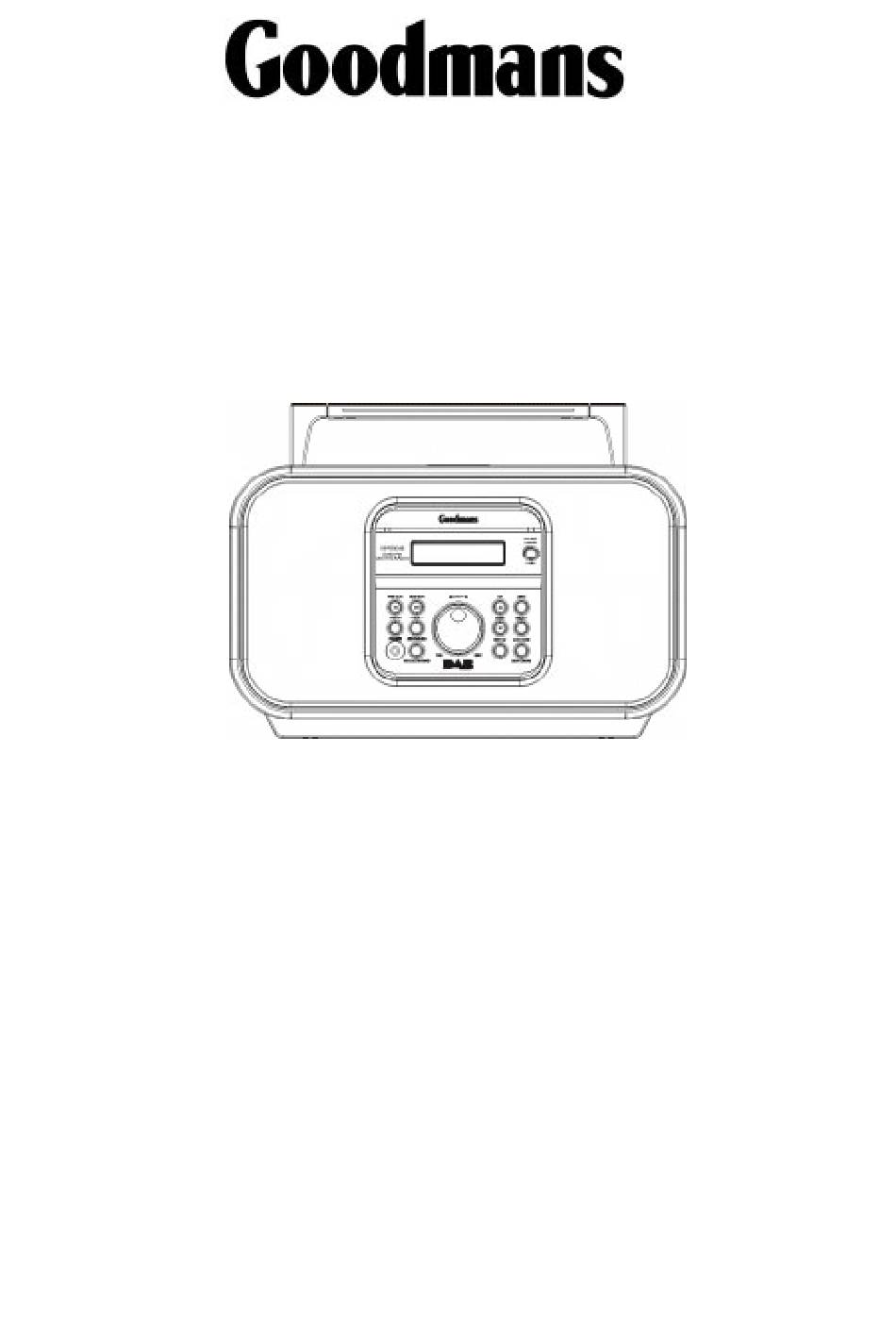

- Page 1 DAB/FM Portable Radio GSR80DAB Instruction Manual Before operating this unit, Please read this instruction manual carefully Goodmans Product Information Helpline 0870 873 0080...
- Page 2 Introduction Congratulations on you purchase of this latest “state of the art “ Digital Audio Broadcast Radio. Please read through the following pages to get the most out of this GSR80DAB. What’s in the box On unpacking the unit the following should be located within the packaging...
- Page 3 Pneumatic drill, chain saw, garbage truck, discotec / nightclub. Rock band concert, thunderclap. PERMANENT LOSS OF HEARING THRESHOLD OF PAIN Gunshot 2 feet away. Rocket Launching pad. Goodmans Product Information Helpline 0870 873 0080 15/09/2003 Page 3 of 25 Pages 10:29...
- Page 4 WARNING: UNDER NO CIRCUMSTANCES MUST THE LIVE OR NEUTRAL WIRES BE CONNECTED TO THE EARTH TERMINAL IN A 3-PIN MAINS PLUG. This symbol means that this unit is double insulated. An earth connection is not required. Goodmans Product Information Helpline 0870 873 0080 15/09/2003 Page 4 of 25 Pages 10:29...
- Page 5 TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE, DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE, DO NOT OPEN THE CABINET, REFER SERVICING TO QUALIFIED PERSONNEL ONLY. Goodmans Product Information Helpline 0870 873 0080 15/09/2003 Page 5 of 25 Pages 10:29...
- Page 6 4 D size batteries (not Supplied) AC MAINS Insert the small end of the AC mains lead to the socket on the side of the GSR80DAB and the 3 pin plug into a switched household AC supply socket, ensure the wall outlet socket is switched ON.
- Page 7 Rear 16 Folding Handle 17 Left and Right Speakers 18 AC input socket 19 Stereo RCA output sockets 20 Battery Compartment 21 FM/DAB telescopic rod aerial Goodmans Product Information Helpline 0870 873 0080 15/09/2003 Page 7 of 25 Pages 10:29...
- Page 8 UK only DAB stations restricted to Band 3 (11B to 12D) only it will therefore NOT receive DAB stations in European areas that broadcast on L band Goodmans Product Information Helpline 0870 873 0080 15/09/2003 Page 8 of 25 Pages 10:29...
- Page 9 Lo. When using batteries, the backlight is normally off (in order to preserve battery life) unless any button is pressed when it changes to Hi for 10 seconds then back to off. Goodmans Product Information Helpline 0870 873 0080 15/09/2003 Page 9 of 25 Pages...
- Page 10 This is when the “Sort by Favourites” option is switched ON using the “Menu” button as described later in this manual. However the default setting for the unit at initial Power up is as described above Goodmans Product Information Helpline 0870 873 0080 15/09/2003...
- Page 11 AutoTune If this button is pressed for more than 5 seconds a scan of the DAB band is performed. This button has No operation in FM mode. Goodmans Product Information Helpline 0870 873 0080 15/09/2003 Page 11 of 25 Pages...
- Page 12 FM or when the receiver is switched off. The clock can be displayed in 12-hour (AM/PM) or 24-hour (default) format. Goodmans Product Information Helpline 0870 873 0080 15/09/2003 Page 12 of 25 Pages...
- Page 13 Secondary stations that are accessed via the secondary button (see later notes) or b. Data services provided on DAB which cannot be used on this unit Goodmans Product Information Helpline 0870 873 0080 15/09/2003 Page 13 of 25 Pages...
- Page 14 Pressing the “Secondary” button will allow the selection of the first “Secondary Station”. Pressing the “secondary” button again will select the next secondary station and so on until it returns to the original (primary) station. Goodmans Product Information Helpline 0870 873 0080 15/09/2003 Page 14 of 25 Pages...
- Page 15 Line 2 of the display will return to the information that was selected prior to the “Up” or “Down” button being pressed. With the exception of the “Select” button the only other button that can be used to exit this mode is the “Power” button. Goodmans Product Information Helpline 0870 873 0080 15/09/2003 Page 15 of 25 Pages 10:29...
- Page 16 9 will jump to location 0 and scrolling up past location 0 will jump to location 9. 3) Press the “Select” button to recall and tune to the selected preset. Goodmans Product Information Helpline 0870 873 0080 15/09/2003 Page 16 of 25 Pages...
- Page 17 If the Radio is being listened to when the buzzer sounds the radio will not be muted but the buzzer will be superimposed over the radio output, this is normal. Goodmans Product Information Helpline 0870 873 0080 15/09/2003...
- Page 18 The second part of the scoring system relates to the length of time a station is listened to. The longer a station is listened to the higher the score becomes. NOTE All favourite station scores are set to zero when an Autotune operation is performed. Goodmans Product Information Helpline 0870 873 0080 15/09/2003 Page 18 of 25 Pages...
- Page 19 Pressing the “Up” and “Down” buttons will then toggle the selection between “12 Hour” and “24 Hour”. Press the “Select” button to confirm the required mode, the display will revert to it’s previous state Goodmans Product Information Helpline 0870 873 0080 15/09/2003 Page 19 of 25 Pages...
- Page 20 This message confirms that all presets are being cleared, and all “service” lists are being erased. AFTER ABOUT 10 SECONDS an Autotune operation will then start automatically. Goodmans Product Information Helpline 0870 873 0080 15/09/2003 Page 20 of 25 Pages...
- Page 21 “Stereo” indication will disappear after a couple of seconds and line 2 of the display will return to it’s selected indication. Note this function does not operate in DAB mode Goodmans Product Information Helpline 0870 873 0080 15/09/2003 Page 21 of 25 Pages...
- Page 22 9 will jump to location 0 and vice versa 3) Press the “Select” button to recall and tune to the preset frequency. Goodmans Product Information Helpline 0870 873 0080 15/09/2003 Page 22 of 25 Pages...
- Page 23 2 of the display, changing back to DAB will result in the display changing to the Normal (scrolling DLS text Mode) Goodmans Product Information Helpline 0870 873 0080 15/09/2003 Page 23 of 25 Pages...
- Page 24 If the problem experienced is not listed above or if after checking the remedies the problem still exists , please call our product information helpline on 0870 873 0080 For further assistance Goodmans Product Information Helpline 0870 873 0080 15/09/2003 Page 24 of 25 Pages 10:29...
- Page 25 +HDGSKRQHV 6RFNHW PP GLDPHWHU Speakers: 2 x 3” Audio Line Output: via 2 x RCA sockets Specifications are subject to change and improvement at any time without notice. Goodmans Product Information Helpline 0870 873 0080 15/09/2003 Page 25 of 25 Pages 10:29...
