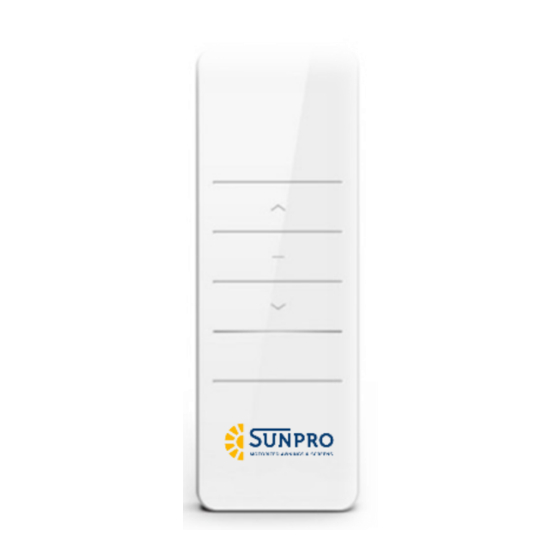

Motorized screen remote

Advertisement

Quick Links

IMPORTANT READ ME FIRST

1. The delay time between buttons is within 6
seconds. If there is no input within 6 seconds,
the remote will exit the current setting
procedure
2. The motor will jog and beep as a hint. Continue
programming after the hint.

1 Pairing

Apply power to motor (1 jog and
long beep once), within 7s,
press STOP for 2s (2 jogs and 3
beeps), the motor has been
paired successfully

2 Switching Rotating Direction (Optional)

If the UP button is pressed, but the
screen goes down, you will need to
complete this step
Press and hold the UP and DOWN buttons
simultaneously for 2s, motor will jog once
and rotation will be switched successfully
*The motor needs to be in the reversing operation
without limits
Motorized Screen
Remote Instructions
DD2700H Remote – Single Channel
DD2702H Remote - 15 Channel

3 Setting Upper and Lower Limits

UPPER LIMIT
Move the screen up to the desired upper
limit
LOWER LIMIT
Move the screen down to the desired
lower limit

4 Adjusting Limits

Adjust Upper Limit
Adjusting Lower Limit
Press and hold UP + STOP
simultaneously for 2s (2
jogs, 3 beeps) upper limit
is set
Press and hold DOWN +
STOP simultaneously for
2s (2 jogs, 3 beeps) Lower
limit is set
Press and hold UP + STOP
simultaneously for 5s (1
jog, 1 Long beep) Repeat
step 3
Press and hold DOWN +
STOP simultaneously for
5s (1 jog, 1 Long beep)
Repeat step 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DD2700H and is the answer not in the manual?

Questions and answers

Marc
May 27, 2025

It shows I can remove shade count to desired number on the remote. How do I add channels back if I buy more shades?

1 comments:
Mr. Anderson
May 27, 2025

To add channels back on the SUNPRO DD2700H remote after buying more shades, follow the pairing steps:

1. Apply power to the motor (it will jog once and give a long beep).
2. Within 7 seconds, press and hold the STOP button on the remote for 2 seconds (motor will jog twice and beep three times).

This pairs the motor with the remote, effectively adding a new channel for the additional shade. Repeat the process for each new shade.

This answer is automatically generated

vicki
May 2, 2025

screen not responding when I push the up on the remote but the light flashes blue

1 comments:
Mr. Anderson
May 17, 2025

If the SUNPRO DD2700H screen is not responding to the remote's up button but the light flashes blue, possible issues include:

- RF interference or a weak signal: Check the motor antenna and ensure there are no other RF sources causing interference. Move the remote closer to the unit.
- The motor may not be paired correctly: On the existing remote, press P2 (1 jog and 1 beep), then press P2 again (1 jog and 1 beep), and on the motor or new remote press P2 (2 jogs and 3 beeps) to link the remote.
- The motor might be at its limit: Adjust the upper or lower limits as needed.
- The motor may be overheated: Allow time for it to cool and reset the internal thermal fuse.

Check each of these factors to identify and resolve the issue.

This answer is automatically generated

Thomas Gunzenheiser
March 8, 2025

remote is not setting limits per the instructions. I dont know how it got out of whack in the first place but now it goes up and down about an inch at a time with each press of up or down button. I've tried the instructions at least a dozen times. What is stupid is that there seems to be 2 "p2" buttons. Is there a difference in which one im supposed to use when programming? Is it one for up and one for down?

1 comments:
Mr. Anderson
March 8, 2025

To set the limits on the SUNPRO DD2700H remote:

1. Set the Upper Limit:
- Move the screen to the desired upper position.
- Press and hold UP + STOP simultaneously for 2 seconds (motor will jog twice and beep three times).
- The upper limit is now set.

2. Set the Lower Limit:
- Move the screen to the desired lower position.
- Press and hold DOWN + STOP simultaneously for 2 seconds (motor will jog twice and beep three times).
- The lower limit is now set.

Regarding the P2 button, it is used for different programming functions. Pressing P2 once (motor jogs once and beeps once) is used for one function, while pressing P2 again (motor jogs twice and beeps three times) completes pairing or other programming tasks.

This answer is automatically generated

Mark Saks
March 4, 2025

Remote blinking blue and not moving shade up or down

1 comments:
Mr. Anderson
March 4, 2025

The SUNPRO DD2700H remote blinking blue and not moving the shade up or down could be due to RF interference, the motor being out of remote control range, or a pairing issue. Check for other RF sources, move the remote closer to the unit, and ensure the remote is properly paired with the motor using the P2 button sequence.

This answer is automatically generated

Jane
February 17, 2025

Changed battery and now does not work

1 comments:
Mr. Anderson
February 17, 2025

The SUNPRO DD2700H may not be working after changing the battery due to RF interference, the remote being out of range, or the need to re-pair the remote with the motor. Check the motor antenna for interference, move the remote closer to the unit, and re-pair the remote by pressing P2 (1 jog, 1 beep) on the existing remote, then pressing P2 again (1 jog, 1 beep) followed by P2 on the new remote (2 jogs, 3 beeps).

This answer is automatically generated

A
July 25, 2025

remote blue light when off on down arrow. is not going up or dow or middle.

Kim
June 20, 2025

Lost my original remote. Tried to pair the new one and it would not pair, although the new remote lights up and moves to the desired channel. Prior to trying that, I could operate that shade with a second remote that has two other shades (channel 1 and channel 2) by using channel 3. After the failed pairing attempt, the original remote no longer works on that particular shade on channel 3. Now the shade is stuck in the down position and I can't move it at all. When I press the button on the motor, it jogs once. But when I press the - button on the remote, nothing happens.

Al Fecci
May 8, 2025

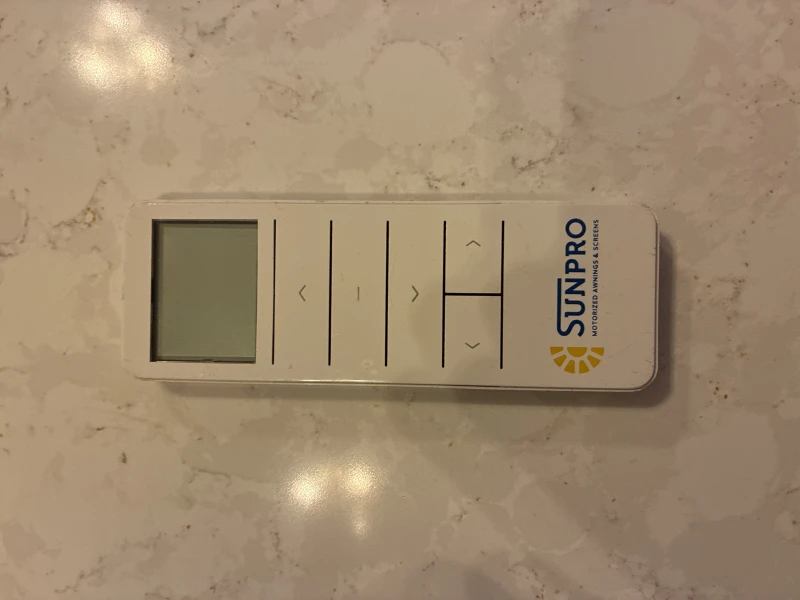

Unlock my remote

User image 681c01b036c5e
Rick
January 21, 2025

Where and what charger do I need and where can I get

User image 678f9d10604d7
Mike
April 13, 2025

Need instructions on how to access/change the battery.

Subscribe to Our Youtube Channel

Summary of Contents for SUNPRO DD2700H

  • Page 1 Motorized Screen Remote Instructions DD2700H Remote – Single Channel DD2702H Remote - 15 Channel 3 Setting Upper and Lower Limits IMPORTANT READ ME FIRST UPPER LIMIT 1. The delay time between buttons is within 6 seconds. If there is no input within 6 seconds,...
  • Page 2 9 Setting Number of Channels 5 Preferred Position 1. Press the LEFT and RIGHT buttons Set Preferred Position simultaneously, a “C” will appear followed by “15” Check that both upper and lower limits are set. 2. Press the LEFT arrow to display the desired Operate the screen to the desired preferred number of channels to be displayed on the remote position.
