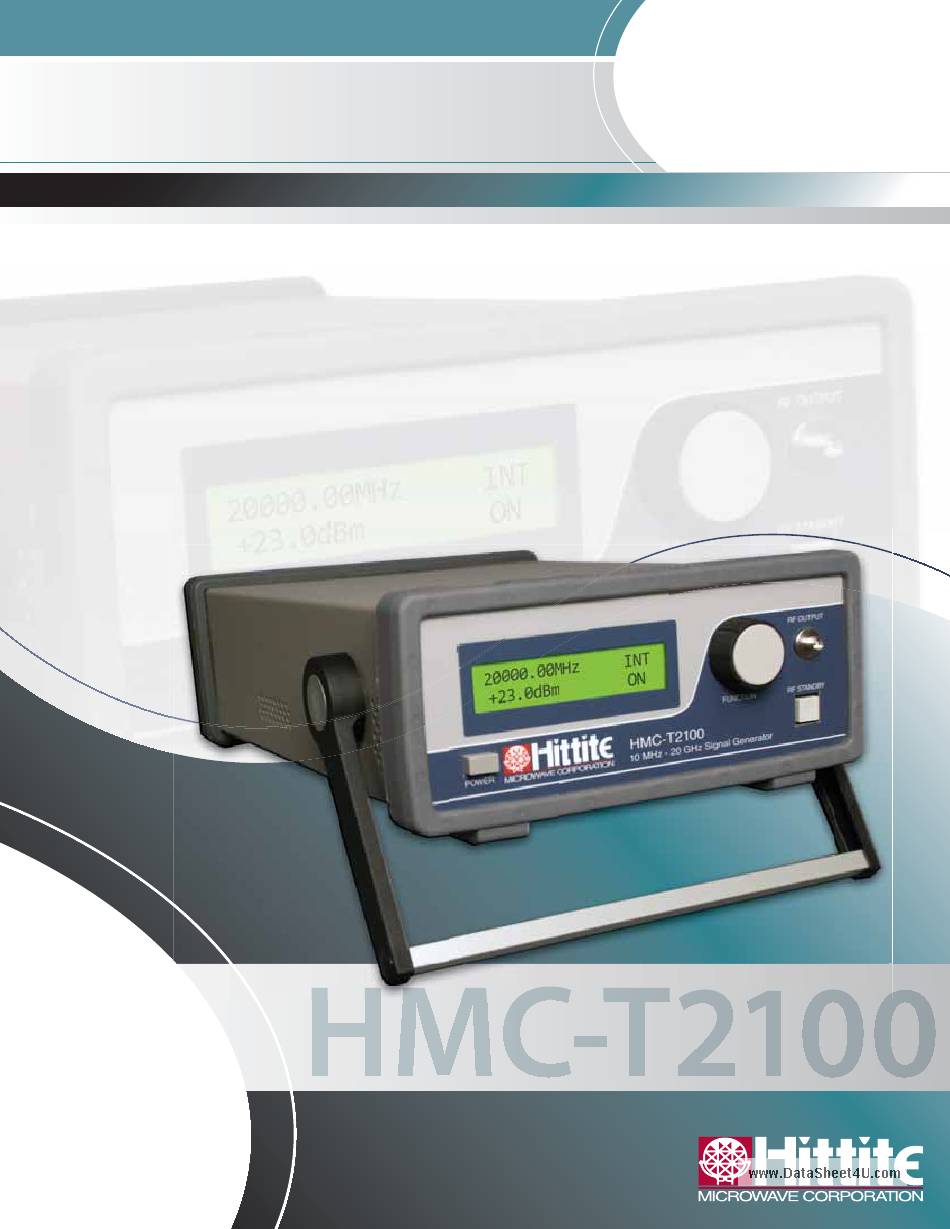

HMC-T2100
www.DataSheet4U.com
Synthesized Signal Generator, 10 MHz to 20 GHz
125790 Rev00.0409
Analog & Mixed-Signal ICs, Modules, Subsystems & Instrumentation
User Manual
Installation, Operation & Maintenance Guide
Order On-Line at: www.hittite.com
Receive the latest product releases - click on "My Subscription"
20 Alpha Road Chelmsford, MA 01824
Phone: 978-250-3343 • Fax: 978-250-3373 • sales@hittite.com
Advertisement
Table of Contents
Summary of Contents for Hittite HMC-T2100
- Page 1 Analog & Mixed-Signal ICs, Modules, Subsystems & Instrumentation User Manual Installation, Operation & Maintenance Guide Order On-Line at: www.hittite.com Receive the latest product releases - click on “My Subscription” 20 Alpha Road Chelmsford, MA 01824 Phone: 978-250-3343 • Fax: 978-250-3373 • sales@hittite.com...
- Page 2 Sensors & Test Equipment Every component is backed by Hittite Microwave’s commitment to total quality. HMC is ISO 9001:2000, AS9100 B and ISO/TS 16949:2002 certifi ed. Every Hittite employee and subcontractor is responsible for maintaining the highest level of quality. We are constantly working towards improvement of our procedures and processes, thus providing our customers with products that meet or exceed all requirements, are delivered on-time and function reliably throughout their useful life.
-
Page 3: Table Of Contents
Appendix Notice Hittite Microwave Corporation has prepared this manual for use by Hittite personnel and customers as a guide for the proper installation, operation, and maintenance of Hittite equipment and computer programs. The drawings, specifi cations, and information contained herein are the property of Hittite Microwave Corpora- tion, and any unauthorized use or disclosure of these drawings, specifi cations, and information is prohibited;... -
Page 4: Introduction
HMC-T2100 Synthesized Signal Generator User Manual 1. Introduction This User’s Manual describes the HMC-T2100 10MHz to 20GHz Synthesized Signal Generator unit (SG). Most of the pertinent information can be quickly located through the table of contents and highlighted sections. The following conventions and indicators are used in this user’s guide:... -
Page 5: General Overview Of Instrument Capabilities
3. General Overview of Instrument Capabilities The HMC-T2100 is a single channel frequency synthesizer. The block diagram for this unit is shown in fi gure 1. This unit provides one RF output channel with programmable output frequency and output power. -
Page 6: Operation And Setup
Before the SG unit can be operated, external coaxial cables, equipment and instrumentation are required to be set-up. The instruction steps listed below must fi rst be completed: Use appropriate ESD precautions when connecting cabling, and external equipment to the HMC-T2100 Signal Generator. - Page 7 When in the Standby State, the output power attenuators are set for maximum attenuation. The RF output specifi cations are located in the data sheet on the Hittite website. Please note that while the SG unit is in the Stand-by state, there is still a minimal level of RF power at the signal generator RF output.
- Page 8 5.2.3.1 Front Panel Power Level Status The HMC-T2100 includes a power level indicator on the Front Panel display which can be monitored by the user to determine if the output power specifi ed by the user is within the instruments calibrated output range (See the data sheet).
- Page 9 5.2.5 External Reference/Internal Reference 5.2.5.1 Internal Reference Out The HMC-T2100 includes a single precision 10 MHz reference. The internal 10 MHz reference connects to one of the BNC connectors on the rear panel. The performance of this reference output is specifi ed in the datasheet on the Hittite website.
- Page 10 With the supplied software GUI, only one HMC-T2100 synthesizer can be selected and controlled from the GUI application at one time. Multiple HMC-T2100’s can be programmed by the user to be controlled simultaneously. Please refer to section 7.0 herein. The Control Menu may be accessed by pointing to the GUI and performing a Right Click with the mouse.
- Page 11 If for any reason (Example: outside the calibration range) the unit does not go to the commanded frequency, the fi eld will be highlighted in yellow. Order On-Line: www.hittite.com. For technical application questions: Phone: 978-250-3343 or apps@hittite.com...
- Page 12 0.001 secs to 3600 secs. The value may be entered by typing the desired value or using the up and down arrows to increment or decrement the time duration. Order On-Line: www.hittite.com. For technical application questions: Phone: 978-250-3343 or apps@hittite.com...
- Page 13 When installing the software from the CD follow the directions provided by the installation program. See below for general installation process. Select the desired components with the checkboxes, and select the install button. The default installation recommended. Select Next. Order On-Line: www.hittite.com. For technical application questions: Phone: 978-250-3343 or apps@hittite.com...
- Page 14 HMC-T2100 Synthesized Signal Generator User Manual This window will be displayed during the install process. This window shows status of the install. The software is being installed. Order On-Line: www.hittite.com. For technical application questions: Phone: 978-250-3343 or apps@hittite.com...
- Page 15 Select Close. Change the install directory if desired, and then select the large button on the top left. It is recommended that the installation is to the default directory. Order On-Line: www.hittite.com. For technical application questions: Phone: 978-250-3343 or apps@hittite.com...
- Page 16 Select the desired folder name and location, and select whether you want anyone who uses this computer to be able to run the application. The default folder location is recommended. Select the Program Group for installation. Hittite is the recommended group. Select OK.
- Page 17 HMC-T2100 Synthesized Signal Generator User Manual This window displays software installation progress. Select Close. The installation of all software components is done. Order On-Line: www.hittite.com. For technical application questions: Phone: 978-250-3343 or apps@hittite.com...
-
Page 18: Maintenance
6.2 Instrument Calibration The instrument is supplied with a Hittite software application to support the calibration of the unit’s output power. A picture of the GUI is shown in fi gure 8. The software will provide information related to the required equipment, and setup for the calibration. - Page 19 From the Optional precision attenuator pull down menu, select the amount of attenuation between at the output of the HMC-T2100 and the Power Meter. Verify power is ON to the HMC-T2100 and select “Initialize T2100” and verify the following window appears: Select OK Select Calibrate.
-
Page 20: Programming
Windows XP® operating system. Also included is a Programmer’s Reference Guide which provides the primary software commands, GUI source codes and C language support that permits customized control compatible with Labview® or LabWindows® routines. Order On-Line: www.hittite.com. For technical application questions: Phone: 978-250-3343 or apps@hittite.com... -
Page 21: Technical Support
Seller reserves the right to impose a reasonable charge on Buyer for evaluation and repair of returned goods under certain conditions. The full text of the instrumentation warranty and returns warranty can be found in the on-line Hittite Microwave Terms and Conditions of Sale http://www.hittite.com/content/documents/terms.pdf 10. - Page 22 Vector Technologies LTD +30-210-68-58-008 Turkey: Spark Olcum Teknolojileri Ltd. S +90 (312) 466 821 Order On-Line at: www.hittite.com Receive the latest product releases - click on “My Subscription” 20 Alpha Road Chelmsford, MA 01824 Phone: 978-250-3343 • Fax: 978-250-3373 • sales@hittite.com...
