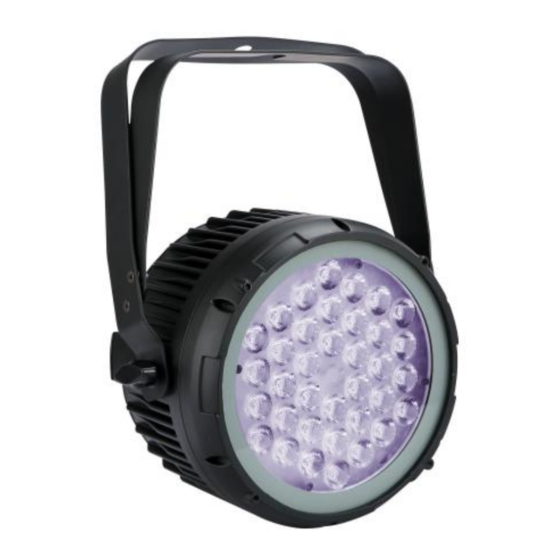

Vello Elf UV36 User Manual

Vello Elf UV36 User Manual

Advertisement

Quick Links

Introduction

Unpacking: Thank you for purchasing VELLO. Every suit has been thoroughly tested and shipped in
perfect condition. Carefully check the shipping carton for damage that may have occurred during shipping.
If the carton appears to be damaged, carefully inspect your unit for any damage and be sure all
accessories necessary to operate the unit has arrived intactly. In the case damage has been found or parts
are missing, please contact the manufacturer or your dealer for further instructions. Do not return this unit
to your dealer without any warning.
Warning:
To prevent or reduce the risk of electrical shock or fire, do not expose this to rain or moisture.
Caution:
There are no user serviceable parts inside this unit. Do not attempt any repairs yourself; doing so will void
your manufacturer warranty. In the unlikely event your unit may require service please contact the
manufacturer or your dealer.
Please recycle the shipping carton whenever possible.

General Instructions

To optimize the performance of this product, please read these operating instructions carefully to familiarize
you with the basic operations of this unit. These instructions contain important safety information regarding
the use and maintenance of this unit. Please keep this manual with the unit, for future reference.

Features

●UV-Colors
●Speed Strobe
●Electronic Dimming 0-100%
●DMX-512 protocol

Safety Precautions

● To reduce the risk of electrical shock or fire, do not expose this unit to moisture.
● Do not spill water or other liquids into or on to your unit.
● Be sure that the local power outlet match that of the required voltage for your unit,
● Do not attempt to operate this unit if the power cord has been frayed or broken. Do not attempt to
remove or break off the ground prong from the electrical cord. This prong is used to reduce the risk of
LED Elf UV36 User Manual
● Master/Slave synchronization
● LED operation menu with function buttons
● Sound active mode
● Daisy Chain Units Together in DMX Mode
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elf UV36 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vello Elf UV36

  • Page 1 LED Elf UV36 User Manual Introduction Unpacking: Thank you for purchasing VELLO. Every suit has been thoroughly tested and shipped in perfect condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your unit for any damage and be sure all accessories necessary to operate the unit has arrived intactly.
  • Page 2 electrical shock and fire in case of an internal short. ● Disconnect from main power before making any type of connection. ● Do not remove the cover under any conditions. There are user serviceable parts inside. ● Never operate this unit when its rear cover is removed. ●...
  • Page 3 DMX traits. 3. To run your unit in DMX mode, plug in the unit via the XLR connections to any standard DMX controller. Set your desired DMX address following the setup specifications that come with your DMX controller. Touch Buttons There are four touch buttons under the LED display: Menu, Up, Down, Enter.
  • Page 4 DMX Chart: Mode P Channel Function Value Dimmer 0-255 Mode A: Channel Function Value UV Intensity 0-255 UV Intensity 0-255 Mode F Channel Function Value Dimmer 0-255 UV Intensity 0-255 UV Intensity 0-255 Mode D Channel Function Value Dimmer 0-255 Strobe 0-255 UV Intensity...
  • Page 5 Unit does not respond to sound: Quiet or high pitched sounds will not activate the unit. If problems are not resolved, contact Your dealer for service. Specifications Model: LED Elf UV36 Working Position: Any safe working position Voltage: 90-250V / 50~60Hz Power: 120W Housing material: Die-casting aluminum housing LED Lamp :Tianxin high power LEDs;...
