Installation GUIDE FOR ASH3809B and ASH3809B1
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, install or operate the product.
WARNING
• RISK OF ELECTRIC SHOCK - Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
• RISK OF FIRE - Use bulbs specified by the markings and/or labels on the fixture.
CAUTION
• For your safety, read instructions completely before beginning installation.
• If in doubt about electrical installation, consult a licensed electrician.
• Turn off electricity to fixture before replacing the bulb(s).

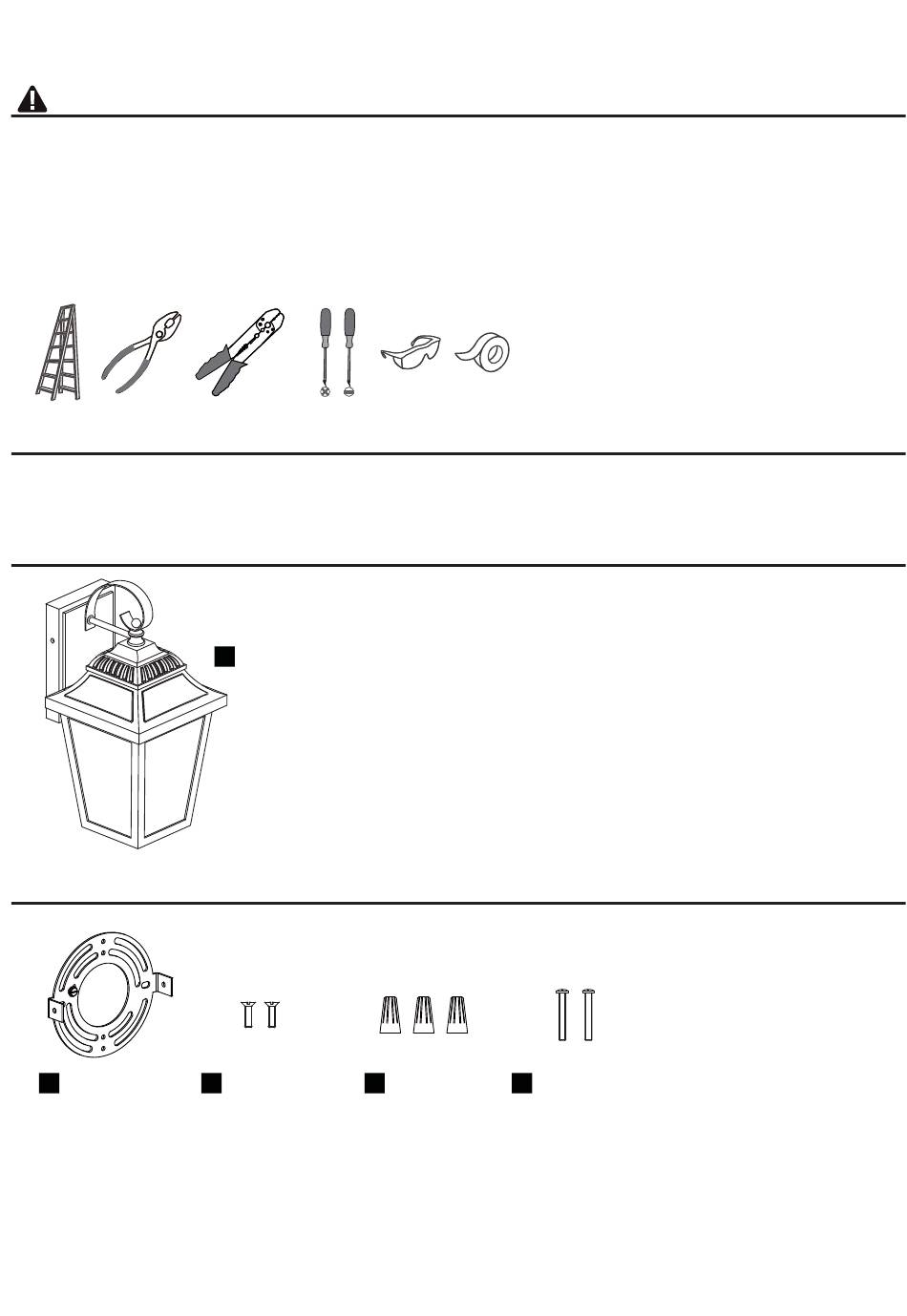

TOOLS REQUIRED
CARE AND MAINTENANCE
• Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
If you need further assistance email customercare@ashleyharbour.com.
PACKAGE CONTENTS
MOUNTING HARDWARE
Inner Backplate
AA
x 1
Fixture Body
A
x 1
Mounting Screw
BB
CC
x 2
Wire Connector
Outlet Box Screw
DD
x 3
x 2
- 1 -
Released Date: 2020-12-09
