Summary of Contents for Newworld NWCTDW-521

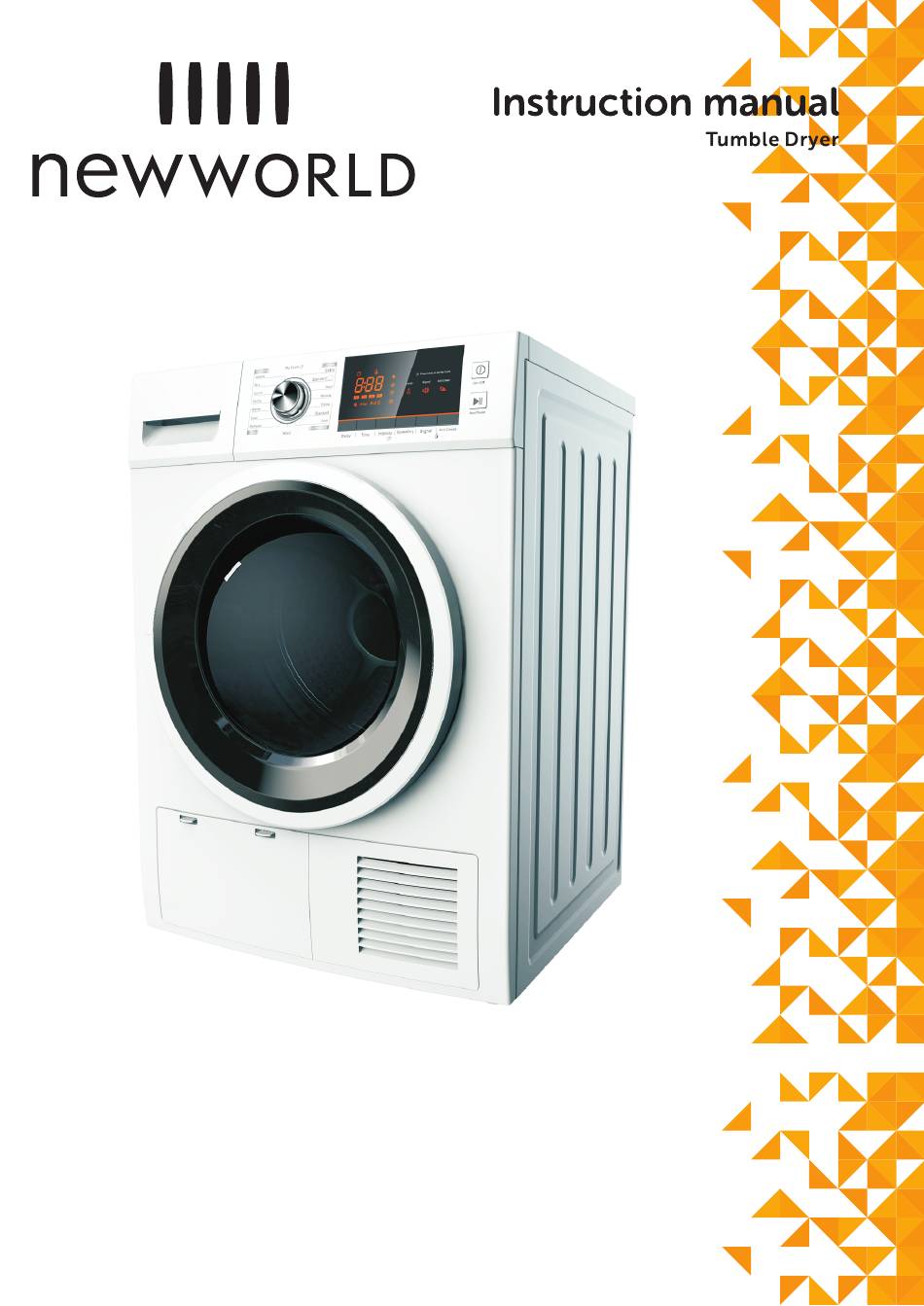

- Page 1 NWCTDW-521...
- Page 2 2021-7-21...
- Page 7 WARNING: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility. Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.
- Page 12 NW 8KG COND WT TD...
- Page 18 Display On/Off Product is switched on or off. This display shows the setting, estimated program time remaining and status messages of your dryer. Start/Pause Press the button to start or pause the Programmes drying cycle. Different drying cycles can be selected according to the users need and the type of Option laundry to be dried.
- Page 19 Programmes Programme selector 1.When the LED display screen brightens up, rotate the programme knob to select the desired programme. 2.Select the【Delay】, 【Time】, 【Intensity】, 【Speed Dry】, or【Anti-Crease】 functions for additional options. 3.Press the【Start/Pause】button. 4.Press the【On/Off】button after the programme has comlpeted. Programme start The drum will rotate after the programme starts.
- Page 20 Speed Dry Use this option to shorten the drying time. The【CottonExtra】, 【Cotton Standard】, 【Mix】and【Jeans】programme can use this function. Signal Set the buzzer on or off. In default condition, the buzzer is on. Please touch it if needed. When the buzzer is on: 1.The dryer will make the leading sound if press the extra function buttons.
- Page 21 Display Delay Child lock Remaining Time indicator/Error message Clean filters (warning) Filter Empty water container (warning) Full Intensity Cycle phase status Speed dry Signal Anti-Crease My Cycle...
-
Page 22: Drying Programmes Table
Drying Programmes Table Programme Delay Time Application/Properties Load Extra For single or multi-layer cotton laundry to be dried completely direct storage. Standard 8.0kg Cotton Iron For single layer cotton laundry to remain damp ironing. For washing which is to be dried quickly,eg,made of acrylic fibres or 3.0kg Quick for individual small items. - Page 28 1.Open the door. 2.Take out the filter. (Fig4) 3.Open the filter and remove the fluff on the filter, You can clean it in water. (Fig5) 4.Dry the filter thoroughly before installing it back. Cleaning the heat exchange Leave the dryer to cool down. Residual water may leak out, place an absorbent cloth under the maintenance cover.
- Page 29 (Fig9) (Fig10)
- Page 31 NW 8KG COND WT TD 560.9 2700...
-
Page 32: Product Fiches
Product Fiches Product Fiches NW 8KG COND WT TD Model Rated Capacity Condenser Dryer Type Energy efficiency class ❶ 560.9kWh / year Weighted annual energy consumption ( AE ) Automatic Automatic or non-automatic EU Ecolabel Energy consumption of the standard cotton programme 3.50kWh Weighted energy consumption of the standard cotton programme at full and partial load 4.74kWh... - Page 36 Spare Parts Supply To order spare parts, please contact our customer helpline: 0333 305 2263. The original spare parts for some specific components are available for a period of 10 years, based on the type of component, from the placing on the market of the last unit of the model.
- Page 40 Safety:Electrical Equipment (Safety) Regulations 2016 Energy:The Ecodesign for Energy-Related Products Regulations 2010 EMC:S.I. 2016/1091 Rohs:The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012...
