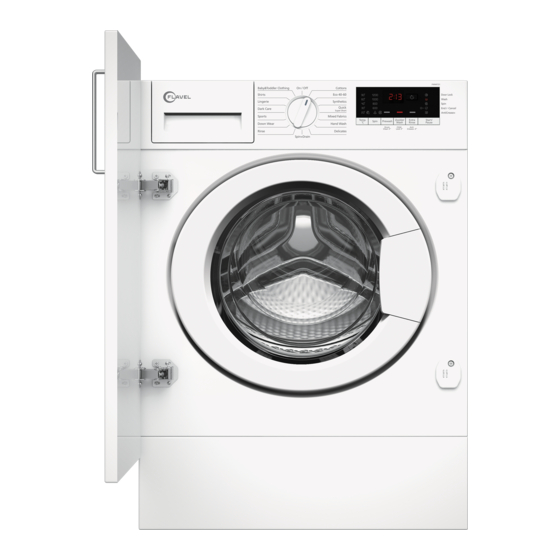

Flavel FWMI721 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Flavel Manuals
  4. Washer
  5. FWMI721
  6. Operating instructions manual

Flavel FWMI721 Operating Instructions Manual

Full automatic washing machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Full Automatic
Washing Machine
Operating Instructions
FWMI721
Document Number :
2820528925_EN/ 06-10-20.(14:36)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FWMI721 and is the answer not in the manual?

Questions and answers

Related Manuals for Flavel FWMI721

Summary of Contents for Flavel FWMI721

  • Page 1 Full Automatic Washing Machine Operating Instructions FWMI721 Document Number : 2820528925_EN/ 06-10-20.(14:36)
  • Page 2 Please read these instructions first before using your appliance Dear Customer, Thank you for choosing a Flavel appliance. Please take some time to read this user manual before using your appliance, to ensure you know how to safely operate the controls and functions.

  • Page 3: General Safety Instructions

    1 General safety instructions • While there is still water inside the product, never open the This section includes security loading door or remove the filter. instructions which may help prevent Otherwise, risk of flooding and the injuries and material damage risks. injury from hot water will occur.

  • Page 4: Children's Safety

    1.3 Children’s safety CAUTION! • Do not forget to close the CAUTION! loading door when leaving the • This product can be used room where the product is by children at and above 8 located. years old and by persons •...

  • Page 5: Important Instructions For Environment

    This product has been manufactured with high DANGER quality parts and materials which can be reused and are suitable for recycling. Do not dispose • Do not wash the product by of the waste product with normal domestic spraying or pouring water onto and other wastes at the end of its service life.

  • Page 6: Technical Specifications

    4 Technical specifications Supplier name or trademark FLAVEL FWMI721 Model name 7179242500 Rated capacity (kg) Maximum spin speed (rpm) 1200 Built-in Height (cm) Width (cm) Depth (cm) Single Water inlet / Double Water inlet • / - • Available Electrical input (V/Hz)

  • Page 7: Appropriate Installation Location

    4.1 Installation 4.1.3 Removing the transportation locks • Apply to the nearest authorised service agent for the installation of your product. 1 Loosen all bolts with an appropriate wrench until they turn freely. • Preparation of the location and electrical, tap water and waste water installations at 2 Remove the transport safety bolts by the place of installation is under customer's...

  • Page 8: Connecting The Drain Hose To The Drain

    • In case the drain hose is elevated after laying it on the floor level or close to the ground (less than 40 cm above the ground), water discharge becomes more difficult and the laundry may come out excessively wet. Therefore, follow the heights described in the figure.

  • Page 9: Electrical Connection

    Adjusting the feet with water level • The voltage specified in the “Technical specifications” section must be equal to your mains voltage. • Do not make connections via extension cables or multi-plugs. CAUTION! • Damaged power cables must be replaced by the Authorised Service Agents.
  • Page 10 4.1.8 Initial use Important Fitting a different plug Before starting to use the product make sure that As the colours of the the preparations wires in the mains are made which lead of this appliance are in line with the may not correspond “Important Safety with the coloured...
  • Page 11 4.2 Preparation 4.2.3 Tips for energy and water saving Following information will help you use the 4.2.1 Sorting the laundry product in an ecological and energy/water- • Sort laundry according to type of fabric, efficient manner. colour, and degree of soiling and allowable •...
  • Page 12 4.2.6 Using detergent and softener The detergent drawer compartments are indicated below: Choosing the detergent type 1) Left compartment with number “II” (Main Detergent type to be used depends on the wash compartment for powder detergent or washing programme, fabric type and color. powder bleach/stain remover) •...
  • Page 13 Starch Do not fill the detergent above the maximum filling level line; otherwise the excess amount of • Add liquid starch, powder starch or the detergent will reach the laundry without water dyestuff into the softener compartment as and may cause stains on the garments.In this instructed on the package.

  • Page 14: Tips For Efficient Washing

    4.2.7 Tips for efficient washing Clothes Delicates/ Light colours and whites Colours Dark colours Woolens/Silks (Recommended (Recommended (Recommended temperature (Recommended temperature temperature range temperature range range based on soiling level: range based on soiling level: based on soiling level: based on soiling level: 40-90ºC) cold-40ºC) cold-40ºC)

  • Page 15: Operating The Product

    4.3 Operating the product 1 - Programme Selection Knob (Uppermost position On / Off) 4.3.1 Control panel 2 - Display 3 - End Time Adjustment Button 4 - Programme Follow-up Indicator 5 - Start/Pause Button 6 - Auxiliary Function Button 3 7 - Auxiliary Function Button 2 8 - Auxiliary Function Button 1 9 - Spin Speed Adjustment Button...
  • Page 16 • : Selectable * : Automatically selected, cannot be cancelled. ** : Eco 40-60 ( ) is the test programme in accordance with EN 60456:2016 and energy label with Commission Delegated Regulation (EU) 1061/2010 ***: Eco 40-60 with 40 °C temperature selection is the test programme in accordance with EN 60456:2016/prA:2020 and energy label with Commission Delegated Regulation (EU) 2019/2014 - : See the programme description for maximum load.

  • Page 17: Main Programmes

    4.3.5 Main programmes Baby&Toddler Clothing ) • Depending on the type of fabric, use the Use this programme for laundry that requires following main programmes. an intense, long, anti-allergic and hygienic washing cycle at high temperature. A high • Cottons level of hygiene is ensured thanks to the long You can wash your durable cotton laundry heating and additional rinsing step.

  • Page 18: Special Programmes

    Mixed Fabrics • • Spin+Drain You can use this programme to wash cottons and Use this programme to remove the water on synthetics together without the need to sort them. the clothes/in the machine. Before selecting this programme, select the desired spin speed and press Start/Pause Shirts •...

  • Page 19: Functions/Programmes Selected By Pressing The Function Buttons For 3 Seconds

    Rinse hold 4.3.10.1 Auxiliary functions If you are not going to unload your clothes Prewash • immediately after the programme ends, you can use A Prewash is only worthwhile for heavily soiled rinse hold function to keep your laundry in the final laundry.
  • Page 20 • Child Lock • AntiCrease+ You can prevent children from tampering with If you press and hold the auxiliary function button the machine by using the Child Lock feature. 3 for 3 seconds, this function will be selected Thus you can avoid any changes in a running and the programme follow-up light of the relevant programme.
  • Page 21 Changing the delayed end time You can change the auxiliary functions, speed and temperature settings without stopping the If you want to change the time during countdown: programme flow while the programme is running. Turn the programme selection knob to cancel the To do this, the change you are going to make delayed end time function, and then set the desired must be something that will be carried out after...

  • Page 22: Cancelling The Programme

    Opening the loading door in case of power Changing the auxiliary function, speed and failure: temperature Depending on the step the programme has reached, you can cancel or select auxiliary INFORMATION functions. See “Auxiliary function selection”. • In case of a power failure, you can use the You can also change the speed and loading door emergency handle under the pump temperature settings.

  • Page 23: Maintenance And Cleaning

    4.4 Maintenance and cleaning 4.3.17 End of programme At the end of the programme, “End” will be Service life of the product extends and displayed. frequently faced problems decrease if cleaned 1. Wait until the light of the loading door goes at regular intervals.

  • Page 24: Cleaning The Body And Control Panel

    2. Remove the nuts of the water intake hoses After every washing to access the filters on the water intake make sure that no foreign valves. Clean them with an appropriate substance is left in the brush. If the filters are too dirty, take them drum.

  • Page 25: Troubleshooting

    5 Troubleshooting 2. Some of our products have emergency draining hose and some does not have. Follow the steps below to discharge the Programmes do not start after the loading door is closed. water. • Start / Pause / Cancel button is not pressed. >>>Press Discharging the water when the product has Start / Pause / Cancel button.
  • Page 26 Loading door cannot be opened. Washing performance is poor: Laundry turns gray. (**) • Loading door lock is activated because of the water level in • Insufficient amount of detergent has been used over a long the product. >>>Drain the water by running the Pump or period of time.
  • Page 27 Washing machine does not rinse well. Too much foam forms inside the product. (**) • The amount, brand and storage conditions of the detergent • Improper detergents for the washing machine is used. used are inappropriate. >>>Use a detergent appropriate >>>Use detergents appropriate for the washing machine.

  • Page 28: Built-In Installation

    6 BUILT-IN INSTALLATION Ø 4 x 16mm M 5 x 10mm 5 8 0 6 0 0 m 28 / EN Washing Machine / User’s Manual...
  • Page 29 29 / EN Washing Machine / User’s Manual...
  • Page 30 30 / EN Washing Machine / User’s Manual...
  • Page 31 31 / EN Washing Machine / User’s Manual...
  • Page 32 32 / EN Washing Machine / User’s Manual...
  • Page 33 33 / EN Washing Machine / User’s Manual...
  • Page 34 34 / EN Washing Machine / User’s Manual...
  • Page 35 Accidental damage, misuse or abuse of a product. An attempted repair of a product by anyone other than a Flavel Approved Engineer (the “Engineer”). Installation or use of a product where such installation or use fails to meet the requirements contained in this guarantee or the User Instructions Booklet.
  • Page 36 Beko plc is registered in England and Wales with company registration number 02415578. FLAVEL UK AND NORTHERN IRELAND BUILT-IN APPLIANCES GUARANTEE TERMS AND CONDITIONS If you have purchased a built-in or integrated appliance in the United Kingdom or Northern Ireland, then the standard 12 month guarantee will be extended to 24 months, under the same terms and conditions as detailed in our Standard Guarantee Terms and Conditions.
  • Page 37 HOW TO OBTAIN SERVICE FOR YOUR APPLIANCE Please keep your purchase receipt or other proof of purchase details in a safe place; you will need to have this documentation available should the product require attention under guarantee. Please take a few moments to complete the details below, as you will need this information when you call us, or to use our online services.
